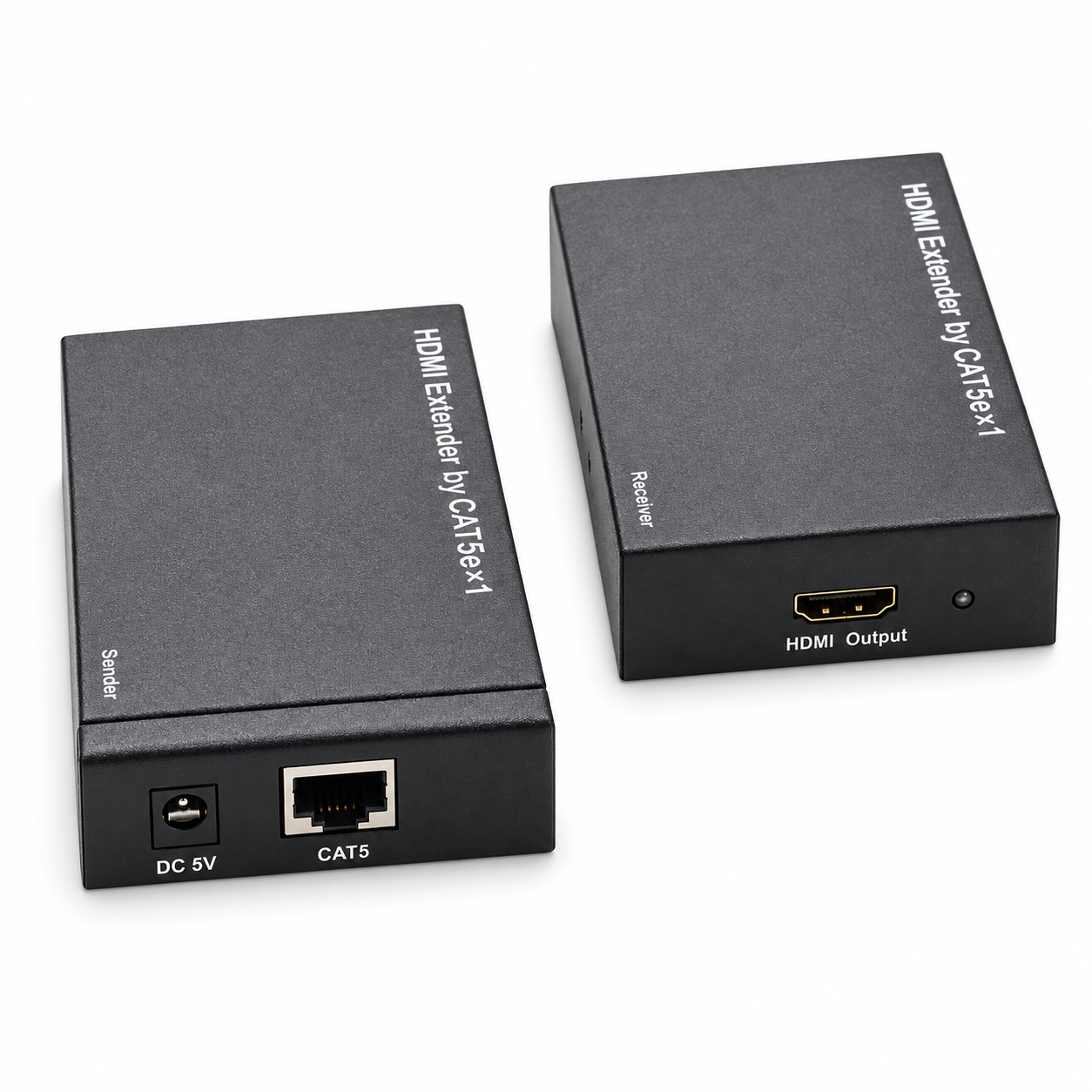

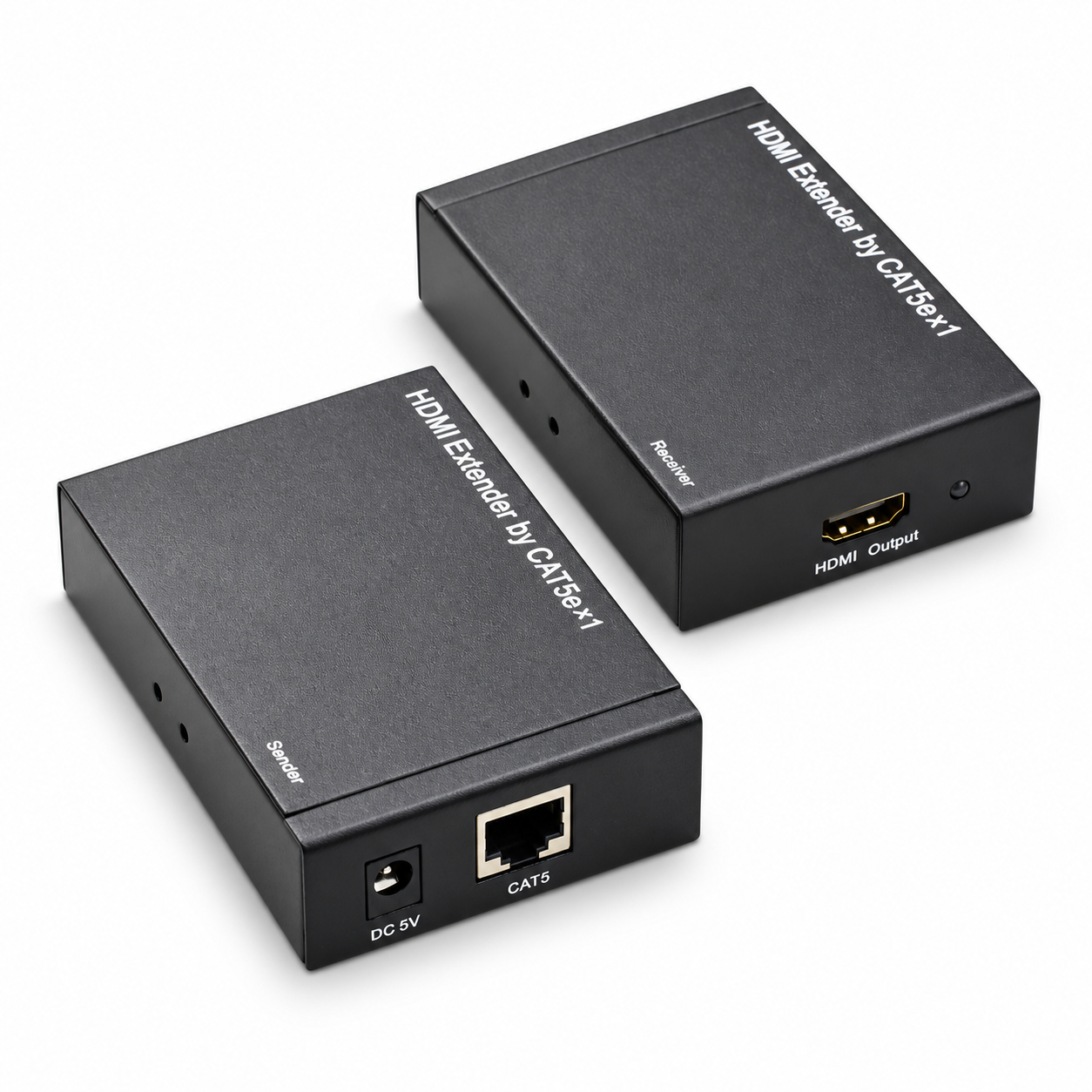

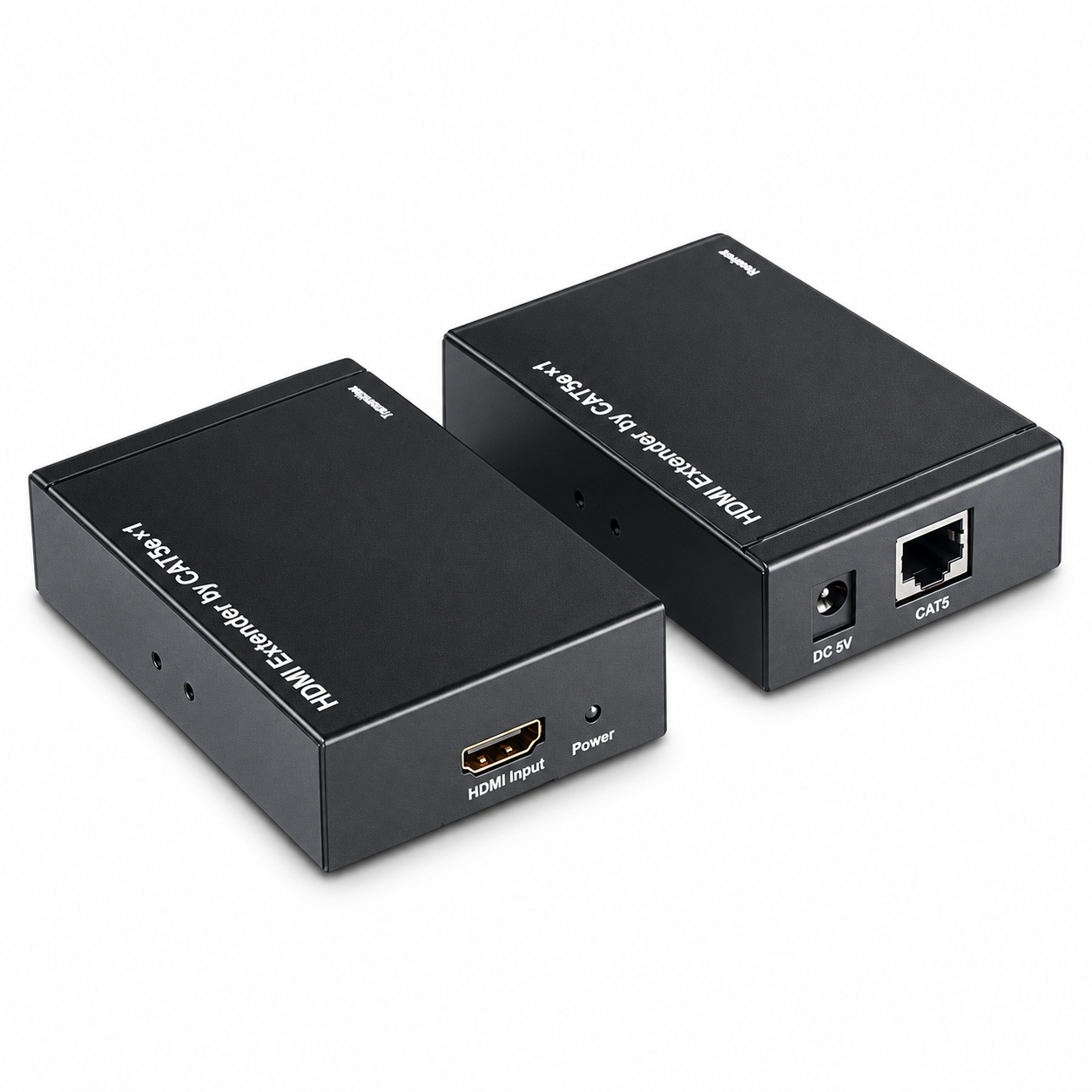

198ft/60M HDMI Extender over Cat5/6 Cable

  • $35.99
    Unit price per
  • Save $14


Introduction
This HDMI Extender by CAT5 x1 uses one piece of CAT5e/6 cable to extend the HDTV display up to 60 meters for 1080p. It not only breaks the limitation of the HDMI cable transmission length,but also has more flexibility and convenience in cable construction.
It is equipped with HDMI (high definition multimedia interface) connector and is capable of supporting DVI (digital visual interface) equipment when used with an HDMI to DVI Adapter, providing greater flexibility and options when integrating several home theater components.
This product offers solutions for residential consumers: HDTV retail and show site, HDTV, STUB, DVD and Projector factories, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Features
This HDMI Extender has many features that enable it to perform in a superior manner. Among those features you will find:
* One pair as a full functional module, no need of setting.
* One piece of CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
* Follow the standard of IEEE-568B.
* Transmission distance can be up to 60 meters for 1080P using CAT-6 Cable.
* Auto-adjustment of feedback, equalization and amplify, the user does not need to care about the length of the cable.
* Compact size.
* Signaling rates up to1.65Gbps in support of 1080P display.


SPECIFICATIONS
Signal Inputs/Output
Input Video Signal.....................................0.5-1.0 volts p-p
Input DDC Signal..............................................5 volts p-p (TTL)
Maximum Single Link Range...............................1920X1200, 1080P
Output Video.............................................HDMI 1.2a + HDCP 1.0/1.1
HDMI Input/Output Connector..................Type A 19 pin
Transmission distance
Using CAT6 Cable................................50M for 1080p
Video format supported
DTV/HDTV.............................................480i/576i/480p/576p/720p/1080i/1080P
Digital Signal I/O
HDMI Compliance.......................................................HDMI 1.3b
Operating Frequency
Frequency.......................................................Up to165MHz
Resolutions(HDTV)
Interlaced(50&60Hz).....................................................480i,576i,1080i
Progressive(50&60Hz)...................................................480p,576p,720p,1080p
Power Consumption............................................5Watts(max.)
Warranty
Limited Warranty.............................................1 Year Parts and Labor
Environmental
Operating Temperature.....................0 to +70
Operating Humidity..............................10% to 85 % RH (no condensation)
Storage Temperature............................-10 to +80
Storage Humidity........................................5% to 90 % RH (no condensation)
Power Requirement
External Power Supply..............................5V DC  2A ,except 1x4(2.5A)1x8(3A)
