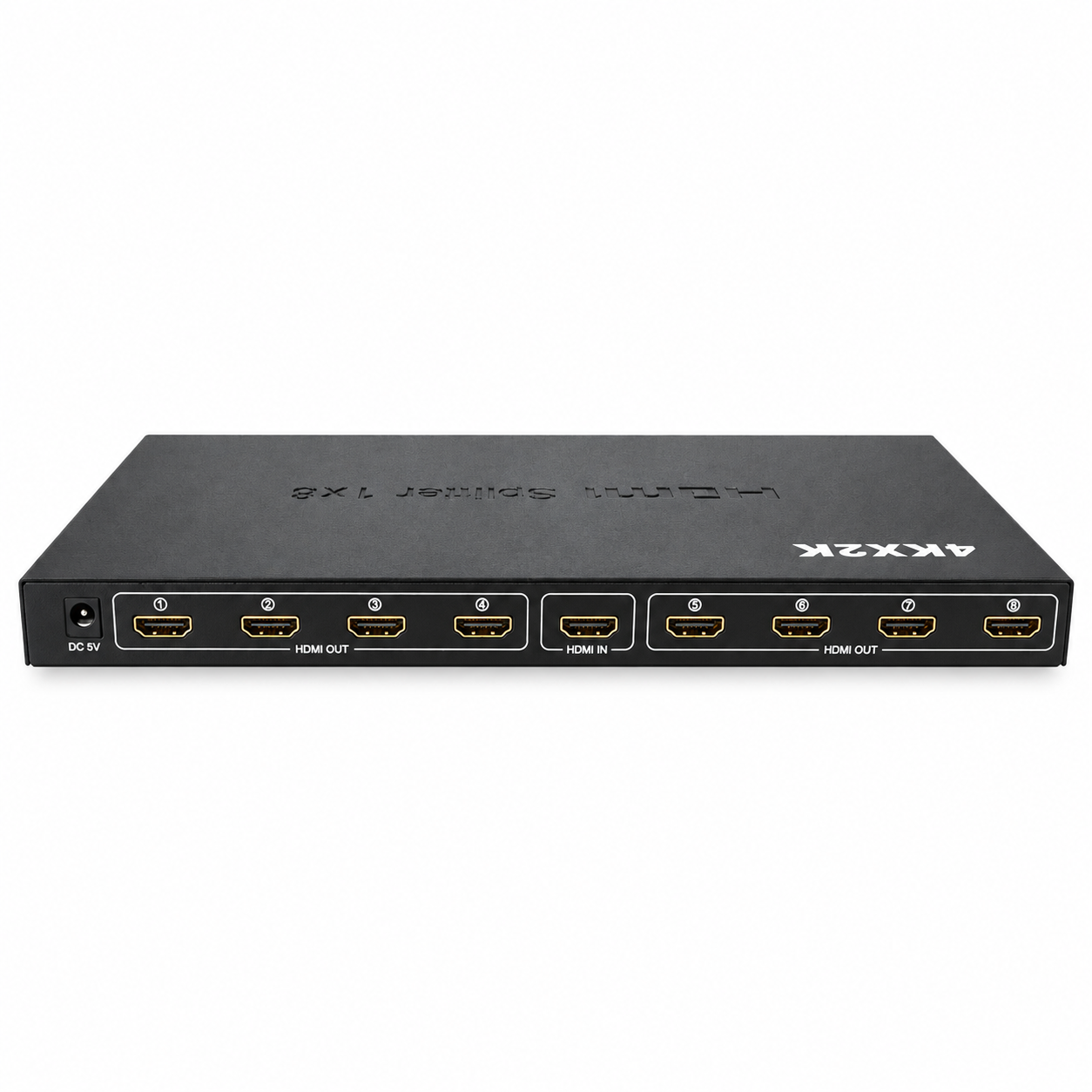

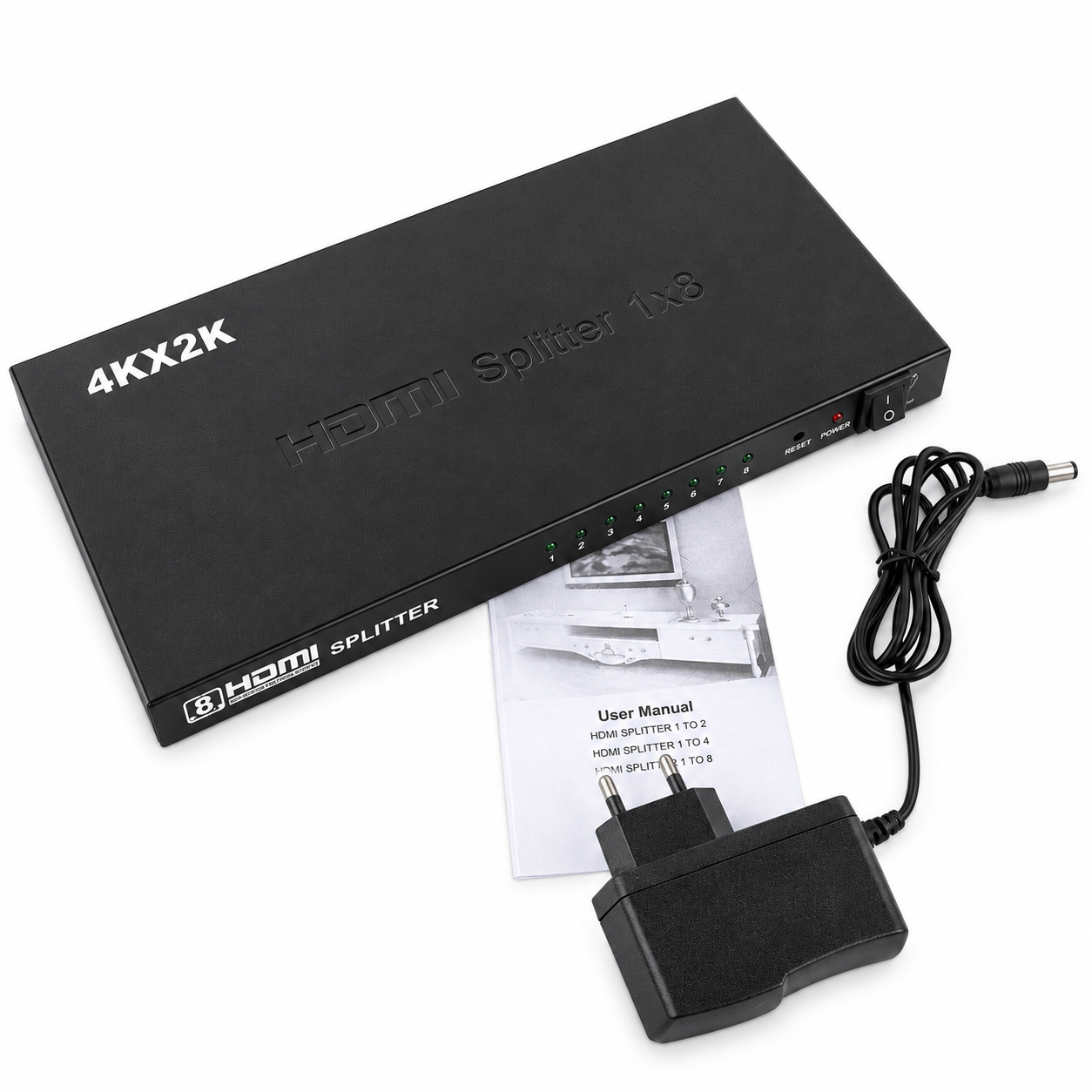

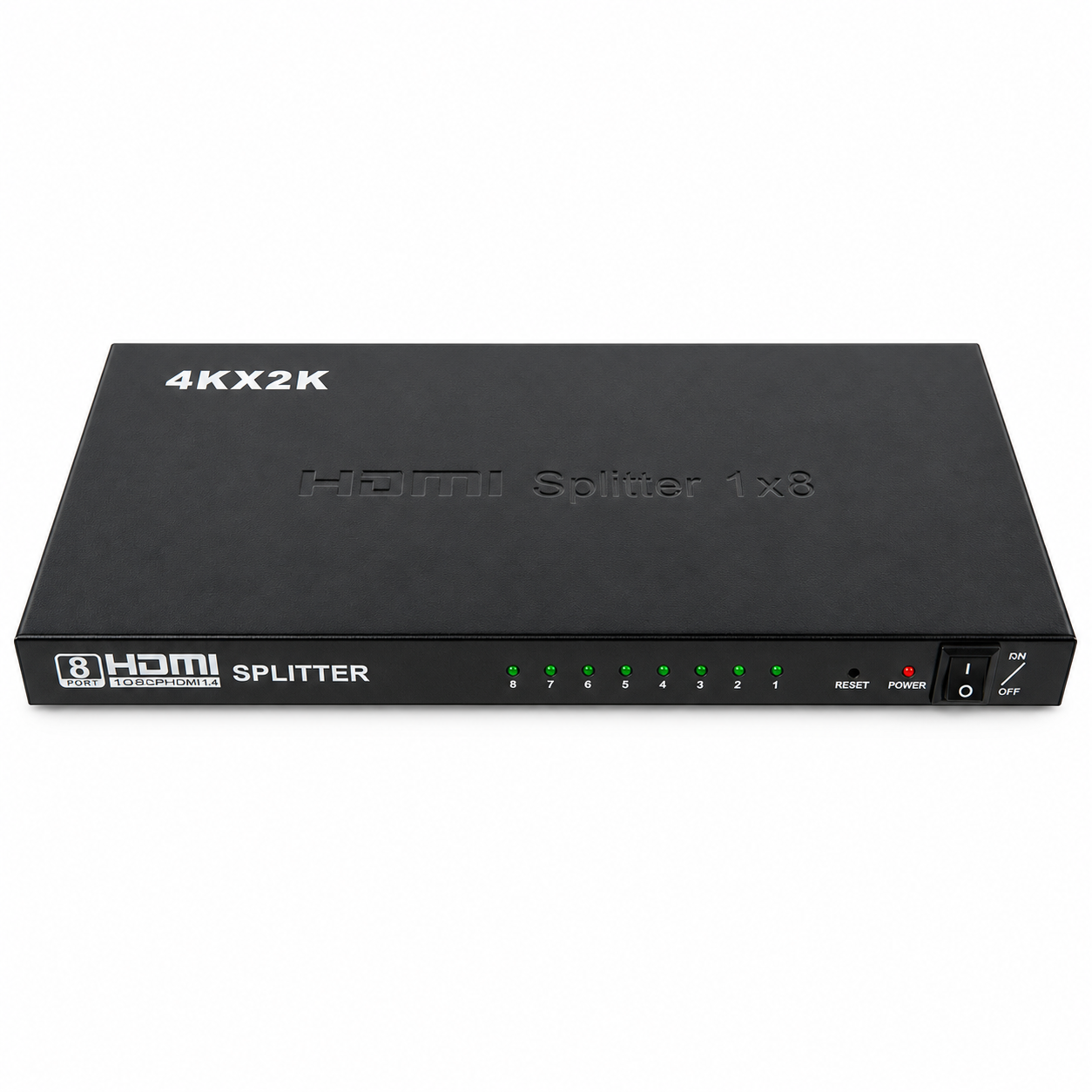

HDMI SPLITTER 1 TO 8 (4Kx2K)
This 1x8 HDMI splitter can connect Set-Top-Box, DVD player, laptop, PS3, PS4, XBOX, HDTV or other HD devices to 4 display devices via HDMI output interfaces and let the 4 display devices show the same picture.
Features:
l 1 X HDMI input, 8 X HDMI output.
l HDMI resolution up to 4Kx2K/30fs
l Supports Automatic EDID ,Support differernt resolution output
l Support Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC.
l Support audio fromat
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD
l Support signal Re-Timing.
l Use AWG 26HDMI 2.0 standard cable,input
l transmission distance up to 3m, output transmission
distance up to 3m.
l Transmit lossless audio and video signal without delay.
l Simple to install.
Specifications:
Suppoort HDMI HDCP Version ............................................HDCP 2.2
HDMI Input/Output Resolution.........................................Up to4K/60fs
Support HDMI Video Color Format............................................2160p, 10/12 bits,24/25/30Hz, 2160p, 10/12 bits, 50/60Hz
HDMI MaxBandwidth..............................................................600MHz
HDMI Audio Forma……………...…DTS-HD/Dolby-TrueHD/LPCM7.1/
DTS/olby-AC3/DSD
HDMI Max Baud Rate..............................................................18Gbps
Input Output TMDS Signal.......................................0.5~1.5Vp-p(TTL)
Input Output DDC Signal....................................................5Vp-p(TTL)
HDMI Input Cable Distance..........=3m AWG26 HDMI Standard Cable
HDMI Output Cable Distance.......=3m AWG26 HDMI Standard Cable
Max Working Current................................................................300mA
Power Adapter Format..................AC 100V-240V 50/60HZ,DC 5V/1A
Operating Temperature Range............................................-10~+55?
Storage Temperature Range...............................................-20~+60?
Operating Humidity Range..............10~90%RH(No Condensation)
Storage Humidity Range....................5~95%RH(No Condensation)
Case Dimension.....................................................112×55×18(mm)
Weight..........................................................................................235g
