UltraPoE CT-HDMI4K-1S4 1×4 HDMI Splitter – 4K
UltraPoE CT-HDMI4K-1S4 is a powered 1×4 HDMI splitter that distributes one HDMI source to four synchronized displays.
Key Features
- 1 HDMI input and 4 HDMI outputs
- Duplicates one source across four displays
- Listed support for video formats up to 4K
- Automatic EDID handling
- Signal re-timing
- HDCP 2.2 support as specified
- 5 V DC powered metal enclosure with power switch and status LEDs
Product Details
- Brand: UltraPoE
- Model / SKU: CT-HDMI4K-1S4
- Configuration: 1 input to 4 synchronized outputs
- Maximum listed bandwidth: 600 MHz / 18 Gbps
- Power: 5 V DC, 1 A
- Dimensions shown: approximately 178 × 67 × 22 mm
Typical Applications
Use with compatible media players, computers, set-top boxes, recorders, game systems, TVs, monitors, and projectors in retail displays, classrooms, conference rooms, control rooms, and home entertainment systems.
Installation Notes
Connect one HDMI source to the input and up to four displays to the outputs, then connect the supplied 5 V power adapter and switch on the unit. All outputs show the same source. The source and connected displays must negotiate a mutually compatible format. Because the legacy specifications list different 4K refresh rates, confirm the required resolution and refresh rate with the complete equipment setup before installation.
Frequently Asked Questions
Can it show four different sources?
No. It duplicates one HDMI input to four synchronized outputs.
Does it include a power adapter?

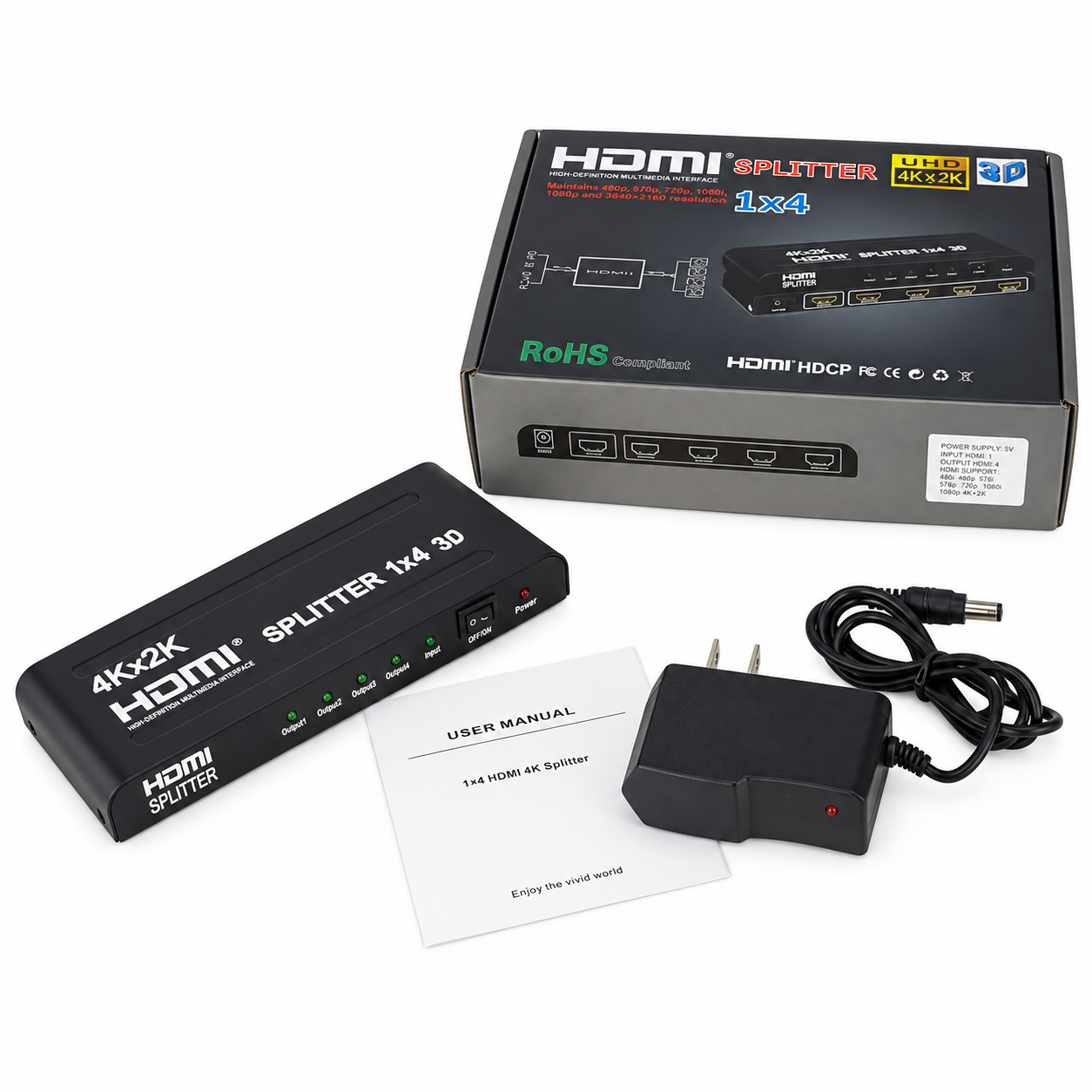

The product images show the splitter with a power adapter, user manual, and retail box.
Can the four displays use different resolutions?
The listing specifies automatic EDID handling, but actual output format depends on the source and every connected display. Matching display capabilities are recommended.
Does it support 4K at 60 Hz?
The legacy product information contains conflicting 4K refresh-rate values. Confirm 4K/60 Hz operation with the intended source, displays, and HDMI cables before permanent installation.
