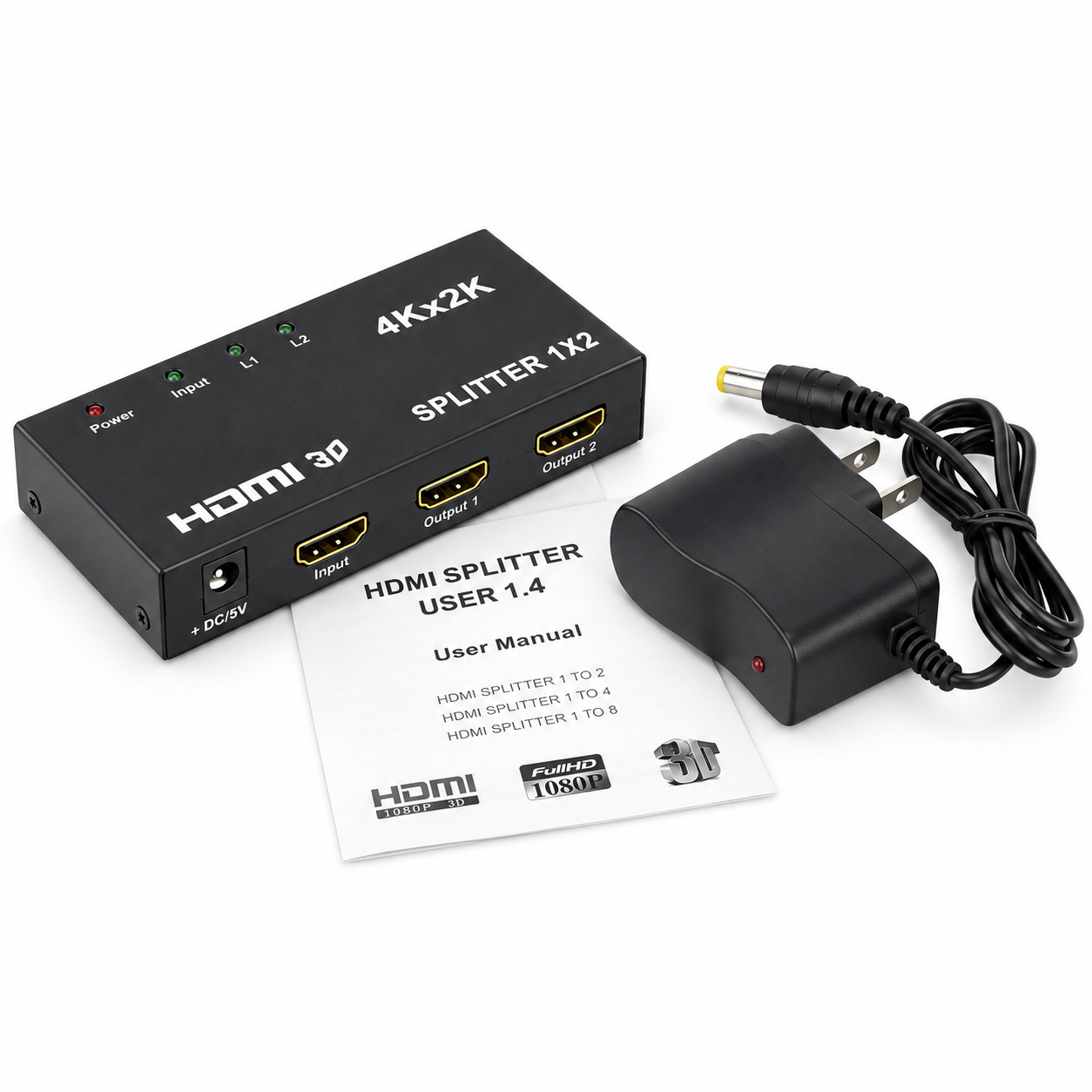

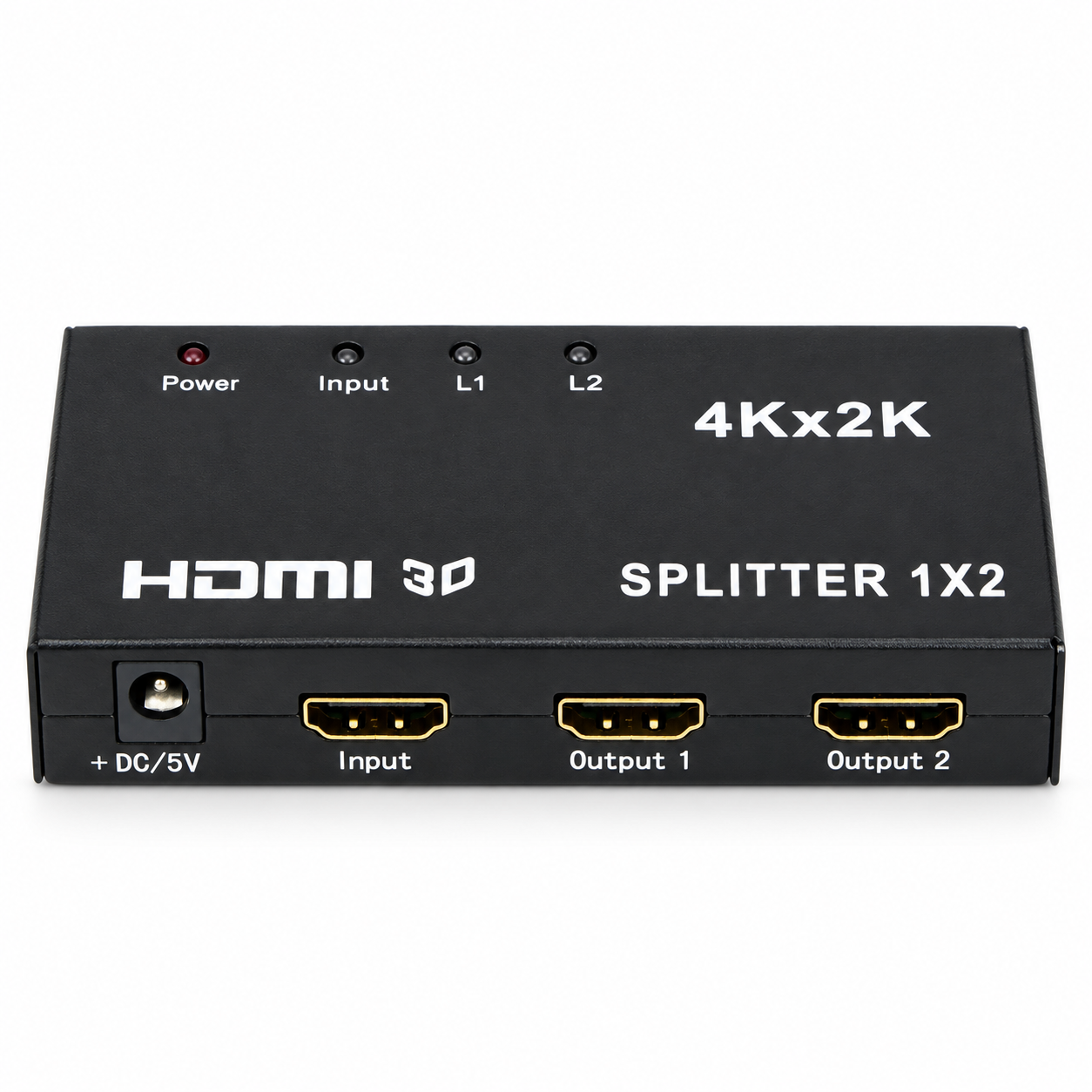

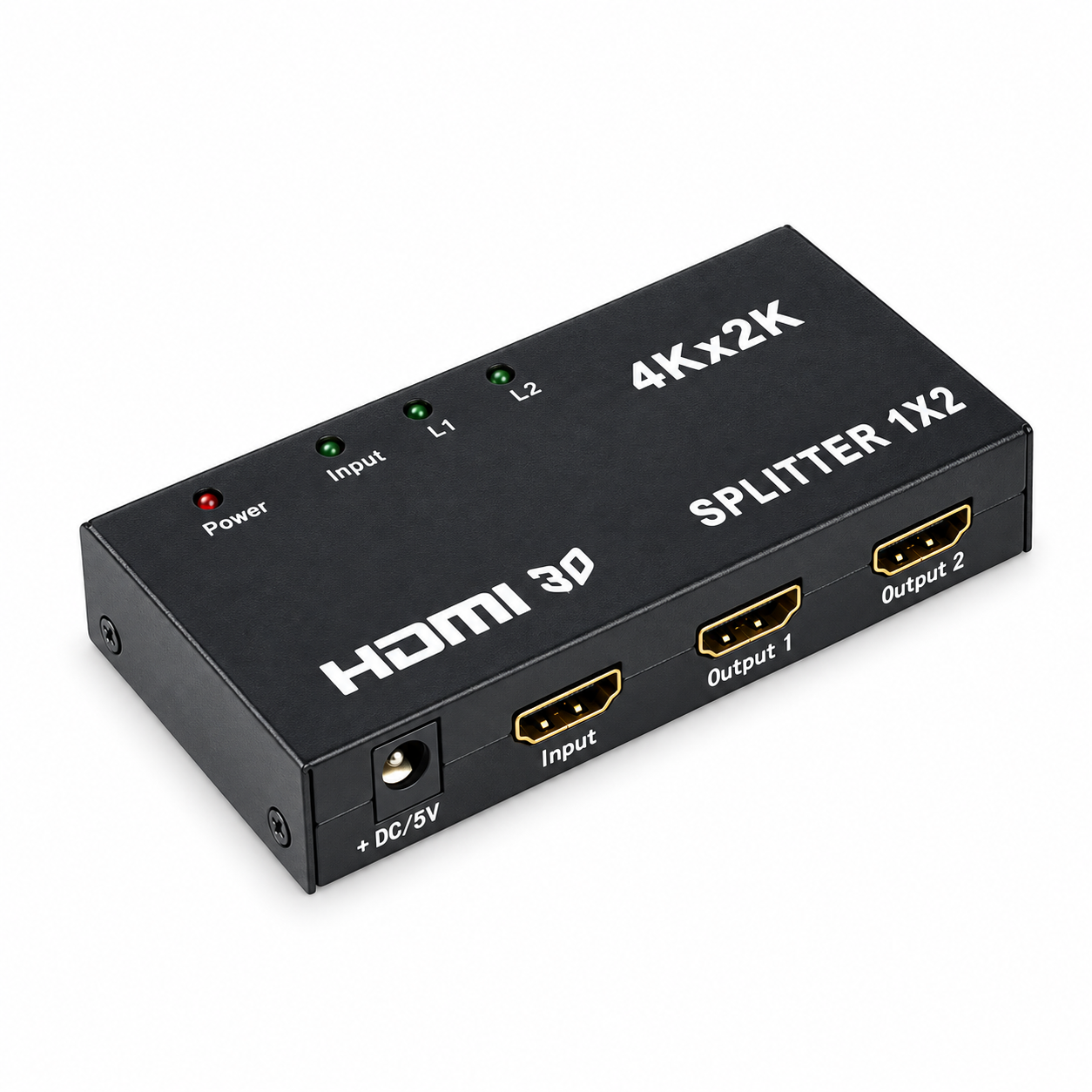

HDMI SPLITTER 1 TO 2 (4Kx2K)

1. 2 way HDMI splitter, distributes the input HDMI signals to 2/4/8 identical HDMI outputs.These 2/4/8 outputs are synchronized.
2. Best solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD, PS3 and Projector factory, space and security concerns data center control,distribution, conference room presentation, school and corporate training environments.


Features:

l 1 X HDMI input, 2 X HDMI output.

l HDMI resolution up to 4K/60fs

l Supports Automatic EDID ,Support differernt resolution output

l Support Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC.

l Support audio fromat

DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD

l Support signal Re-Timing.

l Use AWG 26HDMI 2.0 standard cable,input

l transmission distance up to 3m, output transmission

distance up to 3m.

l Transmit lossless audio and video signal without delay.

l Simple to install.

Specifications:

Suppoort HDMI HDCP Version ............................................HDCP 2.2

HDMI Input/Output Resolution.........................................Up to4K/60fs

Support HDMI Video Color Format............................................2160p, 10/12 bits,24/25/30Hz,  2160p, 10/12 bits, 50/60Hz

HDMI MaxBandwidth..............................................................600MHz

HDMI Audio Forma……………...…DTS-HD/Dolby-TrueHD/LPCM7.1/

DTS/olby-AC3/DSD

HDMI Max Baud Rate..............................................................18Gbps

Input Output TMDS Signal.......................................0.5~1.5Vp-p(TTL)

Input Output DDC Signal....................................................5Vp-p(TTL)

HDMI Input Cable Distance..........=3m AWG26 HDMI Standard Cable

HDMI Output Cable Distance.......=3m AWG26 HDMI Standard Cable

Max Working Current................................................................300mA

Power Adapter Format..................AC 100V-240V 50/60HZ,DC 5V/1A

Operating Temperature Range............................................-10~+55?

Storage Temperature Range...............................................-20~+60?

Operating Humidity Range..............10~90%RH(No Condensation)

Storage Humidity Range....................5~95%RH(No Condensation)

Case Dimension.....................................................112×55×18(mm)

Weight..........................................................................................135g
