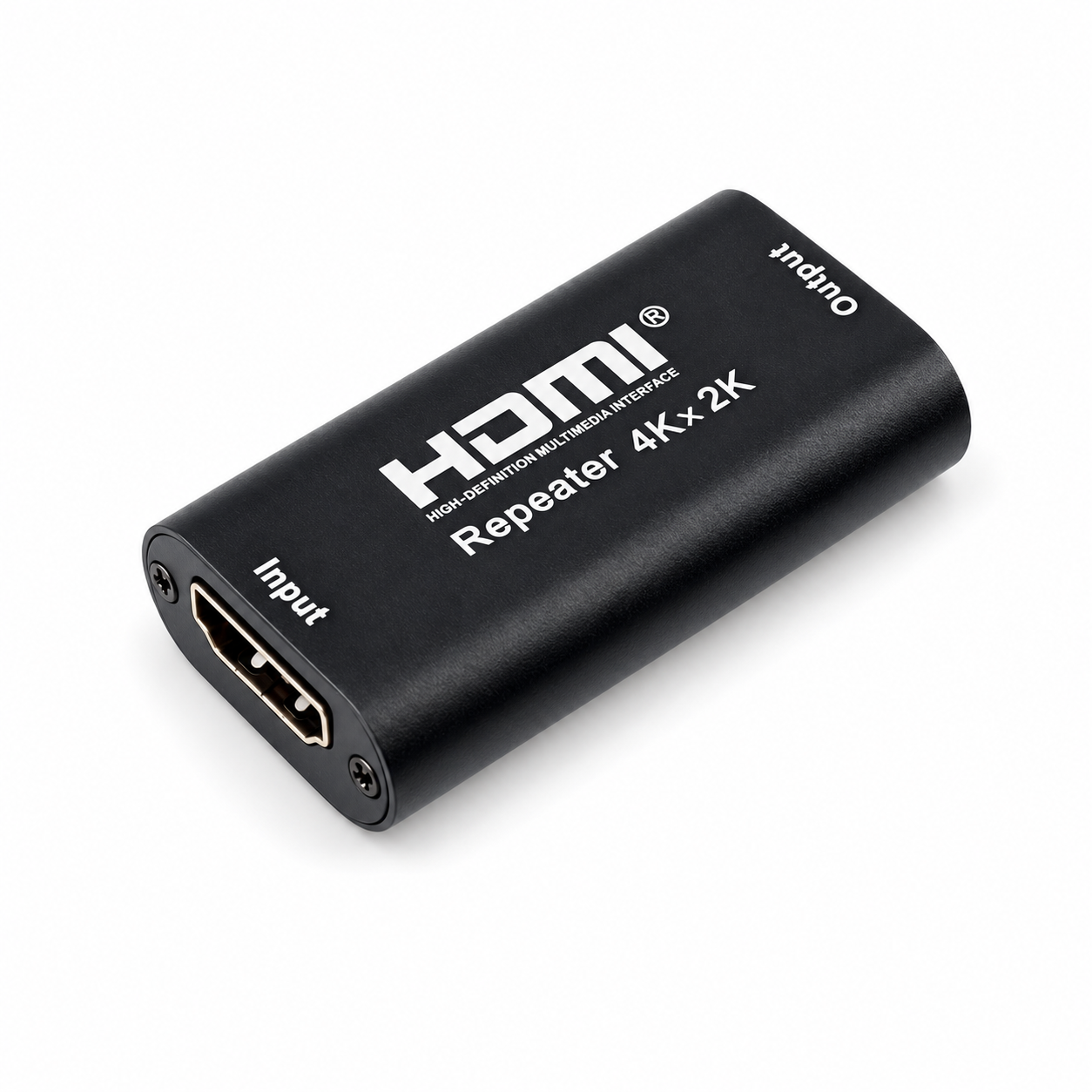

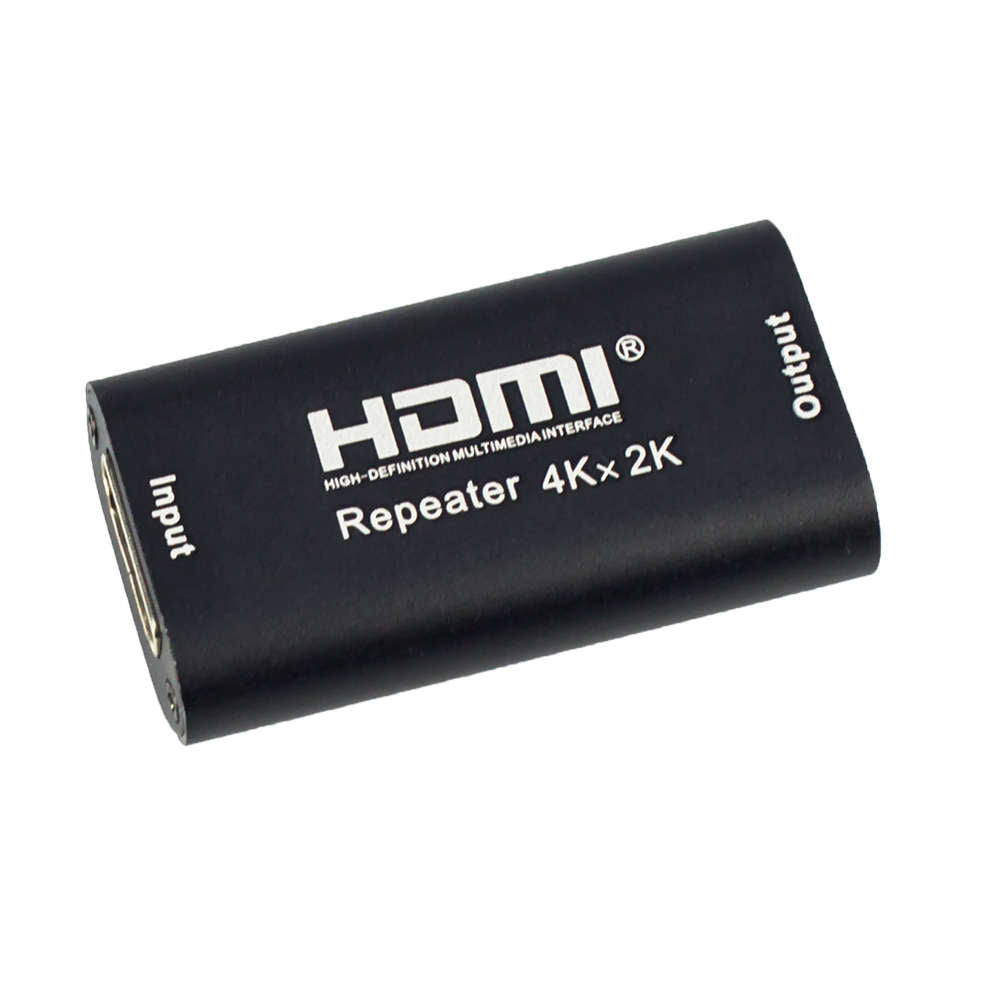

UltraPoE CT-HDMI-RP HDMI Repeater Signal Booster – 1080p, Up to 40m

HDMI Signal Repeater for Reliable Long-Distance Video

The UltraPoE CT-HDMI-RP regenerates an incoming HDMI signal by decoding and re-encoding it into a clean HDMI output. Use it between two HDMI cables to help maintain stable video over longer cable runs in home theater, conference room, classroom, control room, digital signage, and security-monitoring installations.

Key Features

• Extends documented 1080p HDMI transmission up to approximately 40 meters under suitable cable and installation conditions
• Signal regeneration helps reduce degradation over long HDMI cable runs
• Plug-and-play design with no external power adapter required
• Supports Full HD resolutions through 1080p
• Supports 3D video formats
• Compact inline design with one HDMI input and one HDMI output
• HDMI 1.3 and HDCP 1.1 compatibility

Installation

Connect the source-side HDMI cable to the port marked Input. Connect the display-side HDMI cable to the port marked Output. For best performance, use quality HDMI cables and confirm that the repeater orientation follows the printed input and output labels.

Specifications

• Model: CT-HDMI-RP

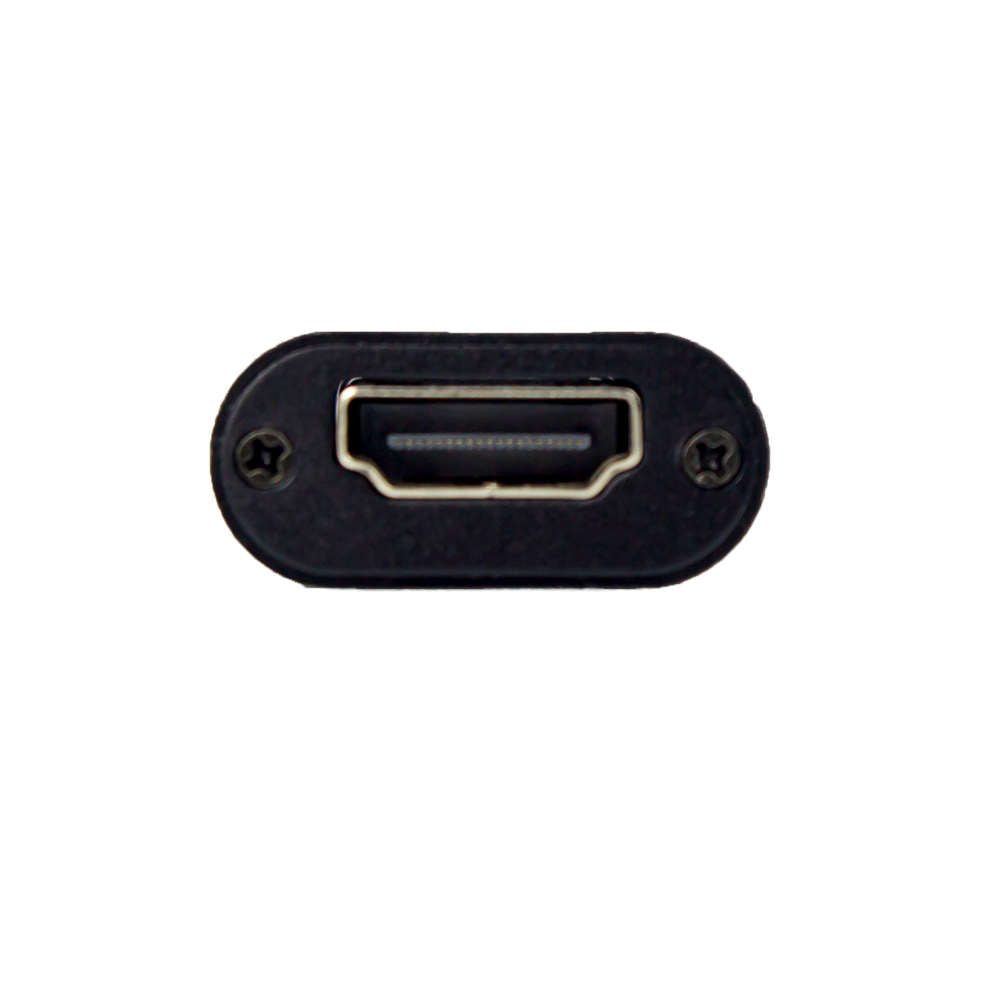

• Input: 1 × HDMI female
• Output: 1 × HDMI female
• HDMI compatibility: HDMI 1.3
• HDCP compatibility: HDCP 1.1
• Operating frequency: up to 165 MHz
• Data rate: up to 1.65 Gbps single link
• Supported formats: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p at compatible refresh rates
• 3D support: Yes
• Documented cable distance: over 40 m under suitable conditions
• Dimensions: 28 × 13 × 51 mm

Maximum resolution and distance depend on cable quality, source equipment, display compatibility, and installation conditions.

Frequently Asked Questions

What does an HDMI repeater do?
It regenerates an HDMI signal so it can travel farther between a source and a display with less signal degradation.

Does the CT-HDMI-RP require an external power supply?
No external power adapter is required for normal plug-and-play installation.

Which direction should it be connected?
Connect the source cable to Input and the display cable to Output. The repeater is directional.

How far can it extend 1080p?
The supplied specification documents approximately 40 meters under suitable conditions. Actual distance varies with cable quality and connected equipment.

Can it be used with projectors and security monitors?
Yes. Typical applications include TVs, projectors, conference-room displays, digital signage, control rooms, and surveillance monitors.
