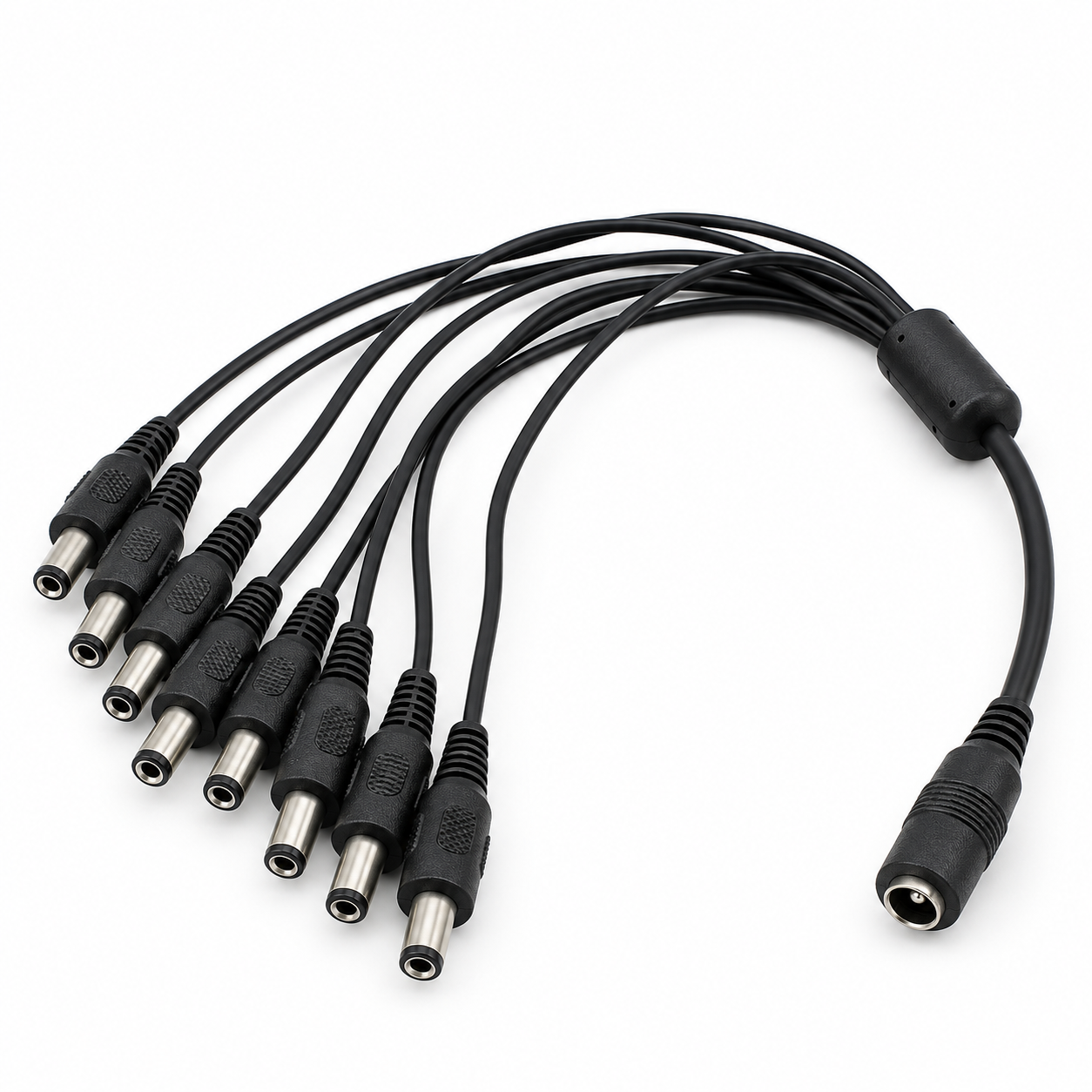

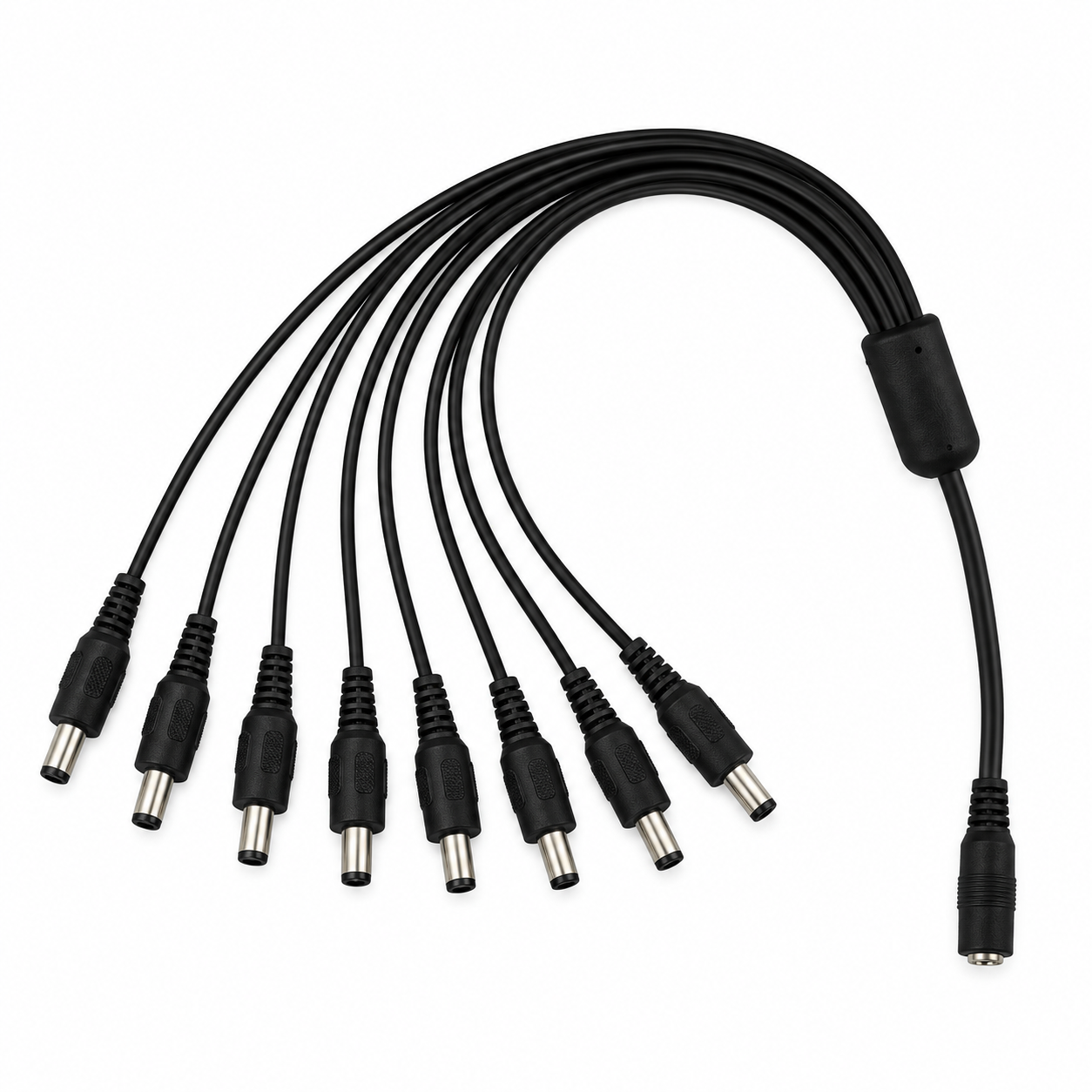

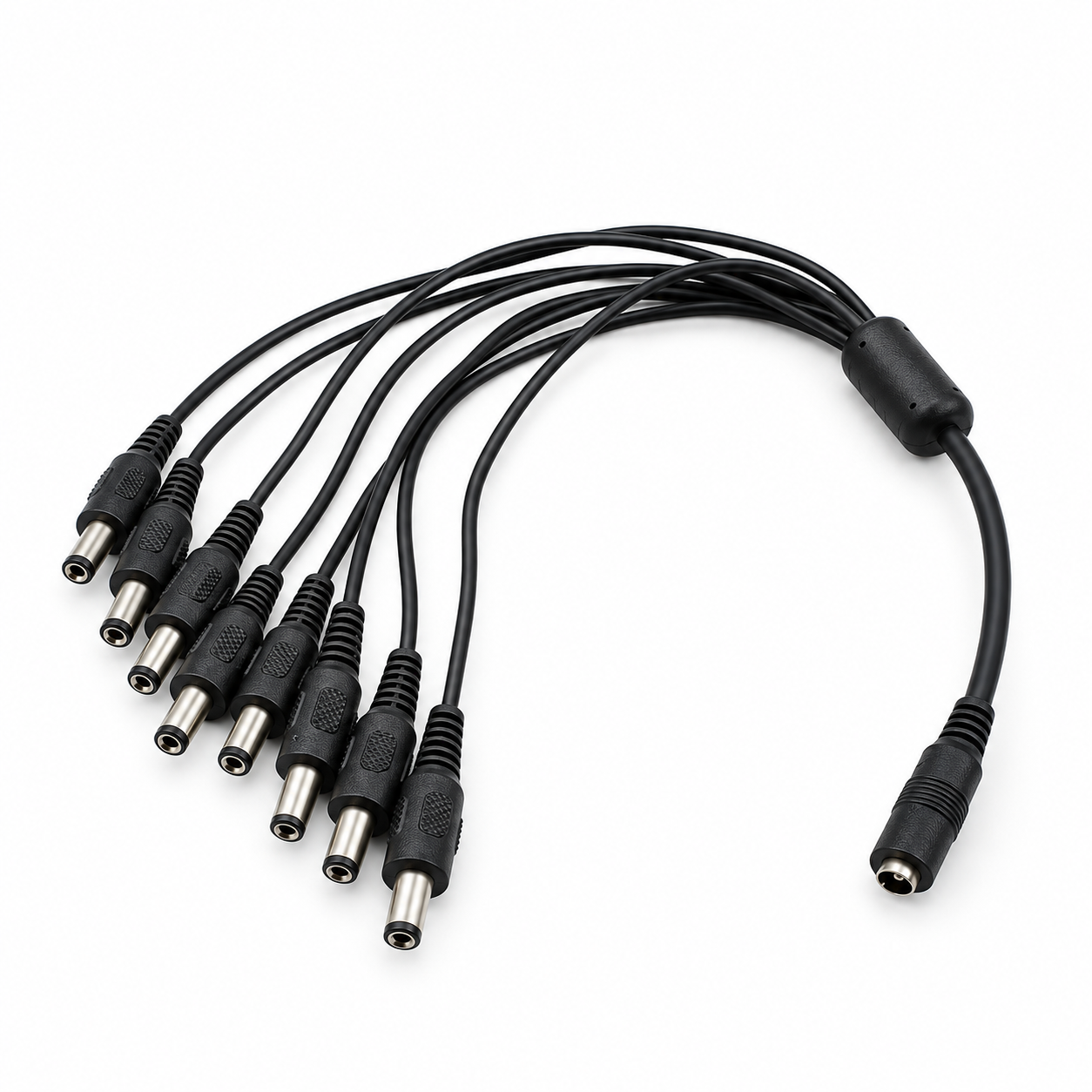

UltraPoE CT-DC1S8 1-to-8 DC Power Splitter Cable, 5.5 x 2.1 mm, 12V CCTV
Distribute one 12V DC power connection to as many as eight compatible devices. The UltraPoE CT-DC1S8 is a compact 1-to-8 DC barrel power splitter for CCTV cameras, LED strips and other low-voltage equipment using compatible 5.5 x 2.1 mm connectors.
Key features
- 1 x female DC barrel input
- 8 x male DC barrel outputs
- Connector size: 5.5 x 2.1 mm
- Approximate cable length: 16.5 inches
- Designed for compatible 12V DC equipment
- Centralizes power distribution and reduces adapter clutter
- Plug-and-play passive cable with no data connection
Typical applications
- Powering multiple CCTV security cameras from one suitable power supply
- 12V LED strip and lighting installations
- DVR cabinet and surveillance accessory power distribution
- Other compatible low-voltage devices with 5.5 x 2.1 mm DC inputs
Compatibility and power planning
Confirm connector size, polarity and voltage before connection. The source power supply must provide enough current for the combined load of all connected devices. This splitter distributes available power but does not increase voltage or current capacity.
Frequently asked questions
How many devices can this cable connect?
It provides eight male DC outputs from one female DC input, allowing up to eight compatible devices to share one suitable power source.
What connector size does it use?
The listed connector size is 5.5 mm outer diameter by 2.1 mm inner diameter.
Does the splitter include a power supply?
No power supply is shown or claimed. This listing is for the passive splitter cable.
Can it power eight cameras from any adapter?
Only if the adapter voltage, polarity and total current capacity match the connected cameras. Add the current requirements of all devices and use an appropriately rated power supply.
Does it carry video or network data?
No. CT-DC1S8 is a DC power-distribution cable only.
