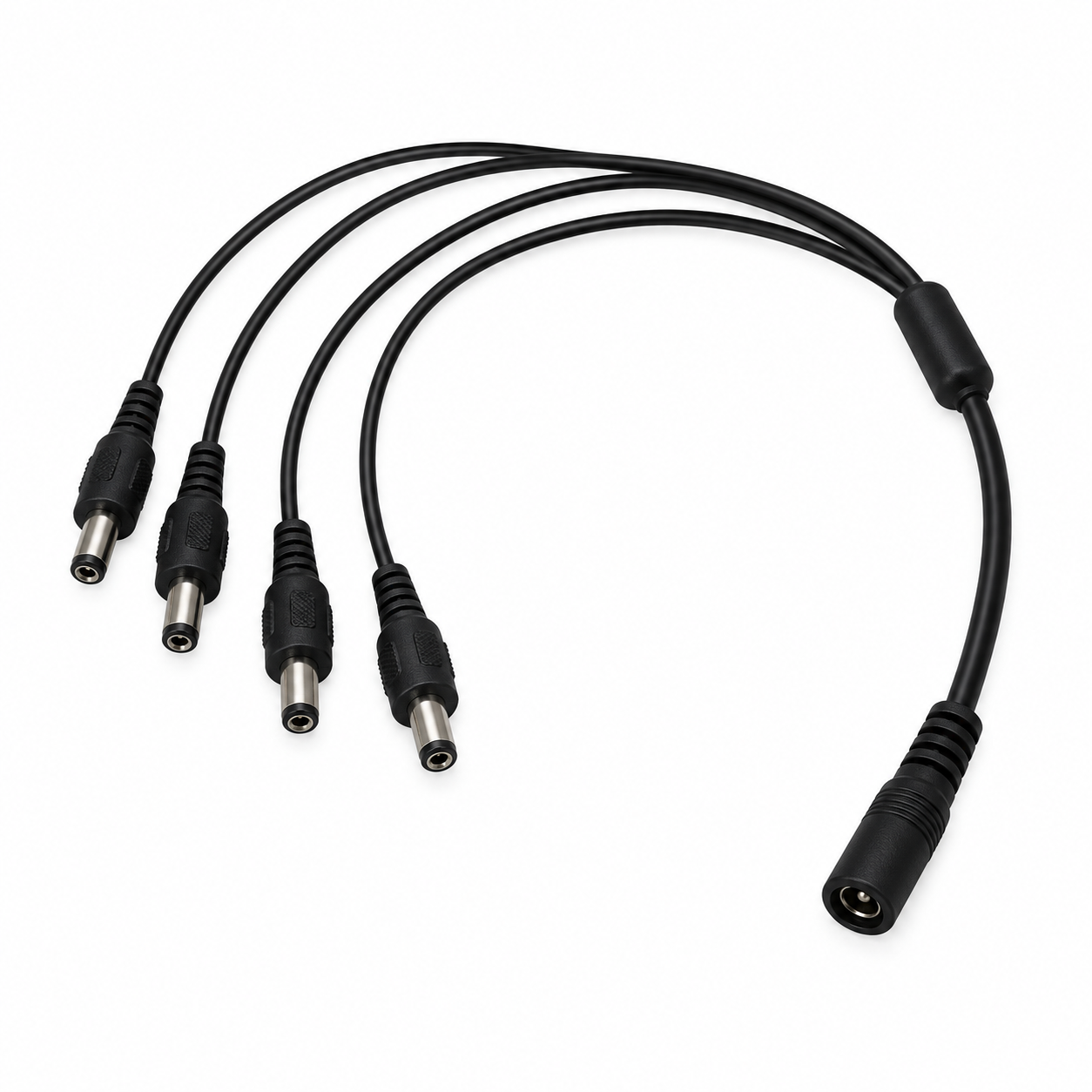

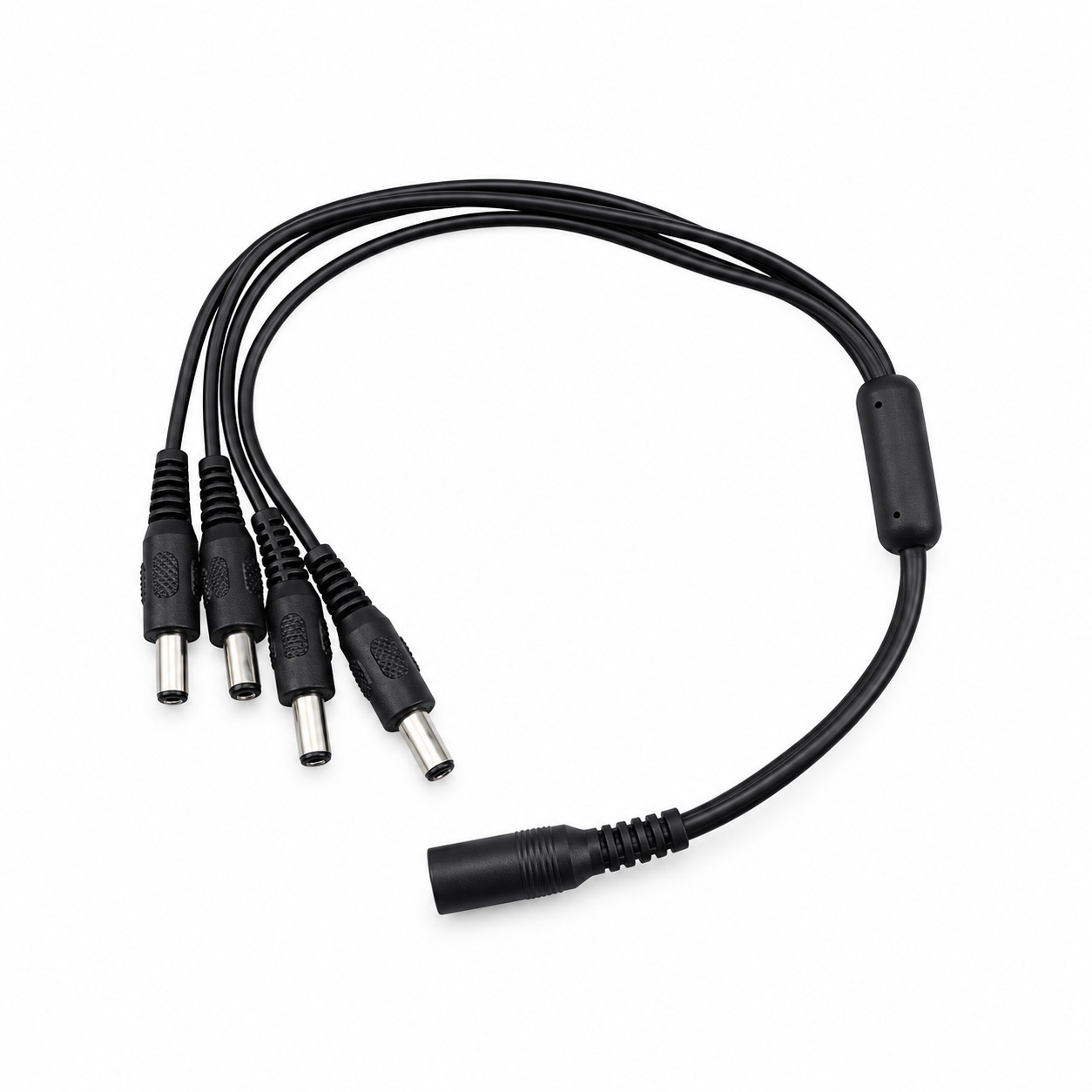

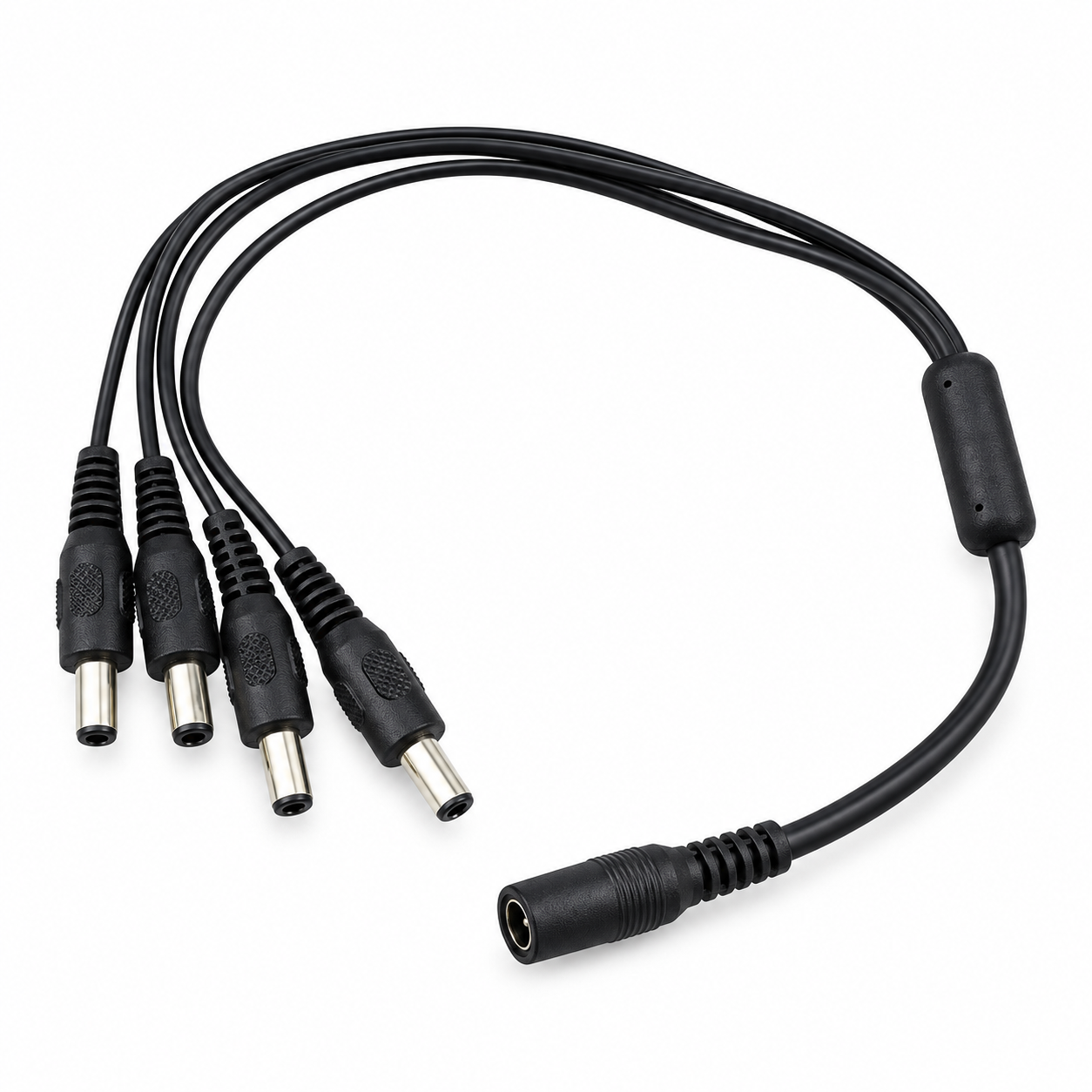

UltraPoE CT-DC1S4 1-to-4 DC Power Splitter Cable, 5.5 x 2.1 mm, 0.33 m
Distribute one compatible DC power connection to as many as four devices. The UltraPoE CT-DC1S4 is a 1-to-4 barrel power splitter cable for CCTV cameras, LED lighting and other low-voltage equipment using compatible 5.5 x 2.1 mm connectors.
Key features
- 1 x female DC barrel input
- 4 x male DC barrel outputs
- Connector size: 5.5 mm outer diameter x 2.1 mm inner diameter
- Approximate cable length: 0.33 m
- Listed for DC systems at 24V or below
- Listed current capacity: main line up to 5A, each branch line up to 3A
- Passive plug-and-play power distribution cable
- Listed 1-year warranty
Typical applications
- Powering up to four compatible CCTV cameras from one suitable power supply
- 12V LED strip and low-voltage lighting installations
- Surveillance cabinets and centralized accessory power
- Other compatible equipment with 5.5 x 2.1 mm DC power inputs
Compatibility and load planning
Confirm connector size, polarity and voltage before use. The source power supply must provide sufficient current for the combined load of every connected device. The listed cable current ratings are maximum limits, not additional power created by the splitter.
Frequently asked questions
How many devices can this splitter connect?
It provides four male outputs from one female input, allowing up to four compatible devices to share one suitable power source.
What connector size is used?
The listed barrel size is 5.5 mm outer diameter by 2.1 mm inner diameter.
How long is the cable?
The listed length is approximately 0.33 m.
Does it include a power adapter?
No power adapter is shown or claimed. The product is the passive splitter cable only.
Does it transmit video or network data?
No. CT-DC1S4 distributes DC power only.
