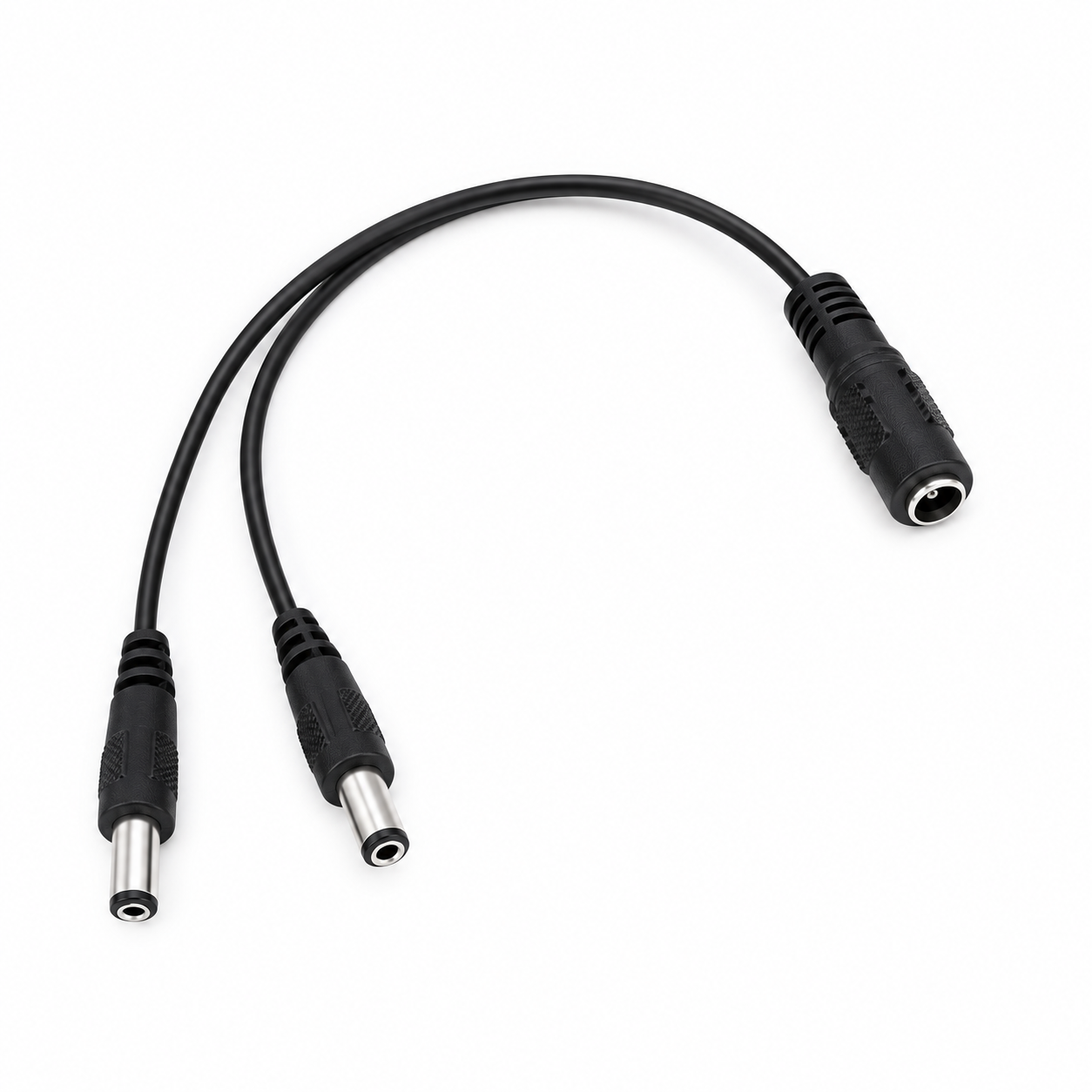

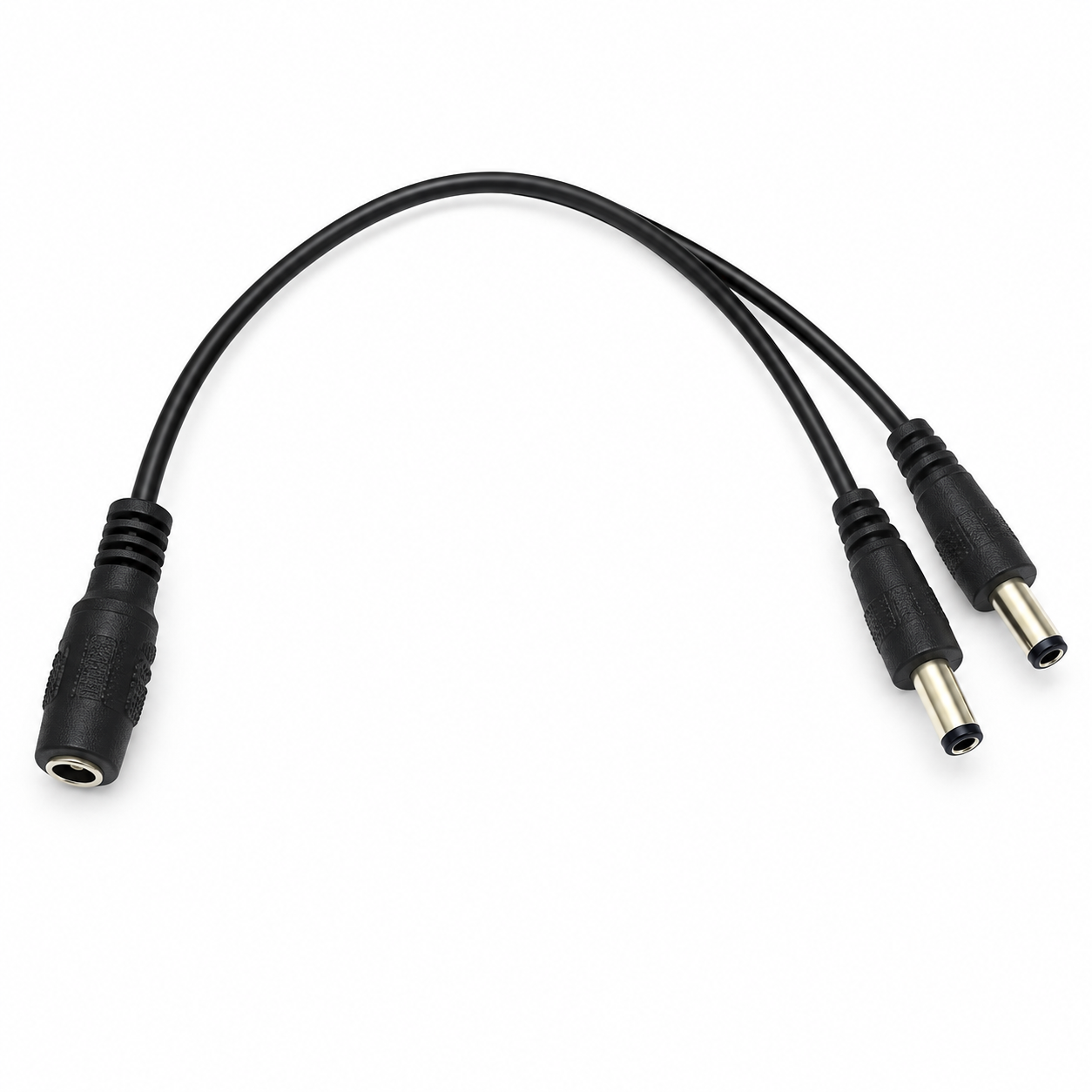

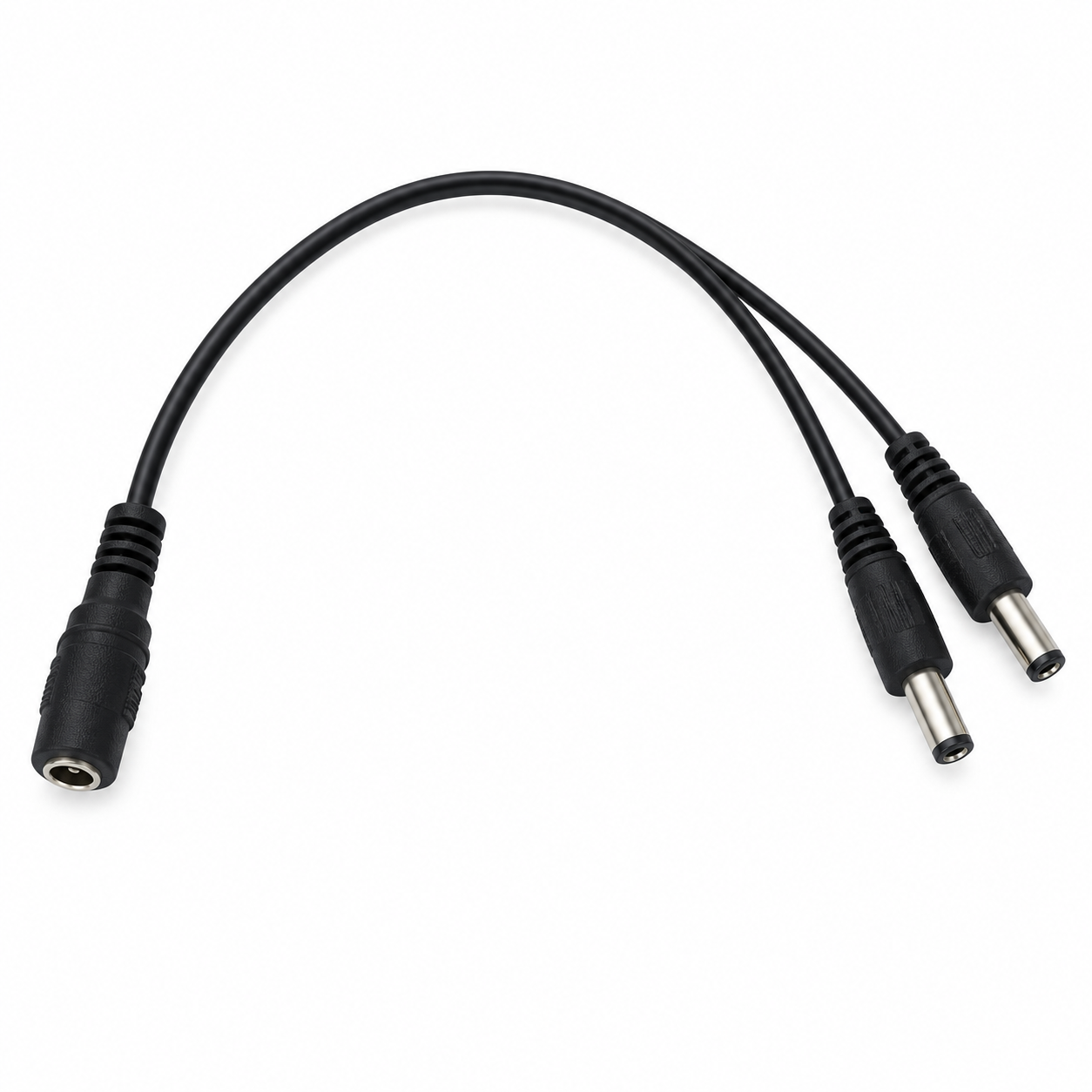

UltraPoE CT-DC1S2 1-to-2 DC Power Splitter Cable, 5.5 x 2.1 mm, 0.33 m
Split one compatible DC power connection between two low-voltage devices. The UltraPoE CT-DC1S2 is a compact Y-shaped power splitter for CCTV cameras, LED lighting and other equipment using compatible 5.5 x 2.1 mm barrel connectors.
Key features
- 1 x female DC barrel input
- 2 x male DC barrel outputs
- Connector size: 5.5 mm outer diameter x 2.1 mm inner diameter
- Approximate cable length: 0.33 m
- Listed for DC systems at 24V or below
- Listed current capacity: main line up to 5A, each branch line up to 3A
- Passive plug-and-play power distribution cable
- Listed 1-year warranty
Typical applications
- Powering two compatible CCTV cameras from one suitable power supply
- 12V LED strips and low-voltage lighting
- Surveillance cabinet accessory power
- Other compatible devices with 5.5 x 2.1 mm DC inputs
Compatibility and load planning
Confirm connector size, polarity and voltage before use. The source power supply must provide enough current for both connected devices. The listed cable current ratings are maximum limits and do not increase the output capacity of the power supply.
Frequently asked questions
How many devices can CT-DC1S2 connect?
It provides two male outputs from one female input, allowing up to two compatible devices to share one suitable power source.
What connector size is used?
The listed barrel size is 5.5 mm outer diameter by 2.1 mm inner diameter.
How long is the cable?
The listed length is approximately 0.33 m.
Does the cable include a power adapter?
No power adapter is shown or claimed. This listing is for the passive Y-splitter cable only.
Does it carry video or network data?
No. CT-DC1S2 distributes DC power only.
