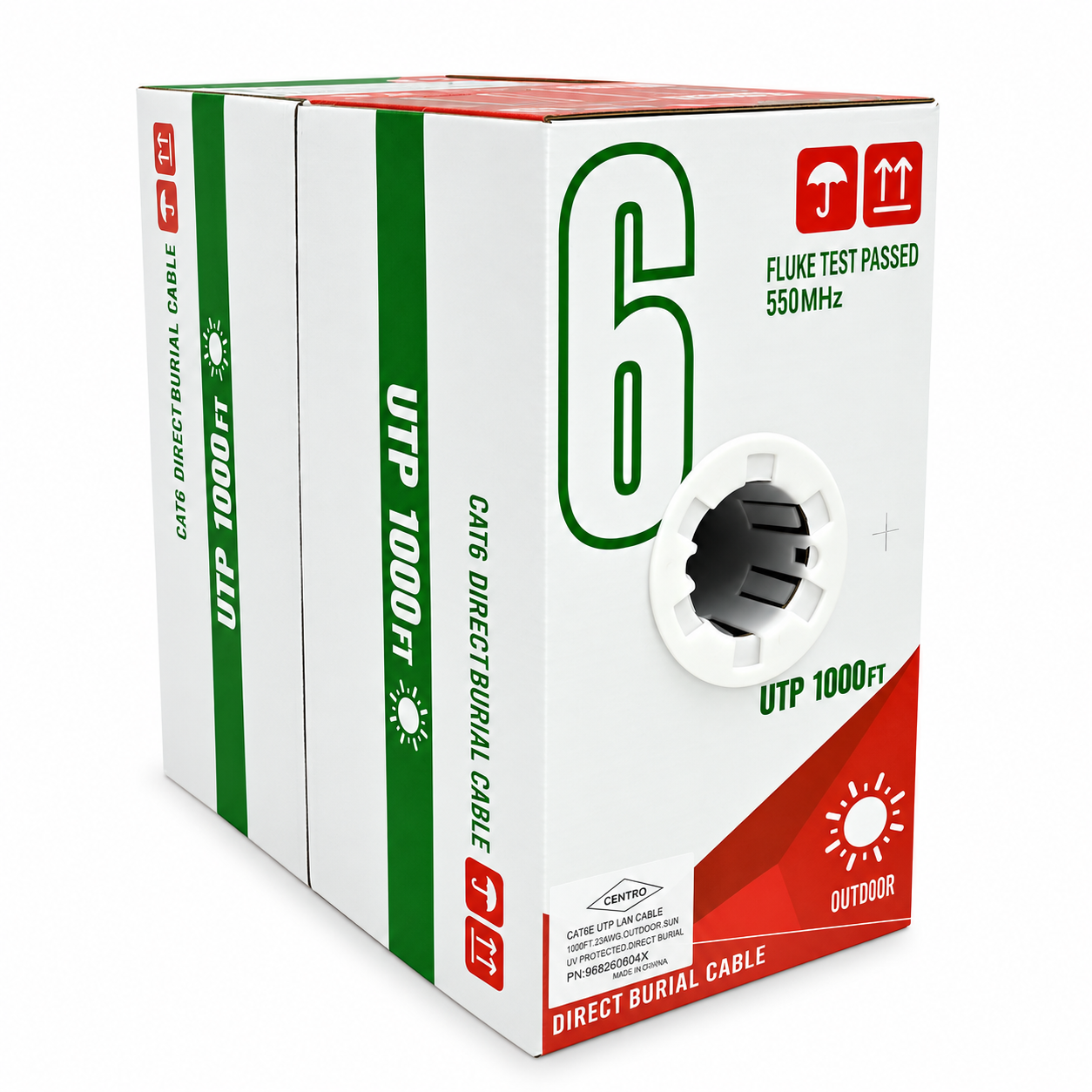

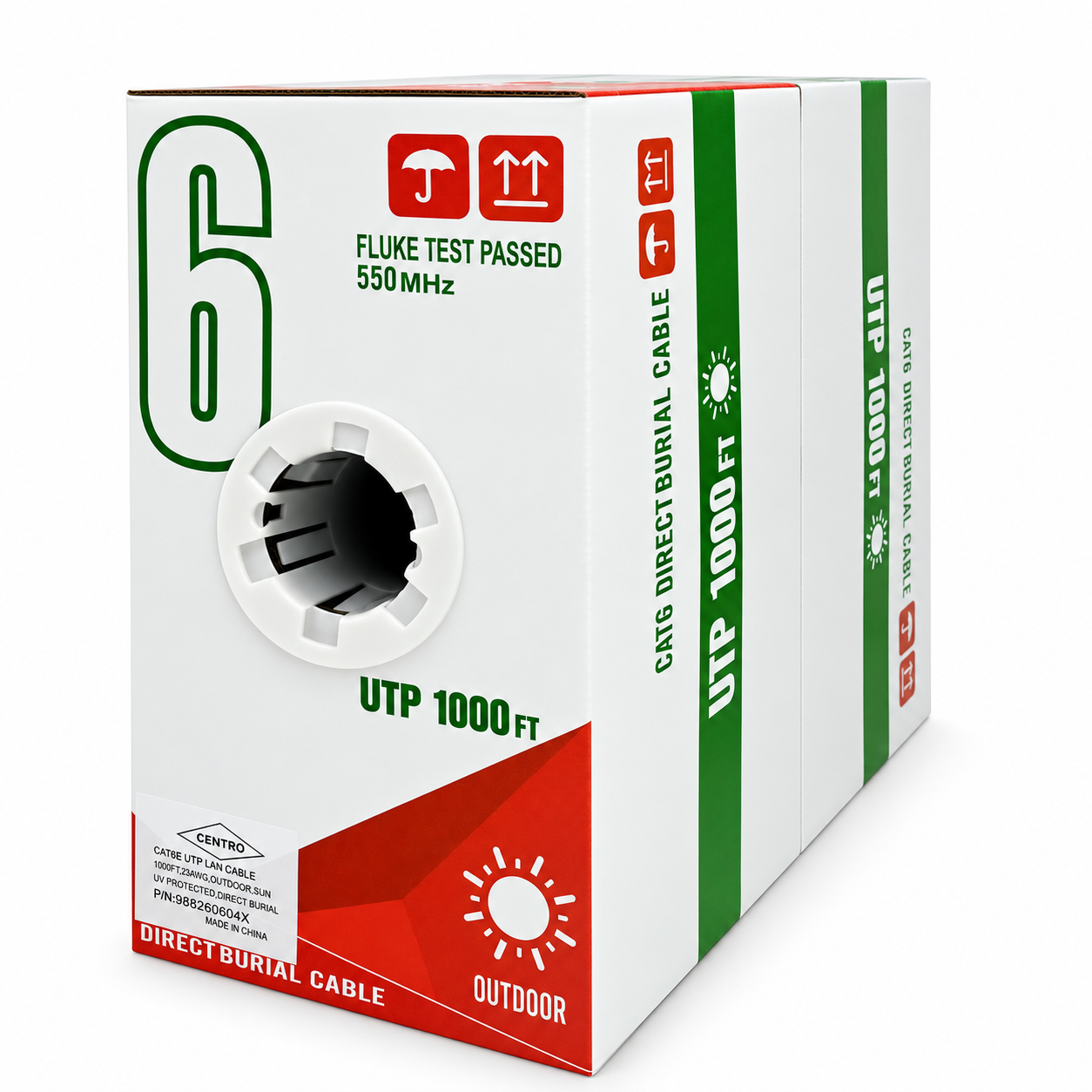

UltraPoE CT-CAT6E-SUN 1000ft Outdoor Cat6 UTP CCA Cable – UV-Resistant PE

UltraPoE CT-CAT6E-SUN is a 1000 ft (305 m) outdoor Cat6 UTP bulk Ethernet cable built for sun-exposed network runs. Its UV-resistant polyethylene jacket protects four twisted pairs of 23 AWG copper-clad aluminum conductors for structured cabling, IP camera, access point and general Ethernet installations.

Key features

• 1000 ft (305 m) outdoor Cat6 UTP bulk cable
• Four unshielded twisted pairs
• 23 AWG CCA conductors
• UV-resistant PE jacket for outdoor use
• Approximate cable outside diameter: 6.0 ± 0.2 mm
• Jacket thickness: 0.55 ± 0.05 mm
• Operating temperature: -40°C to 70°C
• Approximate weight: 7 kg per 305 m
• Reference standards: YD/T 1019-2023, ANSI/TIA-568-C.2, ISO/IEC 11801, IEC 61156-5, UL 444, UL 1666, CE and RoHS

Applications

Designed for outdoor Ethernet runs exposed to sunlight, including compatible security cameras, access points, network devices and building-to-building links. Use installation practices appropriate for the site and local code requirements.

Specifications

• Model: CT-CAT6E-SUN
• Category: Cat6 UTP
• Length: 1000 ft / 305 m
• Pair count: 4 pairs
• Conductor: 23 AWG CCA
• Insulation: HDPE
• Jacket: UV-resistant PE
• Maximum pulling strength: 16 lb
• Pair colors: blue, orange, green and brown with matching white stripe conductors

Frequently asked questions

Is this cable shielded?

No. It is an unshielded twisted-pair (UTP) cable.

Is the jacket suitable for sunlight exposure?

Yes. The supplied specification lists a UV-resistant PE jacket for outdoor installations.

Is this solid copper cable?

No. The supplied specification identifies the conductor material as CCA.
