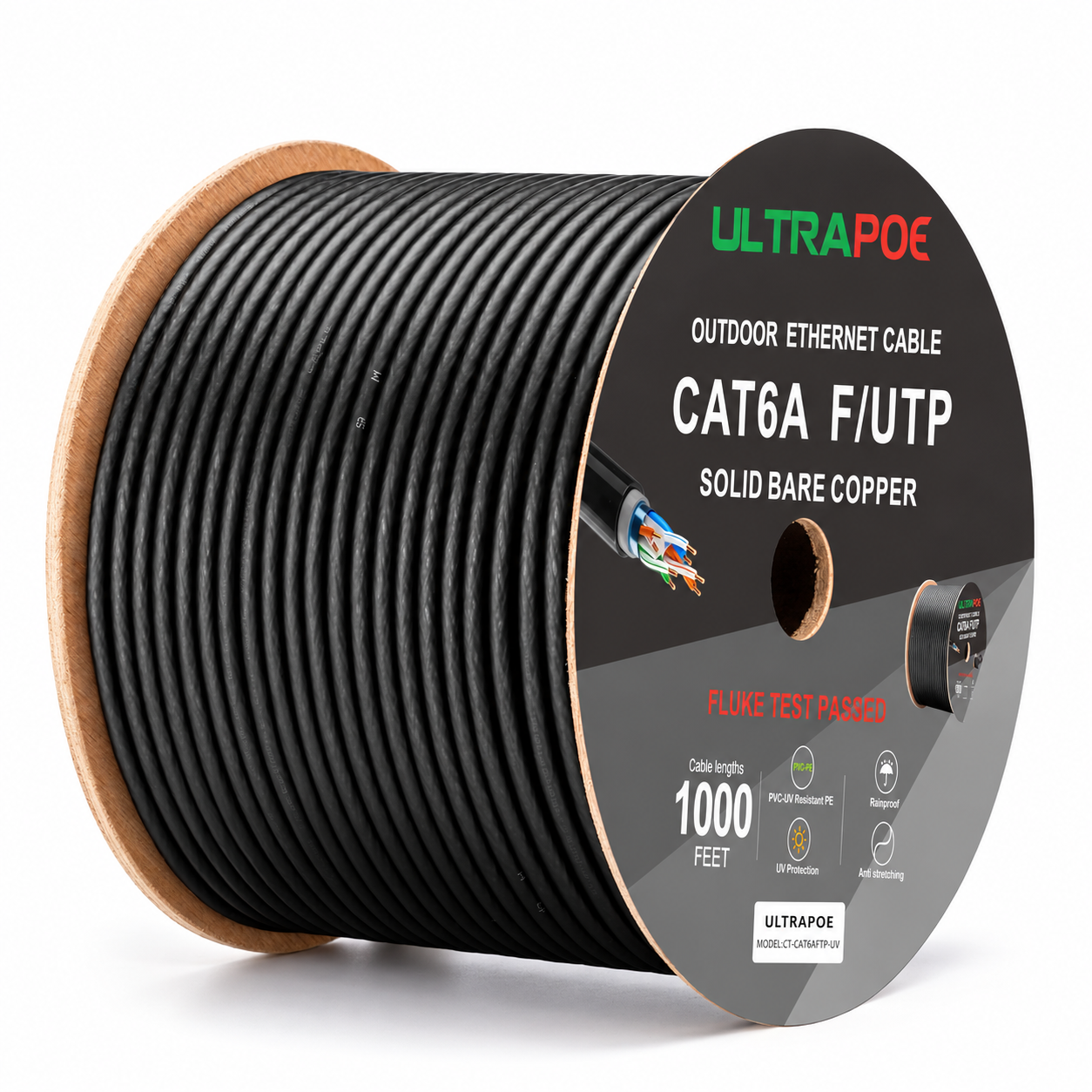

UltraPoE CT-CAT6AFTP-UV 1000ft Outdoor Cat6A F/UTP Cable

UltraPoE CT-CAT6AFTP-UV is a 1000 ft (305 m) outdoor Cat6A F/UTP bulk Ethernet cable built for professional network, surveillance, access-point and infrastructure installations. Its overall foil shield helps reduce electromagnetic interference, while 24 AWG solid bare-copper conductors provide a dependable foundation for high-bandwidth links.

Key features

• Outdoor Cat6A construction: Black dual-layer PVC and UV-resistant PE jacket for exposed outdoor cable runs.
• Shielded F/UTP design: Overall foil shielding helps protect signal integrity in electrically noisy environments.
• Solid bare copper: Four twisted pairs with 24 AWG conductors.
• 1000 ft bulk reel: 305 m length supports structured cabling projects.
• Wide temperature range: Rated in the supplied specification for operation from -40°C to 70°C.
• Standards listed in the supplied specification: YD/T 1019-2023, ANSI/TIA-568-C.2, ISO/IEC 11801, IEC 61156-5, UL 444, UL 1666, CE and RoHS.

Technical specifications

• Model / SKU: CT-CAT6AFTP-UV
• Cable type: Category 6A F/UTP outdoor bulk Ethernet cable
• Length: 1000 ft / 305 m
• Pairs: 4 twisted pairs
• Conductor: 24 AWG solid bare copper
• Insulation: HDPE
• Inner jacket: PVC, 0.45 ± 0.05 mm thickness
• Inner-jacket diameter: 6.8 ± 0.2 mm
• Outer jacket: UV-resistant PE, 0.55 ± 0.05 mm thickness
• Overall cable diameter: 7.8 ± 0.2 mm
• Operating temperature: -40°C to 70°C
• Approximate cable weight: 17.5 kg per 305 m

Recommended applications

Use CT-CAT6AFTP-UV for outdoor building links, IP cameras, wireless access points, network cabinets and commercial Ethernet installations that benefit from shielded Cat6A cable. Terminate with compatible shielded Cat6A hardware and follow local installation codes.

Frequently asked questions

Is this cable designed for outdoor use?

Yes. The supplied specification lists a PVC inner jacket and UV-resistant PE outer jacket for outdoor installations.

Is the conductor copper or CCA?

The specification identifies 24 AWG solid bare-copper conductors.

Is the cable shielded?

Yes. It is an F/UTP construction with an overall foil shield.

Does it include RJ45 connectors?

No. This is unterminated 1000 ft bulk cable for field installation.
