UltraPoE CT-CAT6A-FTP 1000ft Cat6A Shielded F/UTP CMR Ethernet Cable

UltraPoE CT-CAT6A-FTP is a 1000 ft (305 m) indoor Cat6A F/UTP bulk Ethernet cable for commercial and professional structured cabling. Its aluminum-foil shield and drain wire help reduce electromagnetic interference, while solid bare-copper conductors support reliable high-bandwidth network links.

Key features

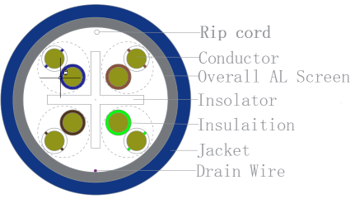

• Cat6A shielded construction: Four twisted pairs with an overall AL/PET foil shield and drain wire.
• Solid bare copper: 0.52 mm conductor diameter, approximately 24 AWG.
• Indoor CMR PVC jacket: Designed for indoor riser-rated cable pathways.
• 1000 ft bulk length: 305 m for structured cabling projects.
• Installation support: Internal rip cord and color-coded twisted pairs simplify preparation and termination.
• Standards listed in the supplied specification: YD/T 1019-2023, ANSI/TIA-568-C.2, ISO/IEC 11801, IEC 61156-5, UL 444, UL 1666, CE and RoHS.

Technical specifications

• Model / SKU: CT-CAT6A-FTP
• Cable type: Category 6A F/UTP indoor bulk Ethernet cable
• Length: 1000 ft / 305 m
• Pairs: 4 twisted pairs
• Conductor: Solid bare copper, 0.52 mm diameter
• Insulation: HDPE
• Shield: AL/PET aluminum foil
• Drain wire: TCCA, 0.5 ± 0.1 mm
• Rip cord: 500D
• Jacket: PVC, CMR indoor
• Jacket thickness: 0.55 ± 0.05 mm
• Overall cable diameter: 7.0 ± 0.3 mm
• Operating temperature: -15°C to 70°C
• Approximate cable weight: 14.0 kg per 305 m

Recommended applications

Use CT-CAT6A-FTP for indoor office, commercial, security, data, access-point and network infrastructure runs that require shielded Cat6A cabling. It is suitable for Cat6A structured cabling and 10 Gigabit Ethernet applications when installed and terminated according to applicable standards.

Frequently asked questions

Is CT-CAT6A-FTP shielded?

Yes. It is an F/UTP cable with an overall aluminum-foil shield and a drain wire.

Is the conductor copper or CCA?

The supplied specification identifies solid bare-copper conductors.

Is this cable intended for outdoor burial?

No. This model uses an indoor CMR PVC jacket. Choose an outdoor-rated or direct-burial cable for exposed or underground installations.

Does this cable include connectors?

No. It is unterminated bulk cable for field installation and requires compatible Cat6A shielded connectors and tools.
