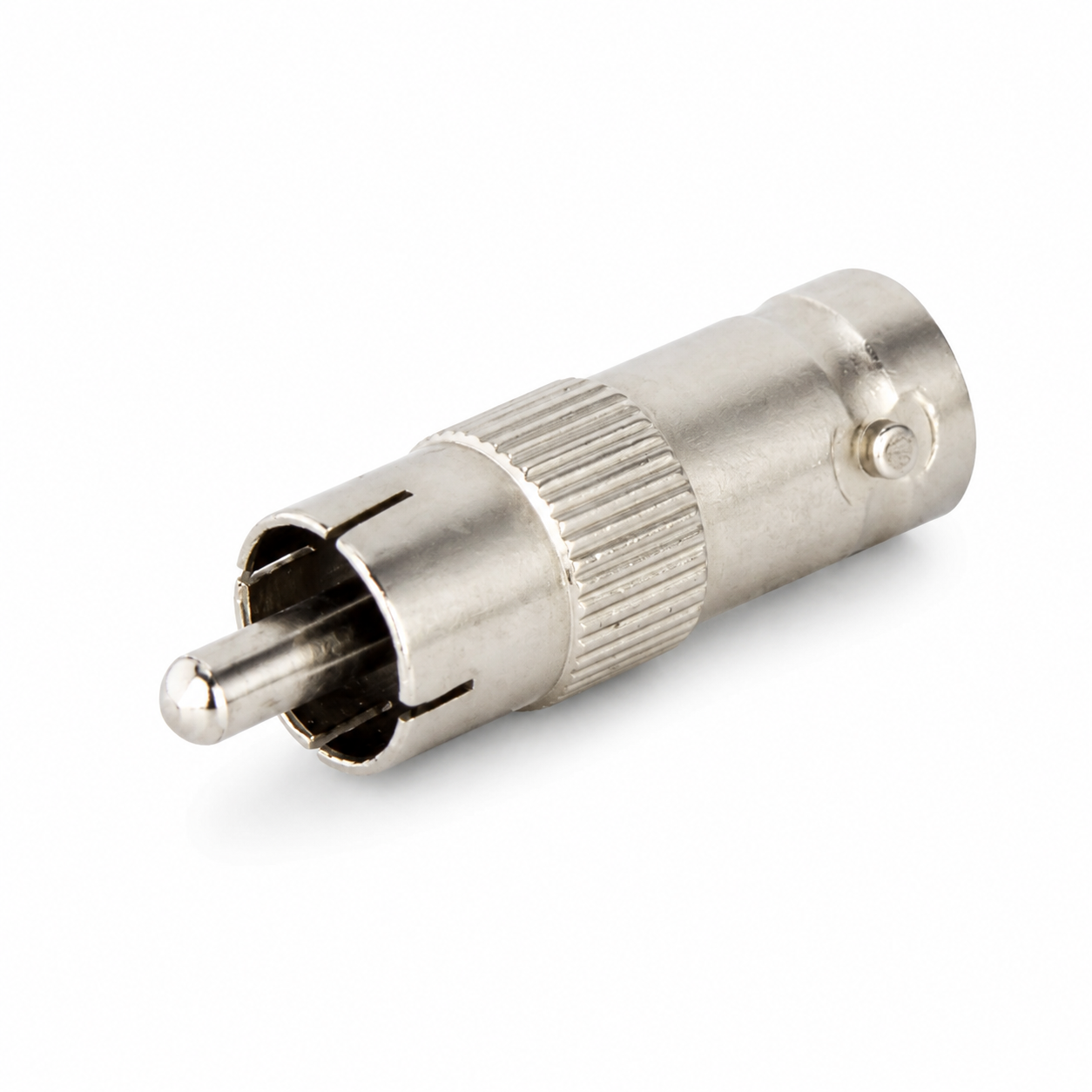

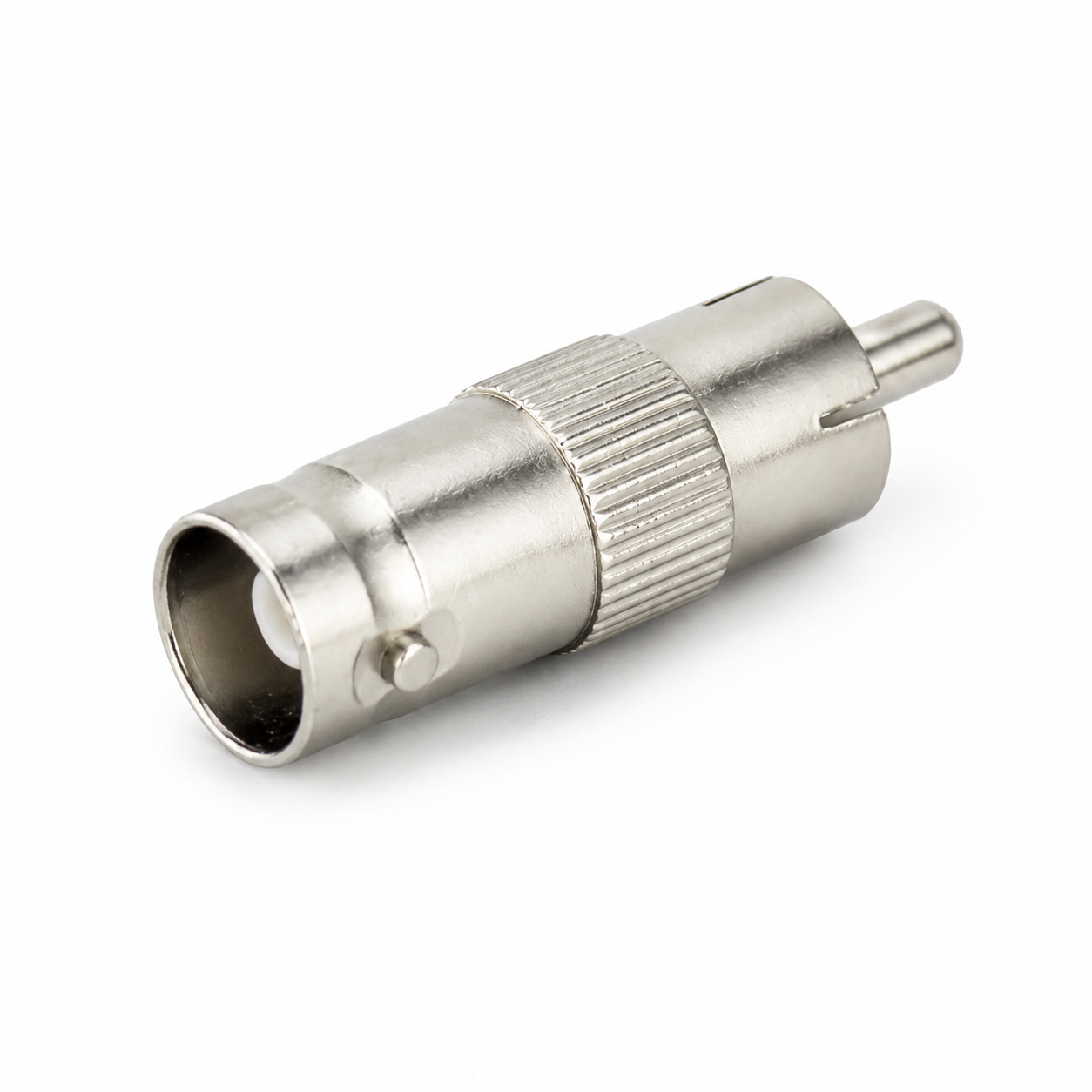

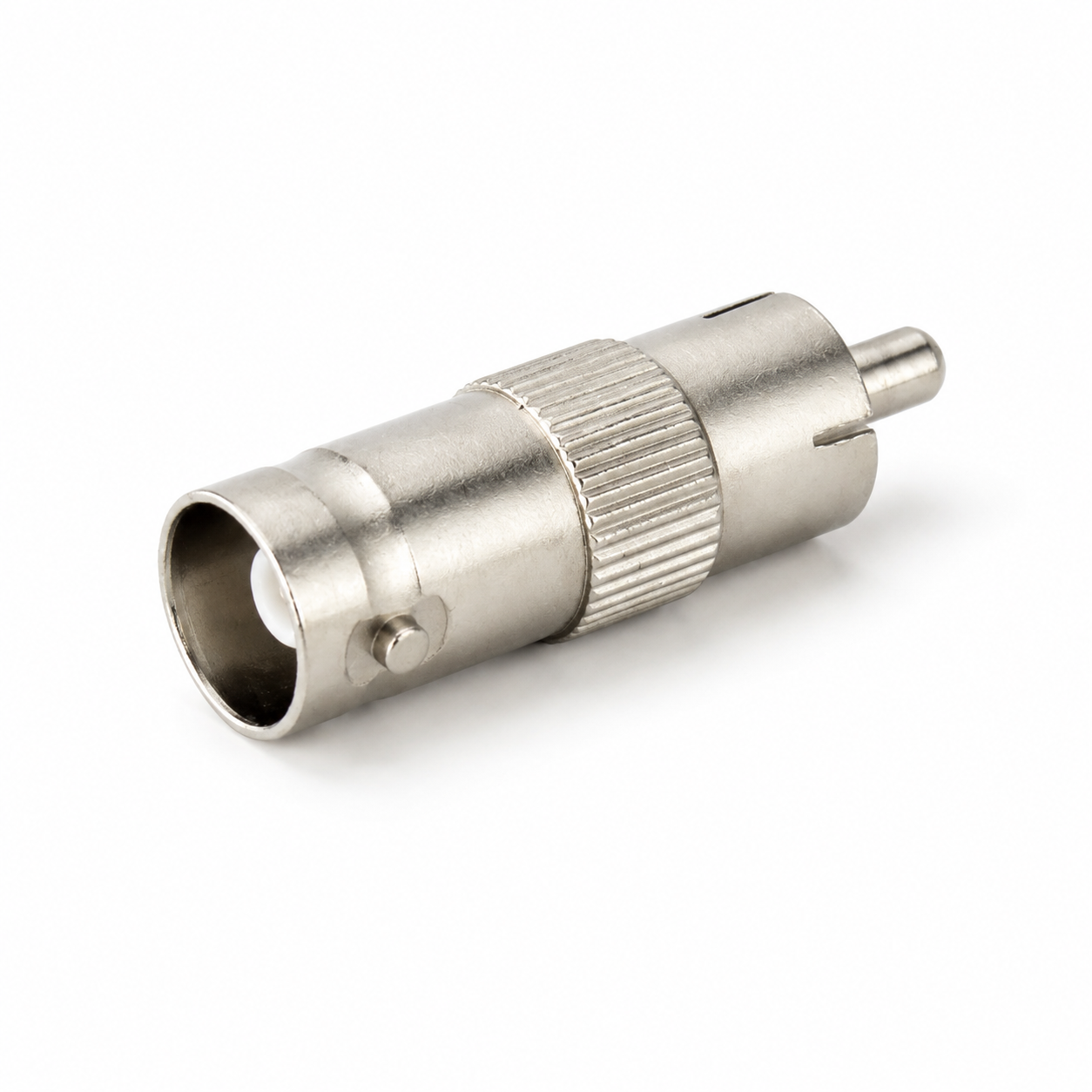

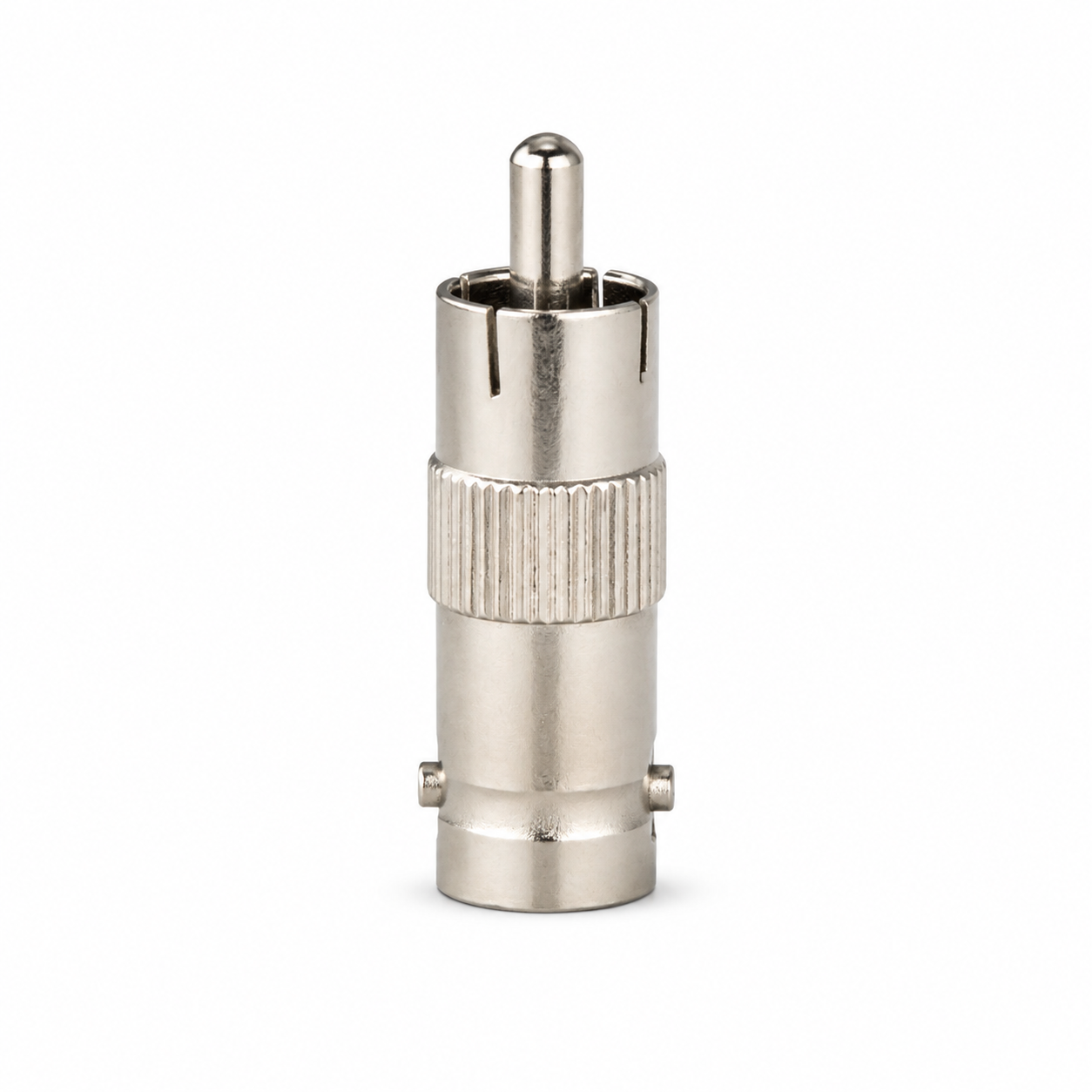

UltraPoE CT-BNCRCA-FM 75Ω BNC Female to RCA Male Adapter
UltraPoE CT-BNCRCA-FM is a straight 75-ohm coaxial adapter with one BNC female socket and one RCA male plug. It provides a compact physical interface between compatible CCTV/video equipment using these two connector formats.
Key Features
- BNC female to RCA male: Converts the physical connector interface between compatible coaxial devices.
- 75-ohm design: Intended for compatible CCTV and composite-video systems.
- Bayonet BNC socket: Accepts a compatible BNC male plug with push-and-turn locking.
- RCA male plug: Uses one center pin with an outer contact shell.
- Knurled grip: Supports easier handling during installation.
- Metal construction: Nickel-plated phosphor-bronze housing with brass contacts, according to the product specification.
Typical Applications
- CCTV cameras, DVRs, monitors, and video test equipment
- RG59 and compatible 75-ohm coaxial connections
- Adapting BNC-equipped video cabling to an RCA female input
- Bench testing and field-service connections
Specifications
- Brand: UltraPoE
- Model / SKU: CT-BNCRCA-FM
- Input/output interfaces: One BNC female; one RCA male
- Nominal impedance: 75 ohms
- Format: Straight passive adapter
- Housing: Nickel-plated phosphor bronze
- Contacts: Brass
Frequently Asked Questions
Which connector genders does this adapter use?
It has a BNC female socket on one end and an RCA male plug on the other.
Can it connect to a BNC male cable?
Yes. The BNC female end accepts a compatible BNC male plug.
Does it convert the video format?
No. This passive adapter changes only the physical connector interface; it does not convert signal standards or amplify the signal.
Is it intended for CCTV use?
Yes, for compatible 75-ohm CCTV and coaxial video connections.
