UltraPoE CT-BNC-MM 75Ω BNC Male-to-Male Coax Adapter

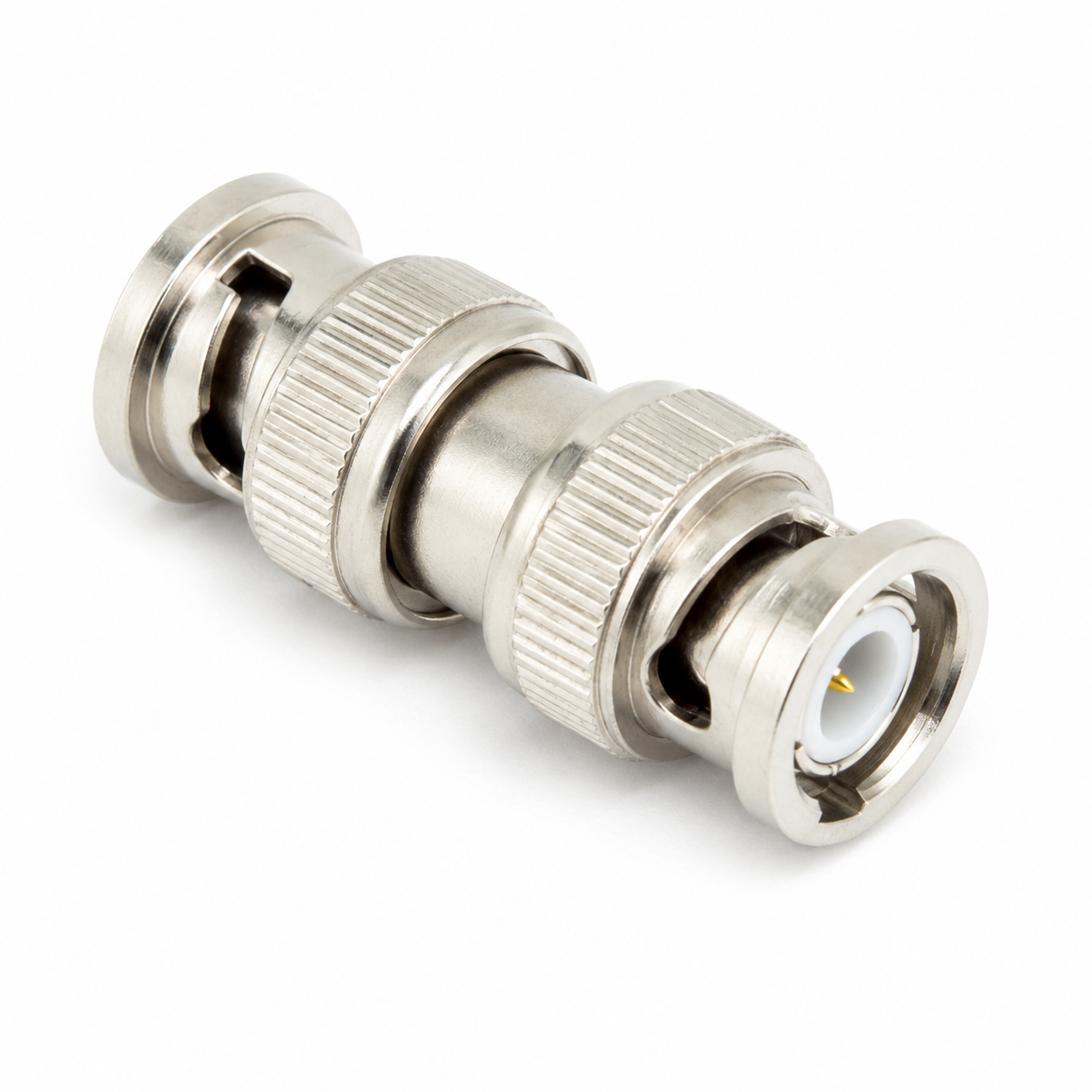

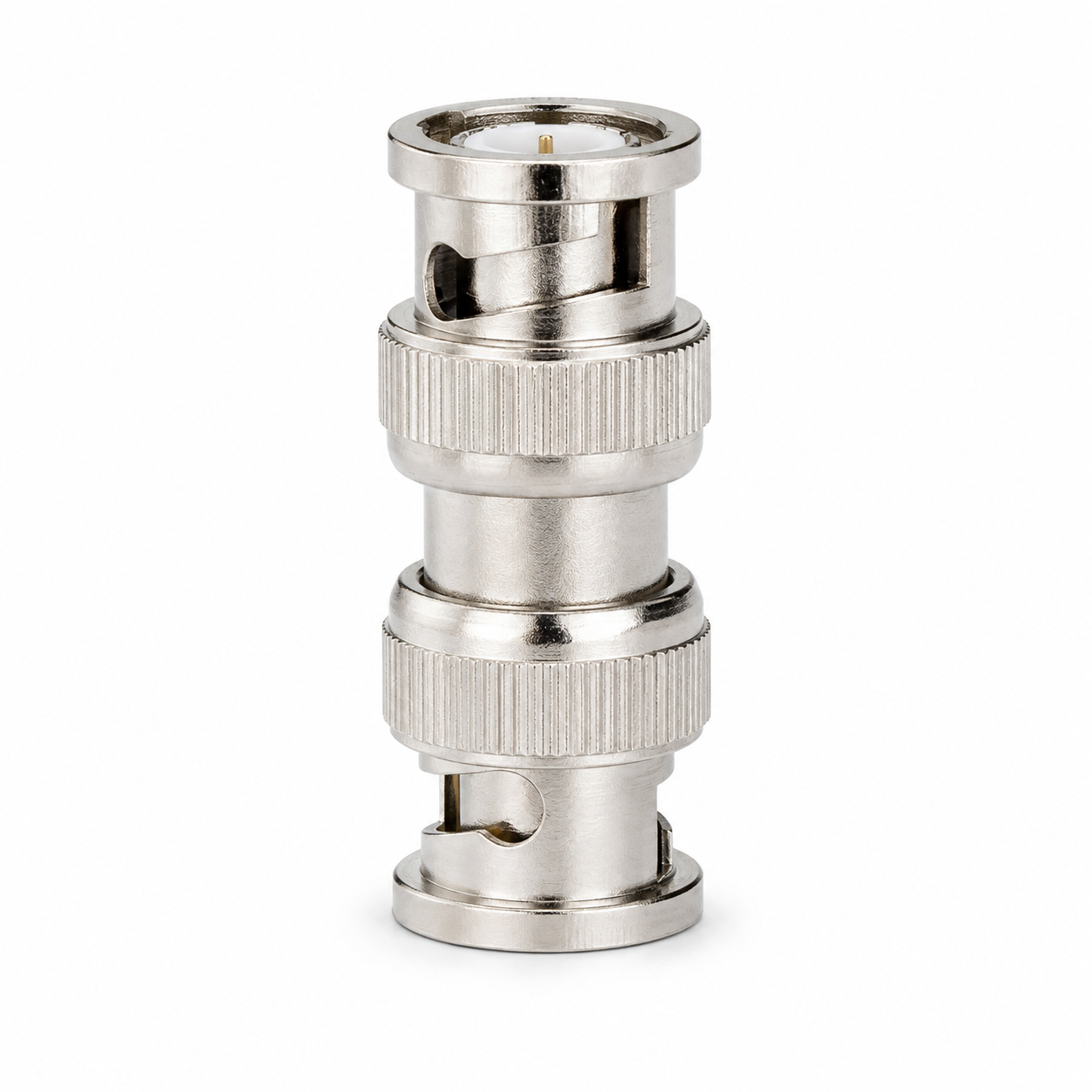

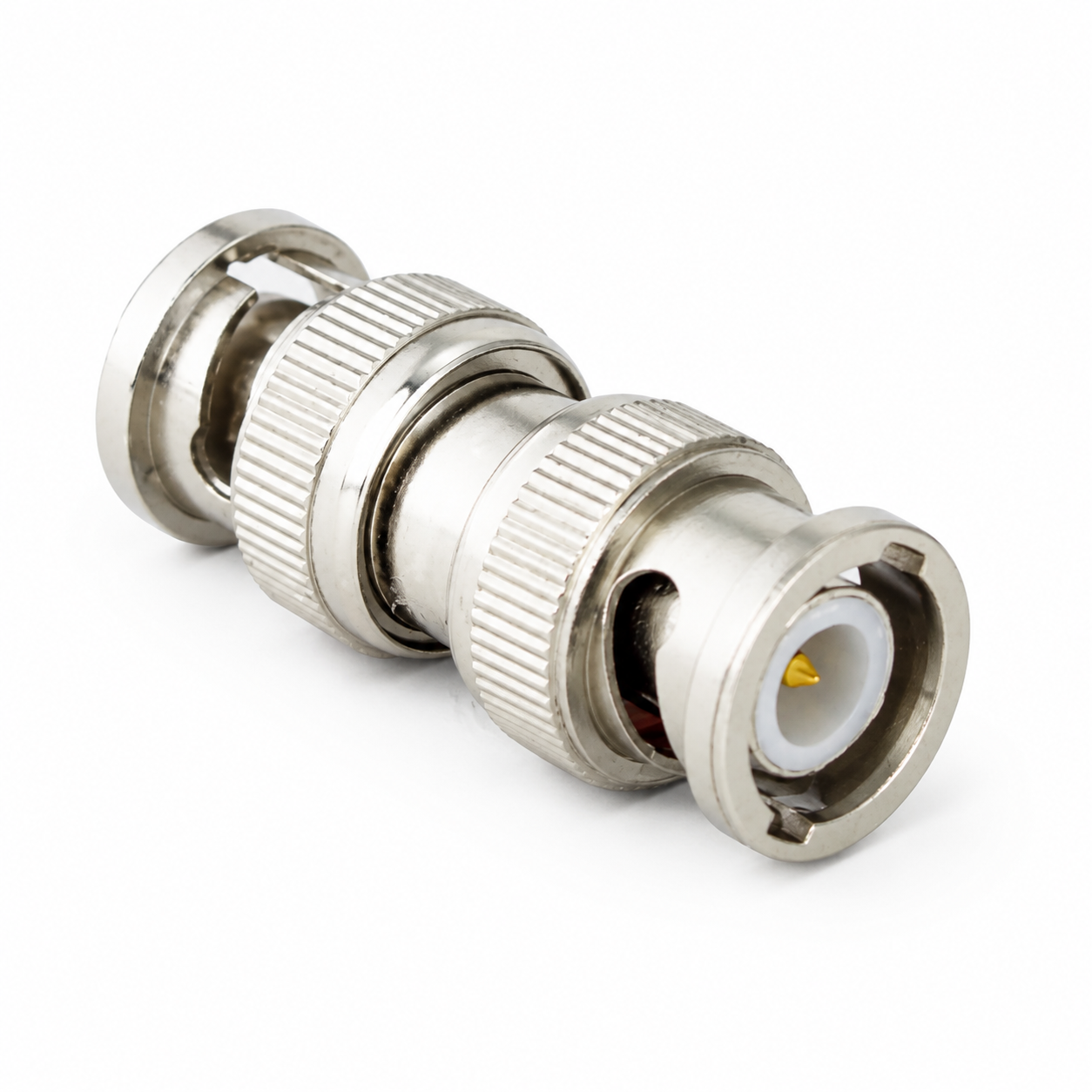

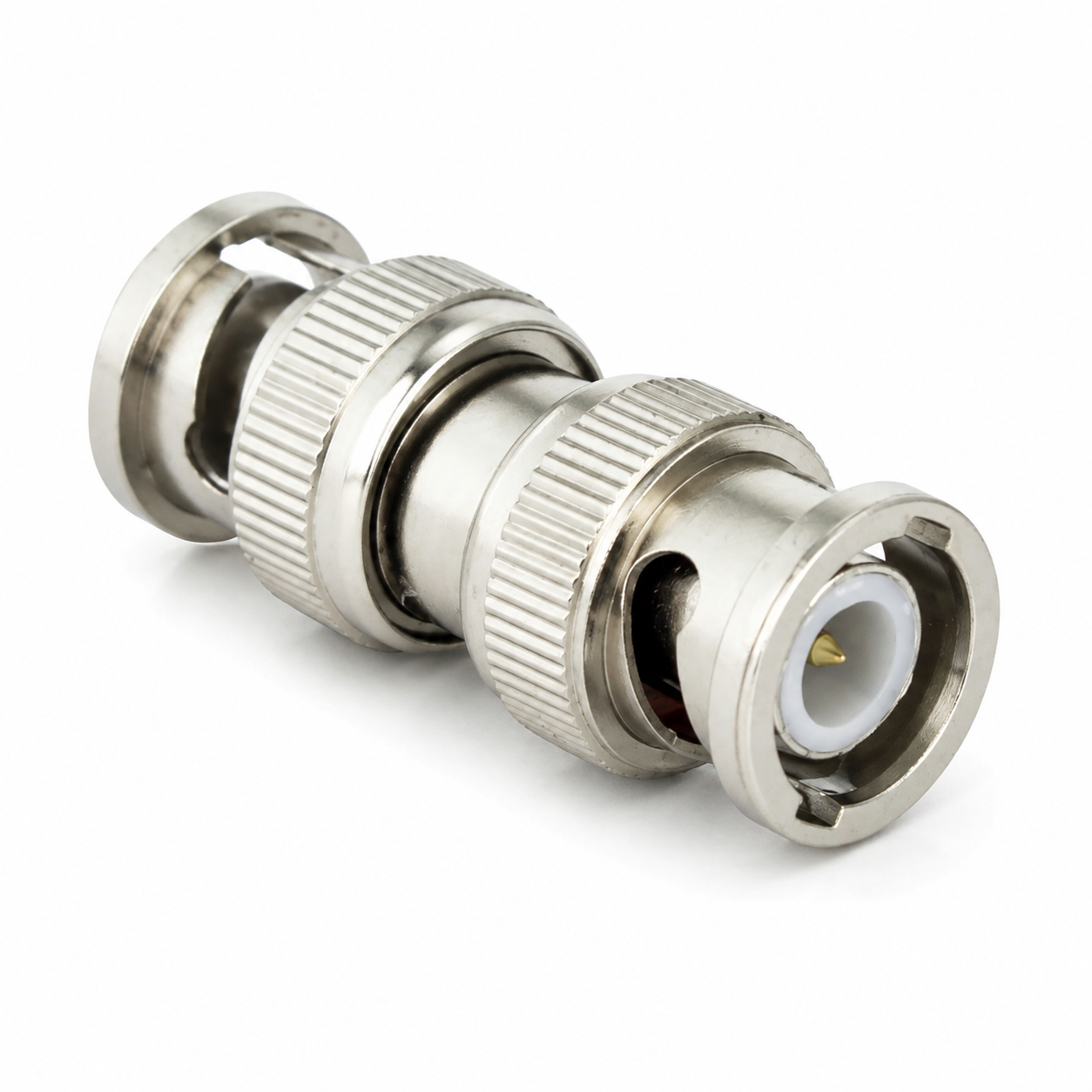

UltraPoE CT-BNC-MM is a straight 75-ohm BNC male-to-male coaxial adapter for connecting two compatible BNC female ports or couplers. It uses two male bayonet interfaces with rotating knurled locking rings in a compact nickel-plated metal body for CCTV, video, test, and coaxial installations.
Key Features
- Male-to-male configuration: Connects two compatible BNC female interfaces.
- 75-ohm impedance: Designed for compatible CCTV and video coaxial systems.
- Straight barrel format: Provides an inline connection without changing direction.
- Dual bayonet plugs: Each end has a rotating BNC coupling ring for push-and-turn locking.
- Visible center contacts: Each male end includes a single center pin and dielectric insulator.
- Metal construction: Nickel-plated phosphor-bronze housing with brass contacts, according to the product specification.
Typical Applications
- Connecting compatible BNC female ports or cable couplers
- CCTV cameras, DVRs, monitors, and video test equipment
- RG59 and compatible 75-ohm coaxial installations
- Bench testing, field service, and temporary video connections
Specifications
- Brand: UltraPoE
- Model / SKU: CT-BNC-MM
- Connector type: BNC male to BNC male
- Adapter format: Straight inline barrel
- Nominal impedance: 75 ohms
- Housing: Nickel-plated phosphor bronze
- Contacts: Brass
- Locking method: Dual BNC bayonet coupling rings
Frequently Asked Questions
What does the CT-BNC-MM connect?
It joins two compatible BNC female interfaces through male BNC connectors on both ends.
Is this intended for CCTV video?
Yes. Its nominal 75-ohm specification is intended for compatible CCTV and video coaxial systems.
Does each end have a center pin?
Yes. Both ends are male BNC connectors with a center contact pin, dielectric insulator, and rotating bayonet ring.
Does this adapter amplify the signal?
No. It is a passive connector adapter and does not amplify or regenerate video signals.
