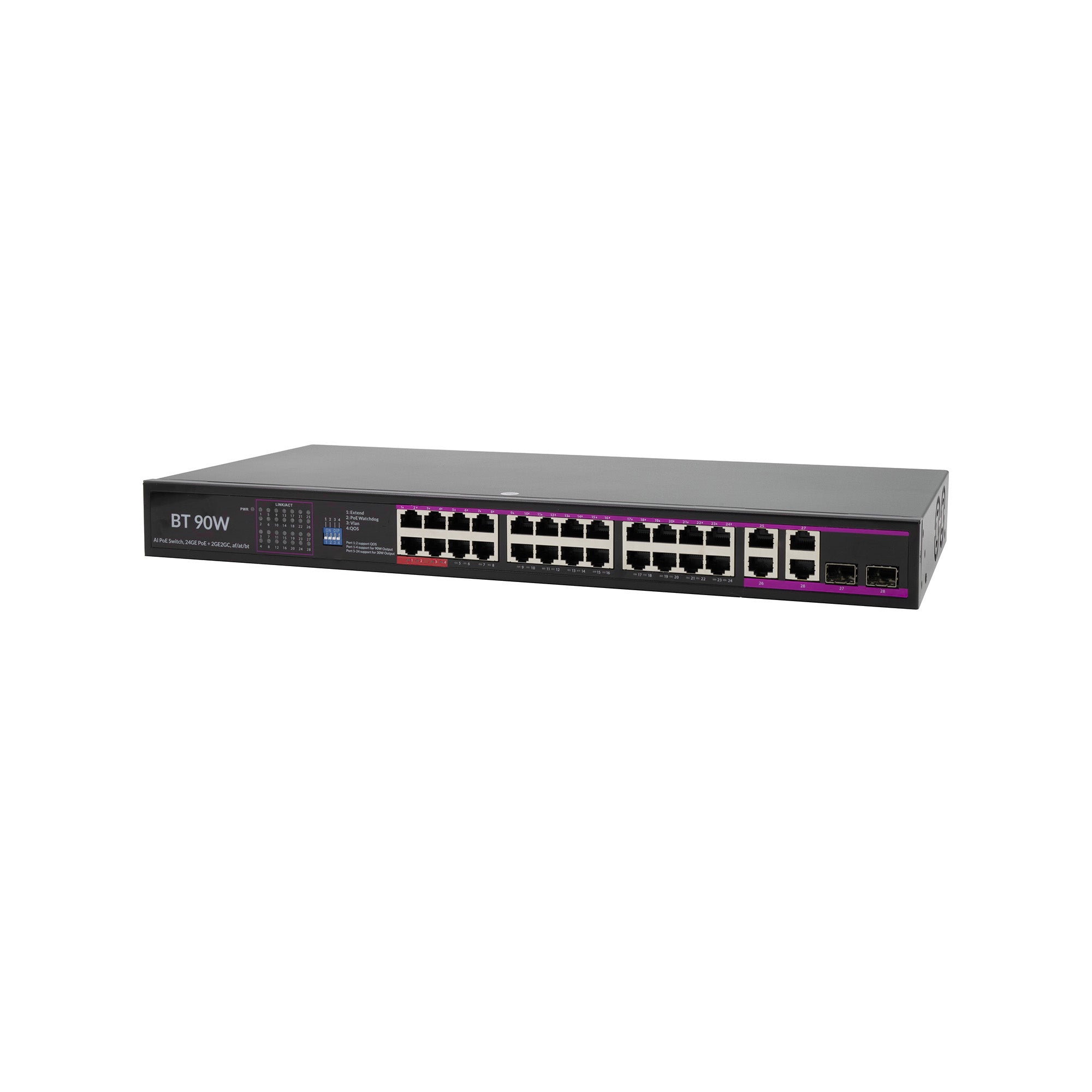

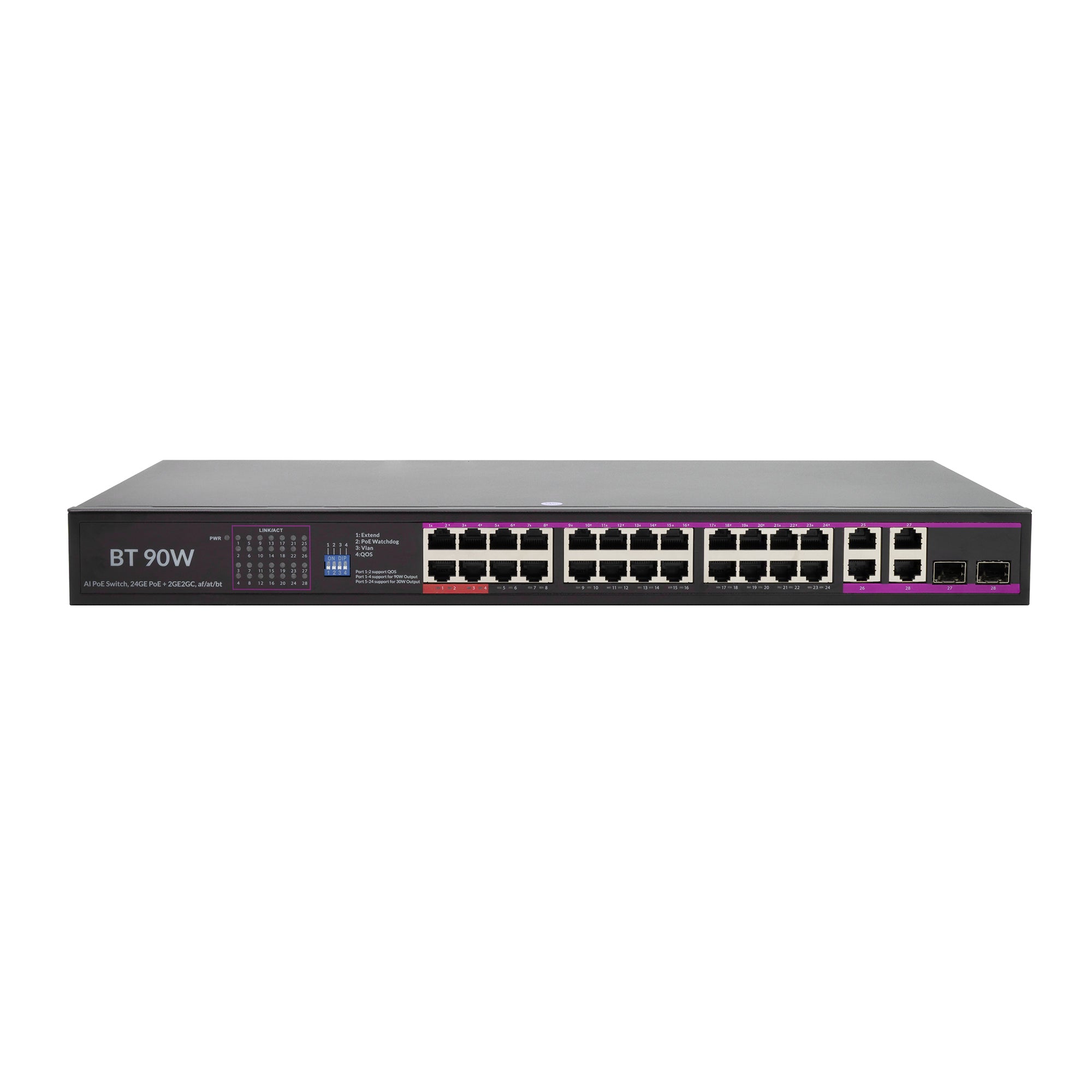

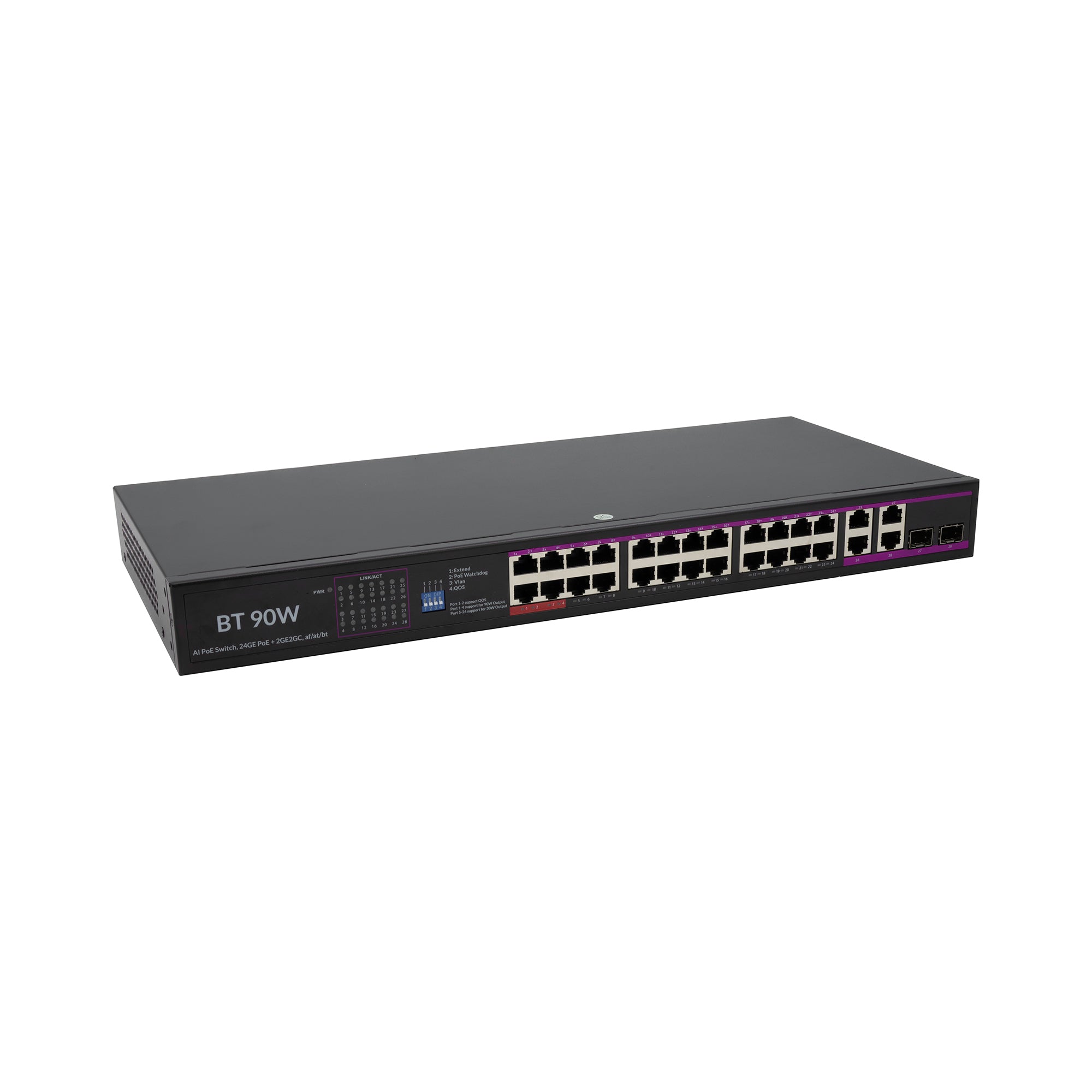

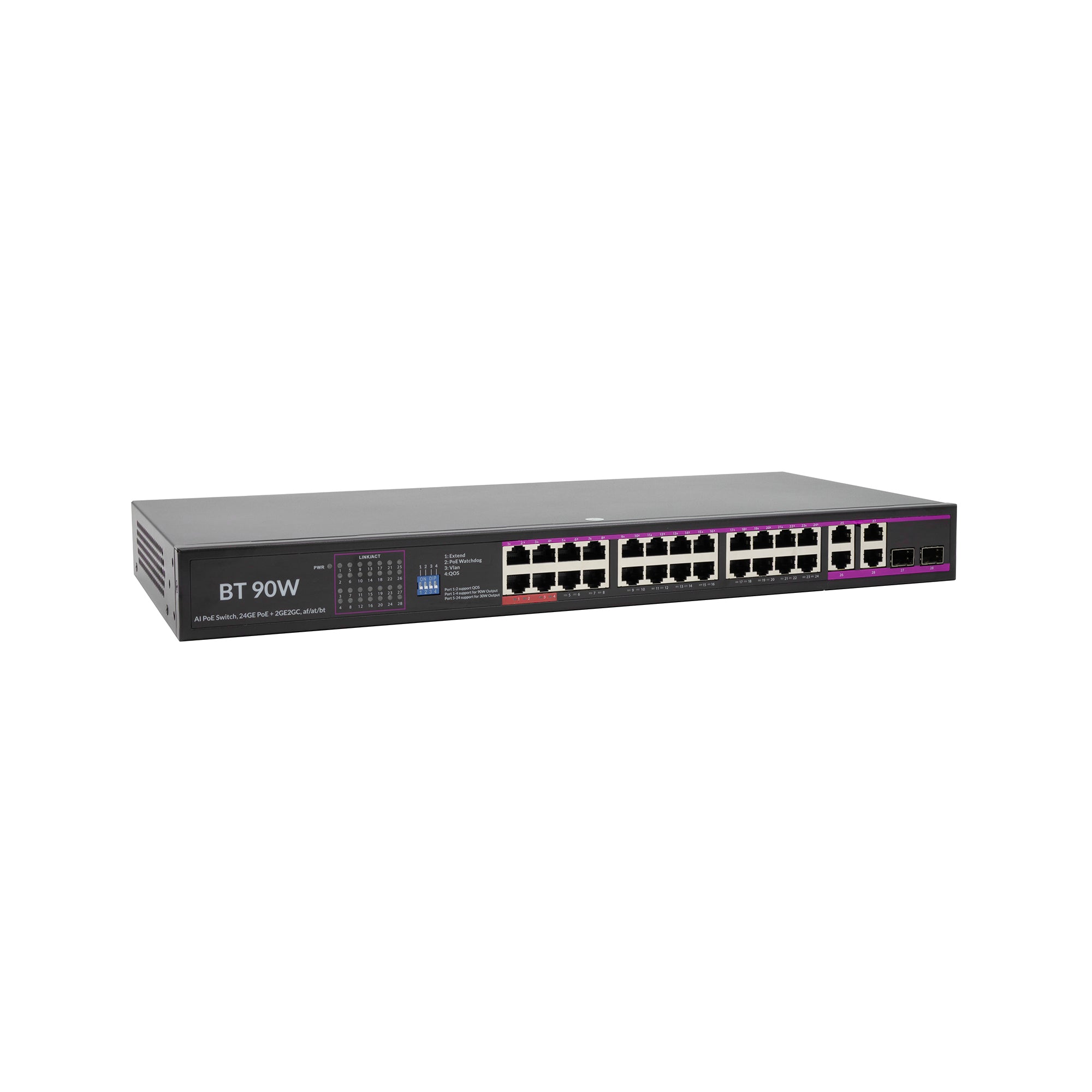

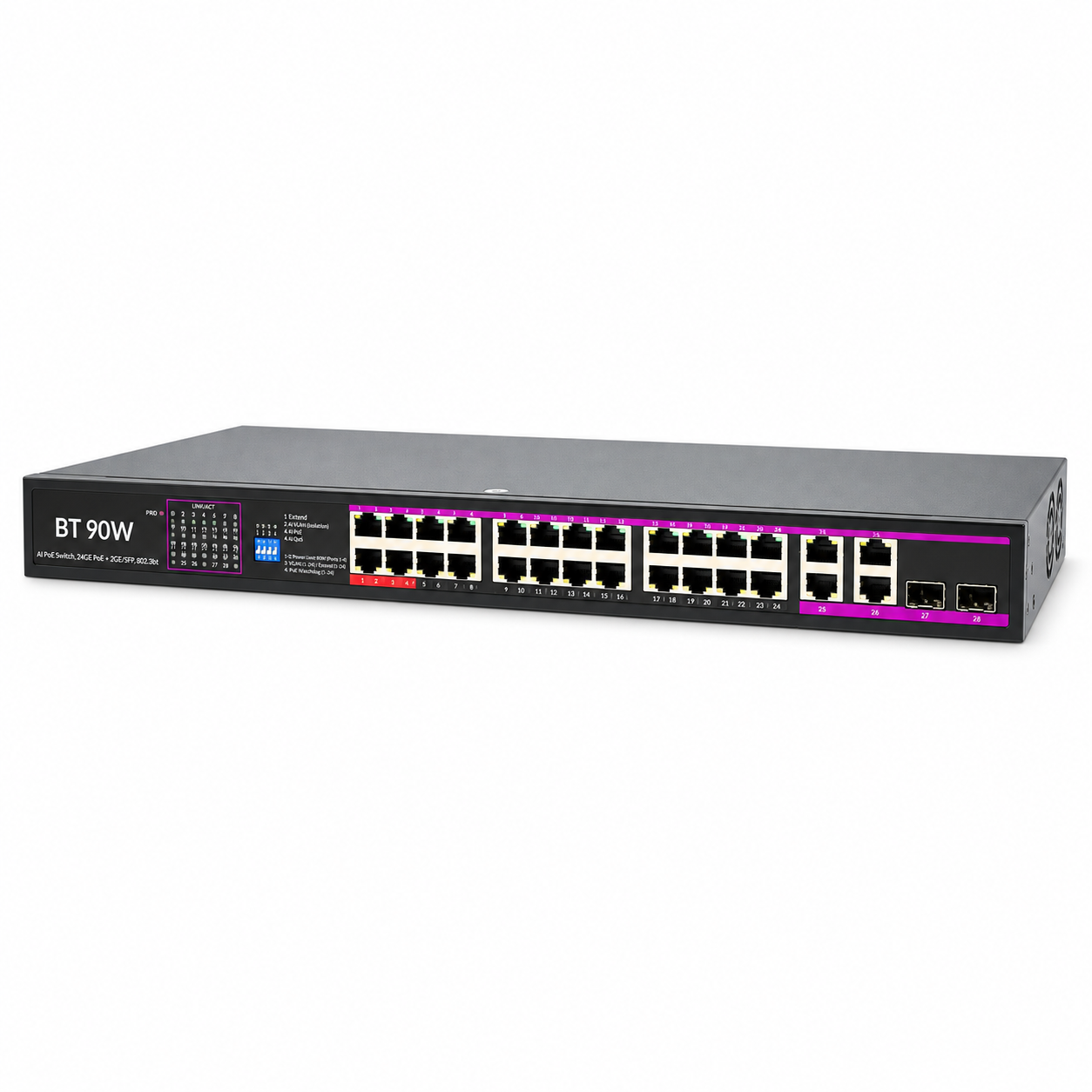

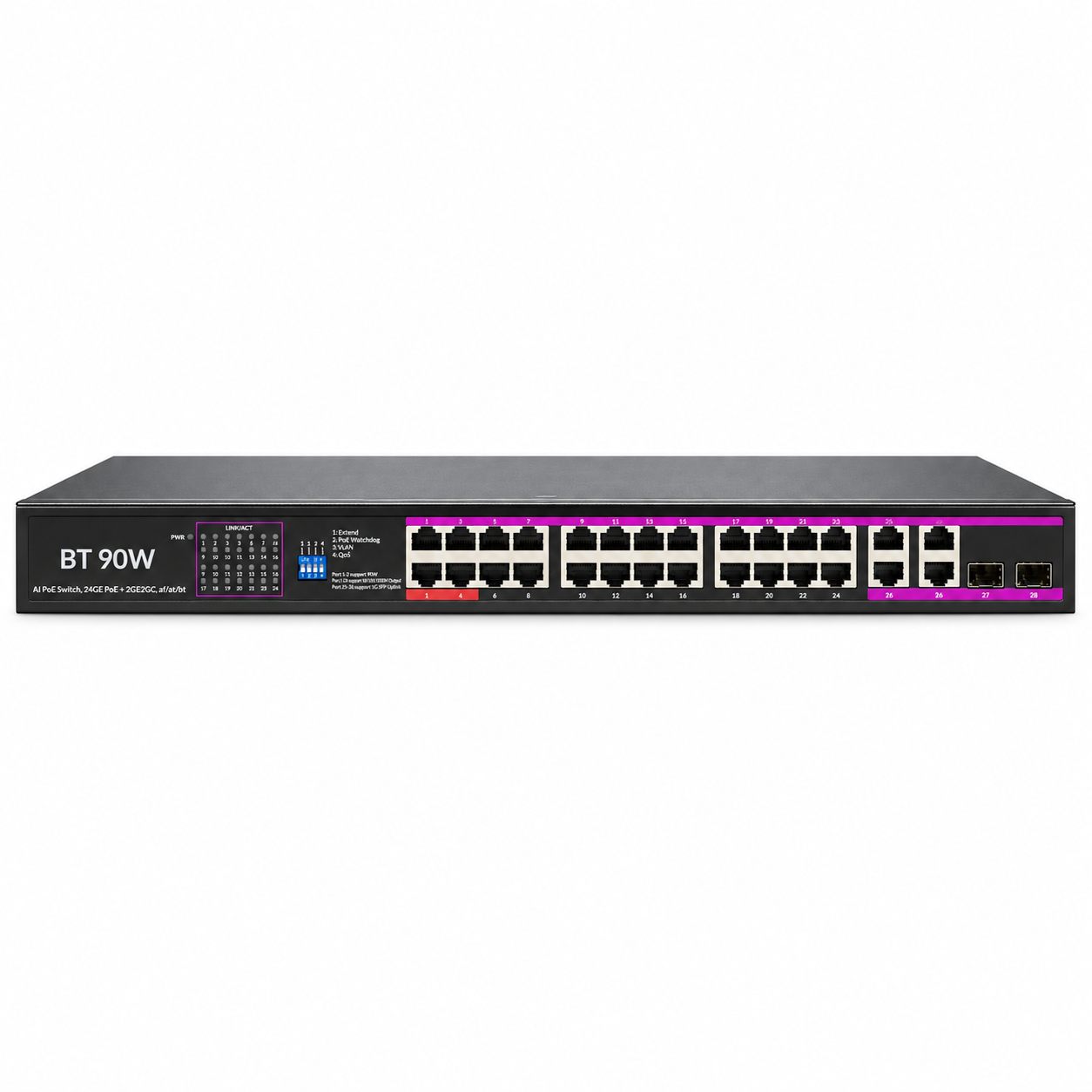

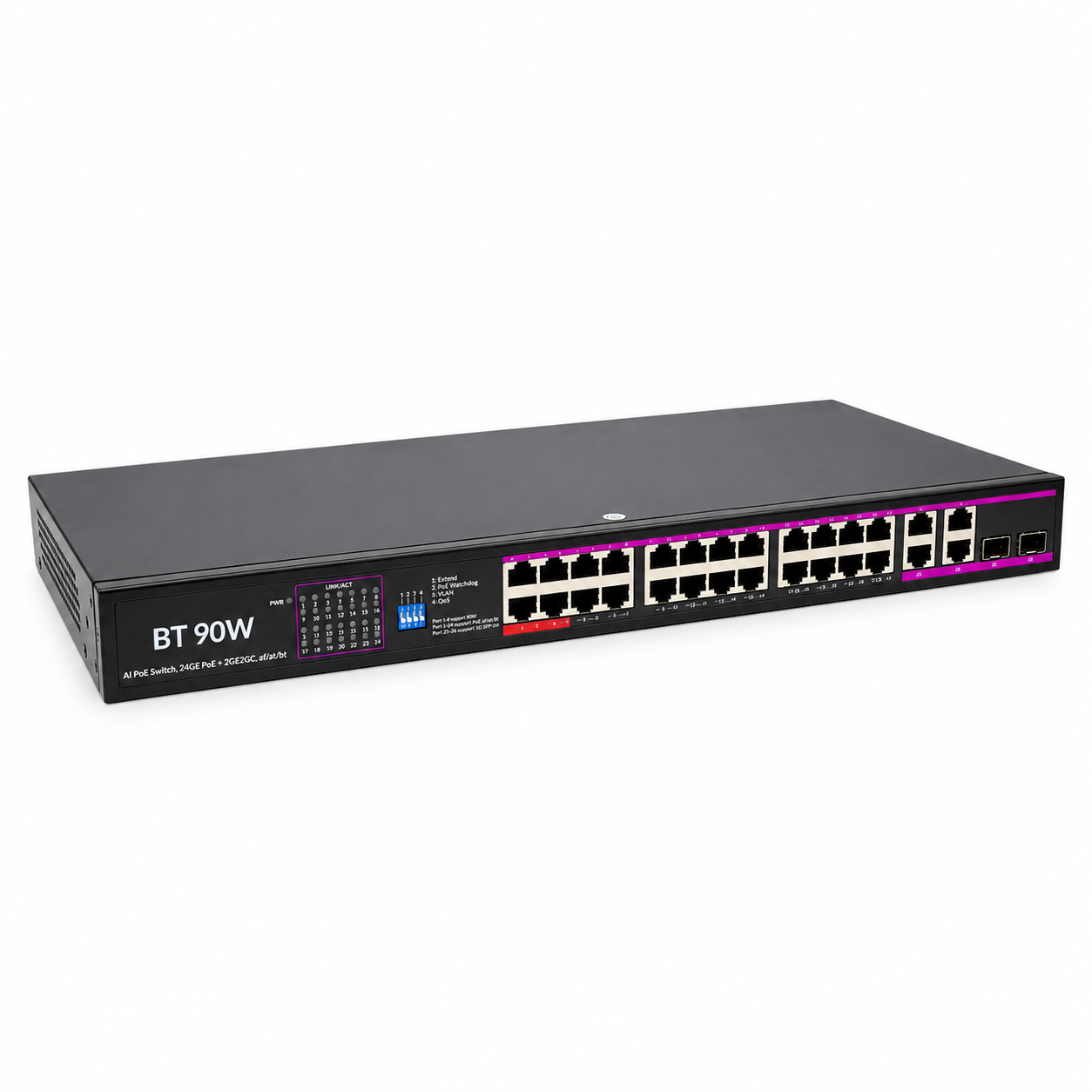

UltraPoE PoE-7026 BT 24-Port Gigabit 90W PoE++ AI Switch
UltraPoE PoE-7026 BT is a rack-mount 24-port Gigabit PoE++ switch built for high-power IP surveillance, 8K cameras, PTZ cameras, wireless access points and other IEEE 802.3bt devices. Four ports support up to 90W PoE output for demanding powered devices.
Key features
- 24 × 10/100/1000Mbps RJ45 PoE ports
- 4 × IEEE 802.3bt ports with up to 90W PoE output
- 2 × Gigabit RJ45 uplink ports plus 2 × Gigabit SFP uplink cages
- IEEE 802.3af/at/bt Power over Ethernet compatibility
- Automatic powered-device detection and auto MDI/MDI-X
- Normal, VLAN, Extend, AI Watchdog and QoS operating modes
- Extend mode supports PoE transmission up to 250m

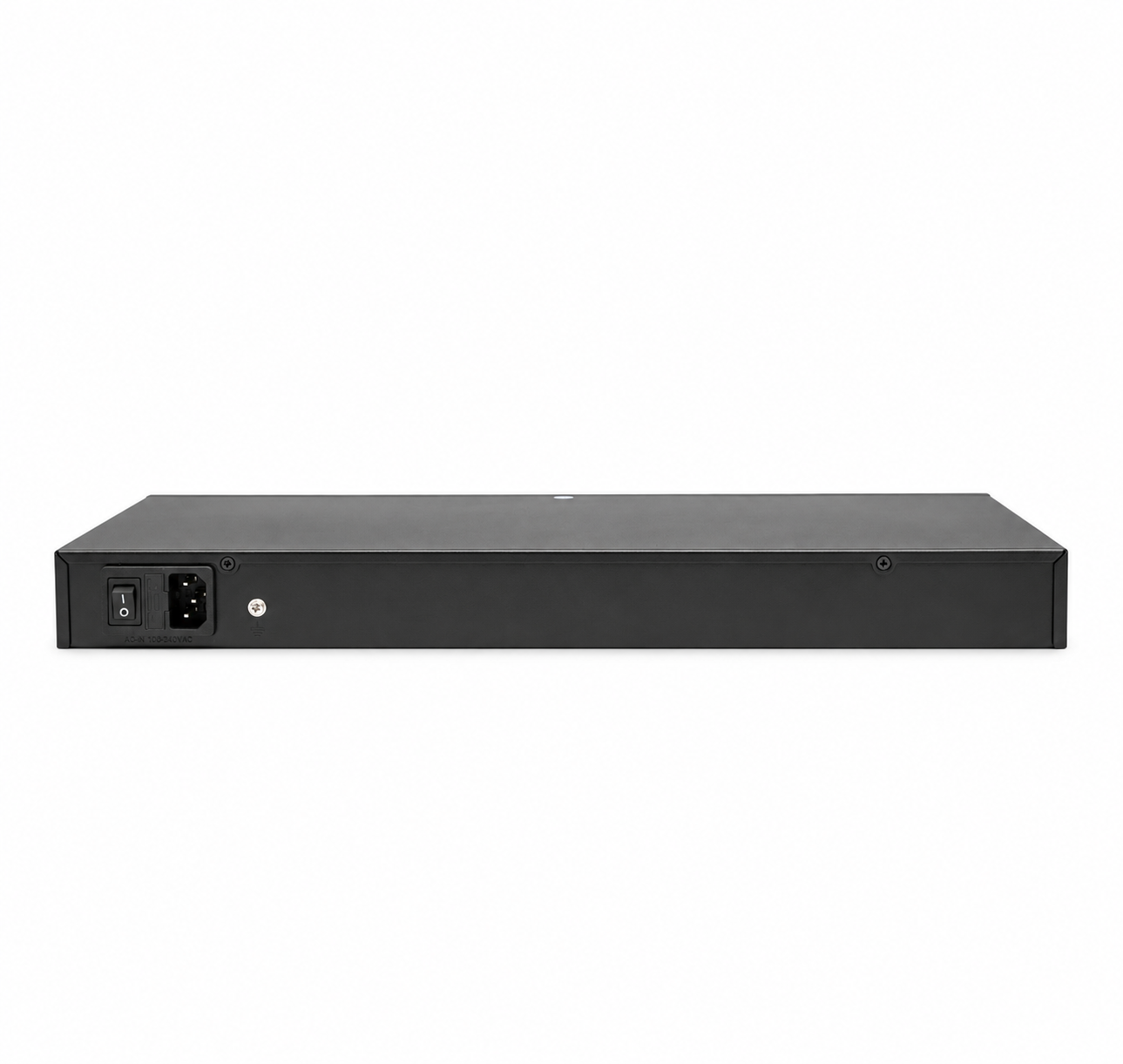

- 100–240VAC built-in power supply
- Durable metal 1U rack-mount enclosure with fan cooling
What is this switch designed for?
The PoE-7026 BT consolidates power and Gigabit data for up to 24 PoE devices. Its four 90W PoE++ ports suit high-power PTZ and 8K IP cameras, while dual RJ45 and dual SFP uplinks provide flexible connections to recorders, core switches and fiber networks.
Frequently asked questions
How many PoE ports does the PoE-7026 BT have?
It has 24 Gigabit RJ45 PoE ports, including four high-power IEEE 802.3bt ports supporting up to 90W per port.
Which PoE standards are supported?
The switch supports IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt compatible powered devices.
Does it support fiber uplinks?
Yes. It includes two Gigabit SFP uplink cages as well as two Gigabit RJ45 uplink ports.
Can it transmit PoE beyond 100 meters?
Yes. Extend mode supports transmission distances up to 250 meters, subject to cable quality and link requirements.
