9-Channel 12V 10A CCTV UPS Power Distribution Box | PS-DC10A09B
SKU: PS-DC10A09BUltraPoE PS-DC10A09B 9-Channel UPS CCTV Power Distribution Box

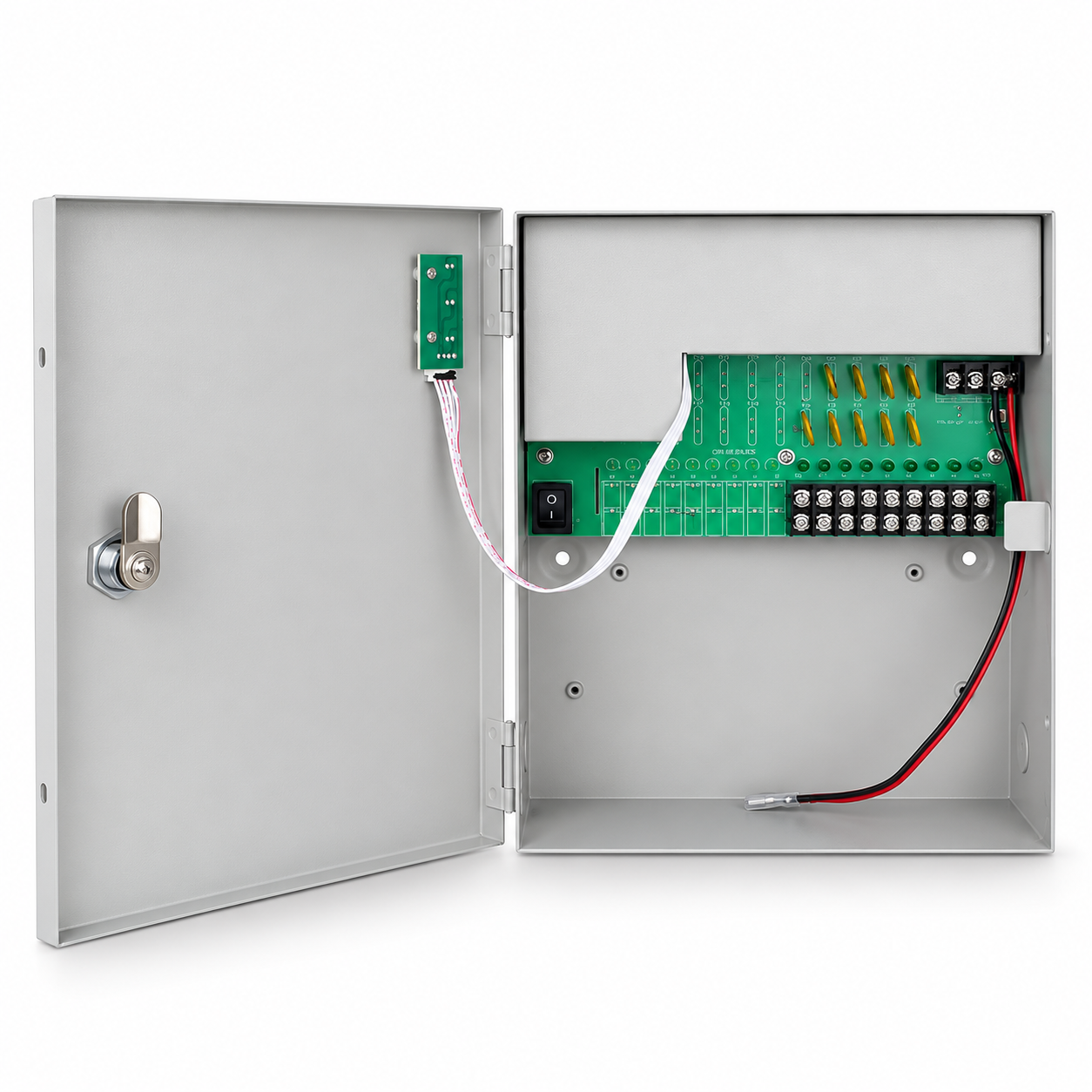

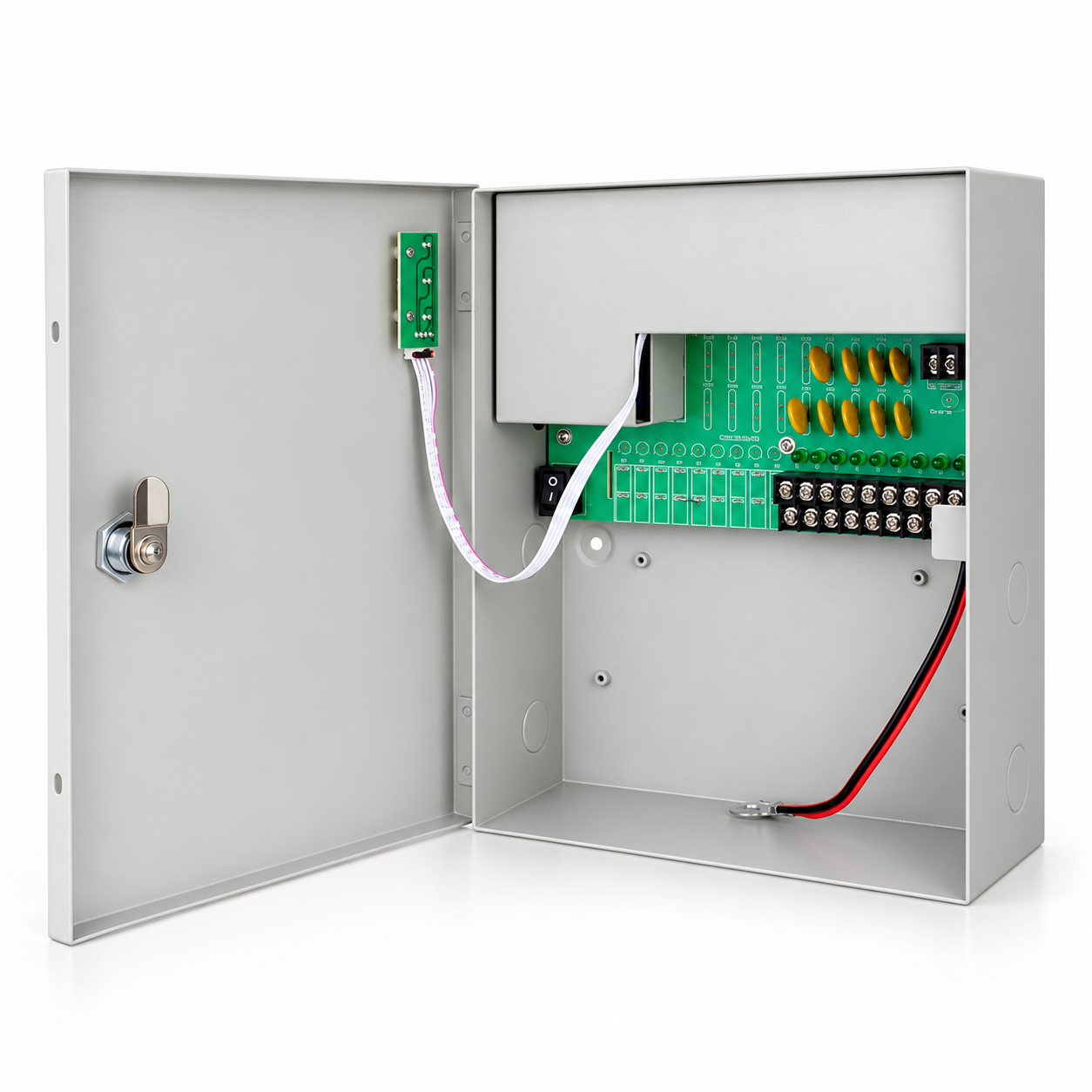

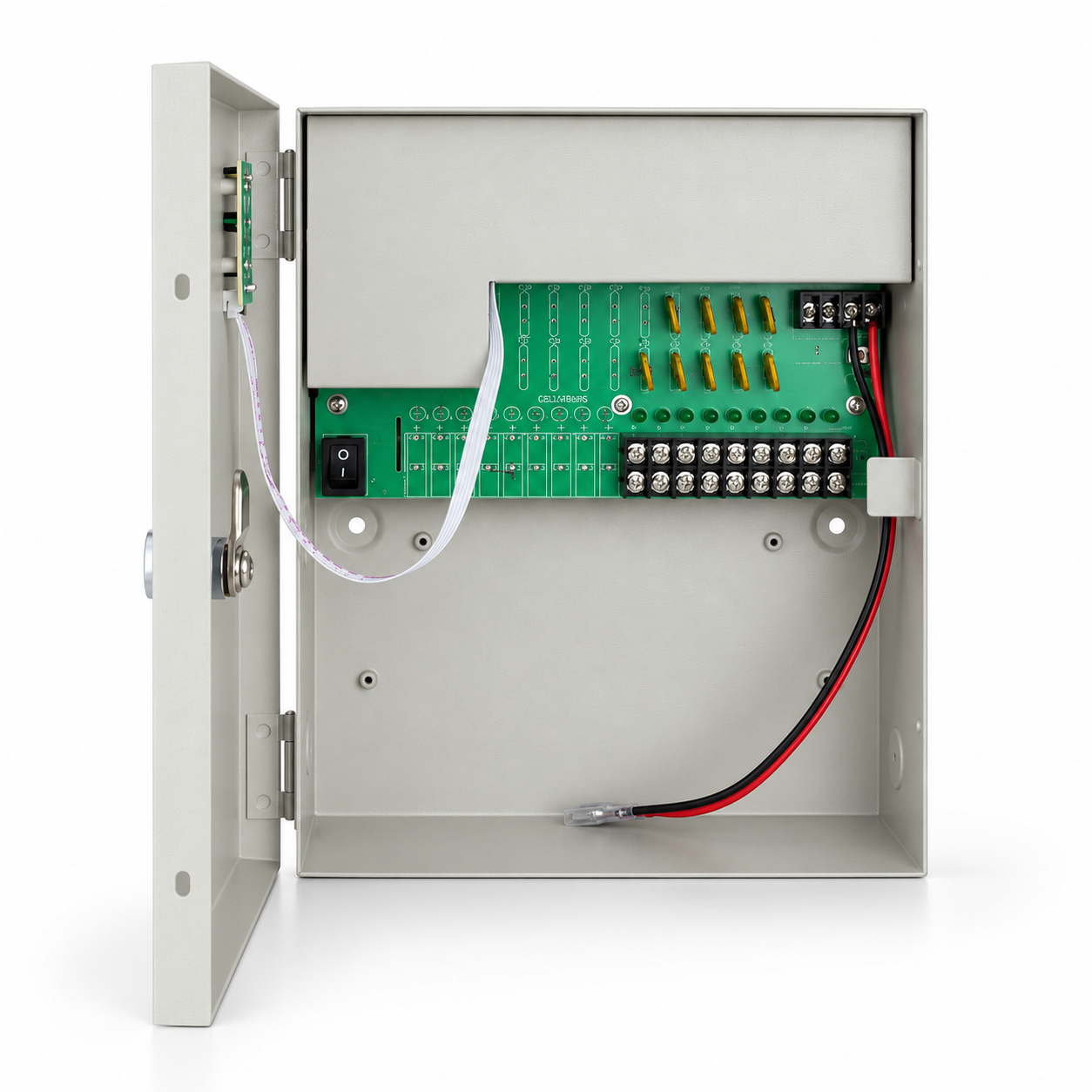

The PS-DC10A09B is a professional, lockable 9-channel power distribution enclosure for centralized CCTV and access-control installations. It converts 110/220V AC input to regulated 12V DC output with up to 10A total capacity, helping security installers organize camera power, simplify maintenance, and protect each branch circuit.
Key Features
- 9 independently protected 12V DC output channels
- 10A total shared output capacity
- UPS-ready design with battery connection and charging leads
- Universal 110/220V AC, 50/60Hz input
- Regulated and filtered DC output for stable operation
- Class 2 resettable PTC protection on every output
- Individual output-status LEDs plus front POWER, DC12V, and CHARGE indicators
- Short-circuit, over-voltage, over-current, and over-temperature protection
- Lockable metal cabinet for dry indoor security installations
Technical Specifications
| Model | PS-DC10A09B |
|---|---|
| Input | 110/220V AC, 50/60Hz |
| Output | 12V DC, regulated and filtered |
| Total output current | 10A shared across all channels |
| Output channels | 9 |
| Channel protection | Independent Class 2 resettable PTC |
| Efficiency | ≥82% |
| Operating temperature | -10°C to 40°C (14°F to 104°F) |
| Enclosure size | 265 × 205 × 87 mm (10.43 × 8.07 × 3.43 in) |
| Net weight | 2.27 kg (5.0 lb) |
Important: The 10A rating is the combined maximum across all nine outputs. Add the current draw of every connected device and allow suitable design margin. A backup battery is not listed as included; select a compatible battery separately.
Recommended Applications
- Multi-camera CCTV and video surveillance systems
- PTZ cameras and IR illuminators within the available power budget
- Access-control panels, readers, and related low-voltage devices
- Commercial buildings, warehouses, schools, retail stores, offices, and other security installations
Frequently Asked Questions
How many devices can it power?
It provides nine 12V DC outputs. The actual number of devices depends on each device's current draw, with a 10A combined maximum.
Does each output have protection?
Yes. Each channel uses an independent resettable PTC so a branch fault can be isolated while other channels remain available.
Does it include a backup battery?
No battery is listed as included. The enclosure provides battery connection and charging support; confirm battery compatibility for your installation.
Can it be installed outdoors?
The supplied enclosure is not identified as weatherproof. Install it in a dry indoor or otherwise protected location.
What do the front LEDs indicate?

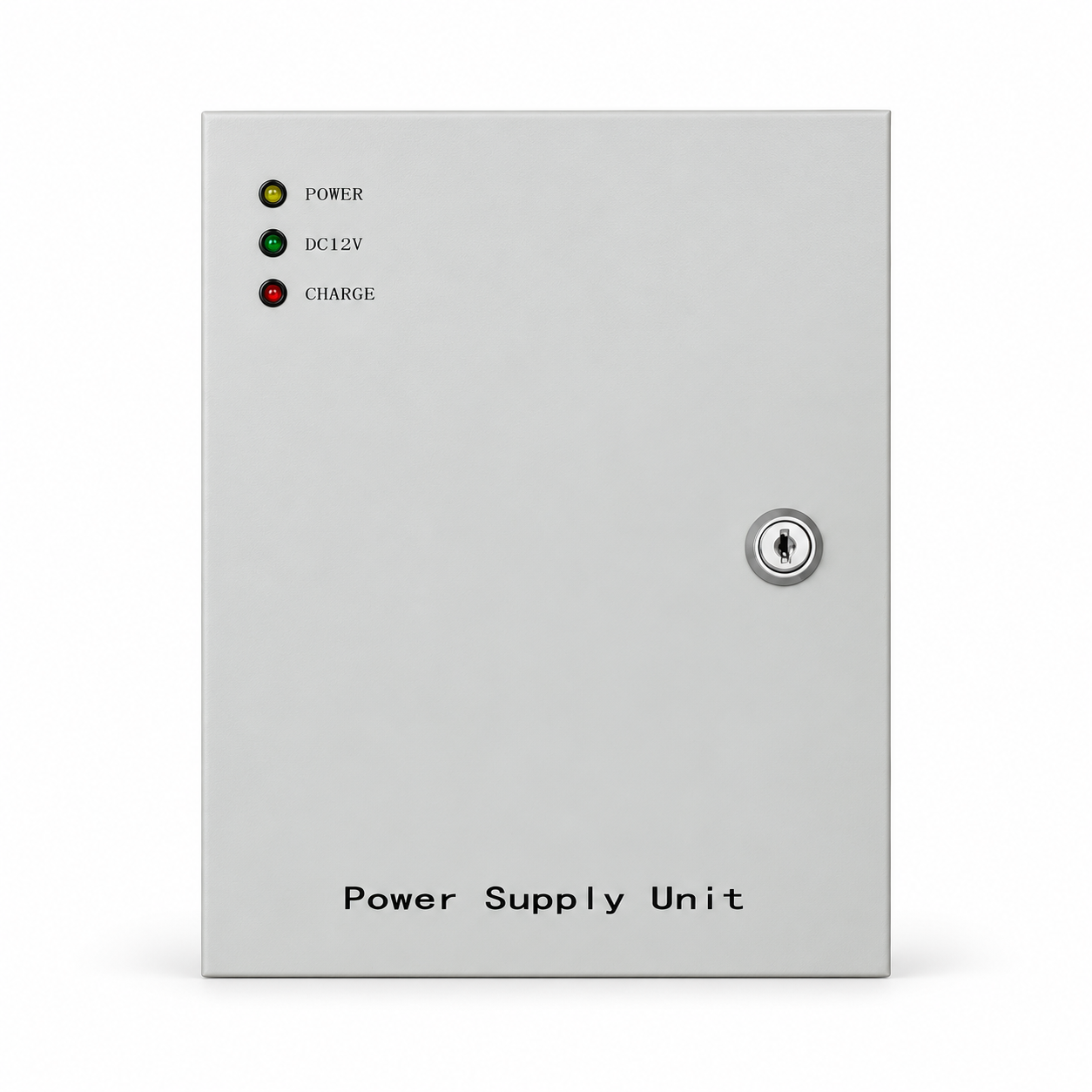

POWER, DC12V, and CHARGE indicators provide quick system-status checks, while channel LEDs help identify output status.
Download: PS-DC10A09B Professional Specification Sheet (PDF)
