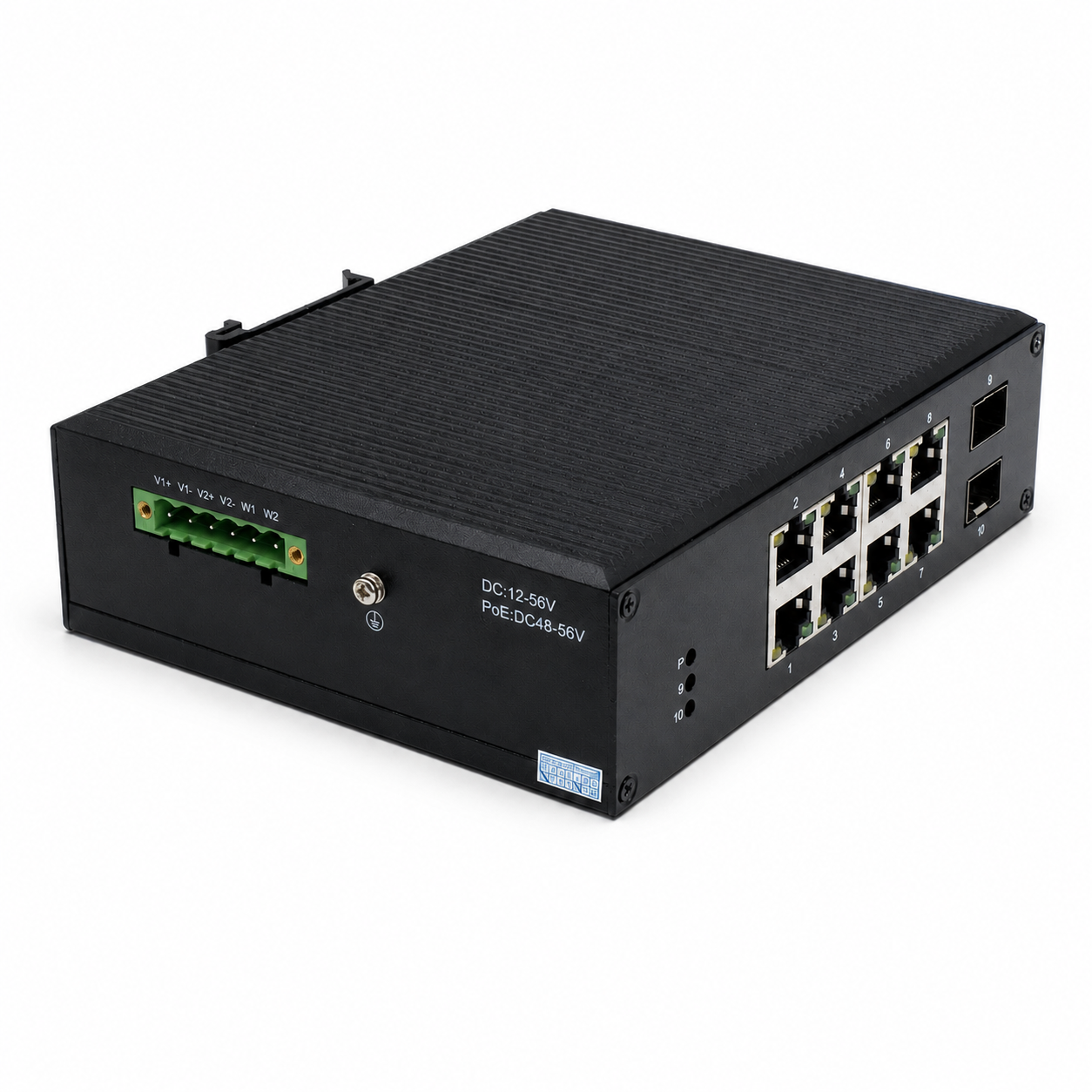

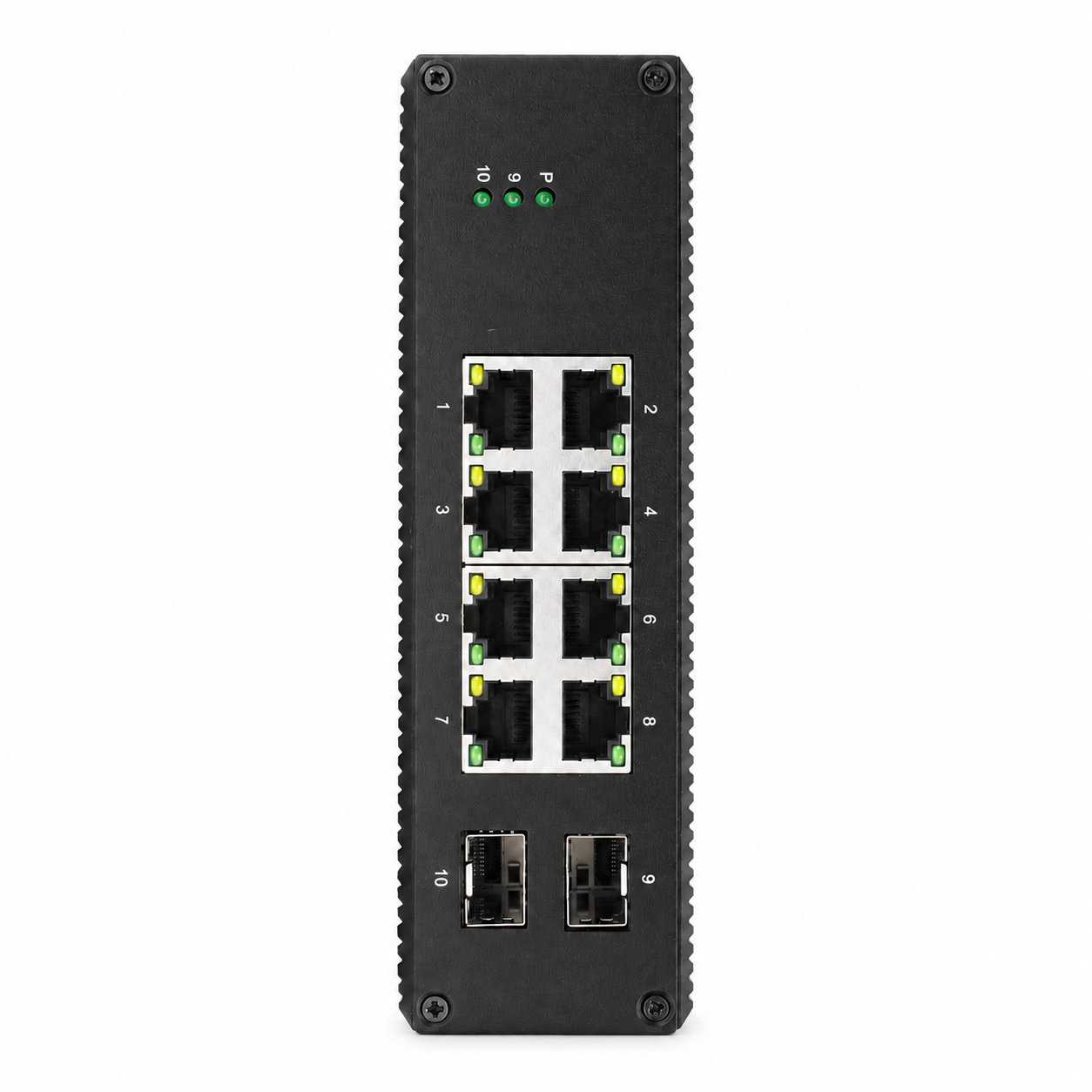

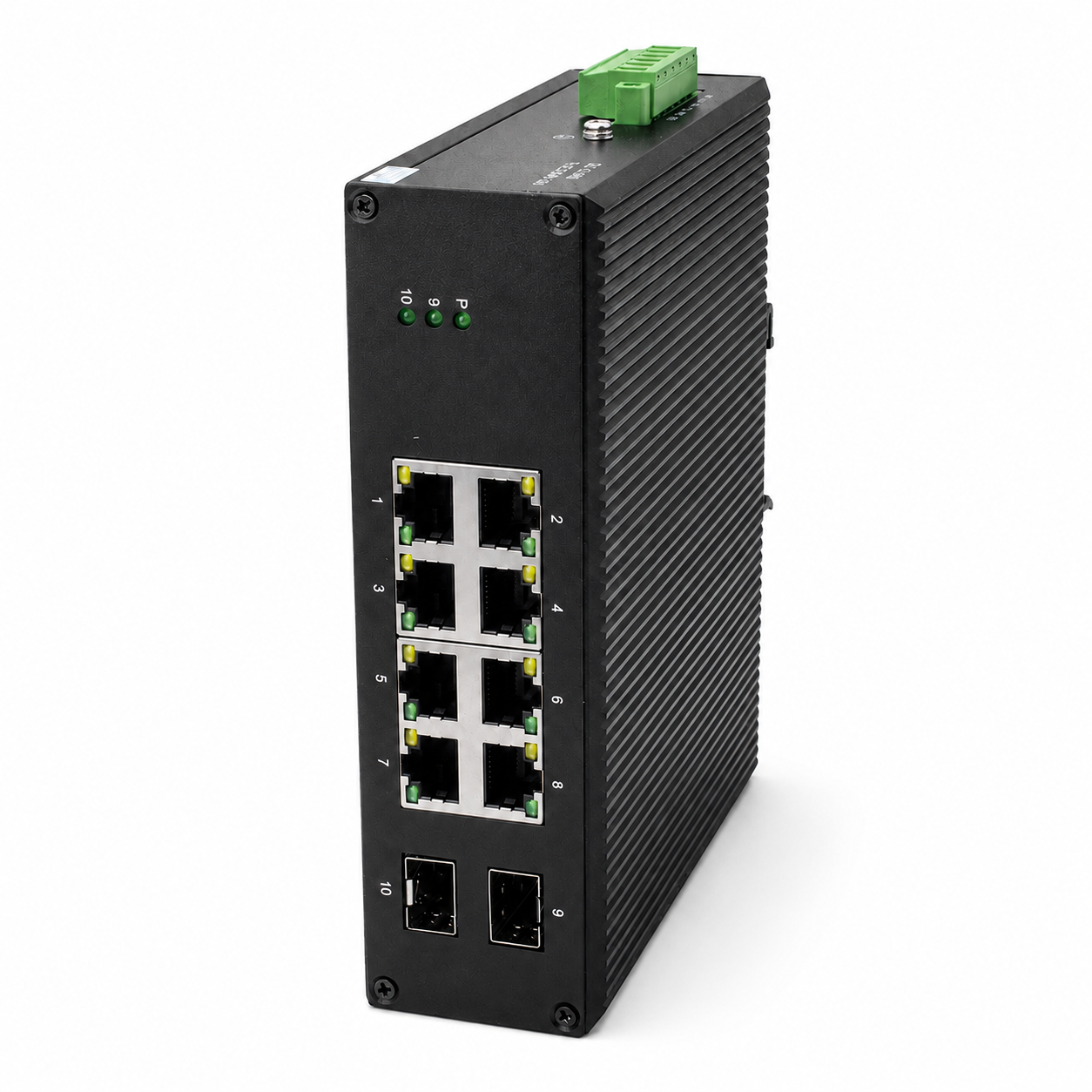

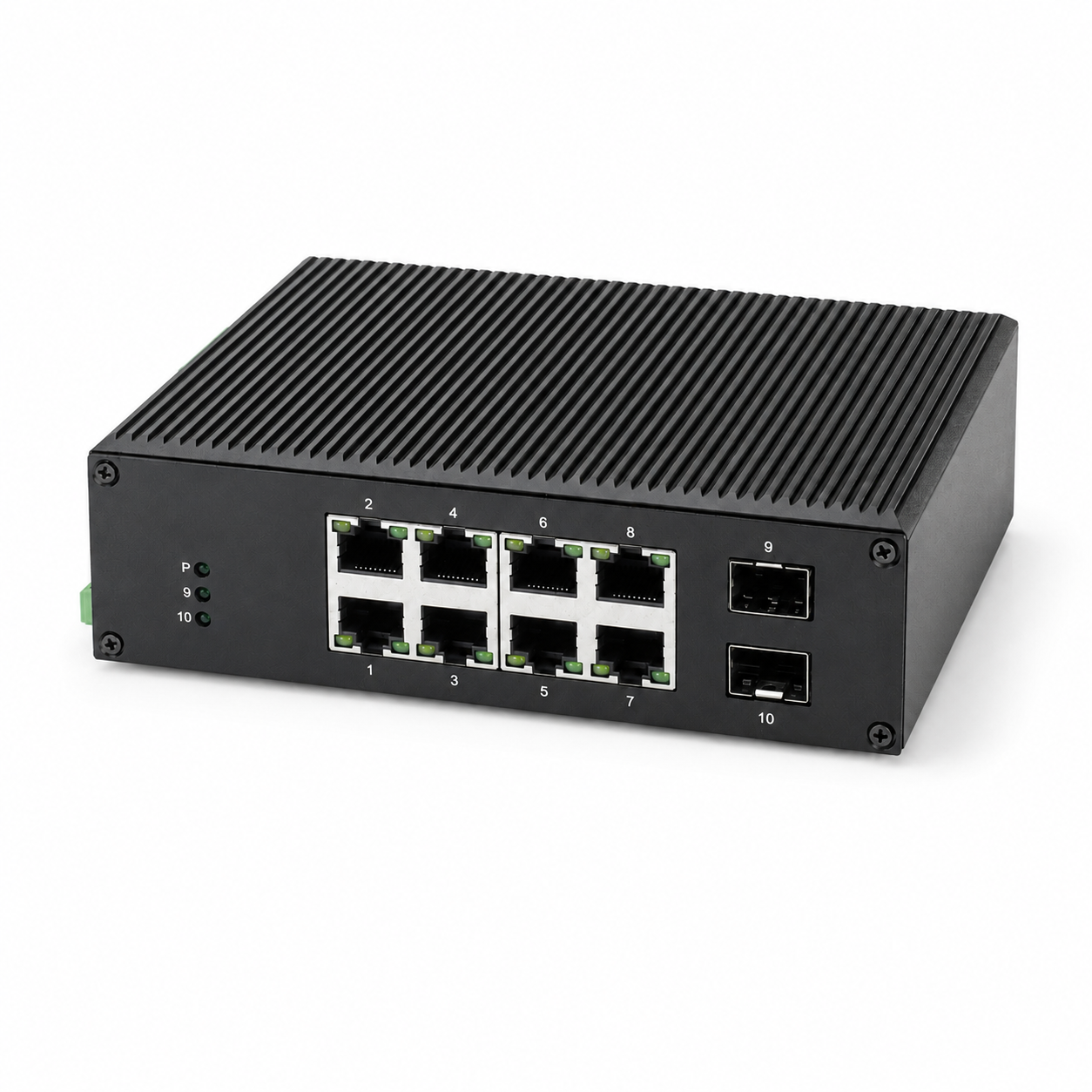

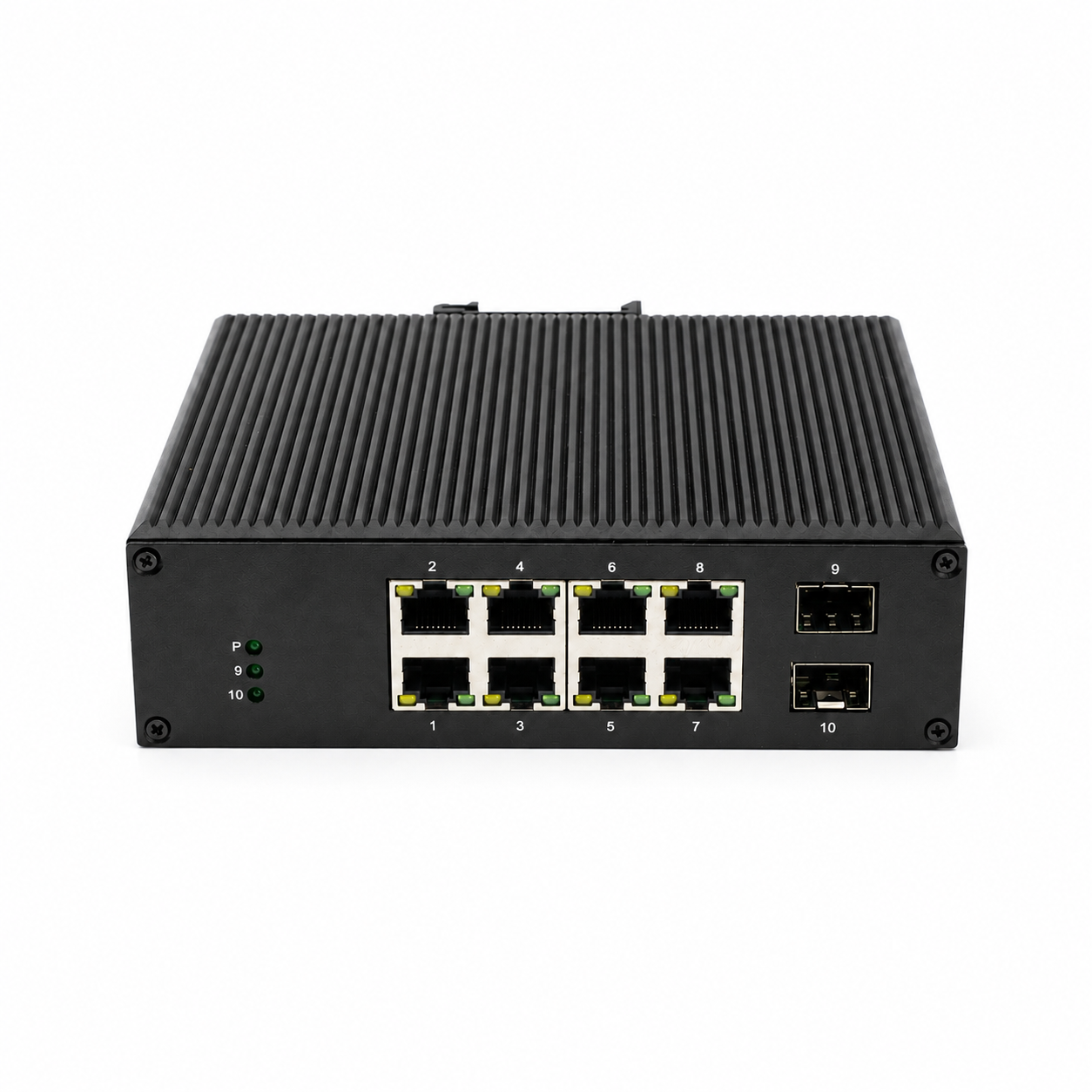

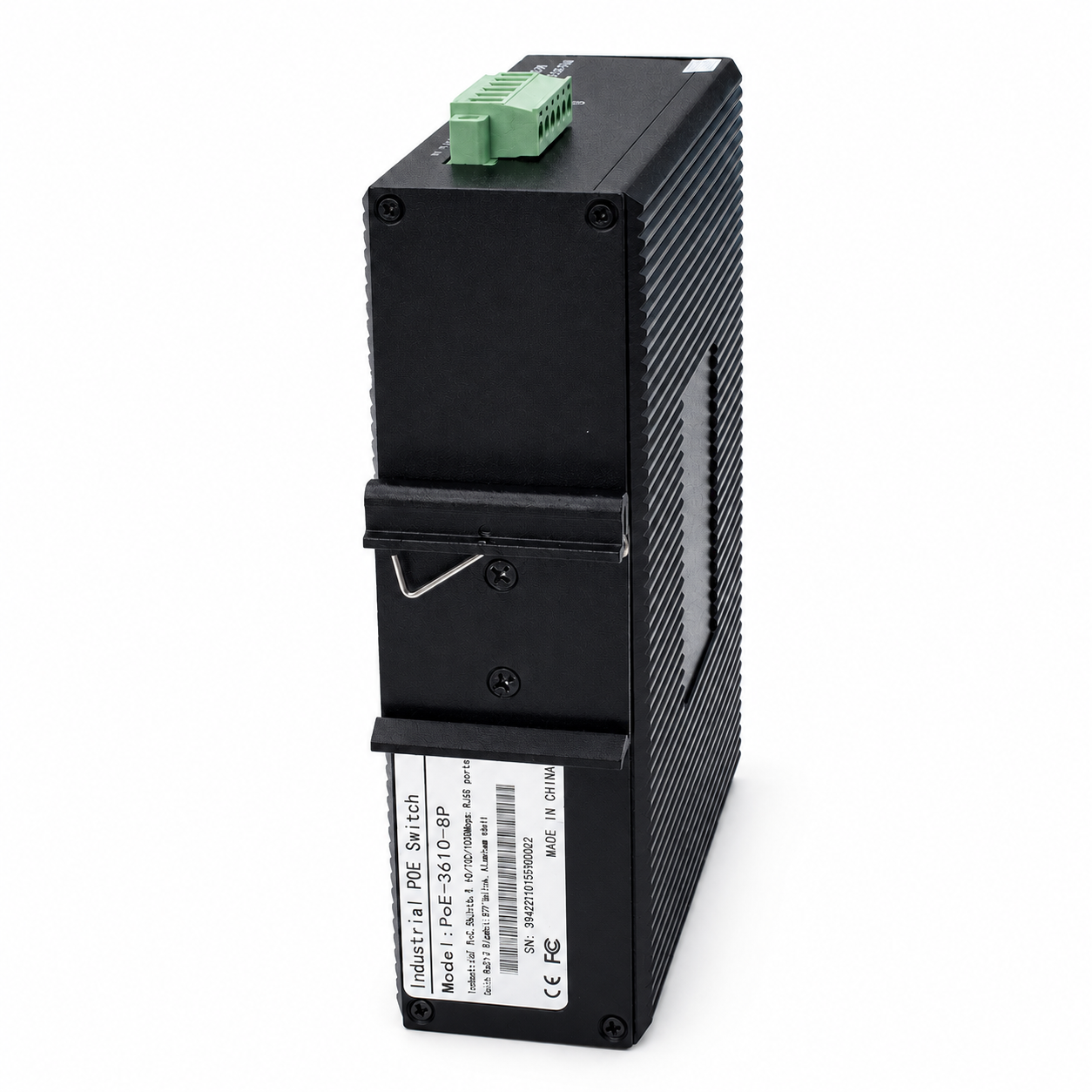

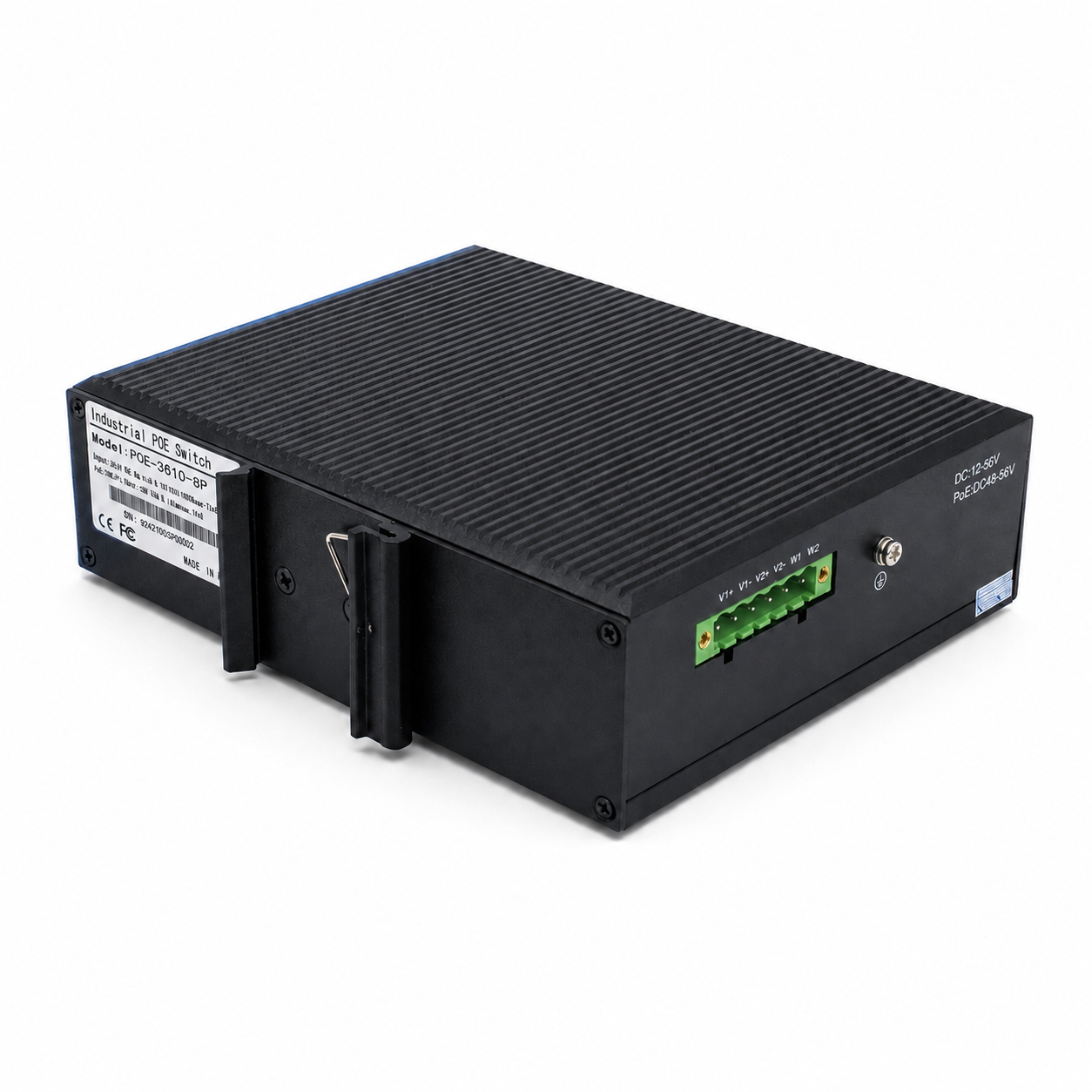

8GE PoE + 2GF UP Industrial PoE Switch
UltraPoE PoE-3610-8P Industrial Gigabit PoE Switch is a fanless DIN-rail network switch designed to power and connect industrial IP cameras, wireless access points, access-control devices, and other IEEE 802.3af/at powered devices.
Key specifications
- PoE ports: 8 × 10/100/1000 Mbps RJ45
- Uplinks: 2 × 1.25 Gbps SFP
- PoE standards: IEEE 802.3af/at
- Maximum output per PoE port: 30W
- Power input: DC 12–56V; PoE output requires DC 48–56V
- Operating temperature: -40°C to 70°C
- Surge protection: 6kV
- Housing and mounting: Fanless aluminum enclosure with DIN-rail mount
Where is this industrial PoE switch used?
The PoE-3610-8P is suited to surveillance networks, factories, transportation systems, outdoor enclosures, smart buildings, and remote installations that need eight Gigabit PoE connections plus fiber uplinks.
Frequently asked questions
How many powered devices can the PoE-3610-8P connect?
It provides eight Gigabit RJ45 PoE ports for up to eight compatible IEEE 802.3af/at devices.
Does it support fiber uplinks?
Yes. Two 1.25 Gbps SFP slots provide fiber uplink connectivity; compatible SFP modules are required.
Can it provide PoE from a 12V input?
No. The switch accepts DC 12–56V input, but PoE output is available only with a DC 48–56V supply.
Is it suitable for industrial environments?
Yes. Its fanless aluminum housing, DIN-rail design, -40°C to 70°C operating range, and 6kV surge protection are intended for industrial installations.
