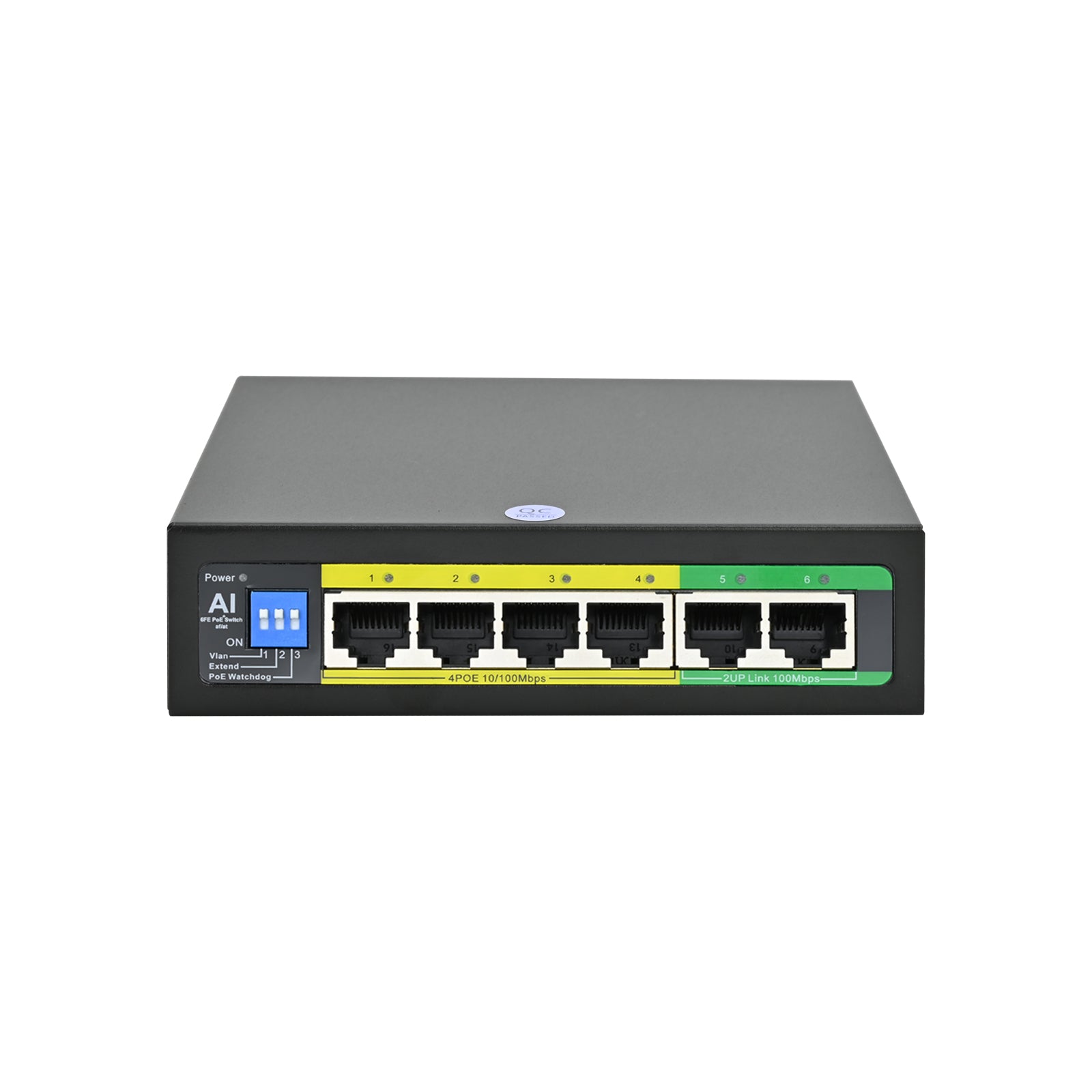

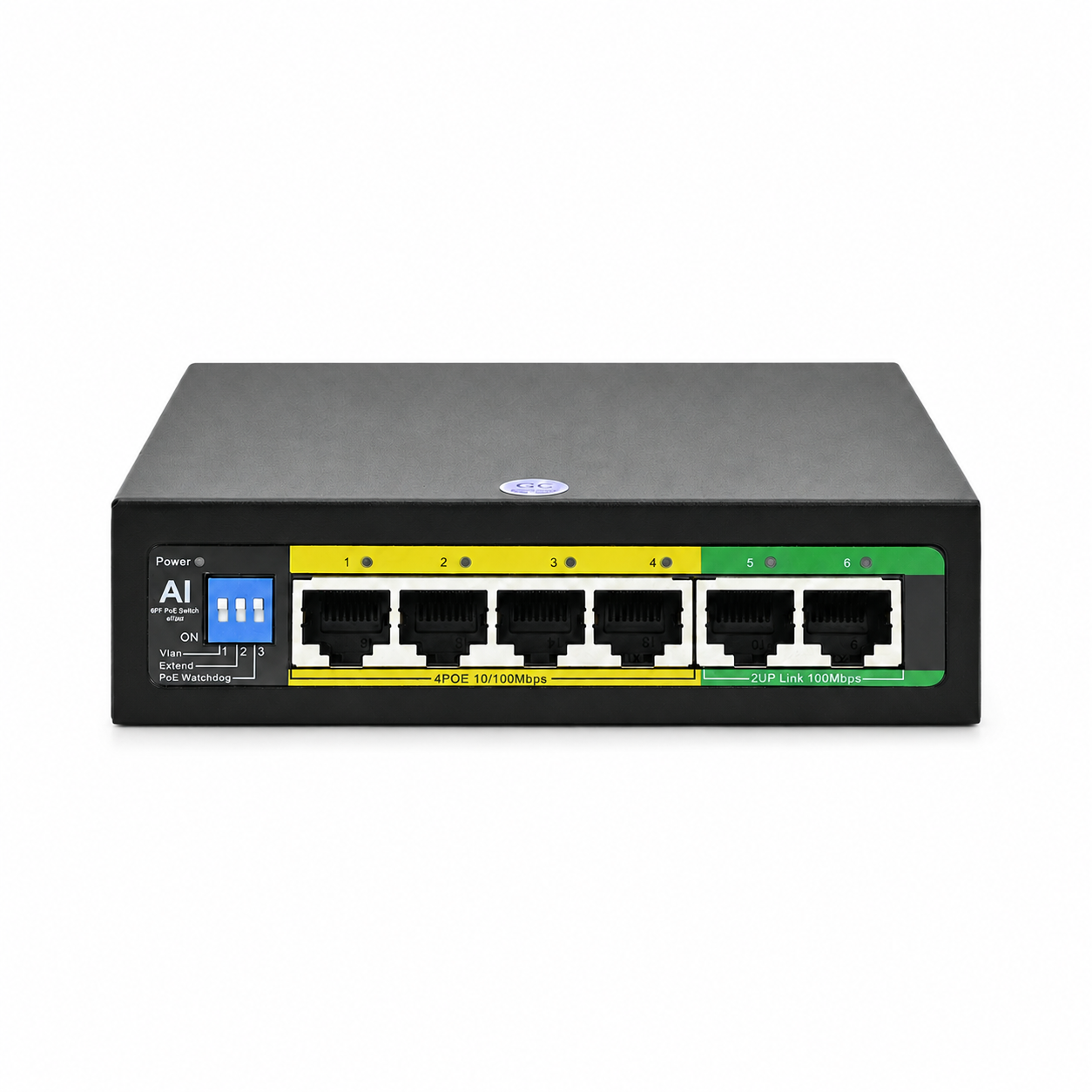

UltraPoE PoE-2006-4E 6-port AI PoE switch front view with four PoE ports and two uplinks on pure white background

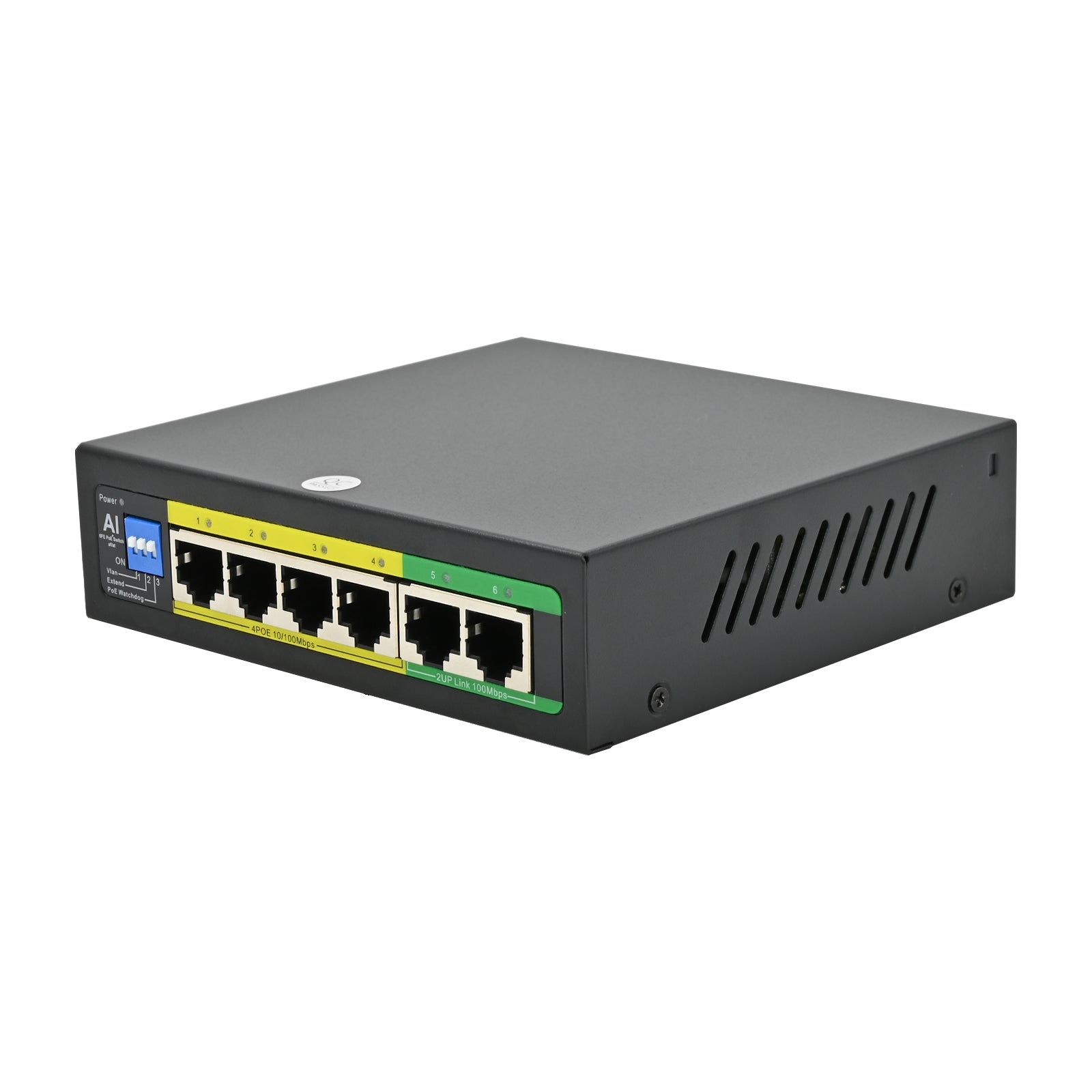

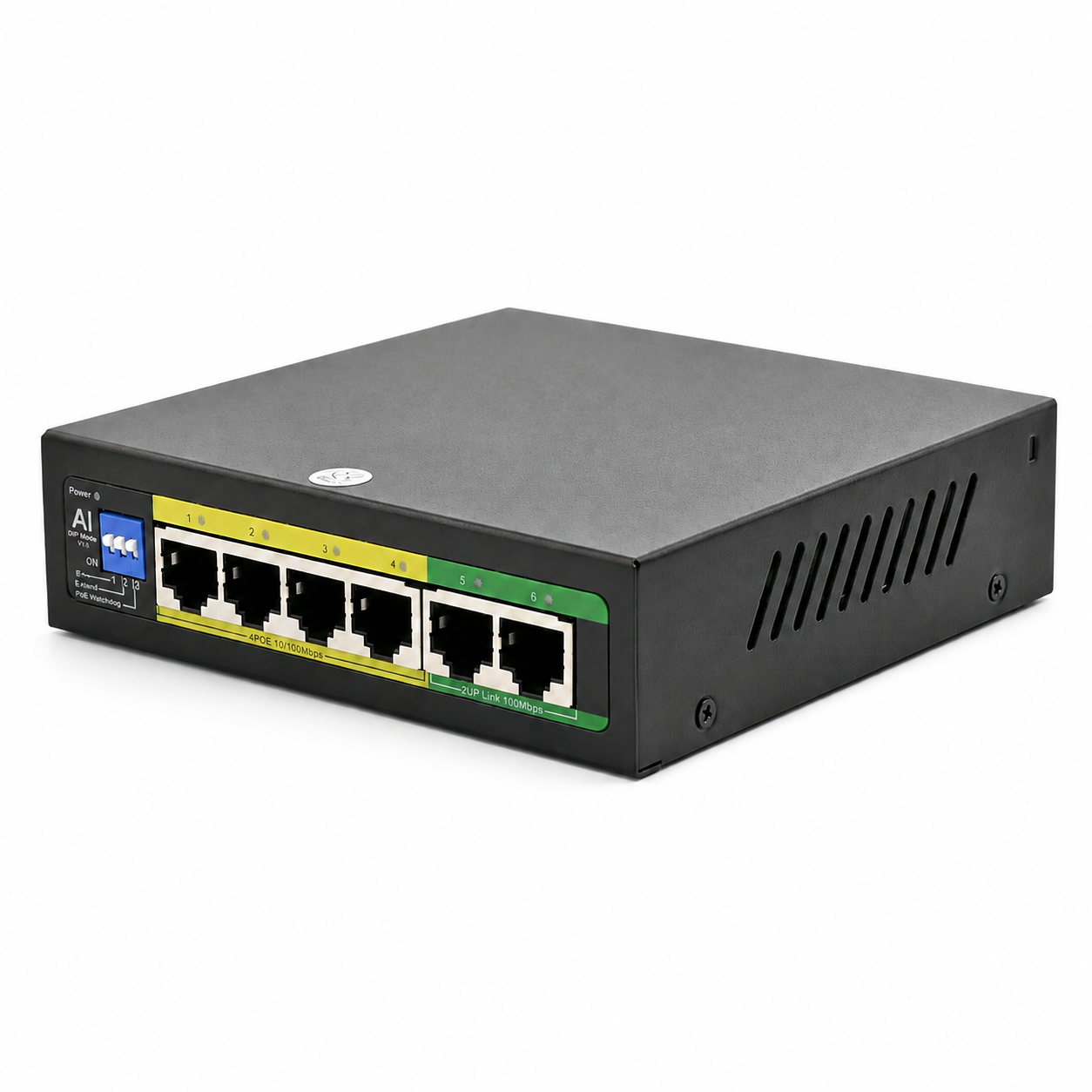

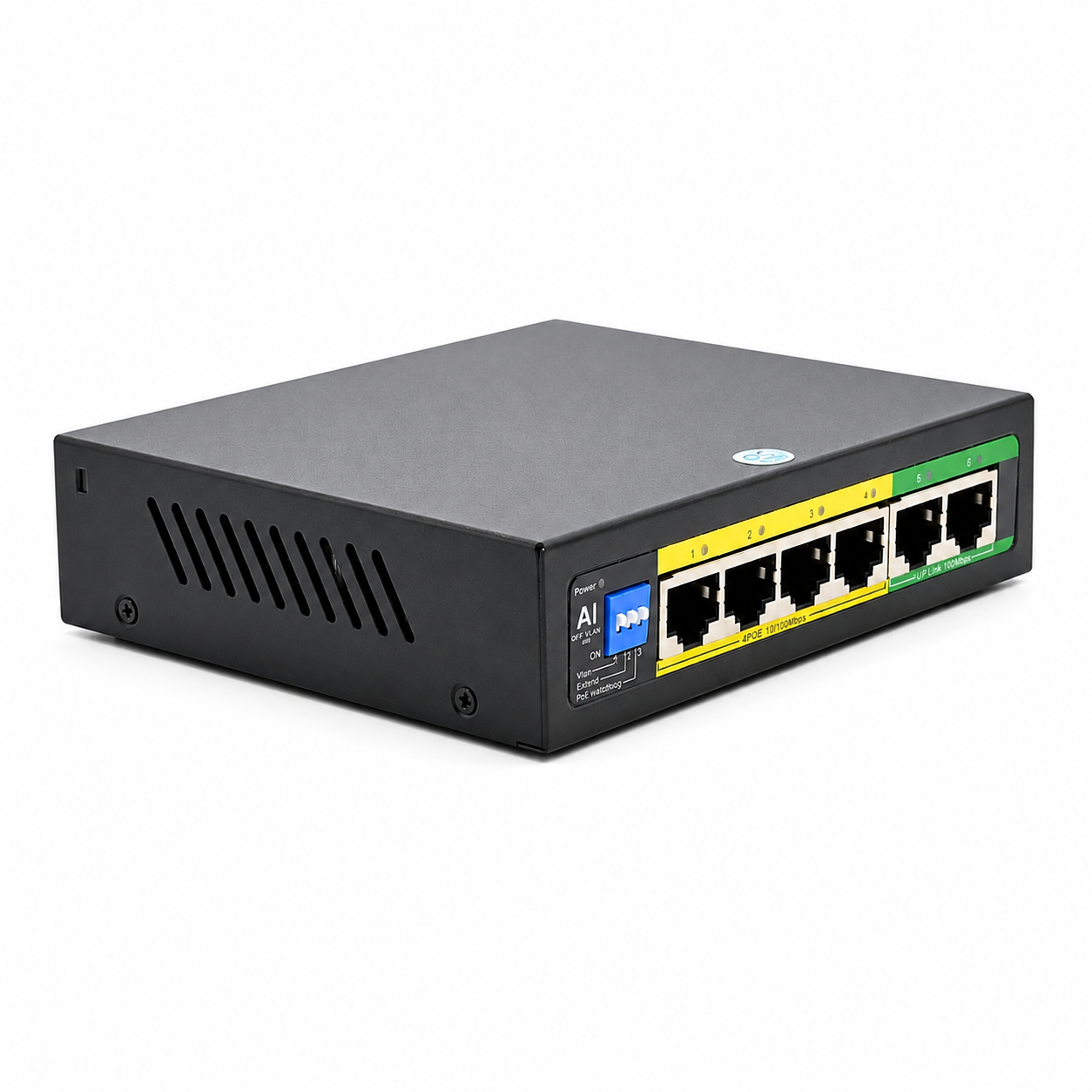

UltraPoE PoE-2006-4E AI PoE switch front-left view on pure white background

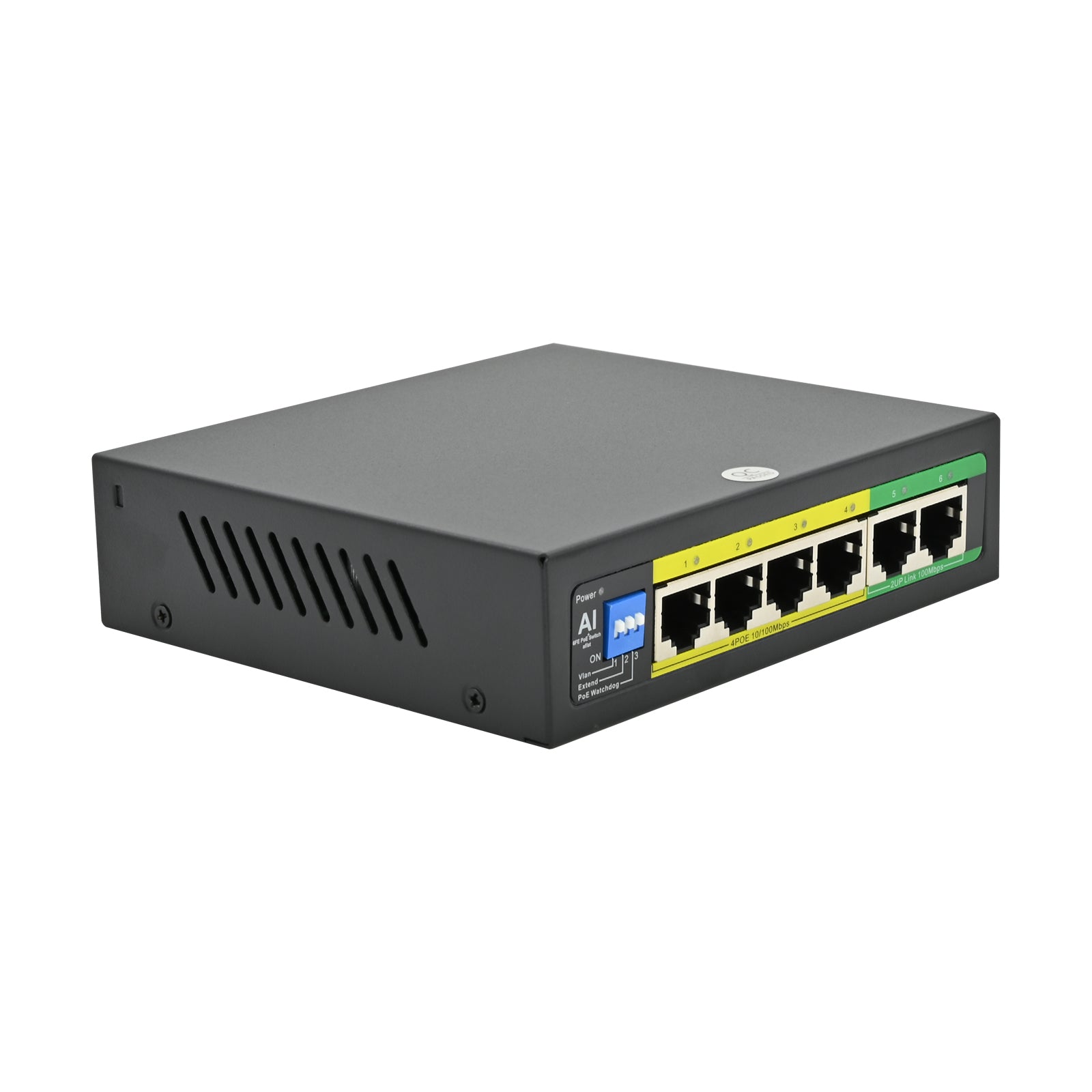

UltraPoE PoE-2006-4E AI PoE switch front-right view with two uplink ports on pure white background

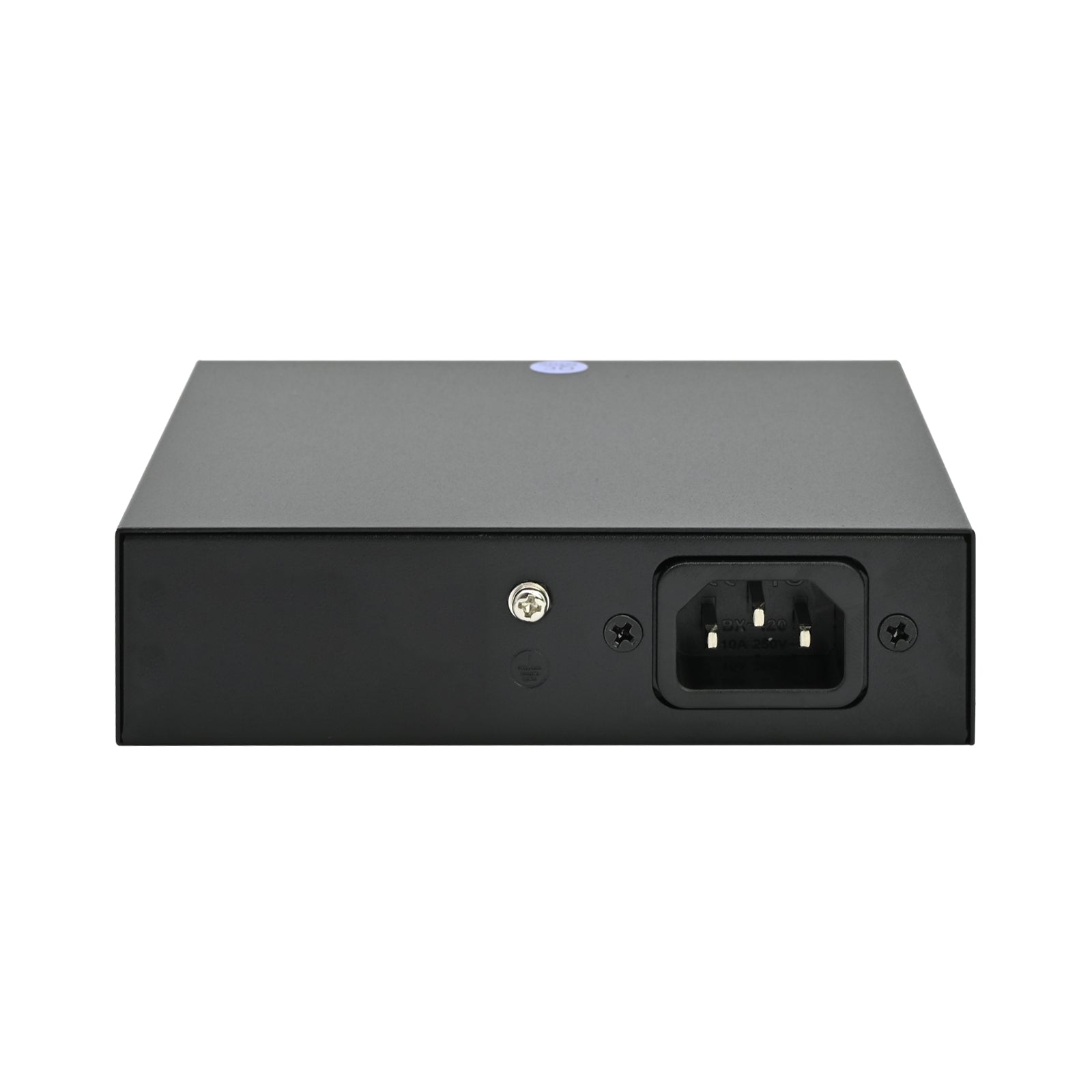

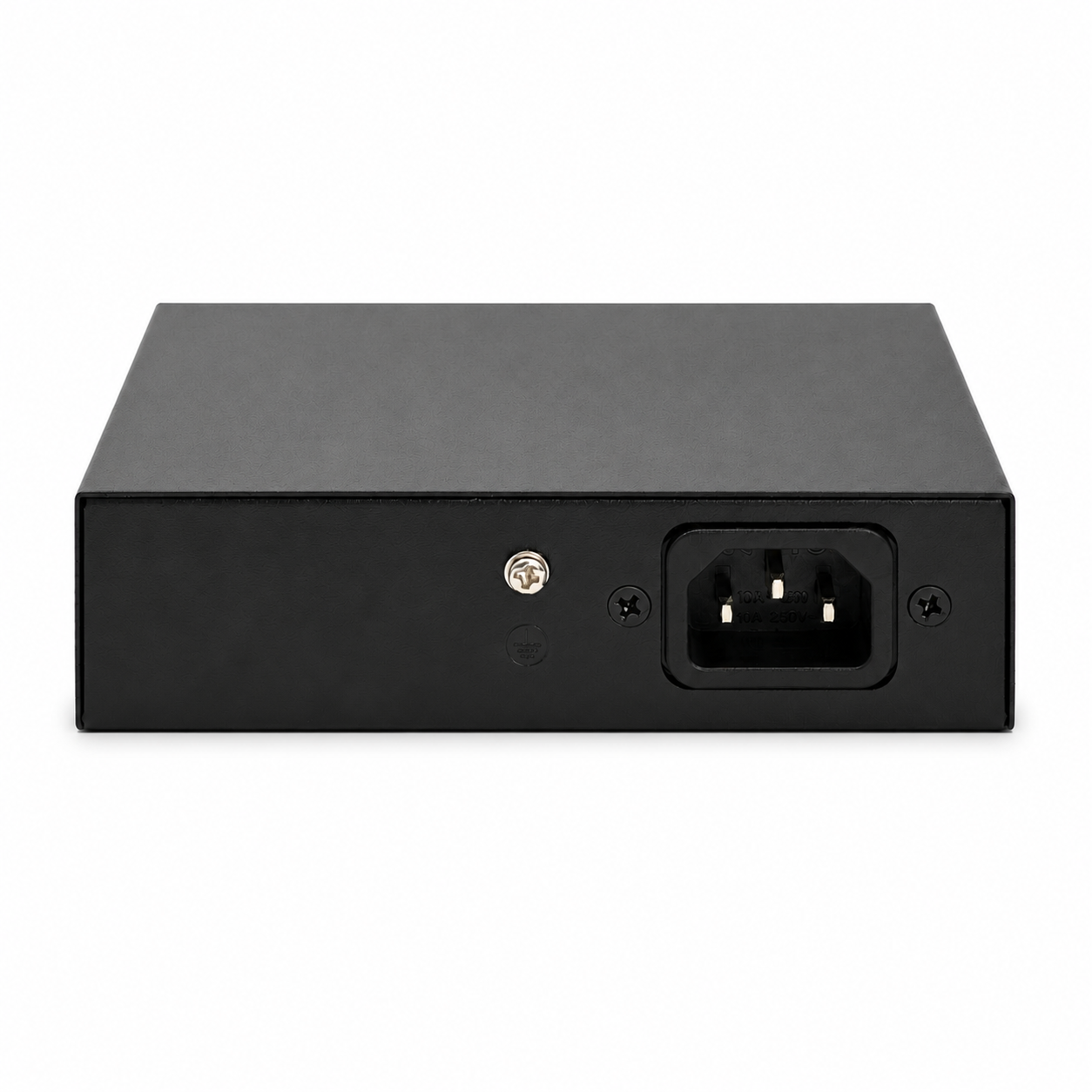

UltraPoE PoE-2006-4E rear IEC AC power inlet on pure white background

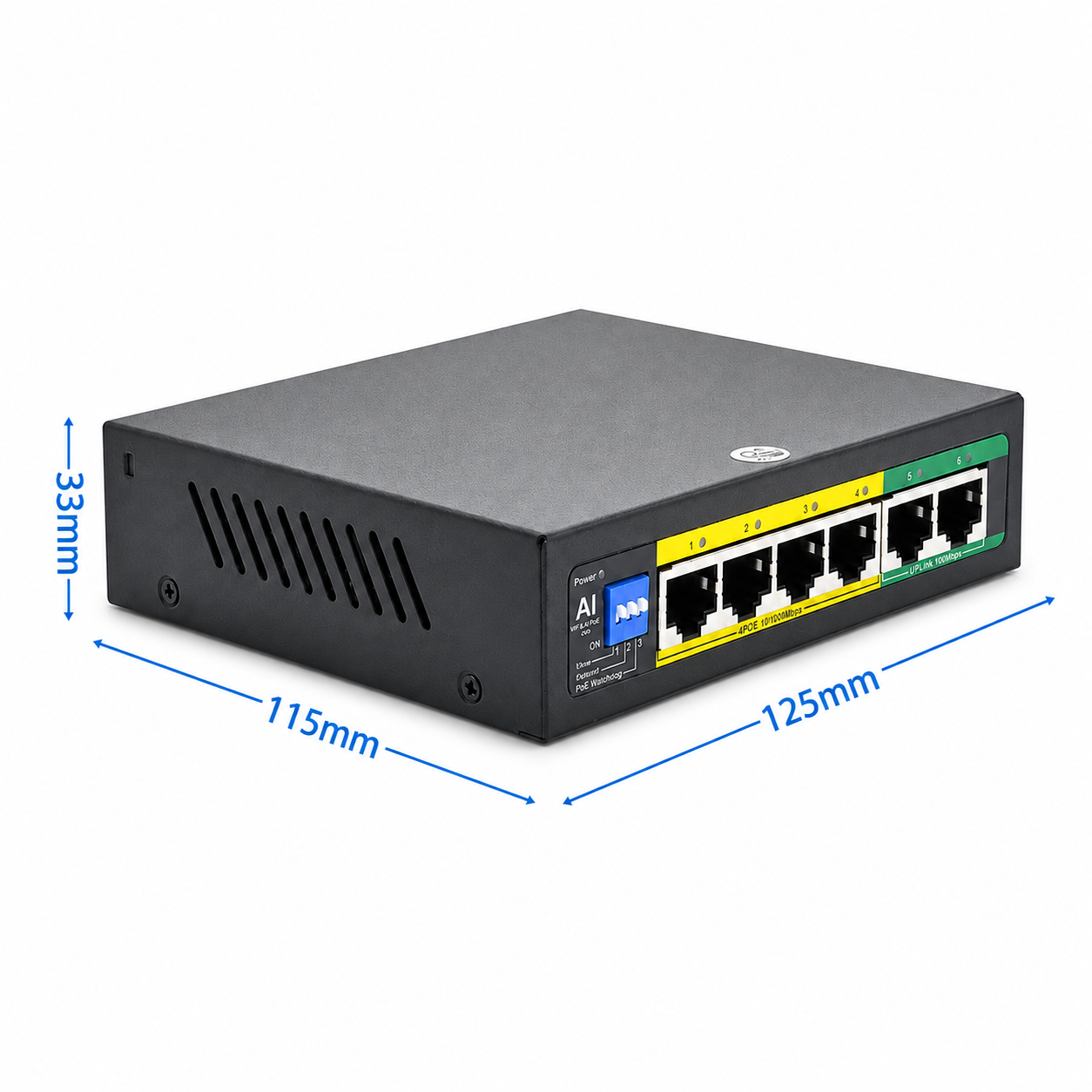

UltraPoE PoE-2006-4E dimensions 115 by 125 by 33 millimeters on pure white background

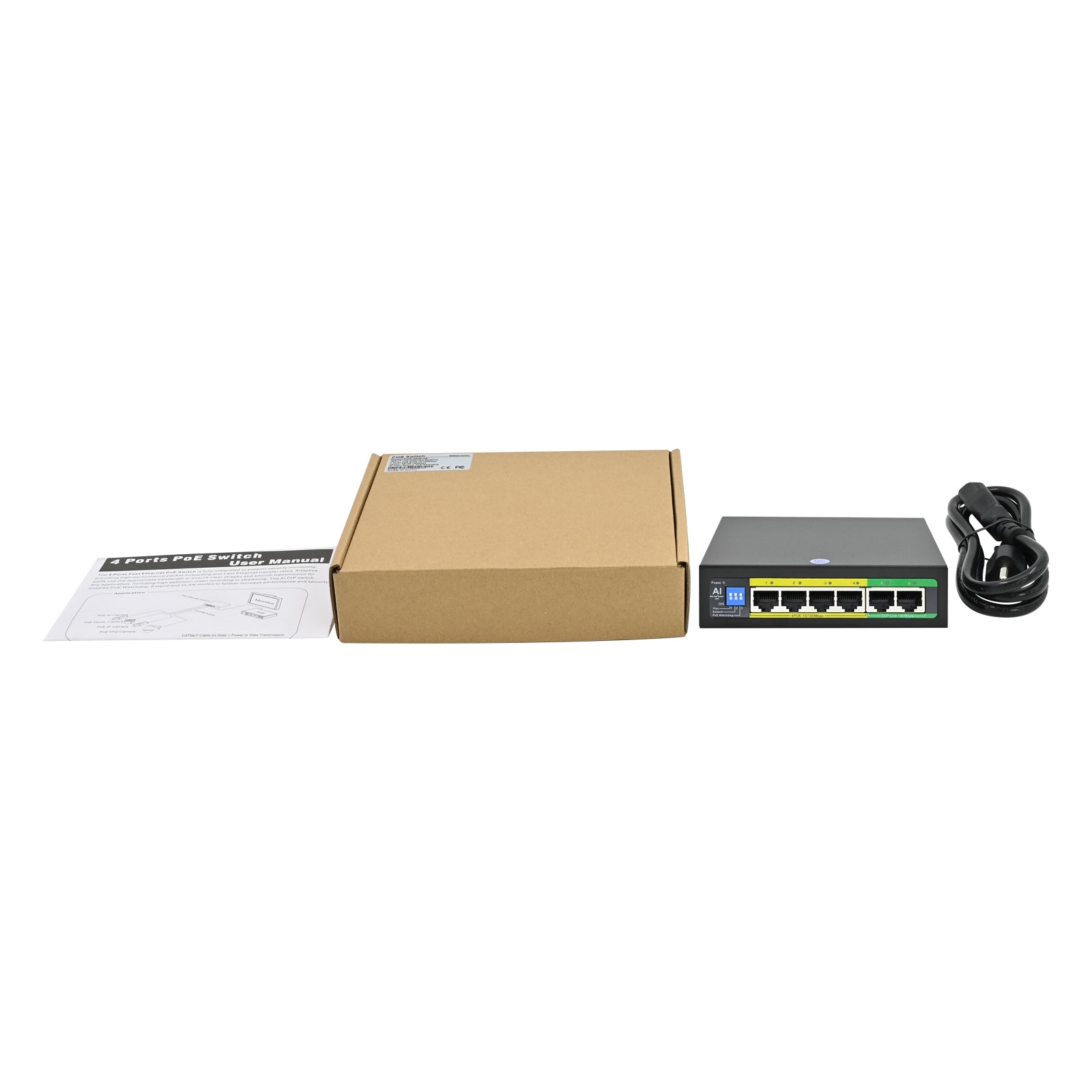

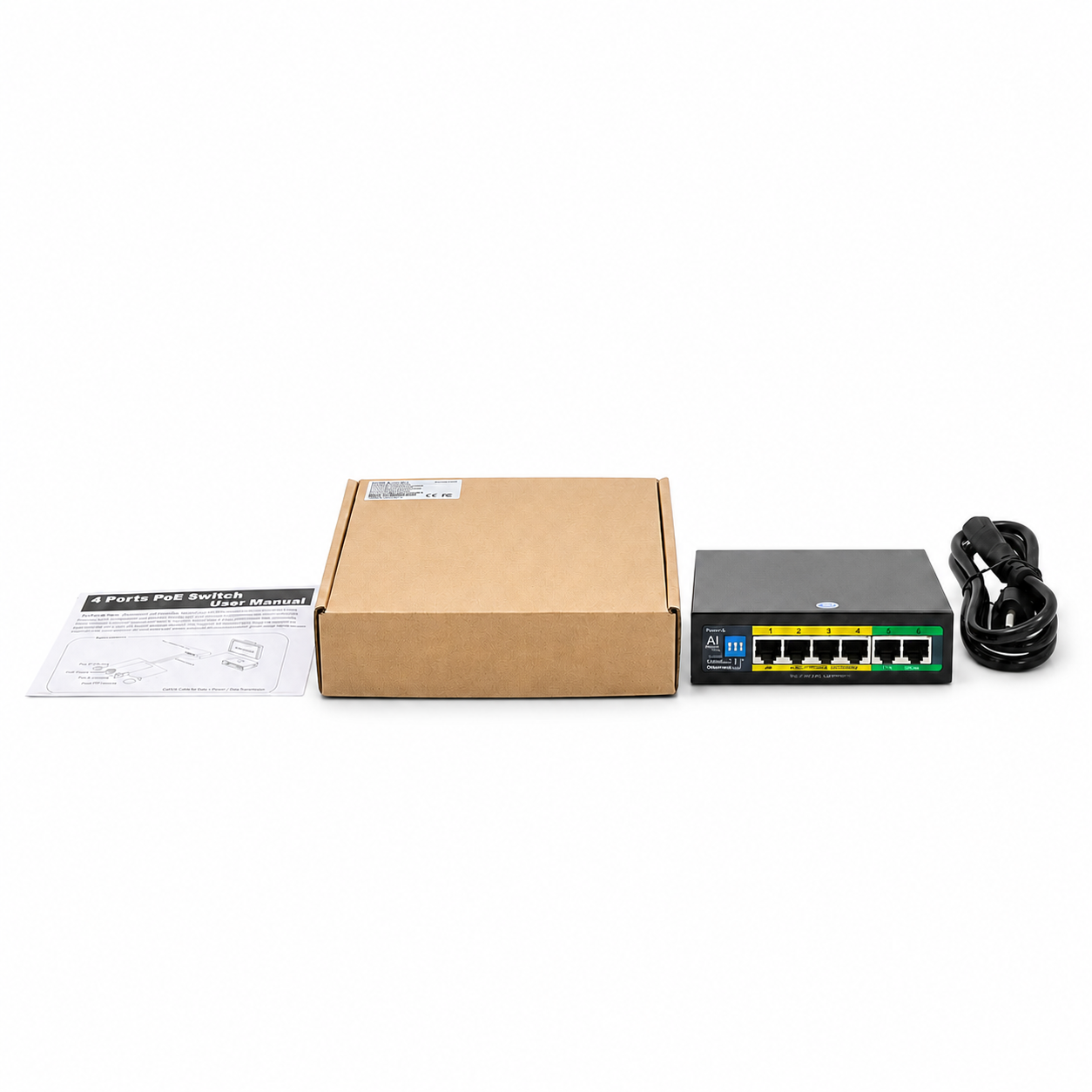

UltraPoE PoE-2006-4E package contents with switch power cord box and manual on pure white background

UltraPoE PoE-2006-4E 4-Port Fast Ethernet PoE+ Switch – Dual Uplink

  • Save $88,808
SKU: PoE-2006-4E




UltraPoE PoE-2006-4E is a compact unmanaged PoE+ switch for IP cameras, access points, VoIP phones and access-control devices. It provides four 10/100 Mbps PoE ports and two 10/100 Mbps RJ45 uplinks for simple power-and-data deployment.
Key features


  •
4 Fast Ethernet PoE ports: Four 10/100 Mbps RJ45 ports connect and power compatible devices.
    •

  •
Dual RJ45 uplinks: Two 10/100 Mbps uplink ports connect to a router, recorder or core switch.
    •

  •
IEEE PoE support: Compatible with IEEE 802.3af and IEEE 802.3at powered devices.
    •

  •
AI PoE Watchdog: Monitors connected PoE devices and can restart power to an unresponsive connection.
    •

  •
VLAN mode: Helps isolate PoE ports while retaining uplink communication.
    •

  •
250 m Extend mode: Supports longer cable runs at a reduced data rate.
    •

  •
Automatic detection: Detects compatible powered devices before supplying power.
    •

  •
Metal enclosure: Durable indoor construction for desktop or equipment-room use.
    •

Technical specifications


  • Model: PoE-2006-4E
    •

  • PoE ports: 4 × 10/100 Mbps RJ45
    •

  • Uplink ports: 2 × 10/100 Mbps RJ45
    •

  • PoE standards: IEEE 802.3af and IEEE 802.3at
    •

  • Ethernet standards: IEEE 802.3, IEEE 802.3i and IEEE 802.3u
    •

  • Standard transmission distance: Up to 100 m
    •

  • Extend-mode distance: Up to 250 m
    •

  • Switching method: Store-and-forward
    •

  • Flow control: IEEE 802.3x
    •

  • Power input: Supplied 48V power adapter
    •

Typical applications
Suitable for small IP surveillance systems, door-access installations, wireless access points and VoIP phones where 10/100 Mbps connectivity is sufficient.
Frequently asked questions
Is this a Gigabit switch?
No. The four PoE ports and two uplink ports operate at 10/100 Mbps. Choose a Gigabit model when connected devices require higher throughput.
How many PoE devices can it power?
It has four PoE ports for up to four compatible IEEE 802.3af/at devices. Confirm total device power requirements against the supplied power adapter.
What does AI Watchdog do?
It monitors PoE connections and can power-cycle an unresponsive device to help restore service.
Can it reach beyond 100 meters?
Extend mode supports cable runs up to 250 meters at a reduced link rate, subject to cable quality and device requirements.
Download the product manual · Download the specification sheet


NDAA compliance


NDAA compliant — manufacturer declared.
