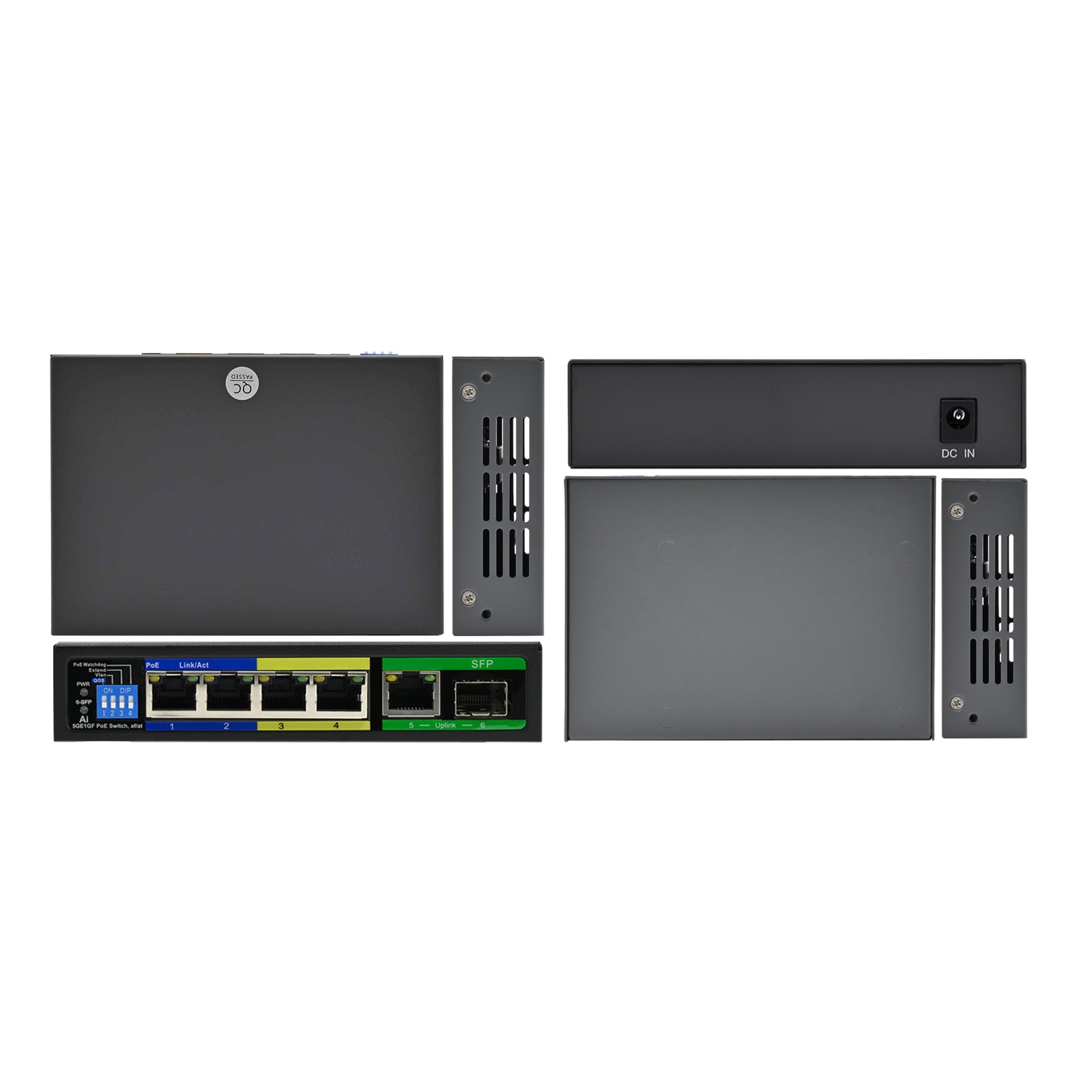

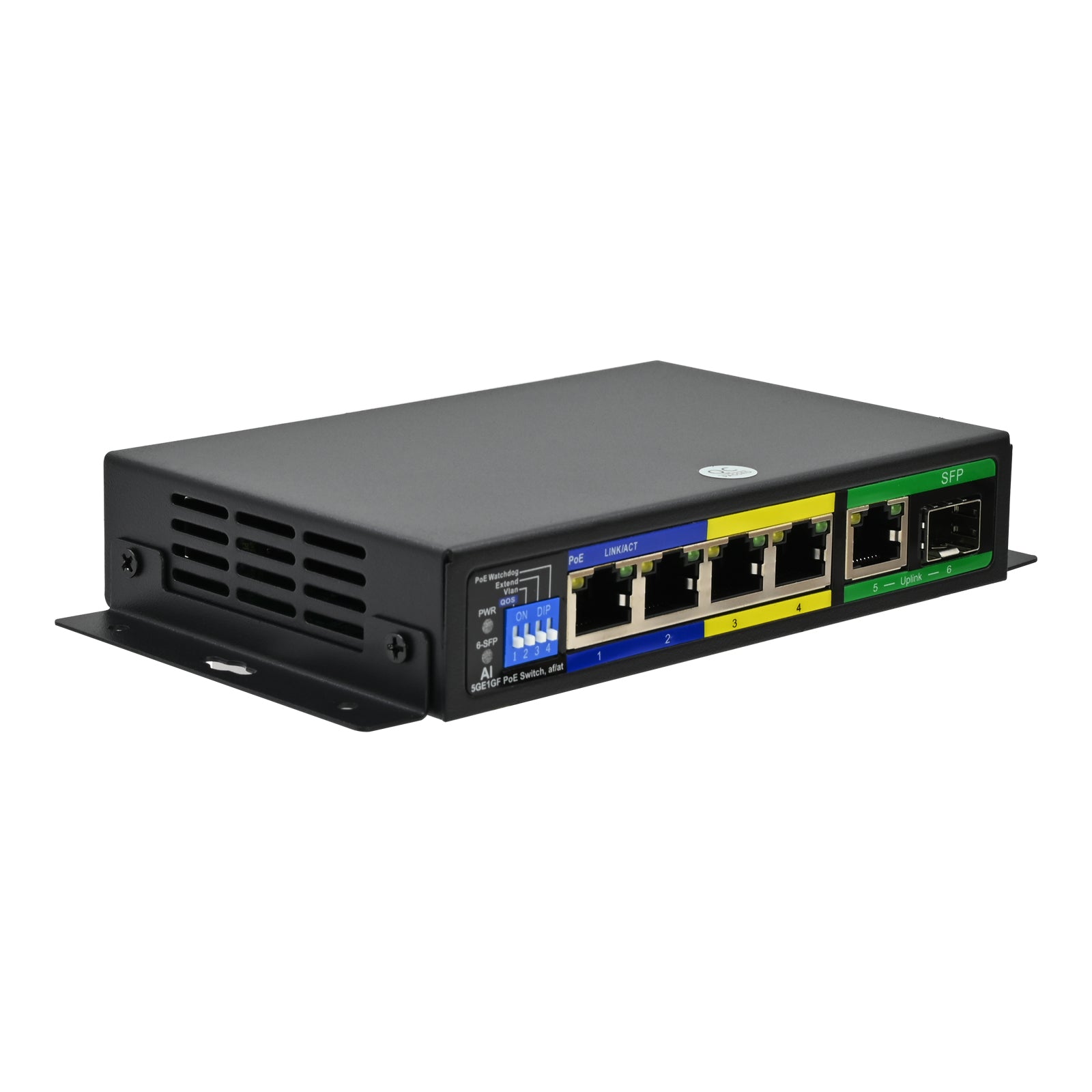

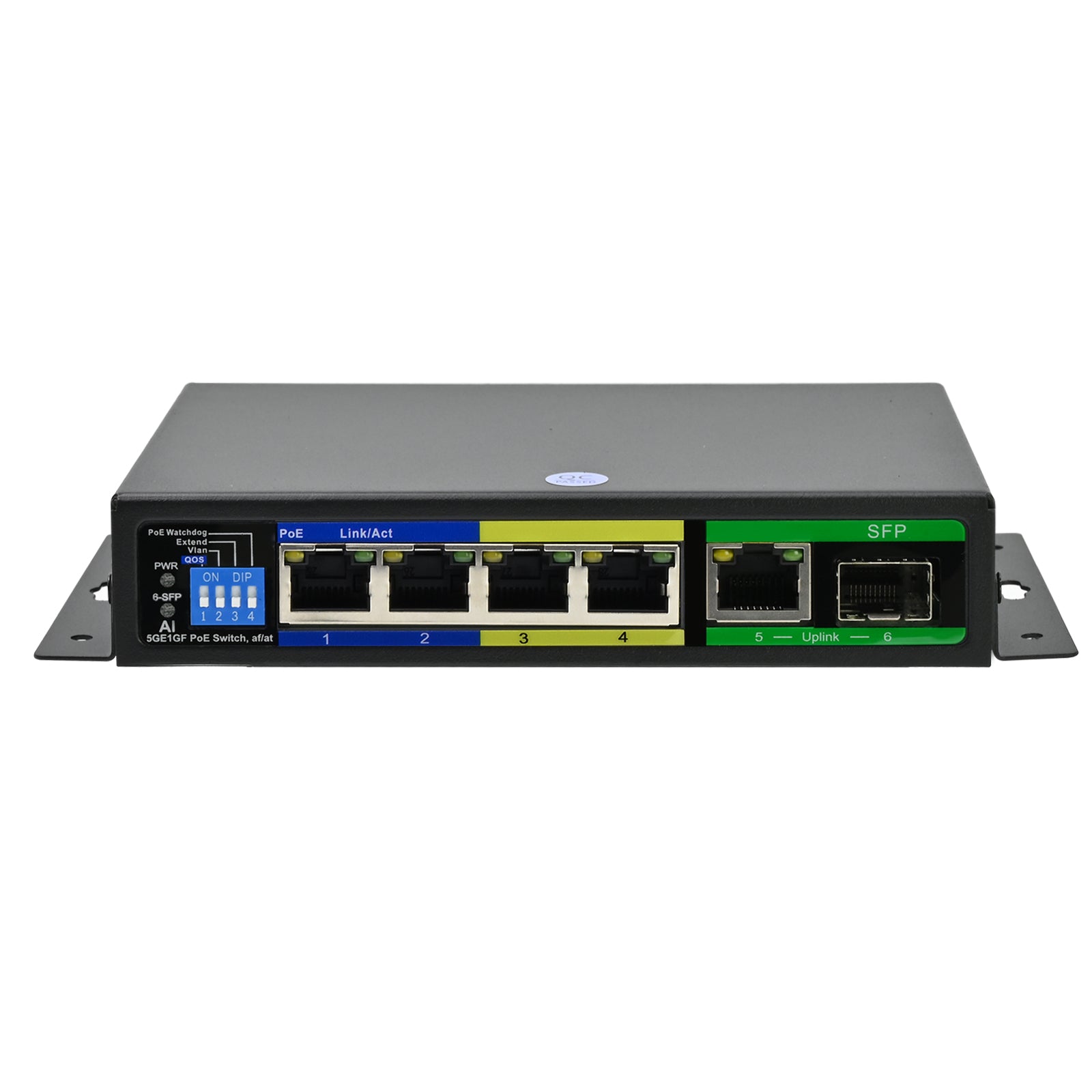

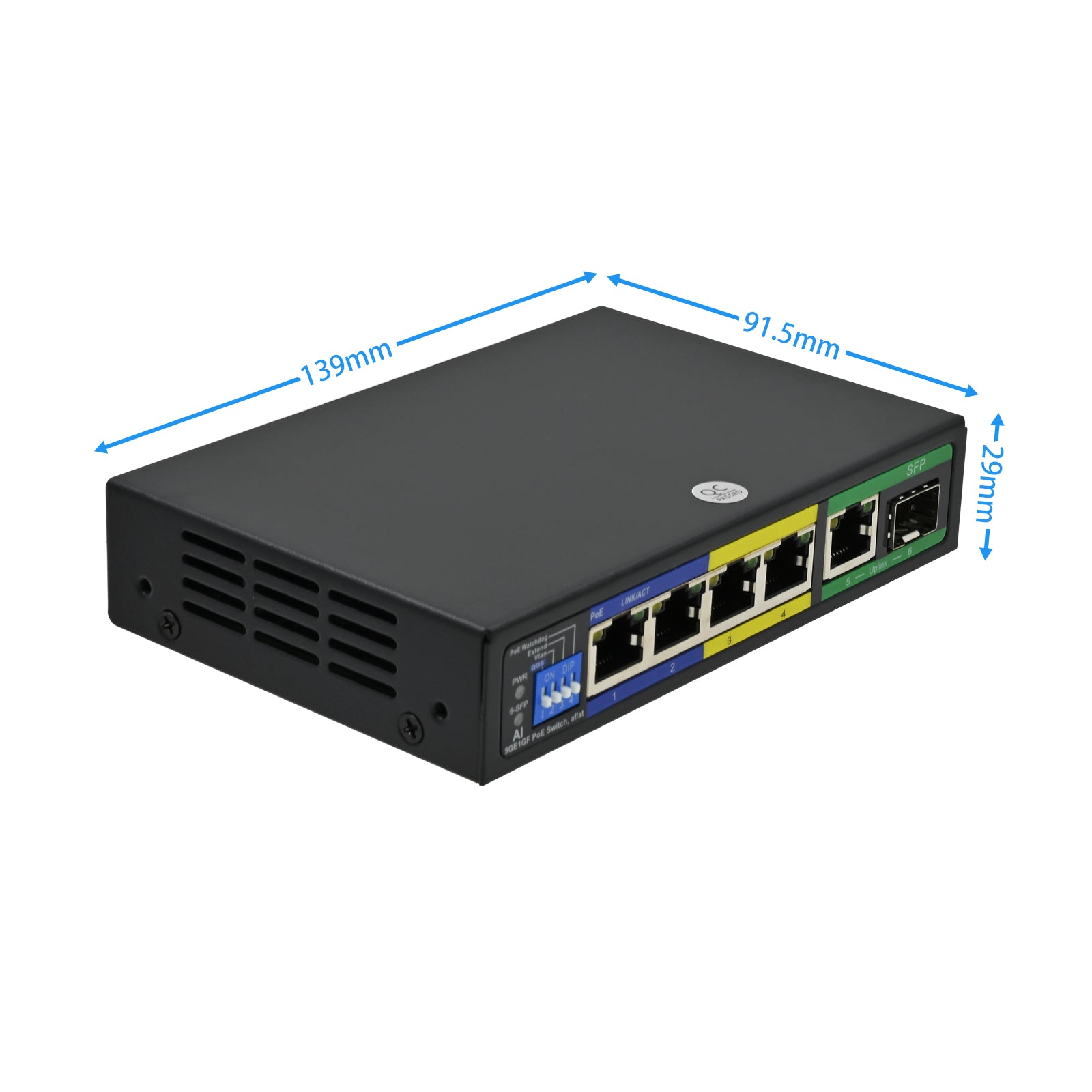

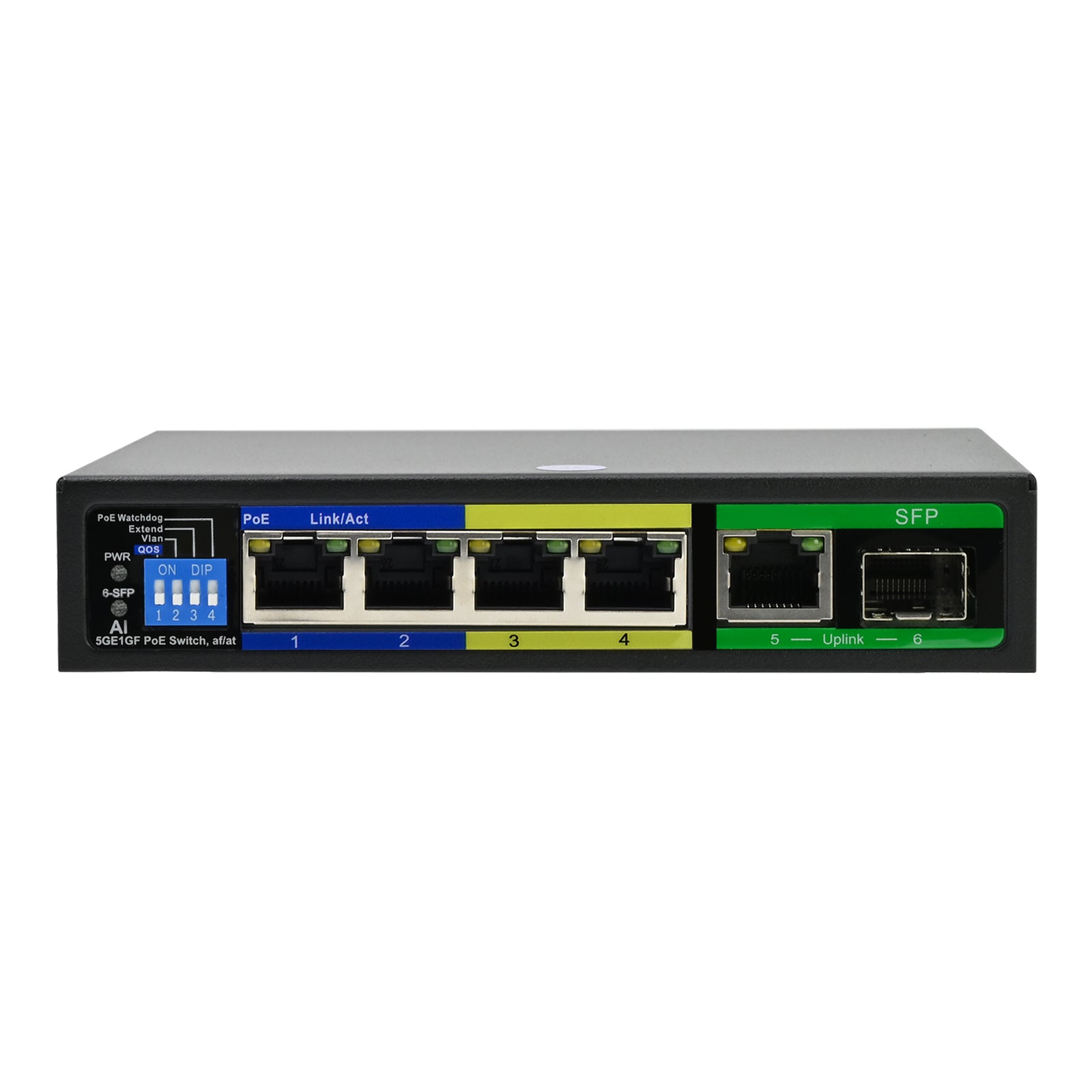

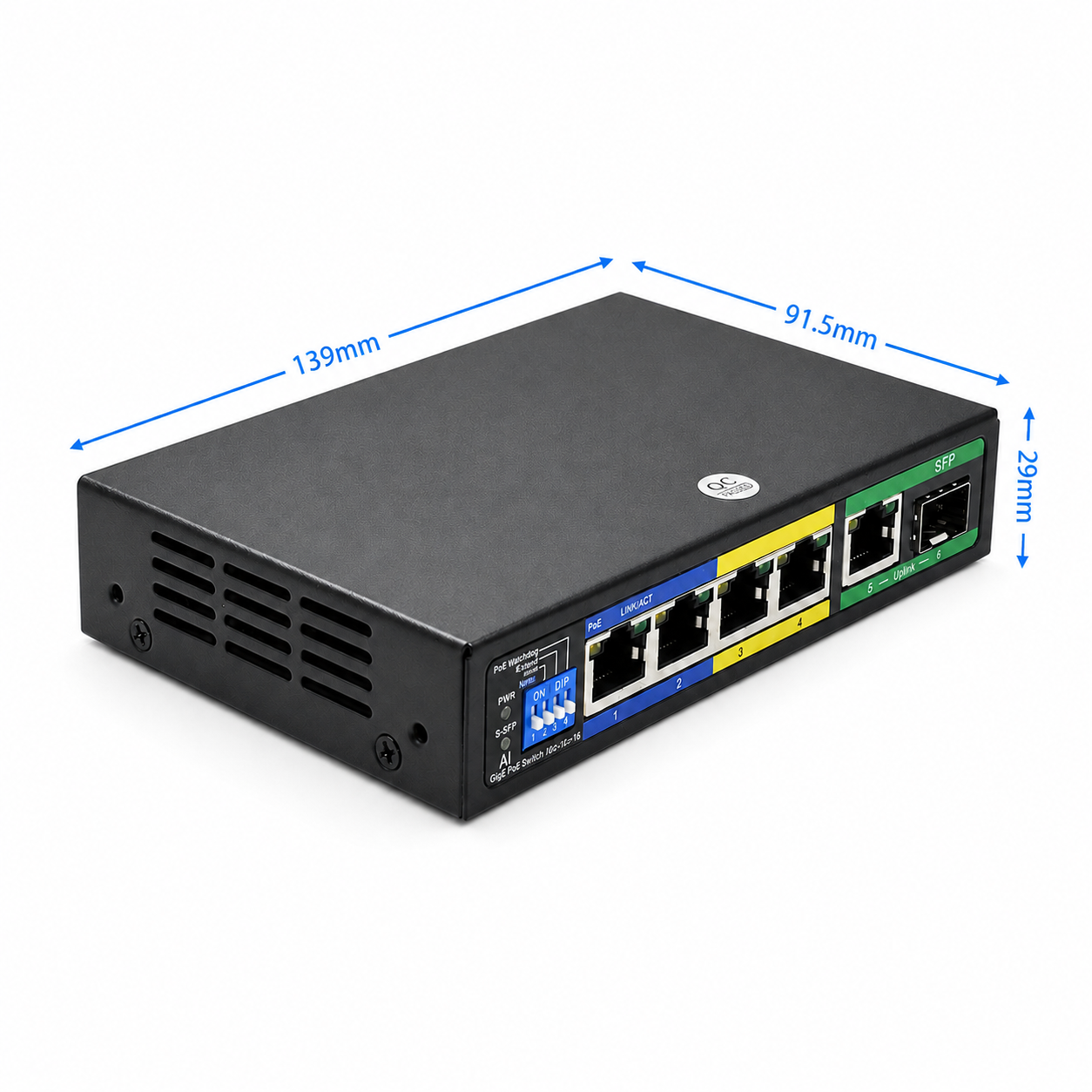

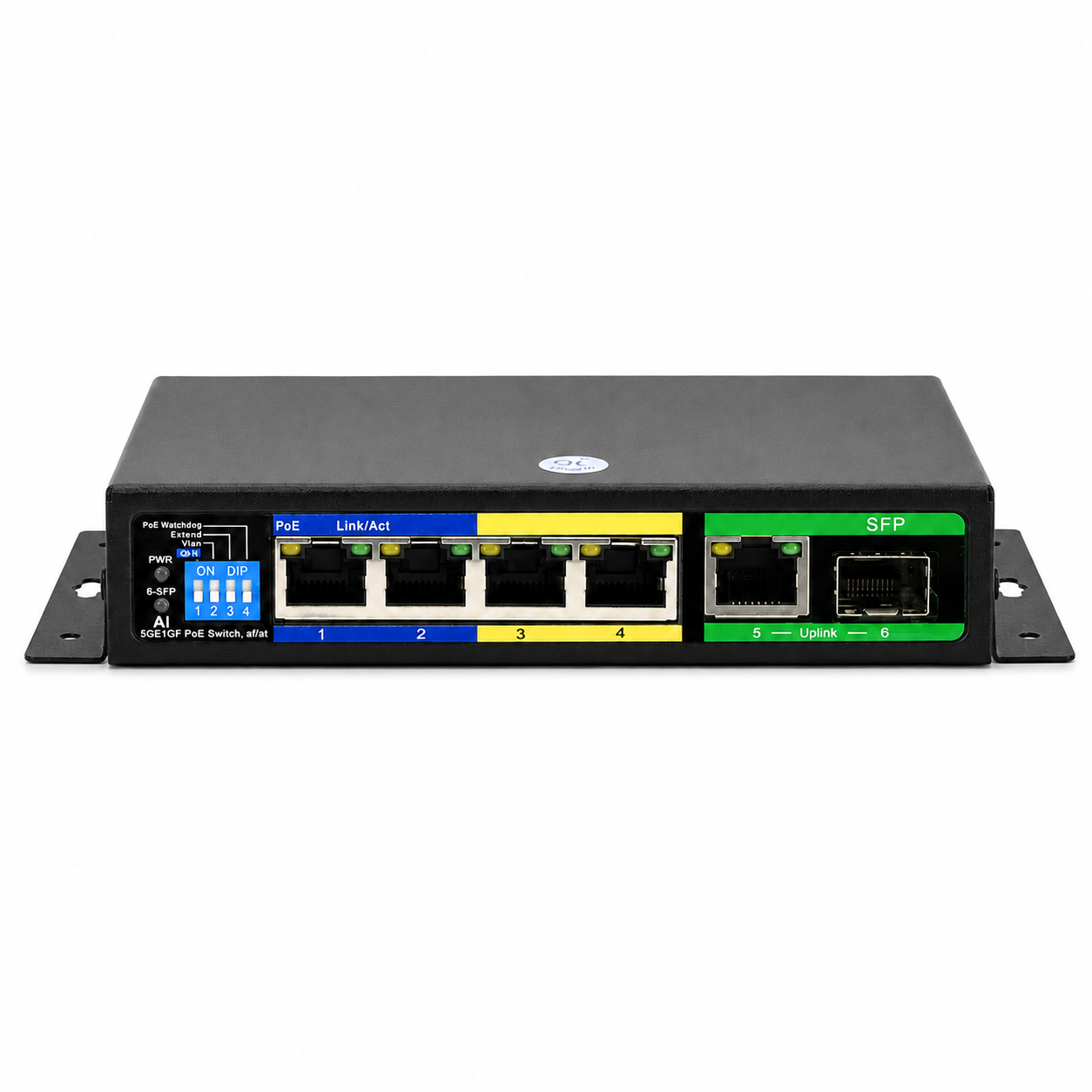

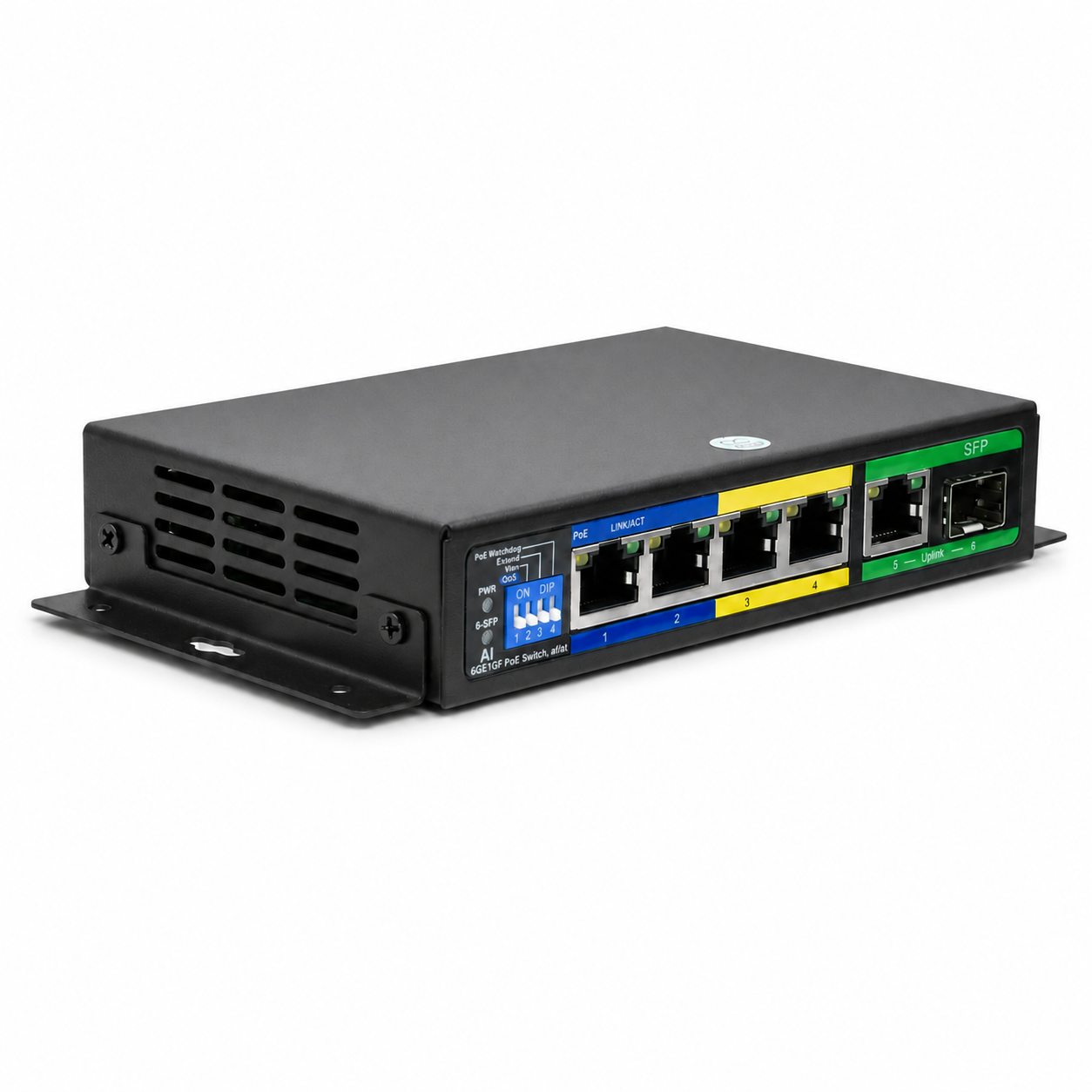

UltraPoE PoE-1606-4P 4-Port Gigabit PoE+ Switch with SFP Uplink
UltraPoE PoE-1606-4P is a compact unmanaged Gigabit PoE+ switch for IP cameras, wireless access points, VoIP phones and access-control devices. It combines four Gigabit PoE ports with one Gigabit RJ45 uplink and one Gigabit SFP uplink for flexible copper or fiber connectivity.
Key features
- 4 Gigabit PoE ports: Four 10/100/1000 Mbps RJ45 ports deliver data and power to compatible devices.

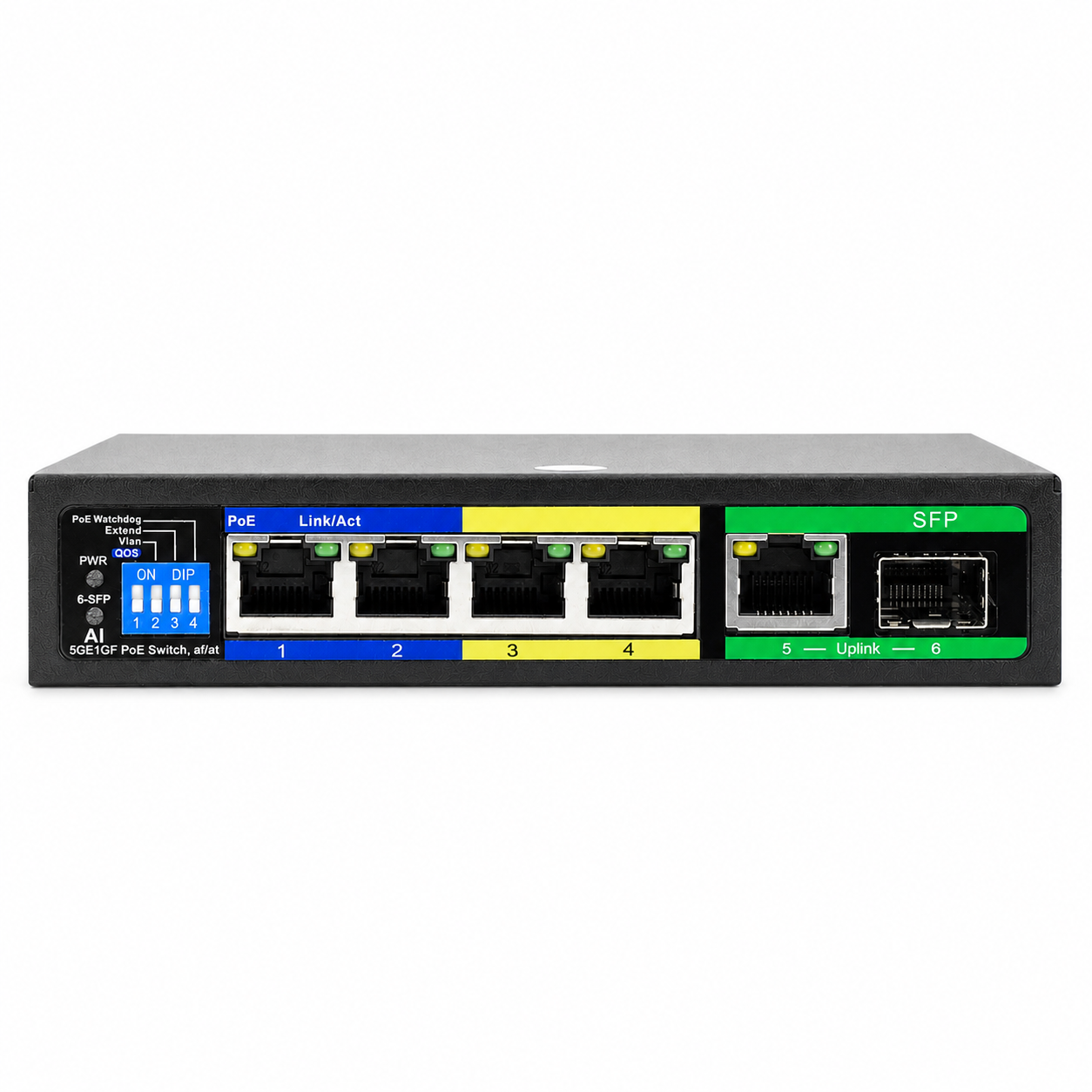

- Dual uplink options: One Gigabit RJ45 uplink and one Gigabit SFP slot support copper or fiber connections.
- PoE compatibility: Supports IEEE 802.3af and IEEE 802.3at powered devices.
- Five selectable modes: Normal, VLAN, Extend, AI Watchdog and QoS.
- 250 m Extend mode: Supports long-distance links up to 250 meters at a reduced data rate.
- AI PoE Watchdog: Monitors connected PoE devices and can restart power to an unresponsive connection.
- VLAN isolation: Helps isolate PoE ports while maintaining uplink access.
- QoS mode: Prioritizes designated PoE ports for important devices.

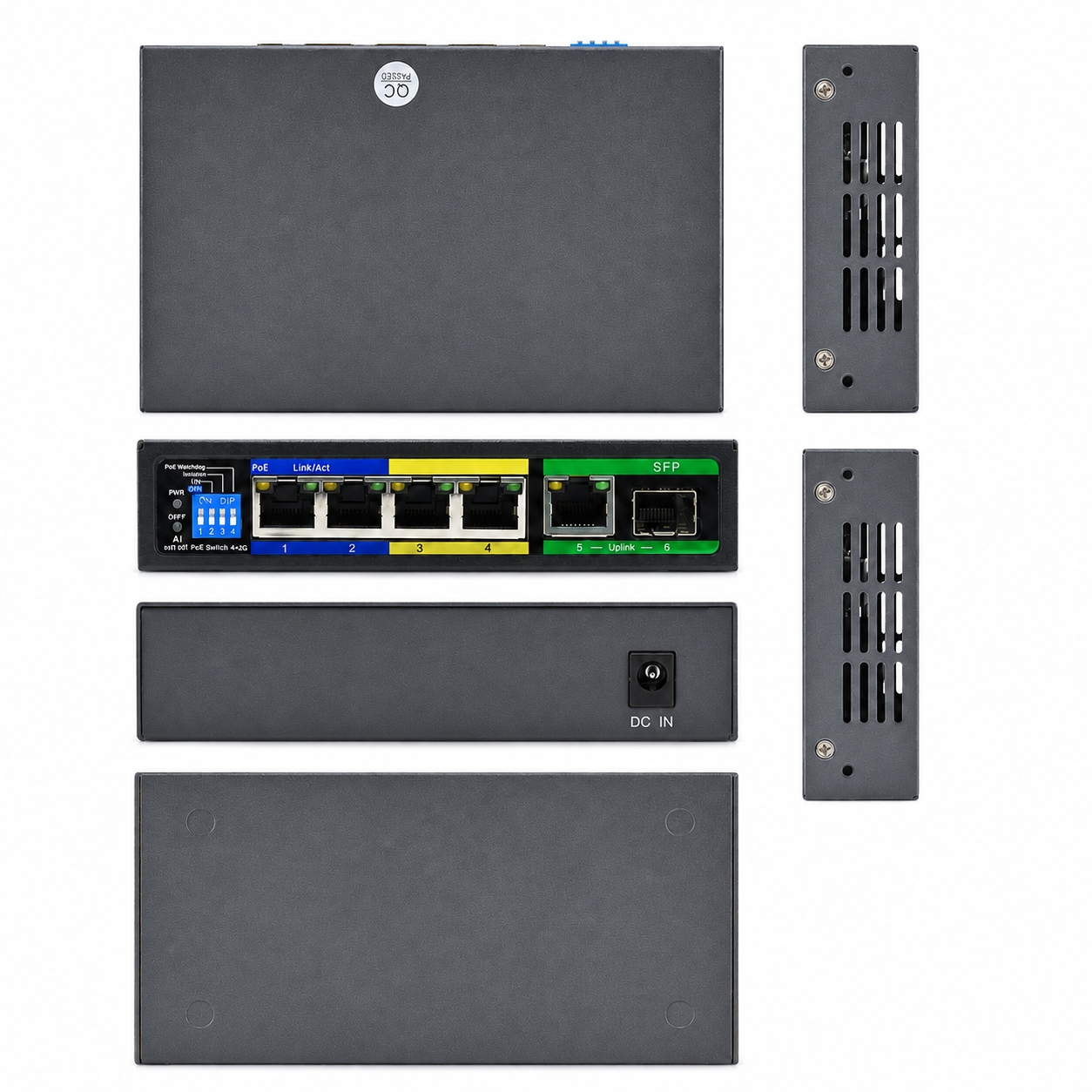

- Metal enclosure: Durable construction for indoor installations.
Technical specifications
- Model: PoE-1606-4P
- PoE ports: 4 × 10/100/1000 Mbps RJ45
- Uplinks: 1 × Gigabit RJ45 and 1 × Gigabit SFP
- PoE standards: IEEE 802.3af and IEEE 802.3at
- Ethernet standards: IEEE 802.3, 802.3i, 802.3u, 802.3ab and 802.3z
- Standard Ethernet distance: Up to 100 m
- Extend-mode distance: Up to 250 m
- Switching method: Store-and-forward
- Flow control: IEEE 802.3x

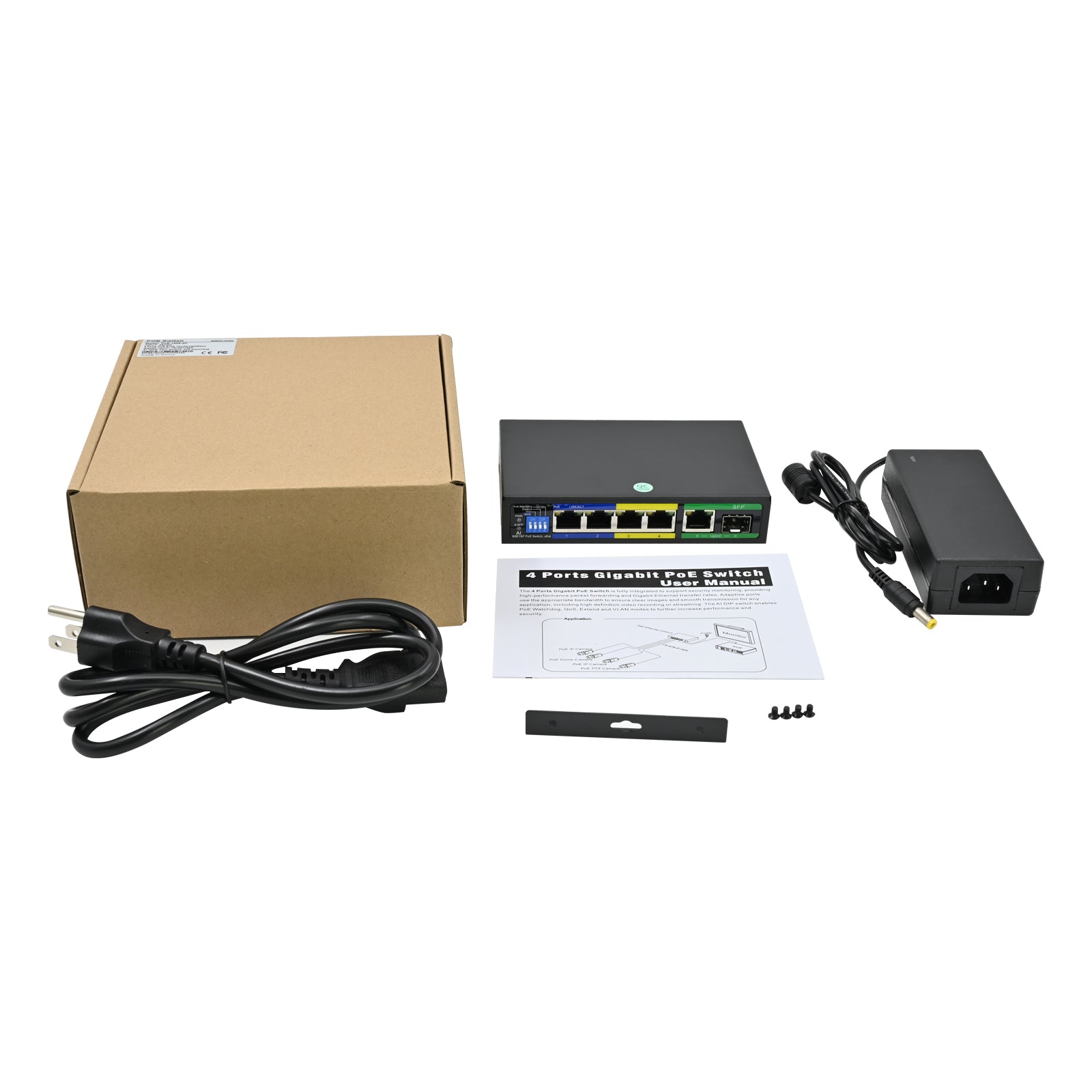

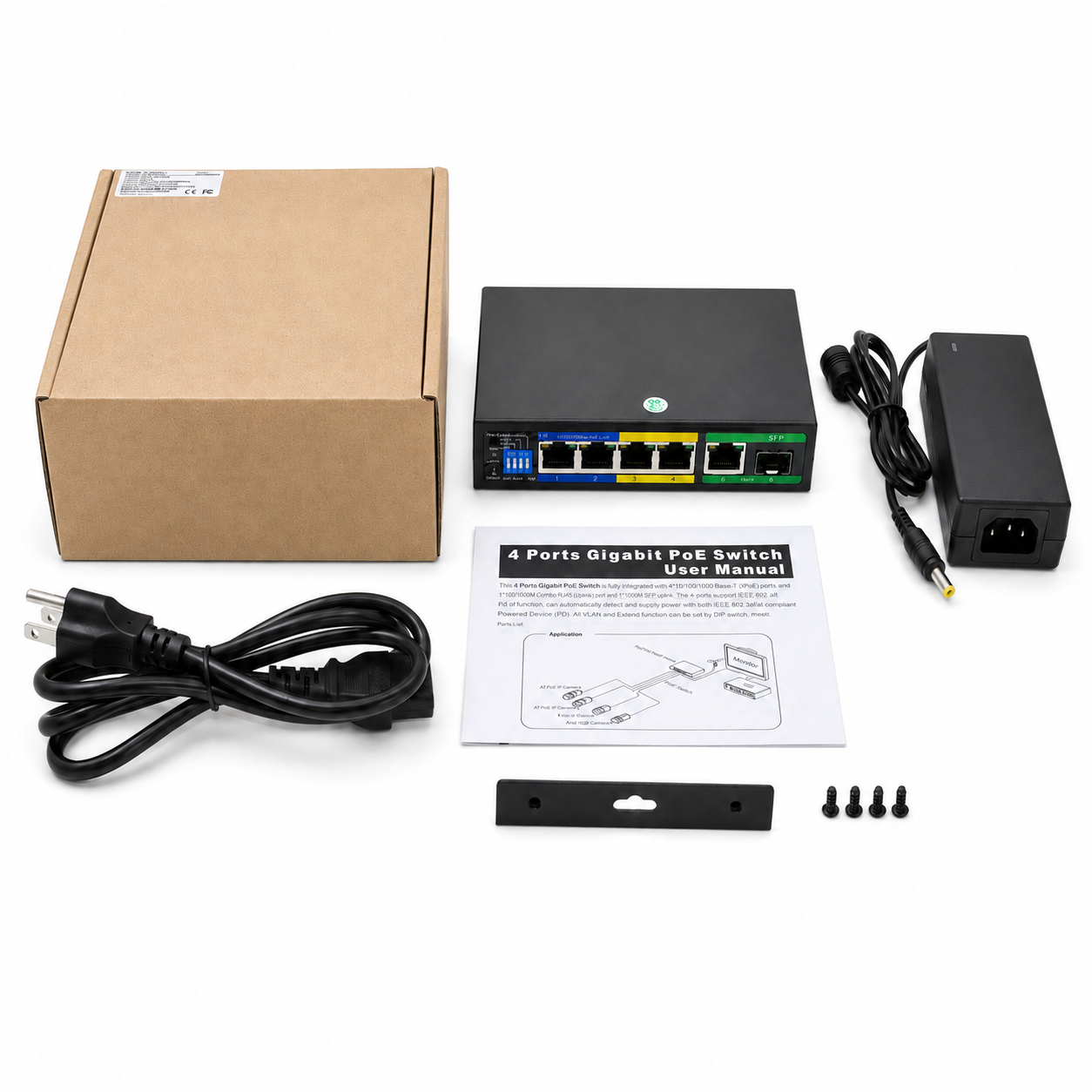

- Power input: Supplied 48V power adapter
Typical applications
Suitable for small surveillance systems, Wi-Fi access points, VoIP phones, entry systems and remote network devices that need Gigabit data, PoE+ power and an optional fiber uplink.
Frequently asked questions
How many powered devices can this switch connect?
It provides four Gigabit PoE ports for up to four compatible IEEE 802.3af/at devices. Confirm each device power requirement against the included power supply before installation.
Does the SFP port provide PoE power?
No. The SFP slot is a data uplink. A compatible SFP transceiver is required and is sold separately unless specifically included.
What does AI Watchdog do?
AI Watchdog checks connected PoE links and can power-cycle an unresponsive device to help restore operation without a manual site visit.
Can it transmit beyond 100 meters?
Yes. Extend mode supports links up to 250 meters at a reduced data rate, subject to cable quality and connected-device requirements.
Download the product manual · Download the specification sheet
NDAA compliance
NDAA compliant — manufacturer declared.
