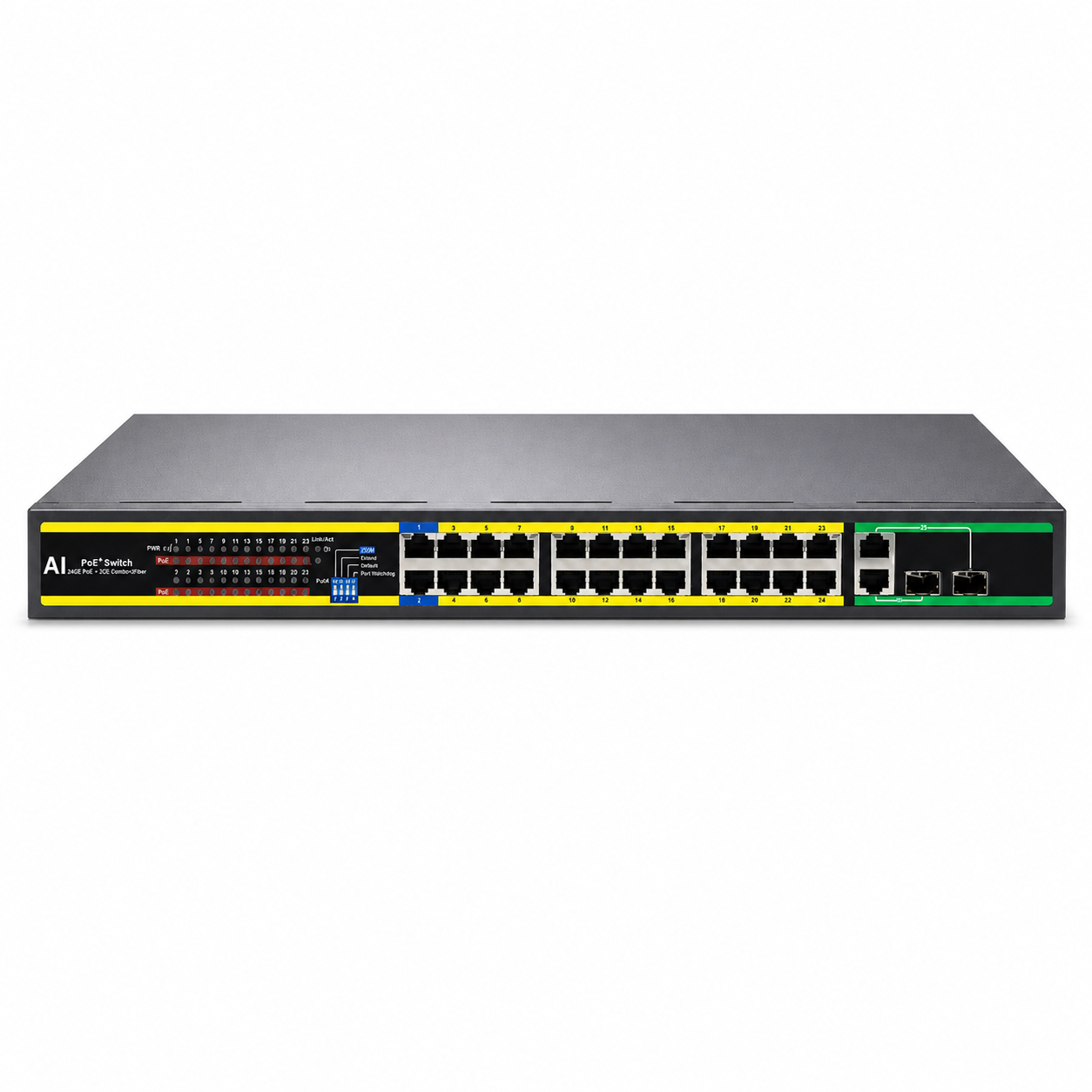

UltraPoE PoE-6026 24-port AI PoE switch front view on pure white background

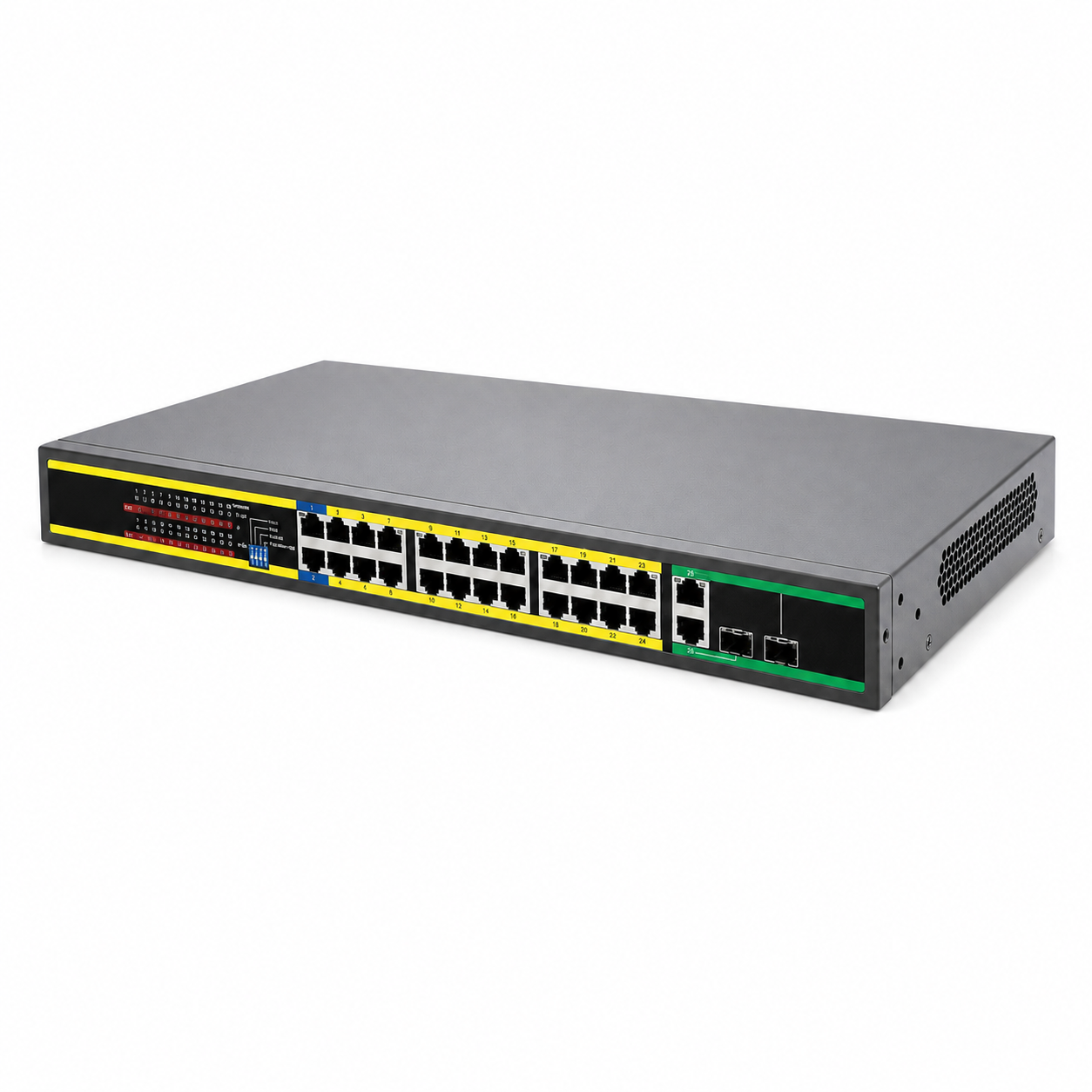

UltraPoE PoE-6026 24-port AI PoE switch front-right view on pure white background

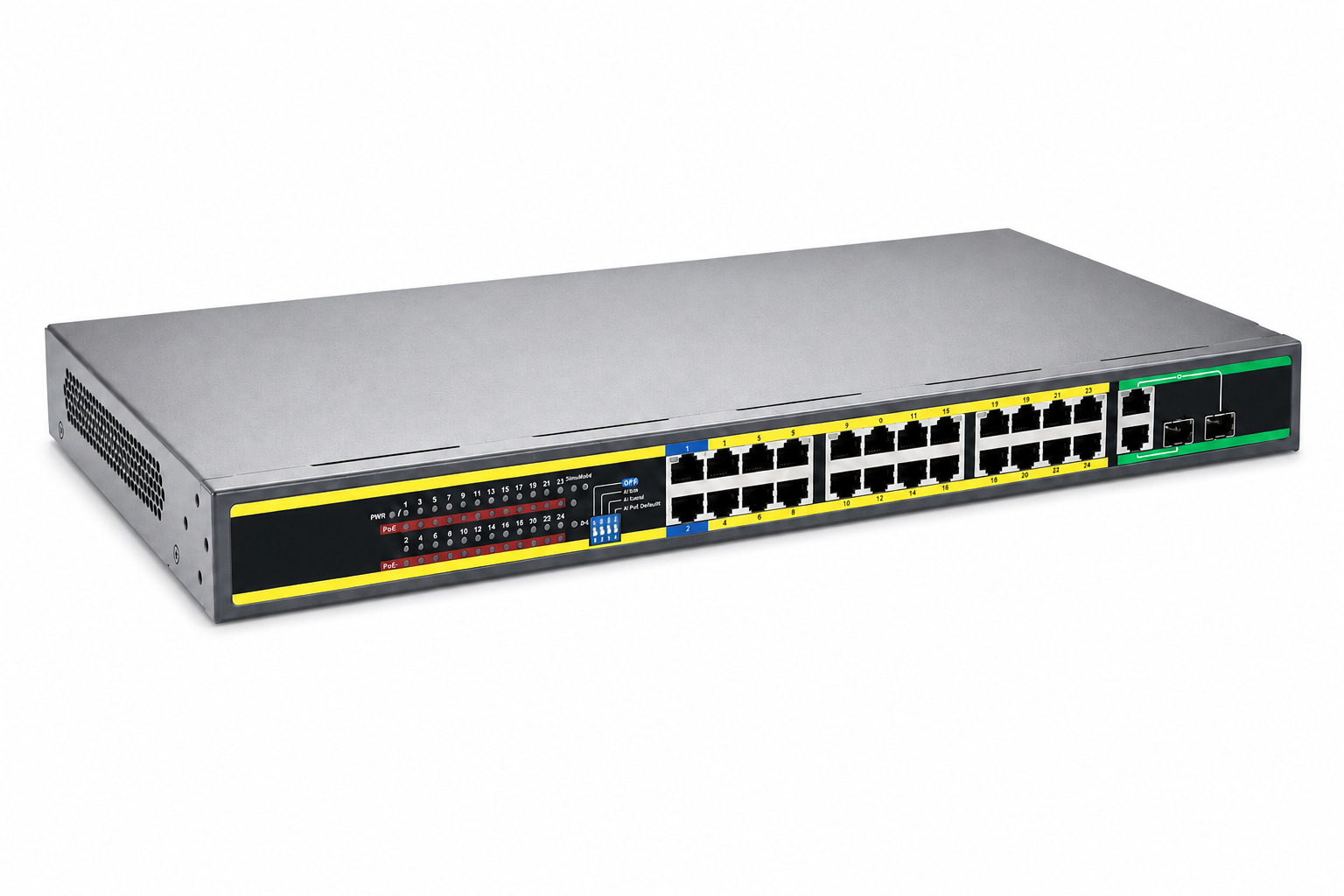

UltraPoE PoE-6026 24-port AI PoE switch front-left view on pure white background

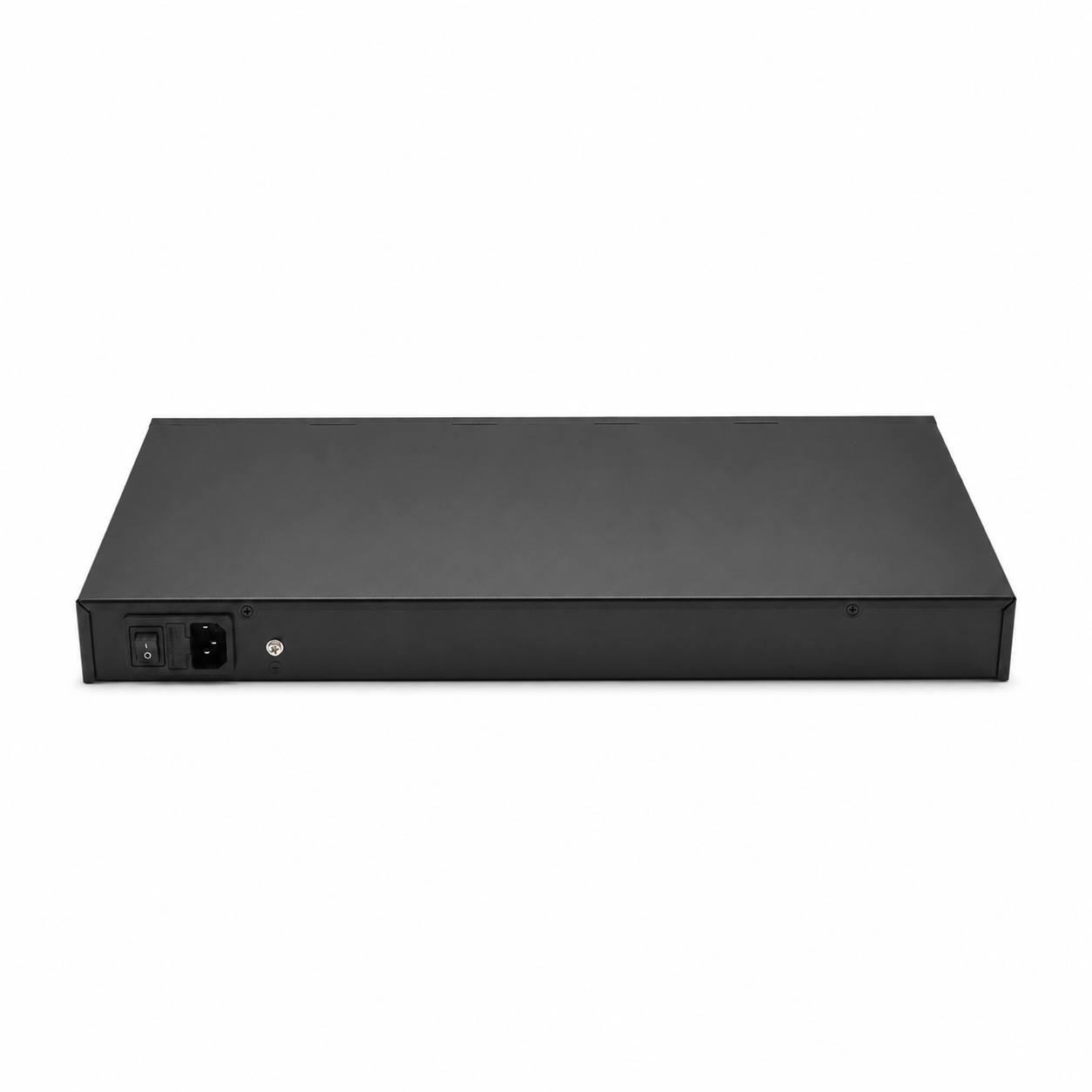

UltraPoE PoE-6026 24-port AI PoE switch rear power panel on pure white background

UltraPoE PoE-6026 24-Port Fast Ethernet PoE+ AI Switch – 400W

SKU: POE-6026




UltraPoE PoE-6026 is an unmanaged 24-port Fast Ethernet PoE+ AI switch for large IP surveillance, access-control and VoIP deployments. It combines 24 PoE ports, two Gigabit RJ45/SFP combo uplinks and a 400W built-in power supply.
Key features


  •
24 Fast Ethernet PoE+ ports: Twenty-four 10/100 Mbps RJ45 ports power and connect compatible devices.
    •

  •
2 Gigabit combo uplinks: Two RJ45/SFP combo interfaces provide flexible copper or fiber uplink connectivity.
    •

  •
400W built-in power: Integrated power supply supports the shared PoE load.
    •

  •
IEEE PoE support: Compatible with IEEE 802.3af and IEEE 802.3at powered devices.
    •

  •
Up to 30W per PoE port: Supports compatible PoE+ cameras, phones and access points.
    •

  •
AI PoE Watchdog: Monitors connected devices and can restart an unresponsive PoE port.
    •

  •
VLAN mode: Helps isolate PoE ports while preserving uplink communication.
    •

  •
QoS mode: Prioritizes traffic for selected ports or important devices.
    •

  •
250 m Extend mode: Supports longer PoE transmission at a reduced data rate.
    •

Technical specifications


  • Model: PoE-6026
    •

  • PoE ports: 24 × 10/100 Mbps RJ45
    •

  • Uplinks: 2 × Gigabit RJ45/SFP combo interfaces
    •

  • PoE standards: IEEE 802.3af and IEEE 802.3at
    •

  • Maximum PoE output per port: 30W
    •

  • Built-in power supply: 400W
    •

  • Standard transmission distance: Up to 100 m
    •

  • Extend-mode distance: Up to 250 m
    •

  • Management: Unmanaged with selectable AI functions
    •

Typical applications
Suitable for 24-camera surveillance systems, NVR networks, access control, VoIP phones and other installations that require centralized PoE+ power with flexible copper or fiber uplinks.
Frequently asked questions
Are the 24 PoE ports Gigabit?
No. The 24 PoE ports operate at 10/100 Mbps. The two uplink interfaces support Gigabit RJ45 or SFP connectivity.
What is a combo uplink?
Each combo interface provides RJ45 and SFP connection options that share one logical uplink. Use the copper or fiber side required for the installation.
Is 400W available from every port?
No. The 400W built-in supply supports the switch and the shared PoE load. Each compatible PoE port supports up to 30W.
What does AI PoE Watchdog do?
It monitors connected PoE devices and can power-cycle an unresponsive port to help restore operation.
Download the product specification · Download the product manual


NDAA compliance


NDAA compliant — manufacturer declared.
