UltraPoE CT-DB20A-WP 18×18×20in All-Aluminum Outdoor Equipment Enclosure
UltraPoE CT-DB20A-WP is a large all-aluminum weatherproof equipment enclosure measuring 18 × 18 × 20 inches and weighing approximately 35 lb. Its deep cabinet provides protected installation space for compatible networking, surveillance, communications, power and control equipment in indoor or outdoor environments.
Key features
- Model: CT-DB20A-WP
- Exterior dimensions: 18 × 18 × 20 in (depth)
- Approximate weight: 35 lb
- Material: corrosion-resistant aluminum for strength with lower weight than comparable steel construction

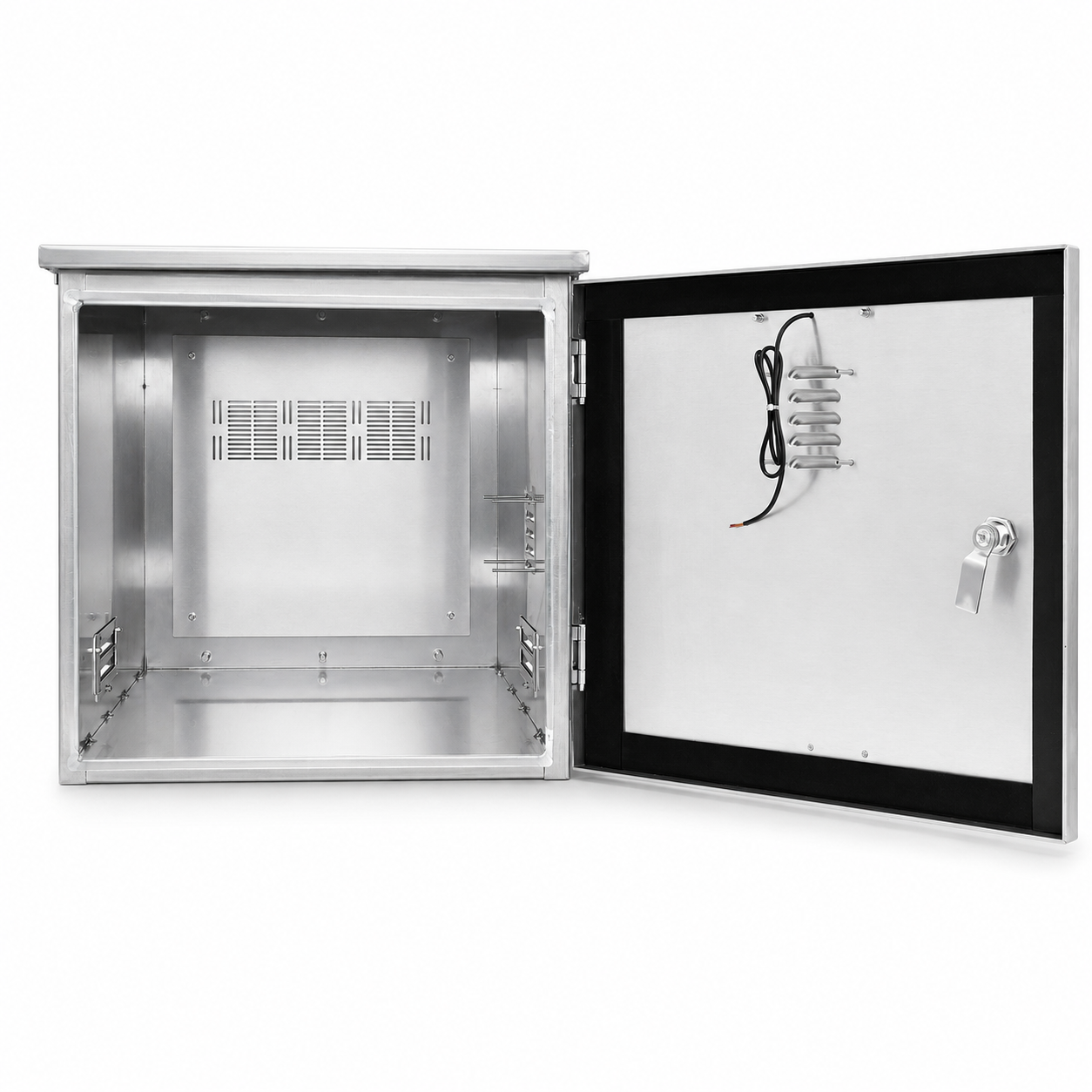

- Weather protection: rain hood, gasketed door and rubber-covered key lock help protect installed equipment from rain splash, dust, snow, oil and UV exposure

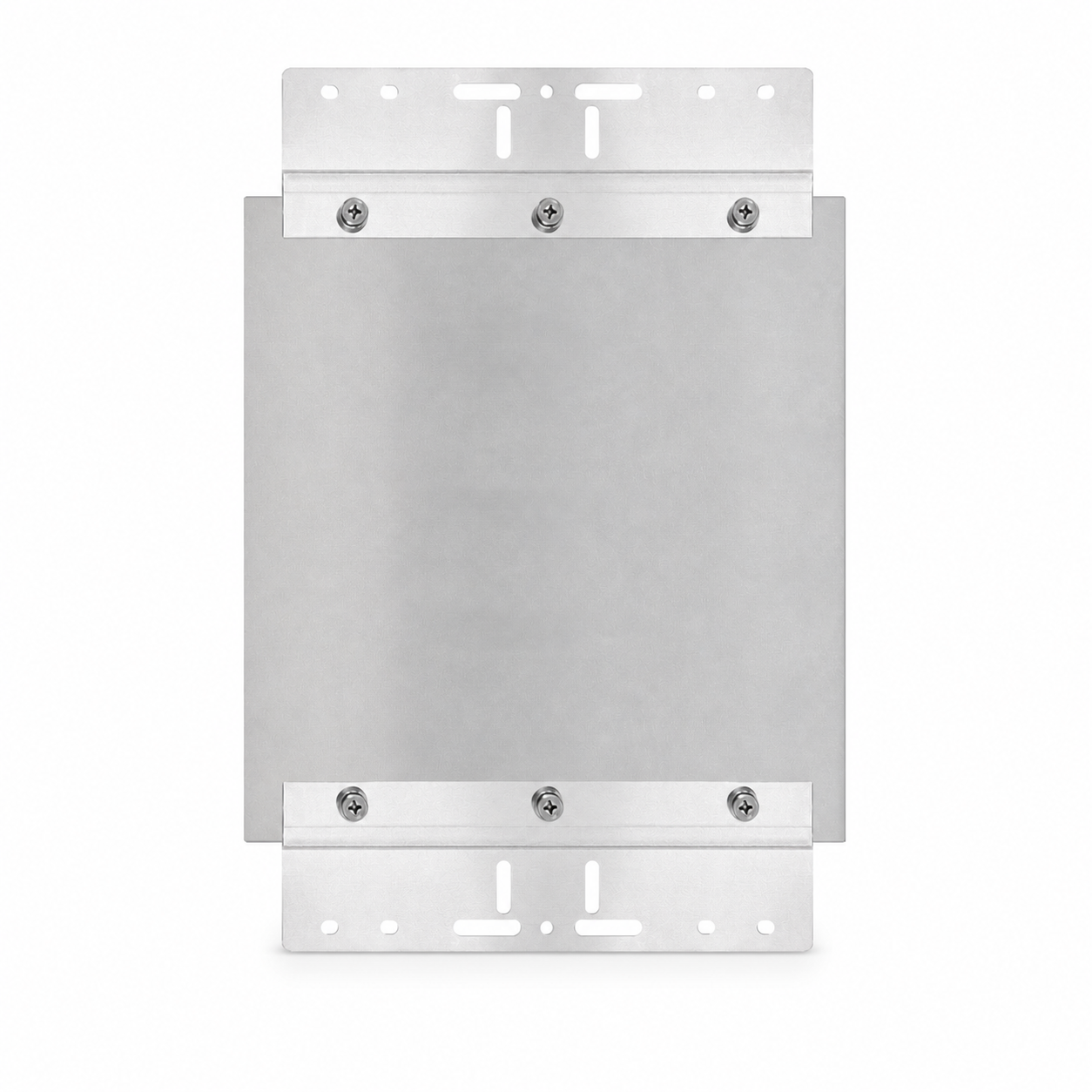

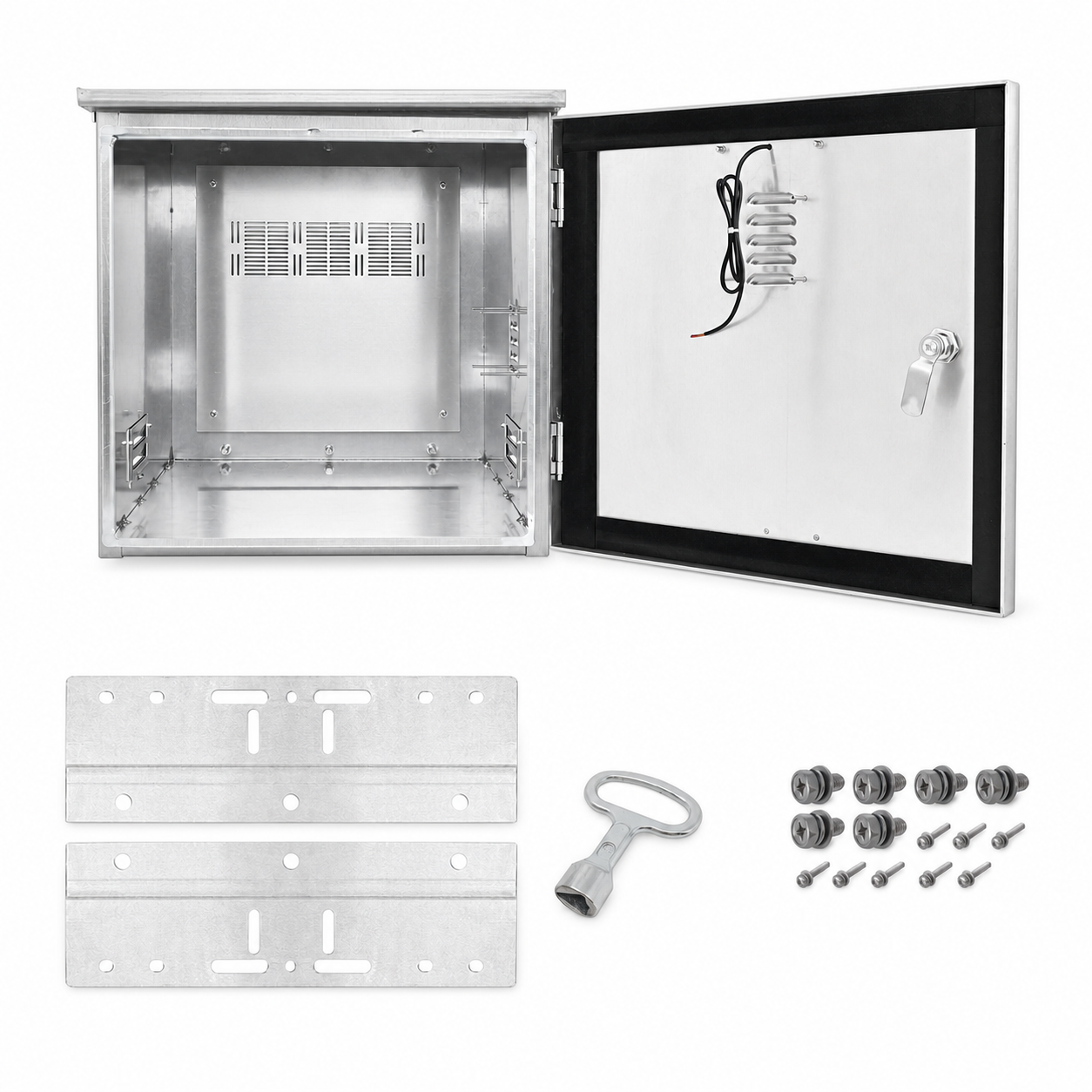

- Mounting system: internal equipment mounting panel plus two external multi-purpose brackets for wall or pole/hoop installation
- Ventilation: rain-resistant ventilation openings with dust filters on the cabinet sides
- Fan provision: prepared positions support compatible 80 × 80 × 25 mm (8025) cooling fans

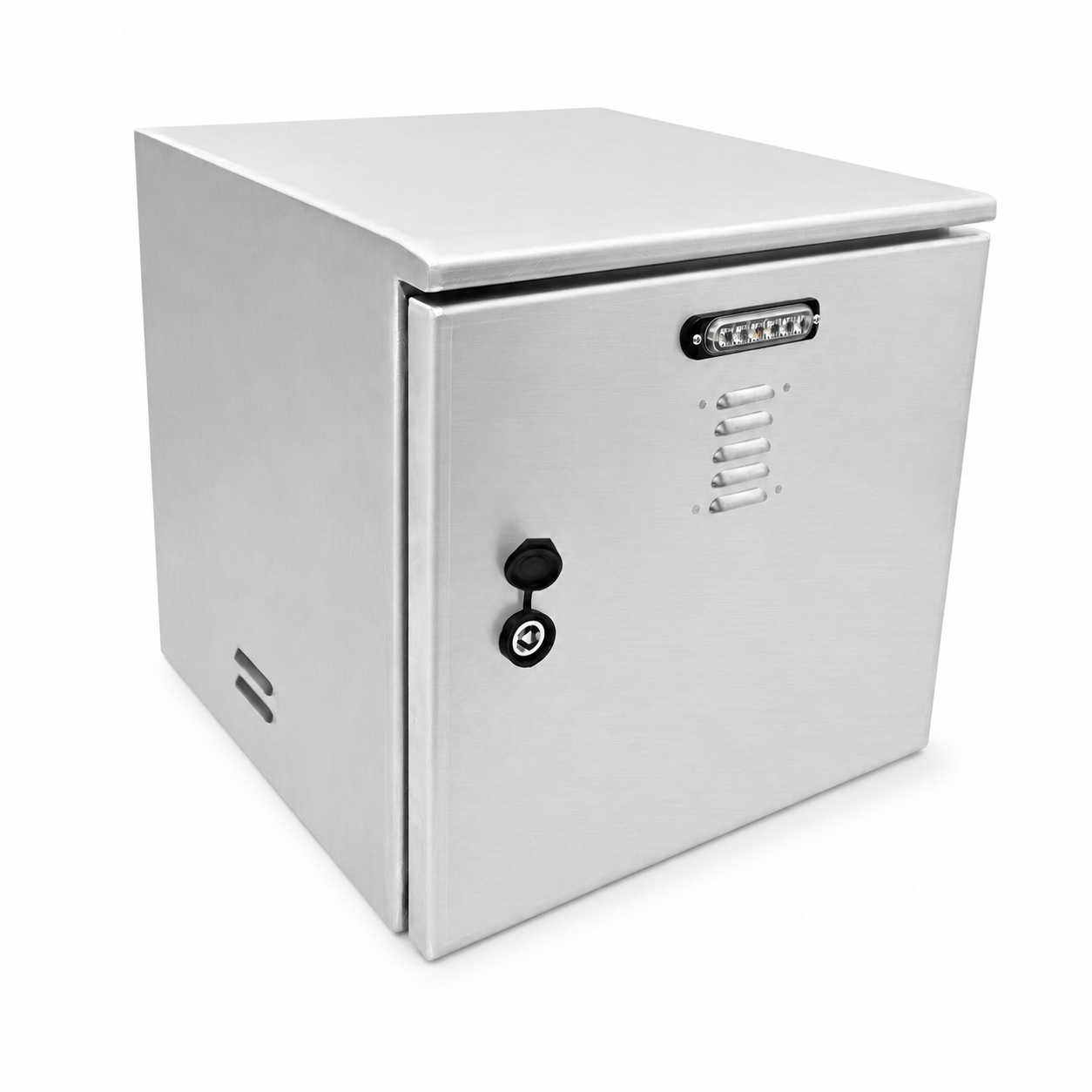

- Visible alert: front red/blue strobe light with selectable operating modes
Typical applications
The CT-DB20A-WP can house compatible PoE switches, network equipment, IP surveillance components, wireless radios, electrical controls and DIY electronics. Verify equipment dimensions, ventilation, wiring, environmental sealing and local installation requirements before use.
Frequently asked questions
What size is the CT-DB20A-WP?
The exterior measures 18 inches × 18 inches × 20 inches deep.
Is the enclosure made from steel?
No. This model uses aluminum construction for corrosion resistance and reduced weight.
Can it be mounted on a wall or pole?
Yes. Two multi-purpose rear mounting brackets are supplied for compatible wall or pole/hoop installations.
Does it include a cooling fan?
The cabinet provides rain-resistant fan positions sized for compatible 80 × 80 × 25 mm fans. Confirm the included configuration and required fan specification for your installation.
