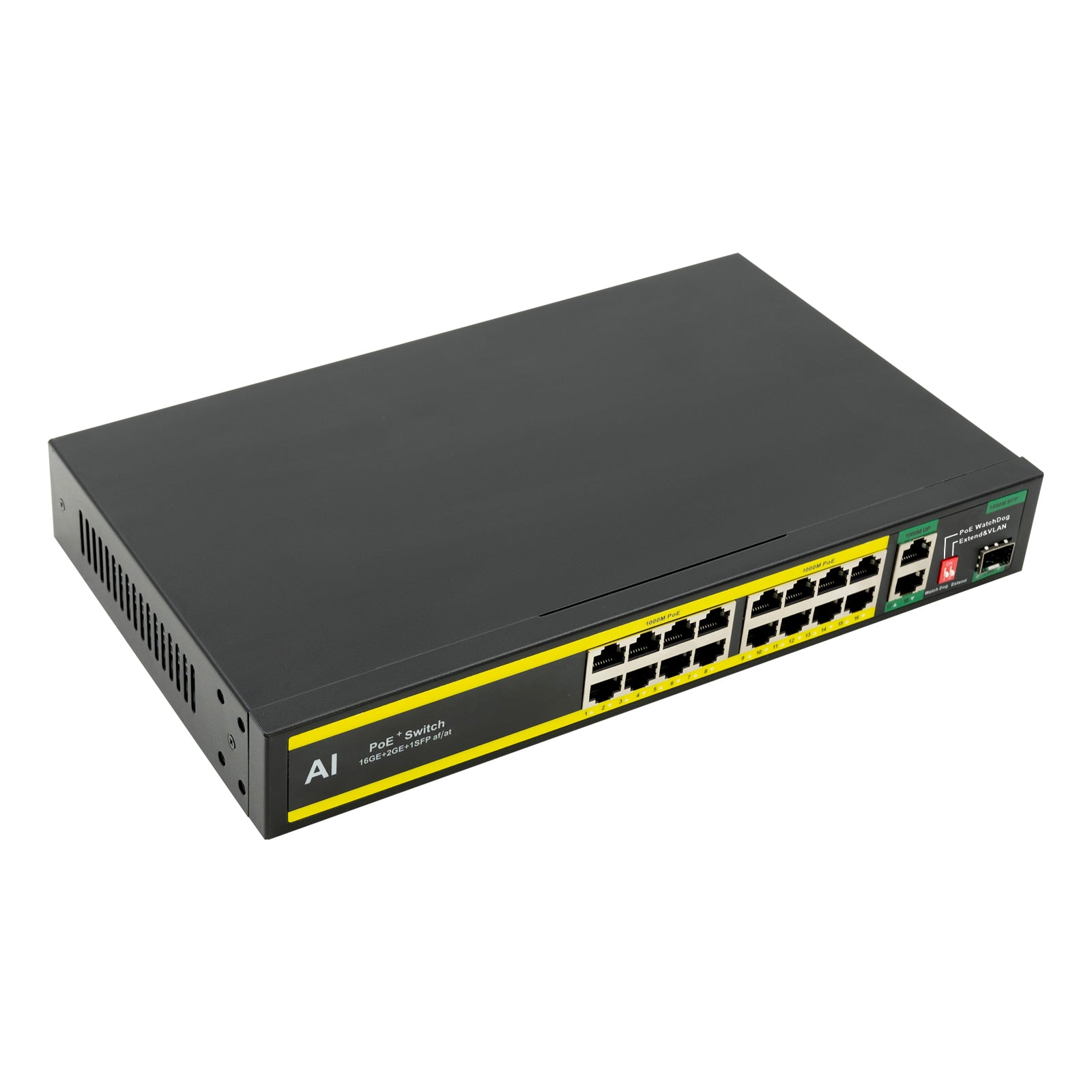

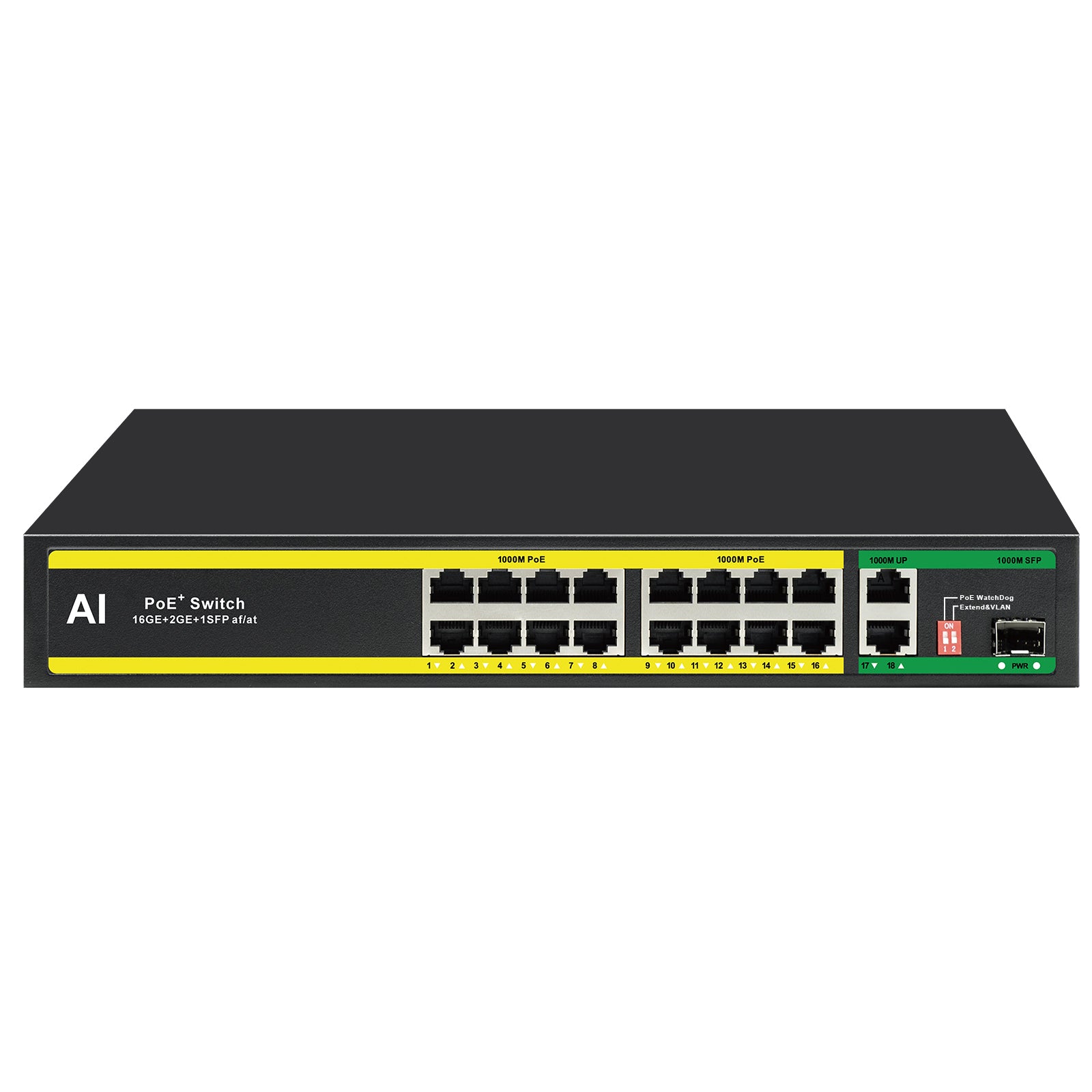

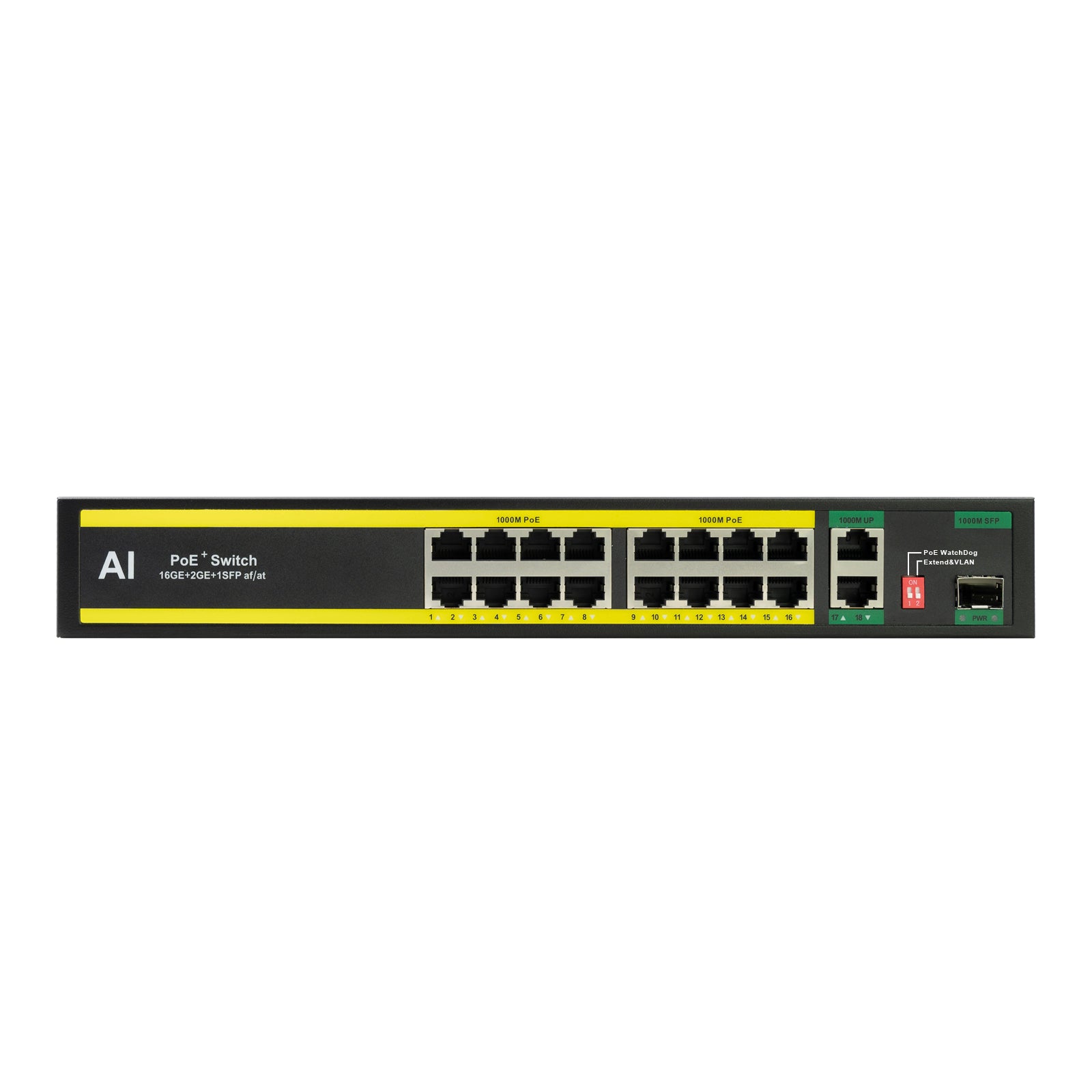

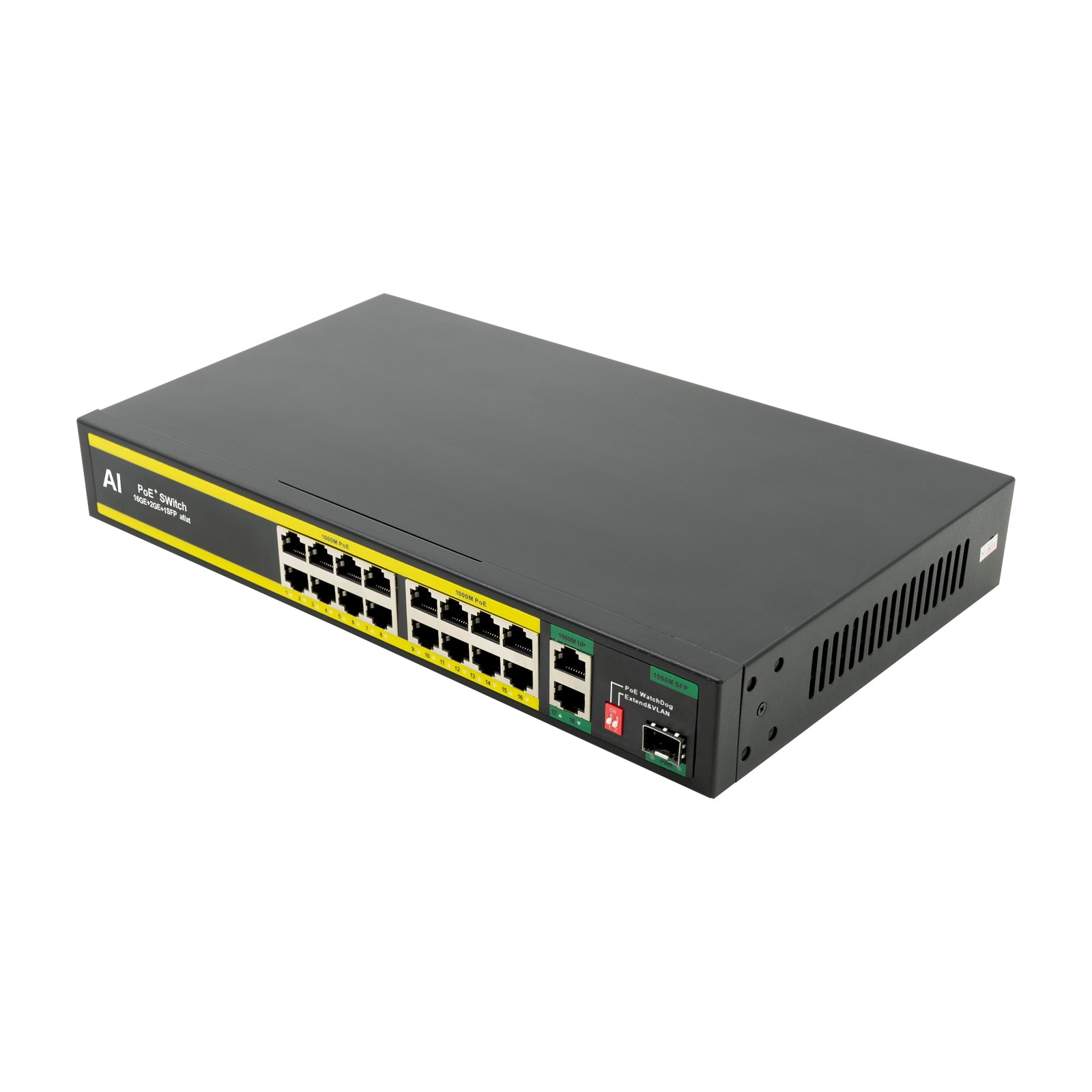

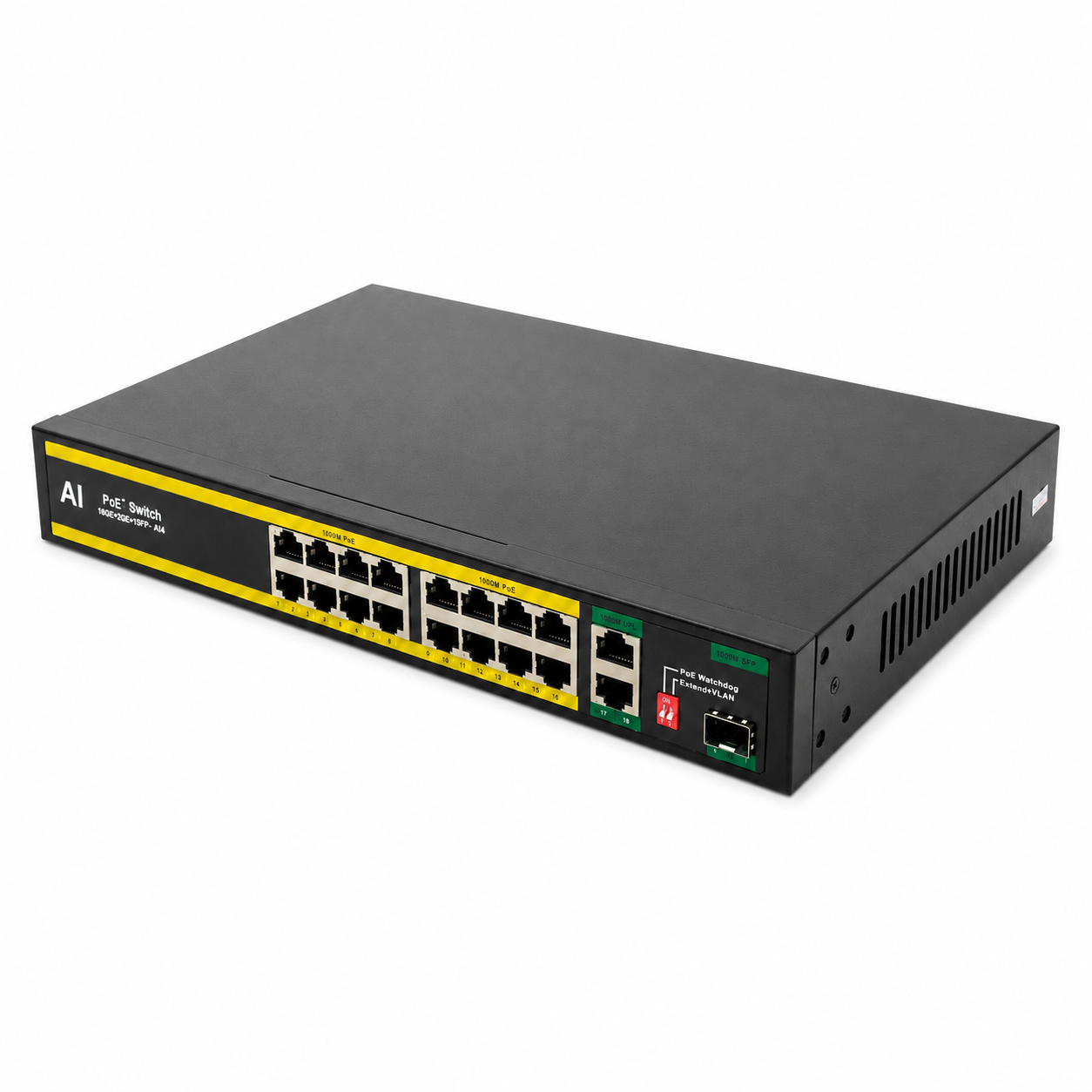

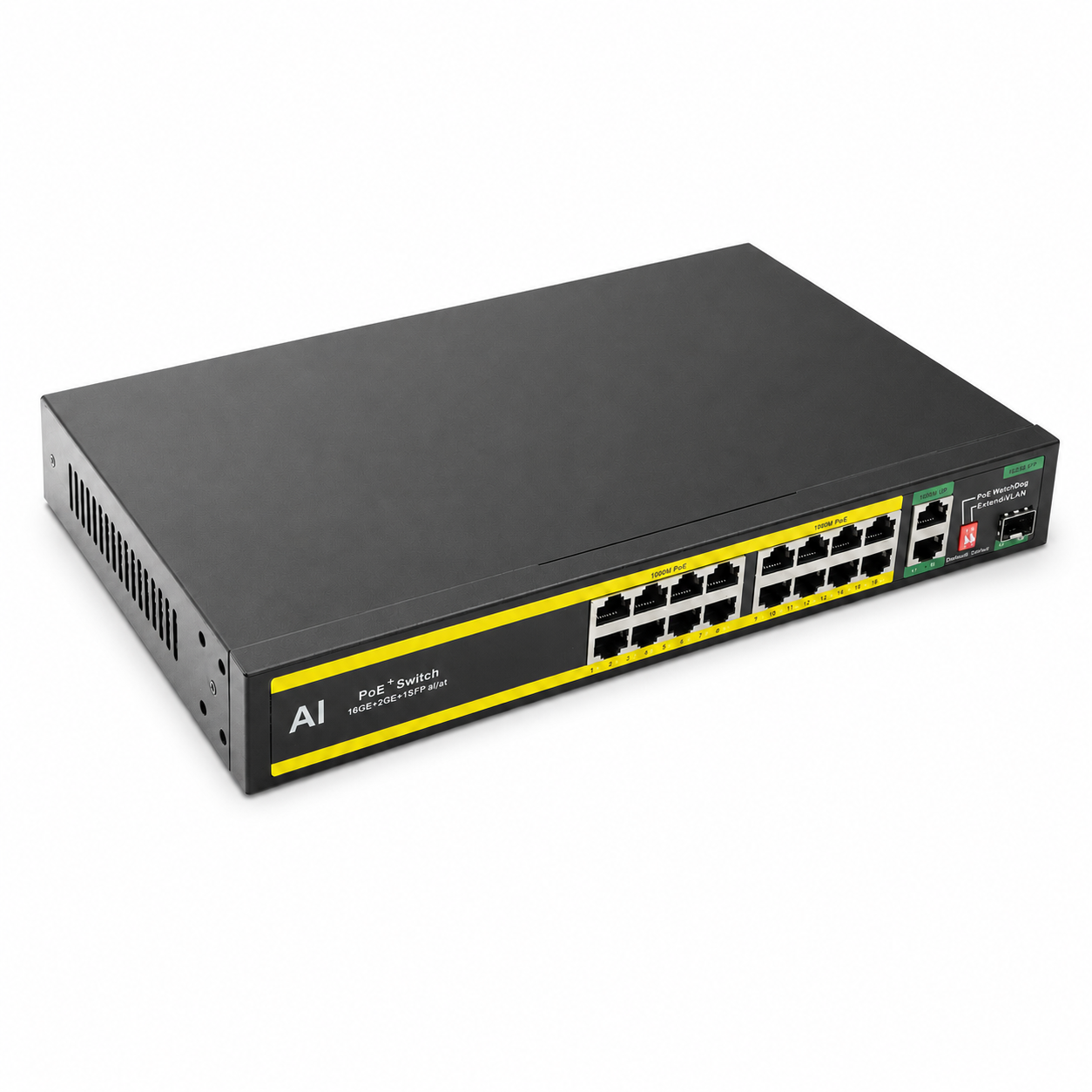

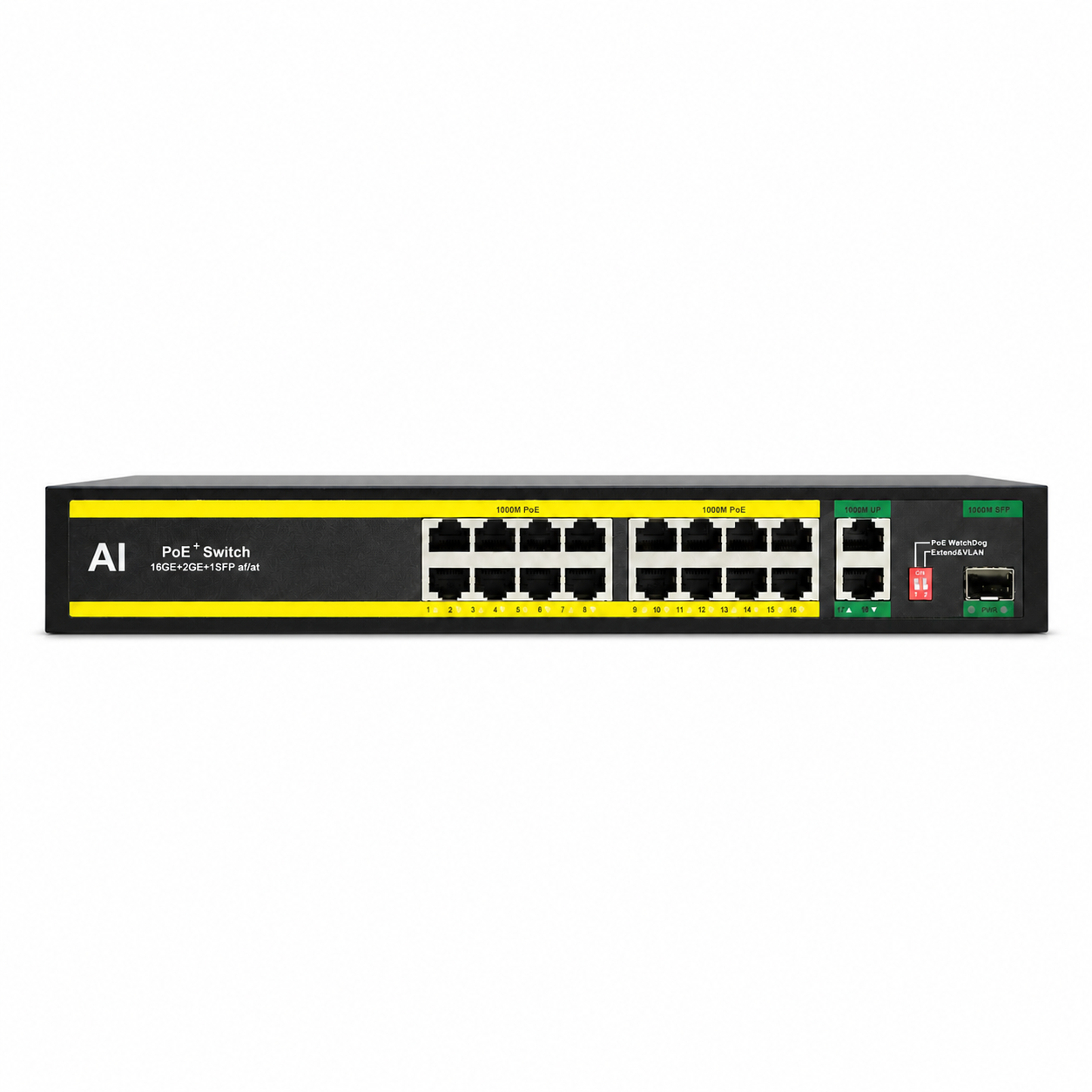

UltraPoE PoE-7018B 16-Port Gigabit PoE+ Switch – 330W, SFP
SKU: PoE-7018BUltraPoE PoE-7018B is an unmanaged 16-port Gigabit PoE+ switch for IP surveillance, wireless access points, VoIP phones and access-control systems. It combines a 330W built-in power supply with dual Gigabit RJ45 uplinks and a Gigabit SFP slot.
Key features

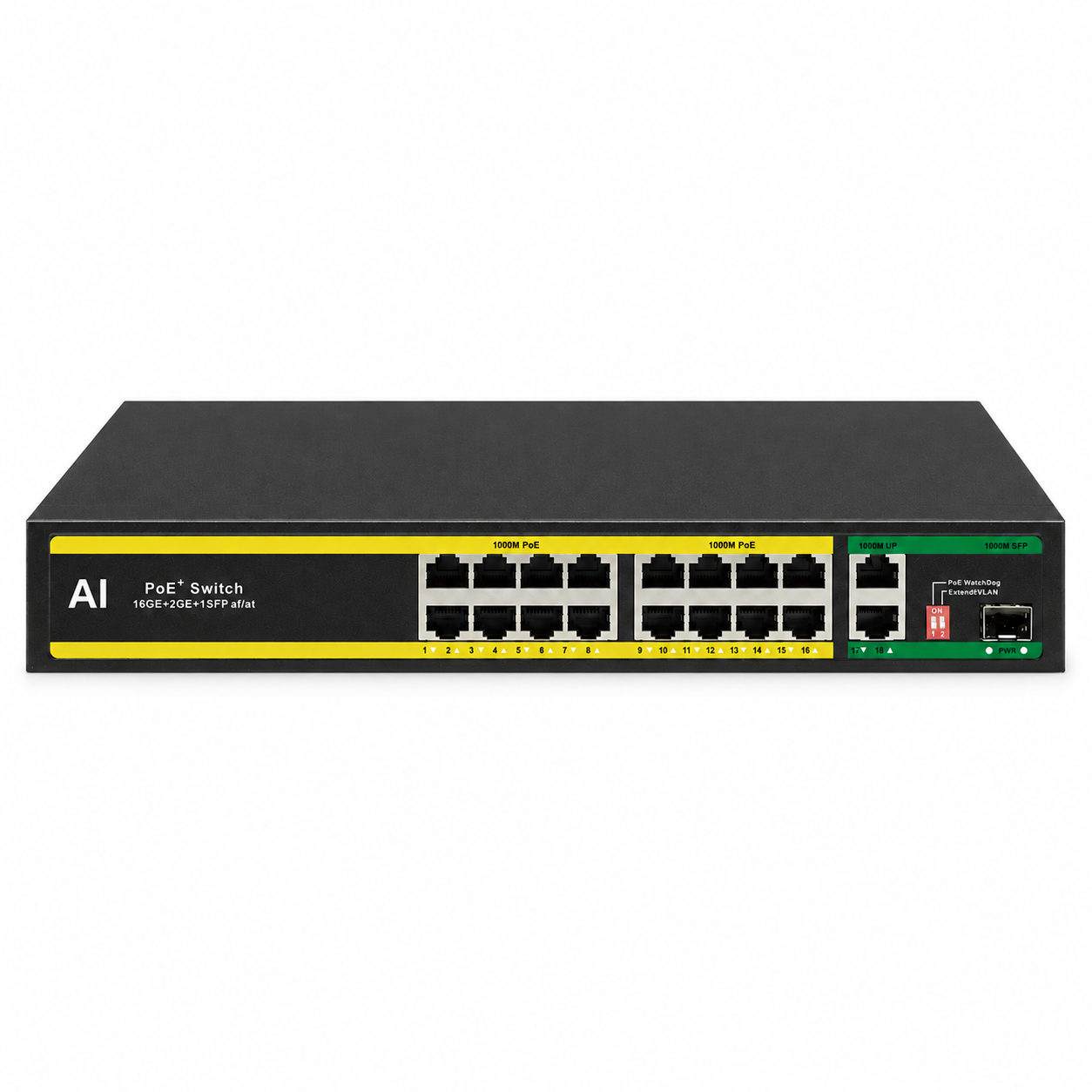

- 16 Gigabit PoE+ ports: Sixteen 10/100/1000 Mbps RJ45 ports deliver data and power to compatible devices.
- Flexible uplinks: Two Gigabit RJ45 uplinks and one Gigabit SFP slot connect to recorders, routers, core switches or fiber networks.
- IEEE PoE support: Compatible with IEEE 802.3af and IEEE 802.3at powered devices.
- Up to 30W per PoE port: Supports compatible PoE+ cameras, access points and network devices.

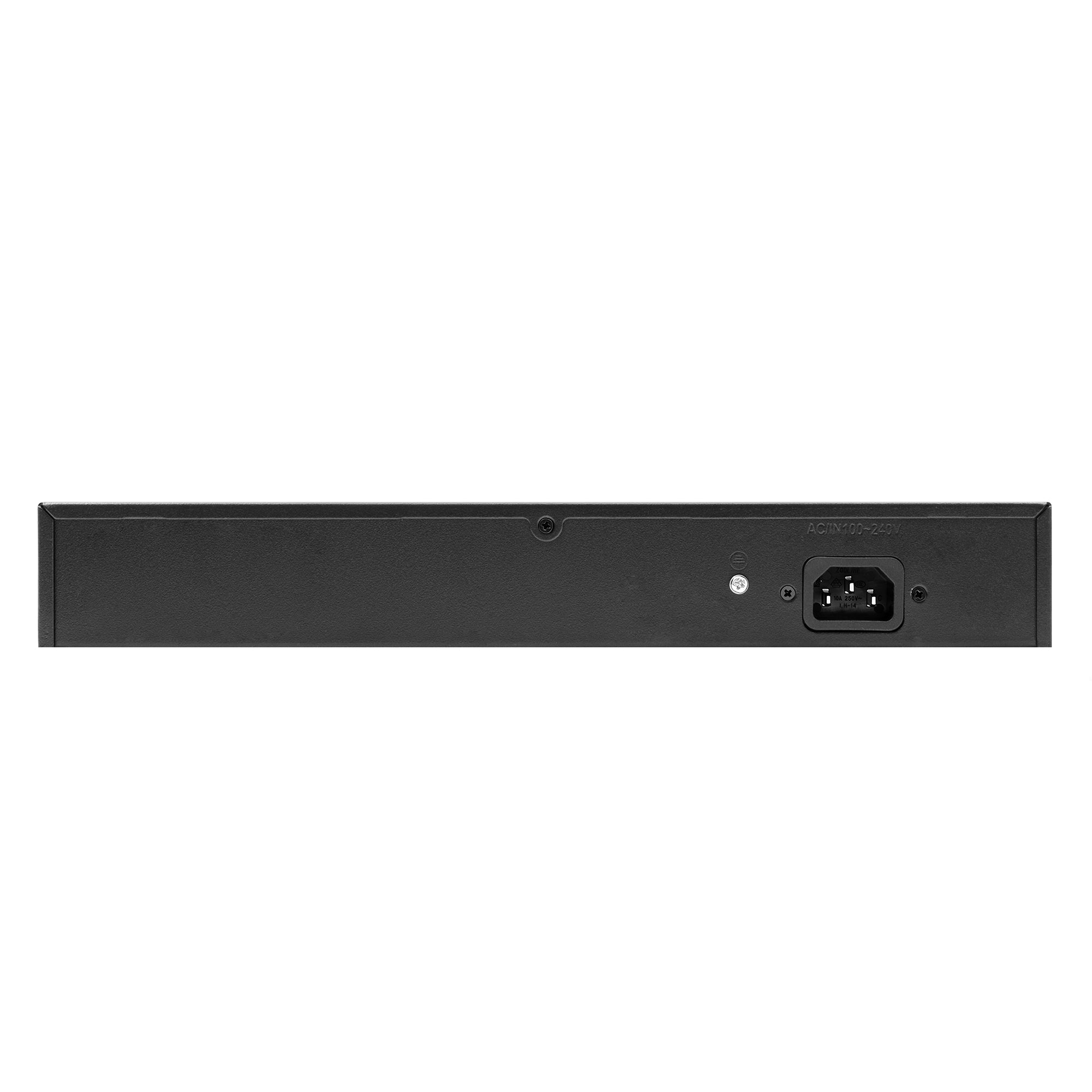

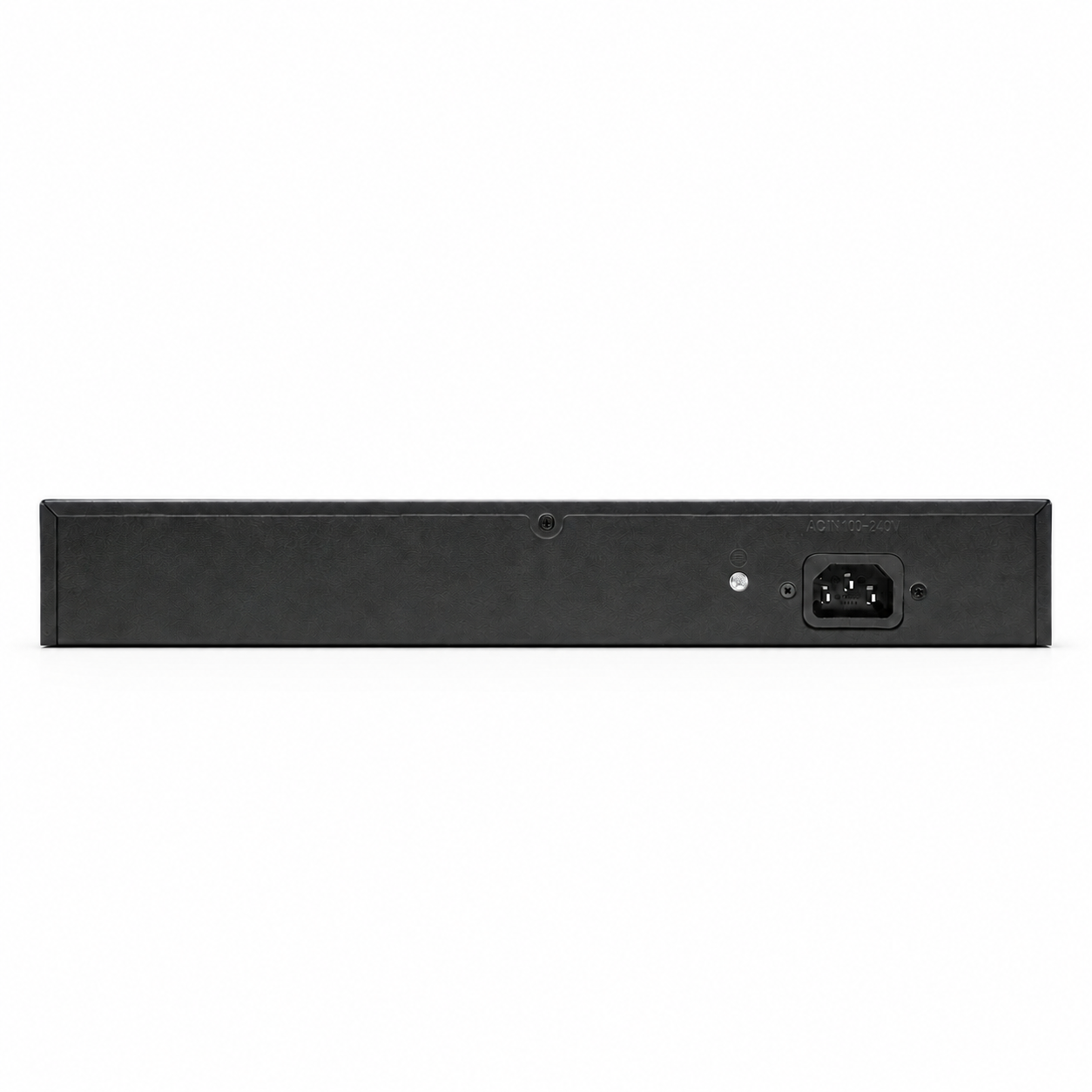

- 330W built-in power: Integrated AC power supply accepts 100–240V input.
- AI PoE Watchdog: Monitors connected devices and can restart power to an unresponsive PoE connection.
- 250 m Extend mode: Supports longer cable runs at 10 Mbps.
- 4 kV surge protection: Helps protect the switch against electrical transients.
Technical specifications
- Model: PoE-7018B
- PoE ports: 16 × 10/100/1000 Mbps RJ45
- RJ45 uplinks: 2 × Gigabit
- Fiber uplink: 1 × Gigabit SFP
- PoE standards: IEEE 802.3af and IEEE 802.3at
- Maximum PoE output per port: 30W
- Built-in power supply: 330W
- AC input: 100–240V
- Extend mode: Up to 250 m at 10 Mbps
- Surge protection: 4 kV
- Management: Unmanaged
Typical applications
Designed for multi-camera surveillance systems, office Wi-Fi, VoIP deployments, access control and other installations requiring centralized Gigabit PoE+ power with copper and fiber uplinks.
Frequently asked questions
Can all 16 ports power devices?
Yes. All 16 Gigabit RJ45 ports support compatible IEEE 802.3af/at devices, with up to 30W available per port and power shared across the switch.
Does the SFP port supply PoE?
No. The SFP slot is a data uplink. A compatible SFP transceiver is required and is sold separately unless explicitly included.
What does AI Watchdog do?
It monitors PoE connections and can power-cycle an unresponsive powered device to help restore operation.
Can it support cable runs beyond 100 meters?
Yes. Extend mode supports transmission up to 250 meters at 10 Mbps, subject to cable quality and device requirements.
Download the product manual · Download the specification sheet
NDAA compliance
NDAA compliant — manufacturer declared.
