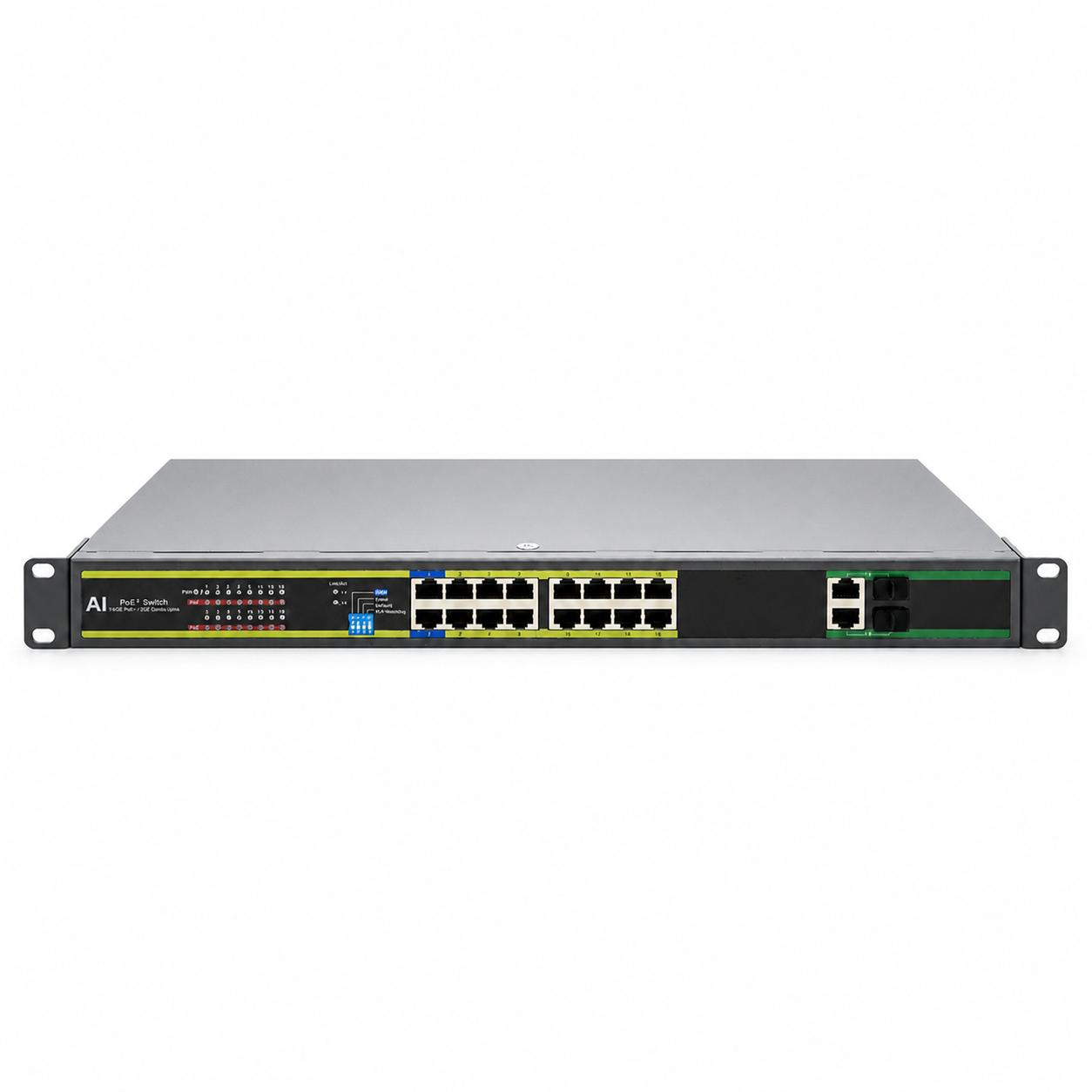

UltraPoE POE-7018 16-port Gigabit PoE switch front view on pure white background

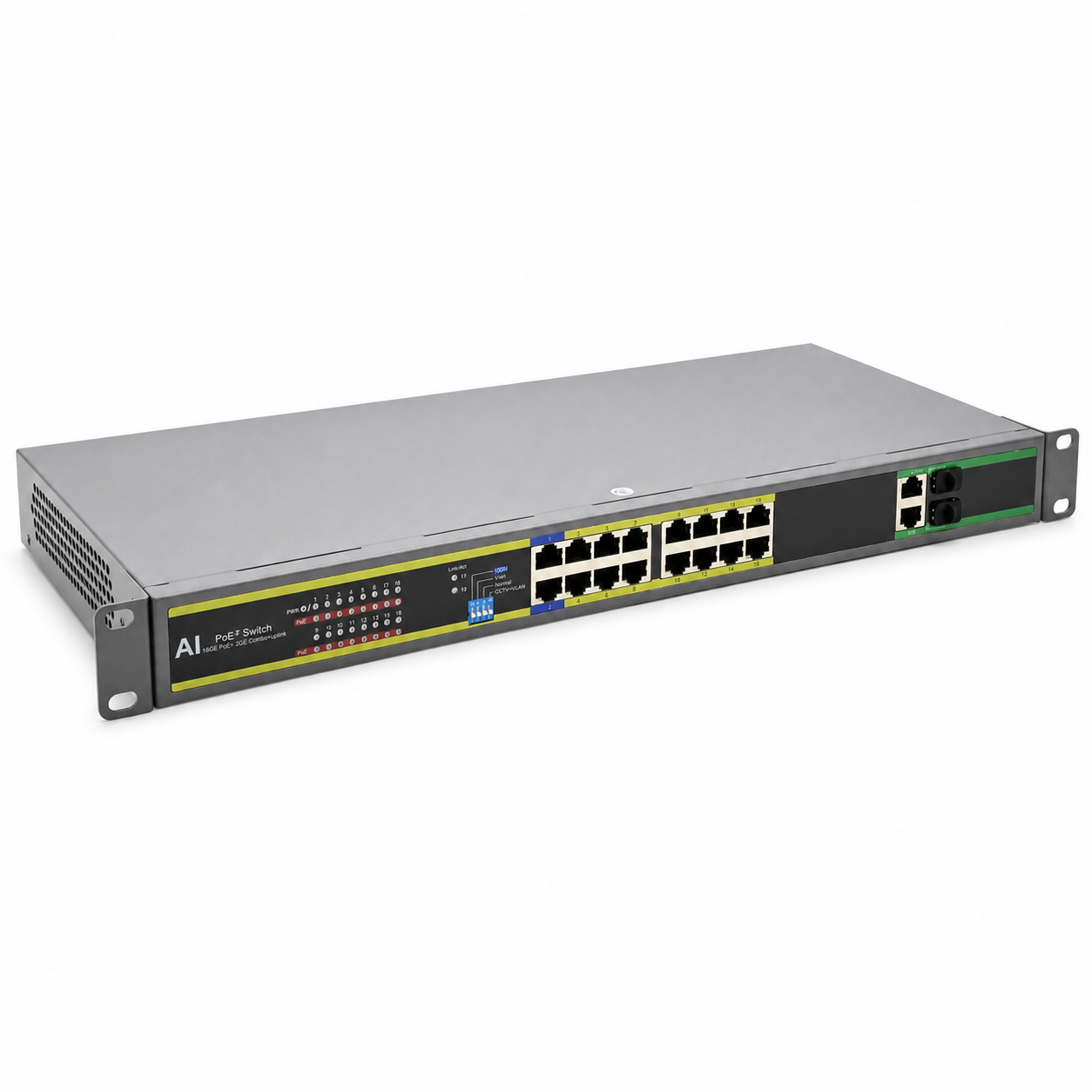

UltraPoE POE-7018 rackmount Gigabit PoE switch angled view on pure white background

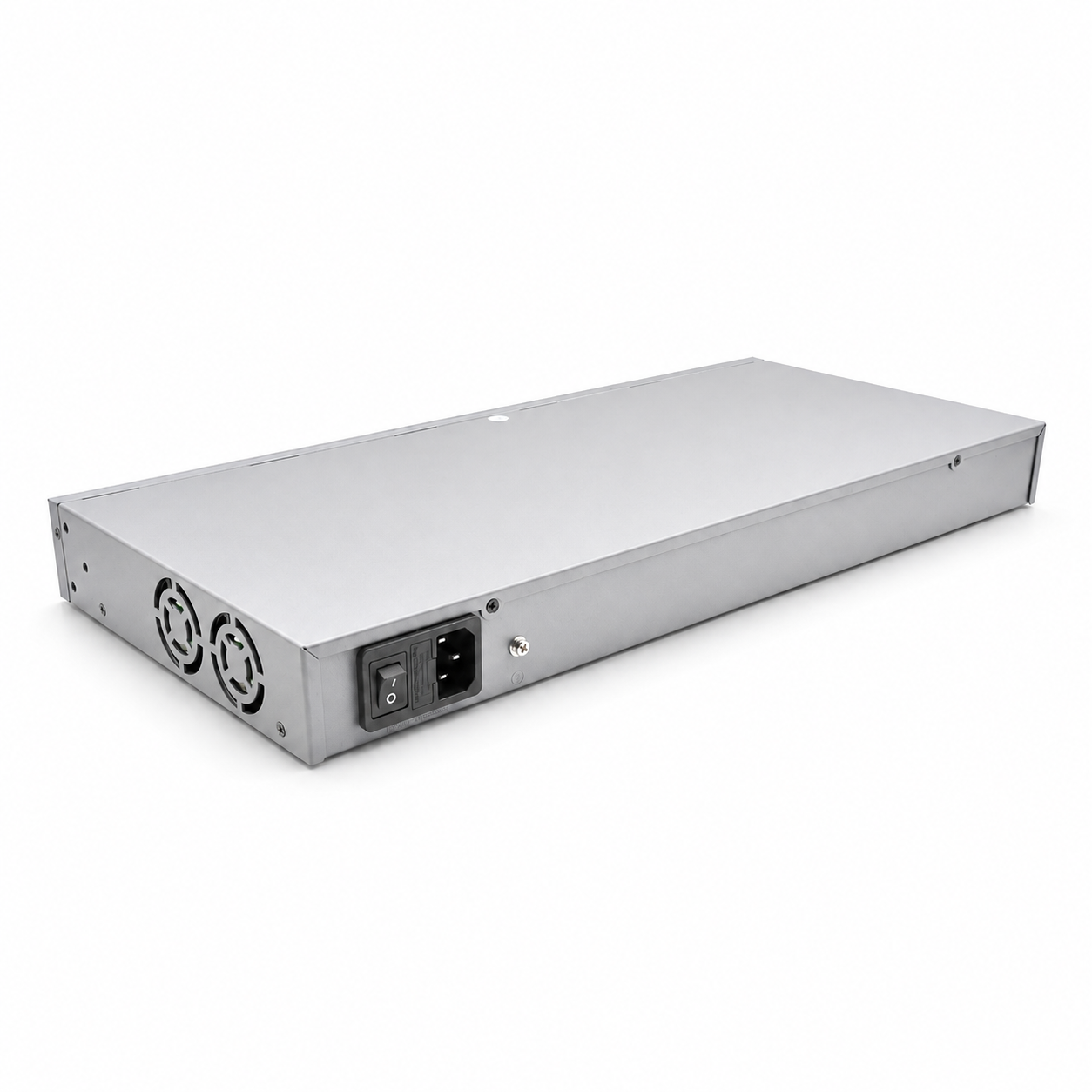

UltraPoE POE-7018 rear AC power input and cooling fans on pure white background

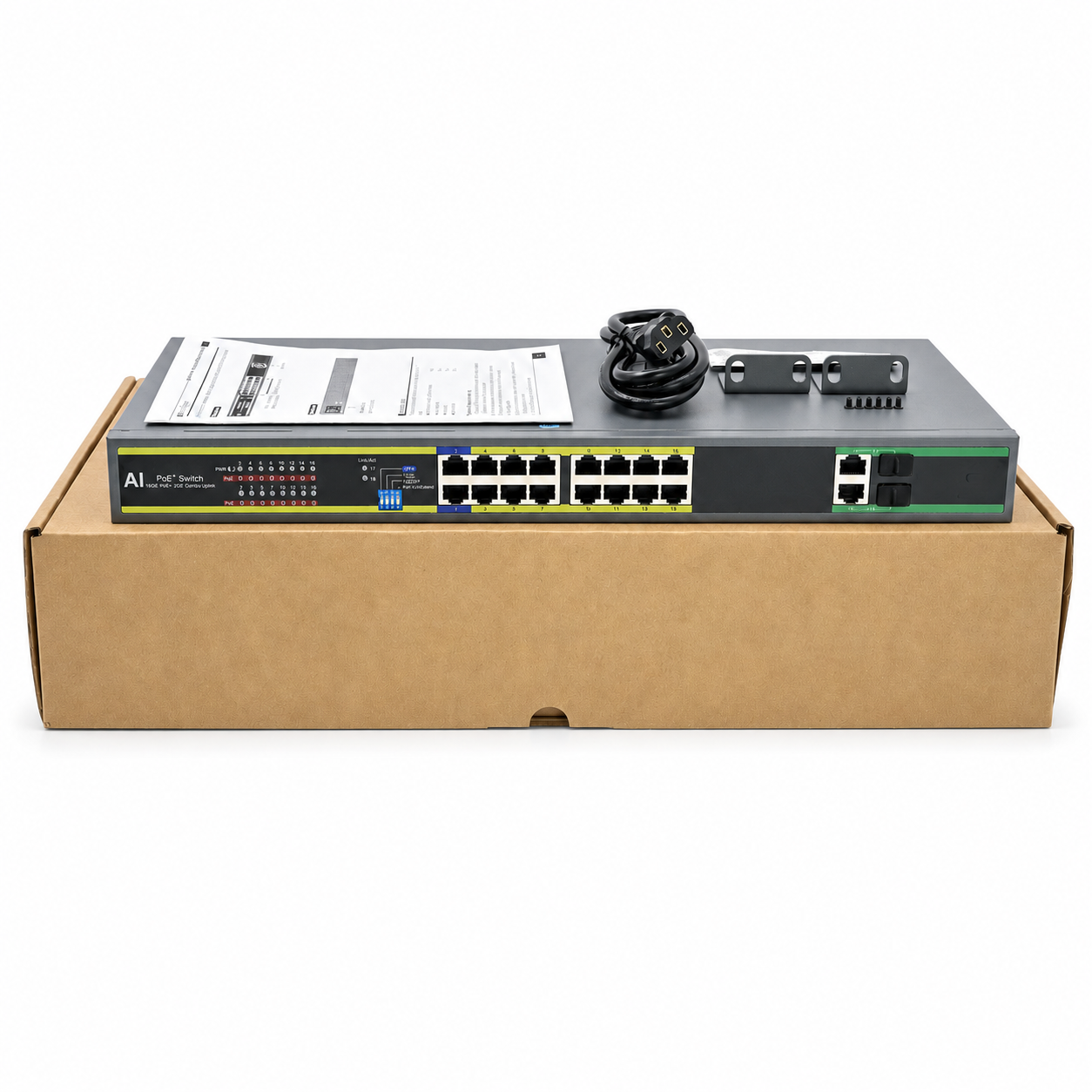

UltraPoE POE-7018 package with power cord manual and rack hardware on pure white background

UltraPoE PoE-7018 16-Port Gigabit PoE+ AI Switch – 270W

SKU: POE-7018




UltraPoE PoE-7018 is an unmanaged 16-port Gigabit PoE+ AI switch for IP surveillance, wireless access points, VoIP phones and access-control networks. It combines 16 Gigabit PoE ports, two Gigabit RJ45/SFP combo uplinks and a 270W built-in power supply.
Key features


  •
16 Gigabit PoE+ ports: Sixteen 10/100/1000 Mbps RJ45 ports power and connect compatible devices.
    •

  •
2 Gigabit combo uplinks: Two RJ45/SFP combo interfaces provide flexible copper or fiber uplink connectivity.
    •

  •
270W built-in power: Integrated power supply supports the shared PoE load.
    •

  •
IEEE PoE support: Compatible with IEEE 802.3af and IEEE 802.3at powered devices.
    •

  •
Up to 30W per PoE port: Supports compatible PoE+ cameras, phones and access points.
    •

  •
AI PoE Watchdog: Monitors connected devices and can restart an unresponsive PoE port.
    •

  •
VLAN mode: Helps isolate PoE ports while preserving uplink communication.
    •

  •
QoS mode: Prioritizes important network traffic.
    •

  •
250 m Extend mode: Supports longer PoE transmission at a reduced data rate.
    •

Technical specifications


  • Model: PoE-7018
    •

  • PoE ports: 16 × 10/100/1000 Mbps RJ45
    •

  • Uplinks: 2 × Gigabit RJ45/SFP combo interfaces
    •

  • PoE standards: IEEE 802.3af and IEEE 802.3at
    •

  • Maximum PoE output per port: 30W
    •

  • Built-in power supply: 270W
    •

  • Standard transmission distance: Up to 100 m
    •

  • Extend-mode distance: Up to 250 m
    •

  • Management: Unmanaged with selectable AI functions
    •

Typical applications
Suitable for 16-camera surveillance systems, enterprise Wi-Fi, NVR networks, access control, VoIP and other installations requiring centralized Gigabit PoE+ power with copper or fiber uplinks.
Frequently asked questions
Are all 16 PoE ports Gigabit?
Yes. All 16 PoE RJ45 ports support 10/100/1000 Mbps Ethernet for compatible devices.
What is a combo uplink?
Each combo interface provides RJ45 and SFP options that share one logical uplink. Use either copper or fiber according to the installation.
Is 270W available from every port?
No. The 270W built-in supply supports the switch and the shared PoE load. Each compatible PoE port supports up to 30W.
What does AI PoE Watchdog do?
It monitors connected PoE devices and can power-cycle an unresponsive port to help restore operation.
Download the product specification · Download the product manual


NDAA compliance


NDAA compliant — manufacturer declared.
