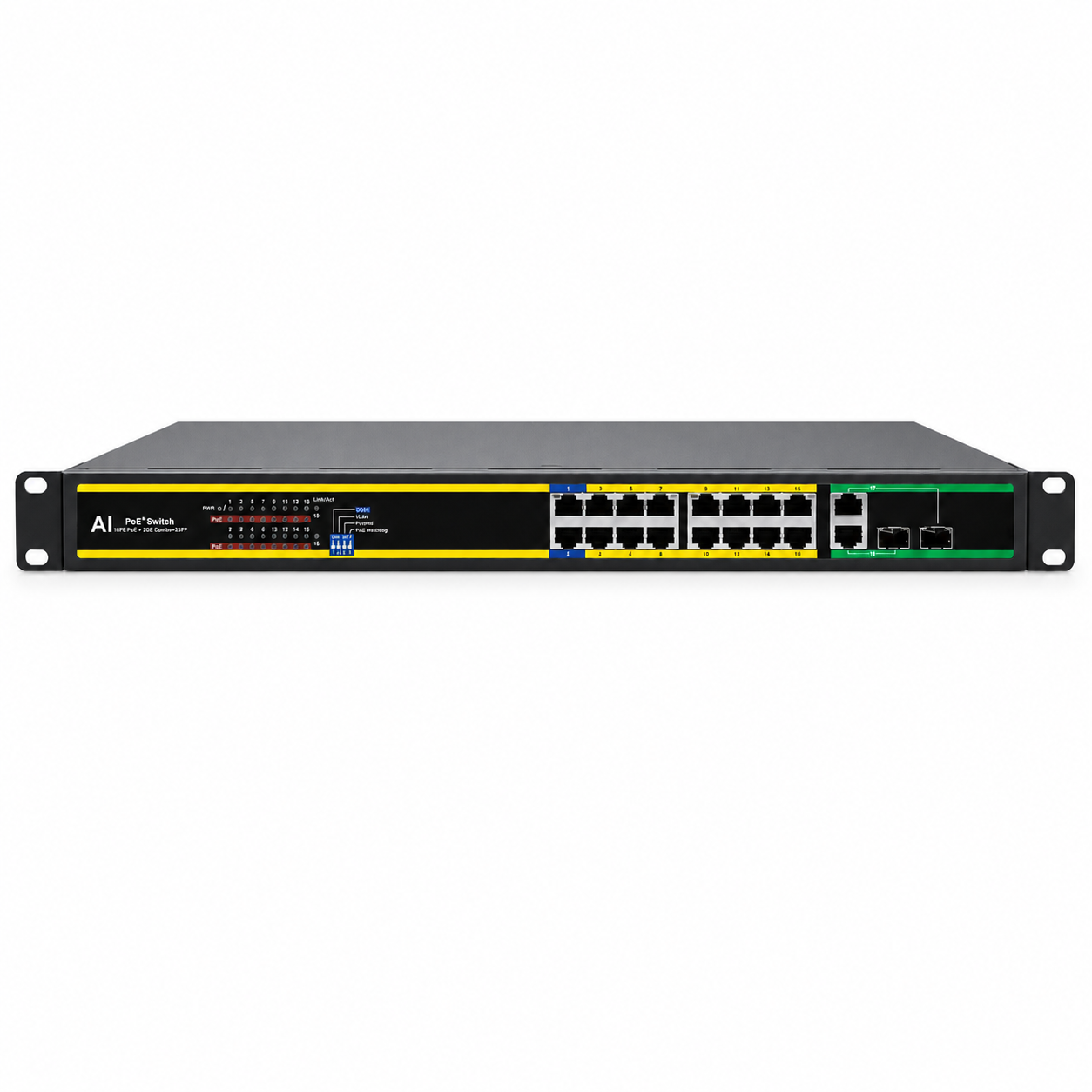

UltraPoE POE-6018 16-port PoE switch front view on pure white background

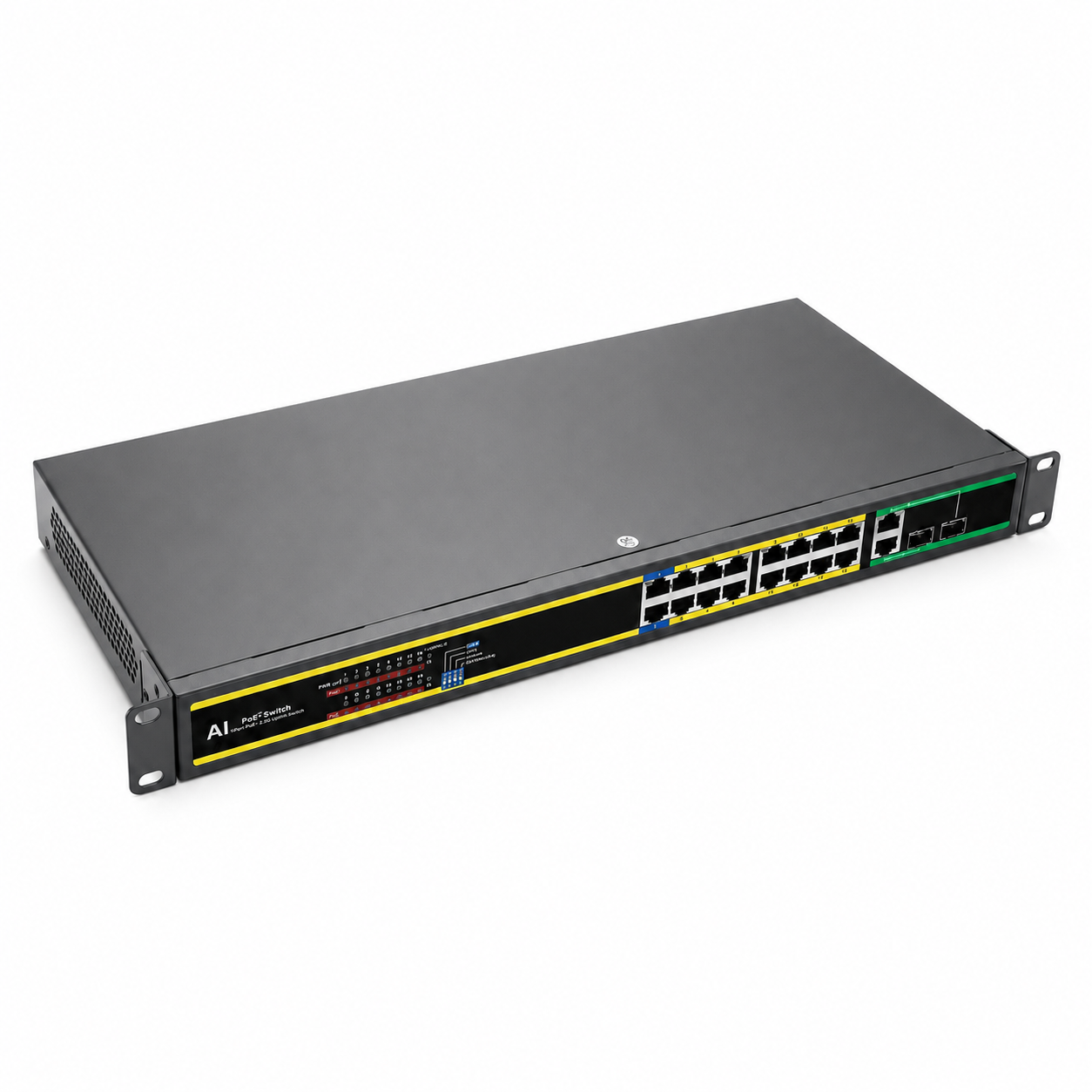

UltraPoE POE-6018 250W rackmount PoE switch right angle on pure white background
UltraPoE POE-6018 16-port PoE switch left angle on pure white background

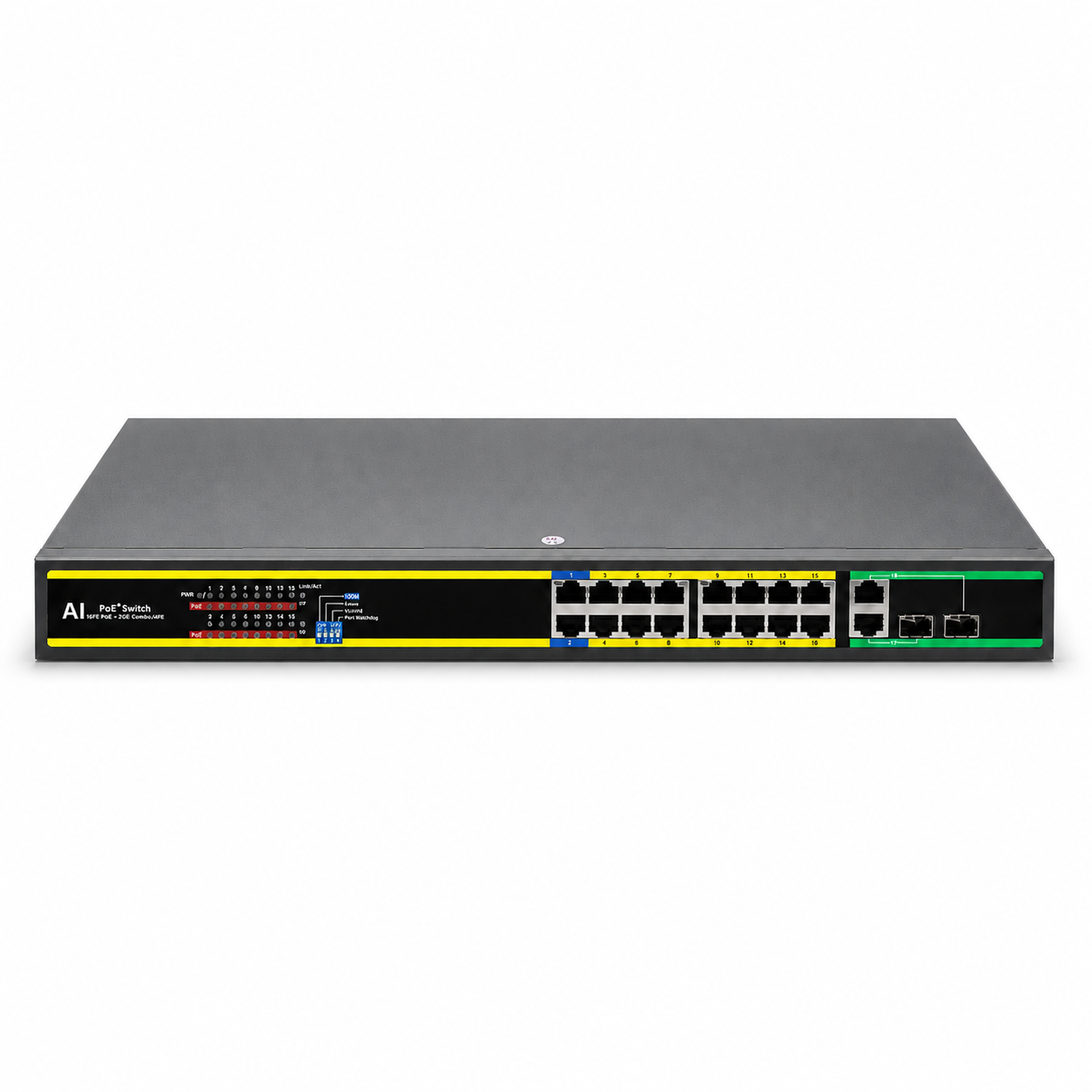

UltraPoE POE-6018 rackmount front with 16 PoE ports and uplinks on pure white background

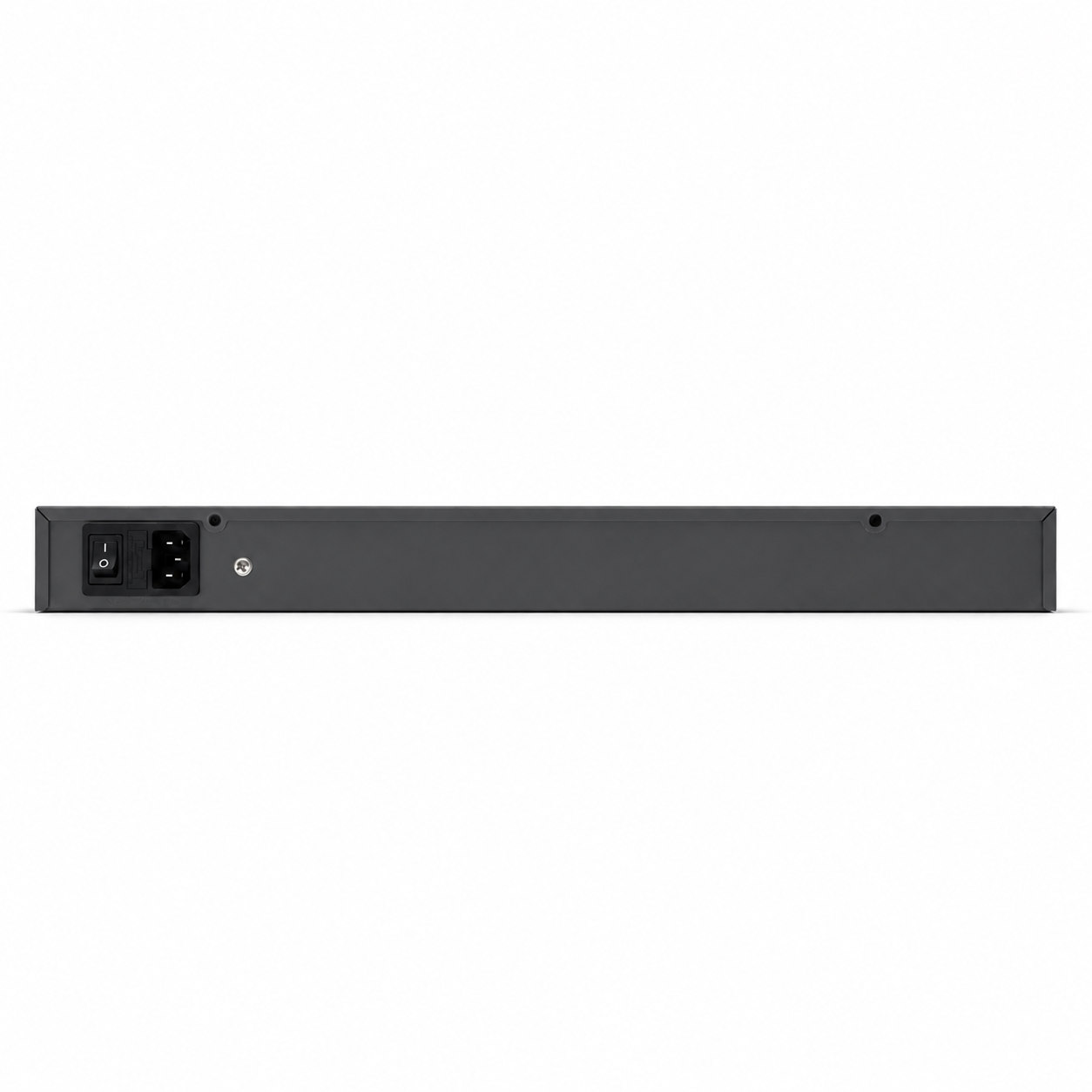

UltraPoE POE-6018 rear AC power input on pure white background

UltraPoE PoE-6018 16-Port Fast Ethernet PoE+ AI Switch – 250W

  • Save $200
SKU: POE-6018




UltraPoE PoE-6018 is an unmanaged 16-port Fast Ethernet PoE+ AI switch for IP surveillance, access control, VoIP and other powered network devices. It combines 16 PoE ports, two Gigabit RJ45/SFP combo uplinks and a 250W built-in power supply.
Key features


  •
16 Fast Ethernet PoE+ ports: Sixteen 10/100 Mbps RJ45 ports power and connect compatible devices.
    •

  •
2 Gigabit combo uplinks: Two RJ45/SFP combo interfaces provide flexible copper or fiber uplink connectivity.
    •

  •
250W built-in power: Integrated power supply supports the shared PoE load.
    •

  •
IEEE PoE support: Compatible with IEEE 802.3af and IEEE 802.3at powered devices.
    •

  •
Up to 30W per PoE port: Supports compatible PoE+ cameras, phones and access points.
    •

  •
AI PoE Watchdog: Monitors connected devices and can restart an unresponsive PoE port.
    •

  •
VLAN mode: Helps isolate PoE ports while preserving uplink communication.
    •

  •
QoS mode: Prioritizes important network traffic.
    •

  •
250 m Extend mode: Supports longer PoE transmission at a reduced data rate.
    •

Technical specifications


  • Model: PoE-6018
    •

  • PoE ports: 16 × 10/100 Mbps RJ45
    •

  • Uplinks: 2 × Gigabit RJ45/SFP combo interfaces
    •

  • PoE standards: IEEE 802.3af and IEEE 802.3at
    •

  • Maximum PoE output per port: 30W
    •

  • Built-in power supply: 250W
    •

  • Standard transmission distance: Up to 100 m
    •

  • Extend-mode distance: Up to 250 m
    •

  • Management: Unmanaged with selectable AI functions
    •

Typical applications
Suitable for 16-camera surveillance systems, NVR networks, access control, VoIP phones and other installations requiring centralized PoE+ power with copper or fiber uplinks.
Frequently asked questions
Are the 16 PoE ports Gigabit?
No. The 16 PoE ports operate at 10/100 Mbps. The two uplink interfaces support Gigabit RJ45 or SFP connectivity.
What is a combo uplink?
Each combo interface provides RJ45 and SFP options that share one logical uplink. Use either copper or fiber according to the installation.
Is 250W available from every port?
No. The 250W built-in supply supports the switch and the shared PoE load. Each compatible PoE port supports up to 30W.
What does AI PoE Watchdog do?
It monitors connected PoE devices and can power-cycle an unresponsive port to help restore operation.
Download the product specification · Download the product manual


NDAA compliance


NDAA compliant — manufacturer declared.
