UltraPoE CT-DB15-NWF 15×12×8in Outdoor NEMA Enclosure with Fan & Power Outlet

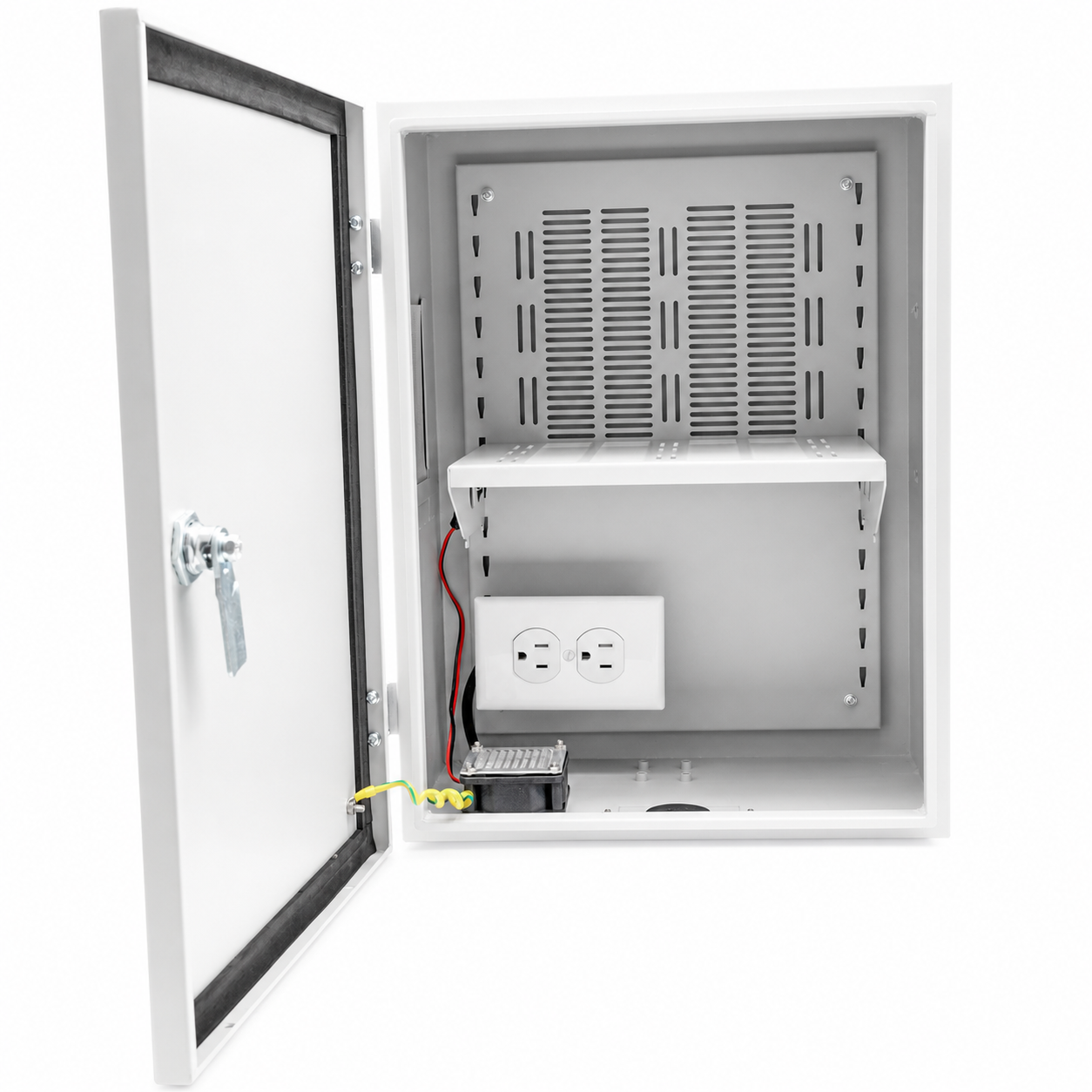

UltraPoE CT-DB15-NWF is a 15 × 12 × 8 inch weatherproof metal NEMA enclosure for organizing and protecting compatible networking, surveillance, power, and control equipment indoors or outdoors. It includes a slotted mounting plate, adjustable vented tray, dual electrical outlet, DC cooling fan, keyed door, and cable-entry provisions.
Key specifications
- Model: CT-DB15-NWF
- External size: 15 × 12 × 8 inches
- Material: Metal
- Color: White
- Environment: Indoor and outdoor use
- Protection: Weatherproof design for exposure to rain splash, dust, snow, oil, and UV

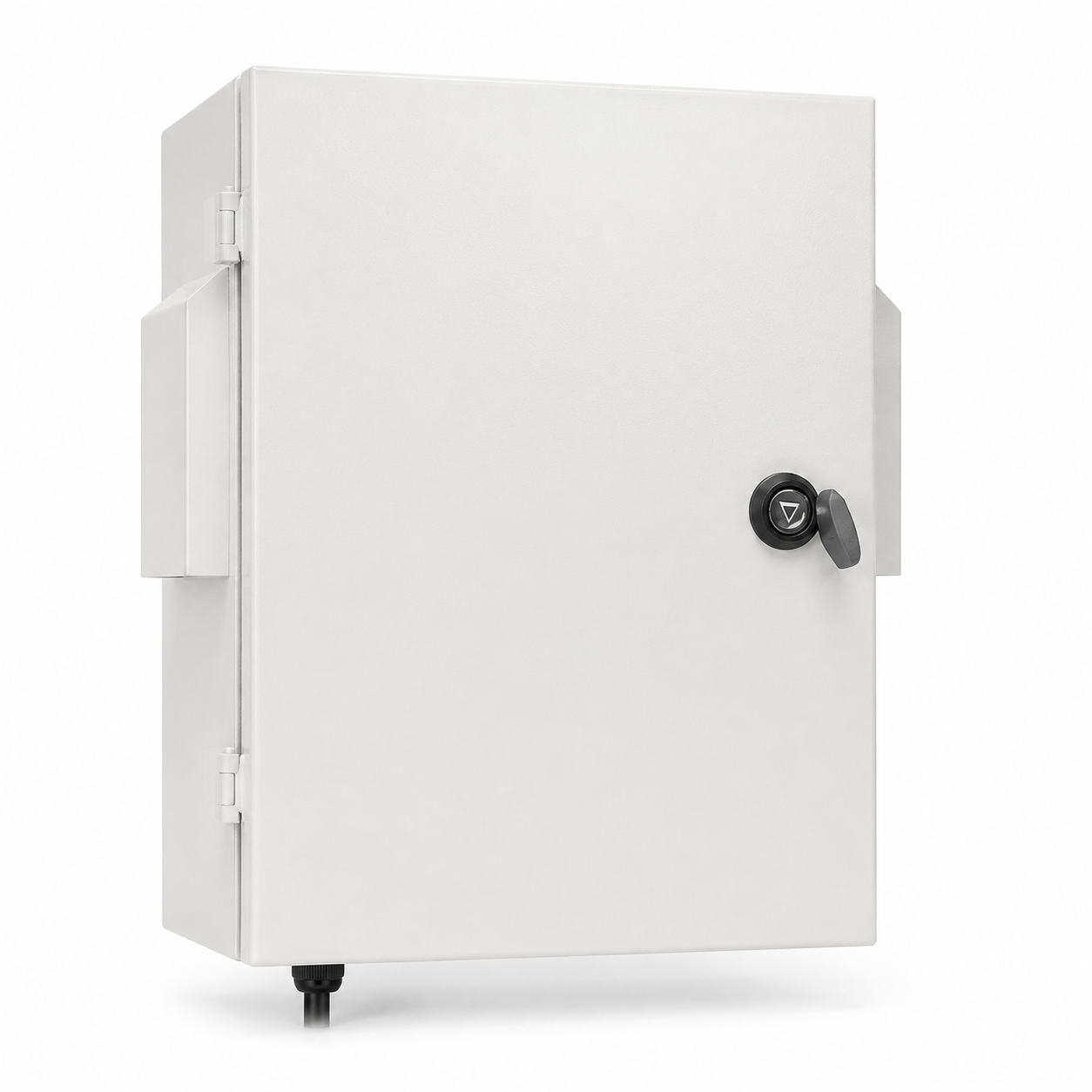

- Door: Left-hinged door with perimeter gasket and keyed quarter-turn lock

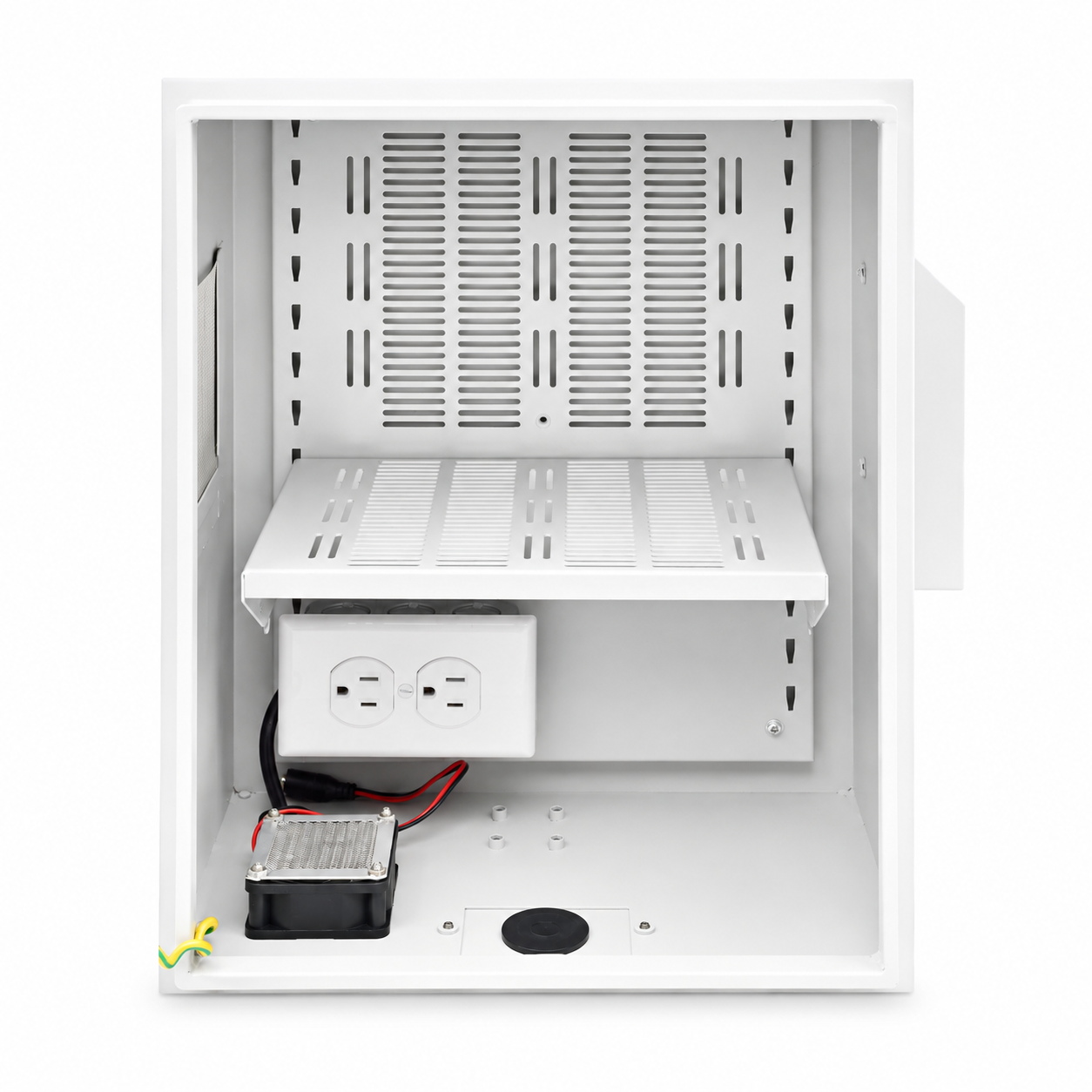

- Mounting: Slotted internal mounting plate and adjustable vented tray
- Power: Built-in dual electrical outlet with external power cord

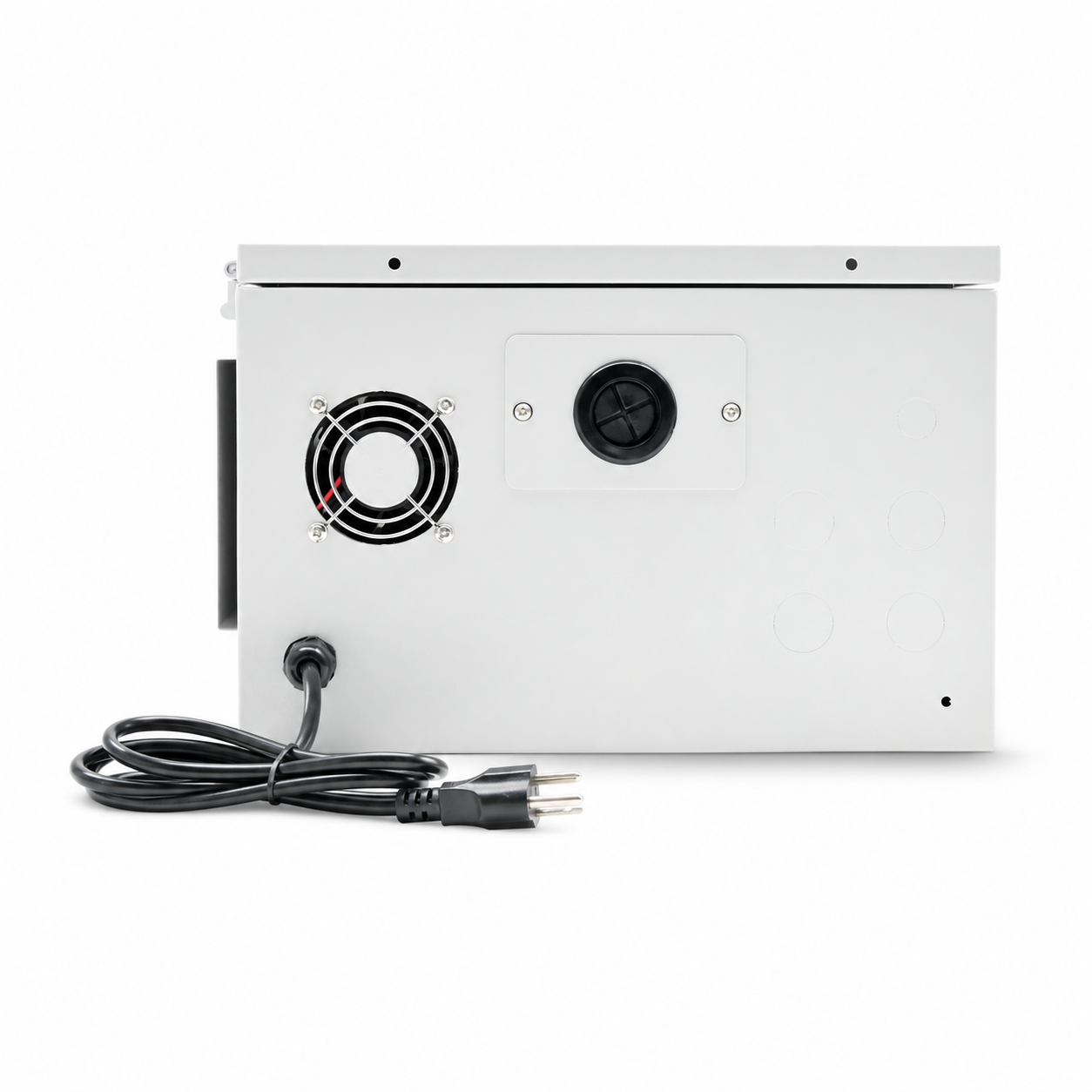

- Cooling: Built-in DC fan and rear ventilation assembly
- Cable access: Grommet, knockout locations, and included waterproof cable connectors
Included hardware
The enclosure includes three waterproof cable connectors, assembly screws, and two keys, as shown in the supplied product documentation.
Recommended applications
Suitable for compatible PoE switches, network equipment, surveillance components, solar or low-voltage controls, power supplies, and other protected indoor/outdoor DIY installations that fit the available enclosure space.
Frequently asked questions
What are the enclosure dimensions?
The CT-DB15-NWF measures 15 × 12 × 8 inches.
Does it include cooling and power?
Yes. The enclosure includes a DC cooling fan, a dual electrical outlet, and an external power cord.
Can the internal tray be repositioned?
Yes. The supplied vented plate can be installed in two positions and used as a tray or cover.
Can this enclosure be used indoors?
Yes. It is designed for both indoor and outdoor applications.
