6U / 9U / 12U Wall-Mount Network Cabinet, 600mm Deep
SKU: CT-DC12U-6006U, 9U & 12U Wall-Mount Network Cabinet Series
Choose the rack capacity and depth that fit your installation. This UltraPoE cabinet family provides secure, ventilated 19-inch equipment mounting for switches, patch panels, NVR/DVR systems, rack PDUs, cable management and other network or surveillance hardware. Select 6U, 9U or 12U from the Rack Size menu.
Model and price guide
| Rack size | SKU | External dimensions |
|---|---|---|
| 6U | CT-DB6U-450 | 600 W × 450 D × 350 H mm (23.62 W × 17.72 D × 13.78 H in.) |
| 9U | CT-DB9U-600 | 600 W × 600 D × 500 H mm (23.62 W × 23.62 D × 19.69 H in.) |
| 12U | CT-DC12U-600 | 600 W × 600 D × 600 H mm (23.62 W × 23.62 D × 23.62 H in.) |
Why installers choose this cabinet
- Standard 19-inch rack format: Supports compatible switches, patch panels, shelves, recorders, PDUs and cable managers.
- Model-specific depth: The 6U model is 450 mm deep; the 9U and 12U models are 600 mm deep.

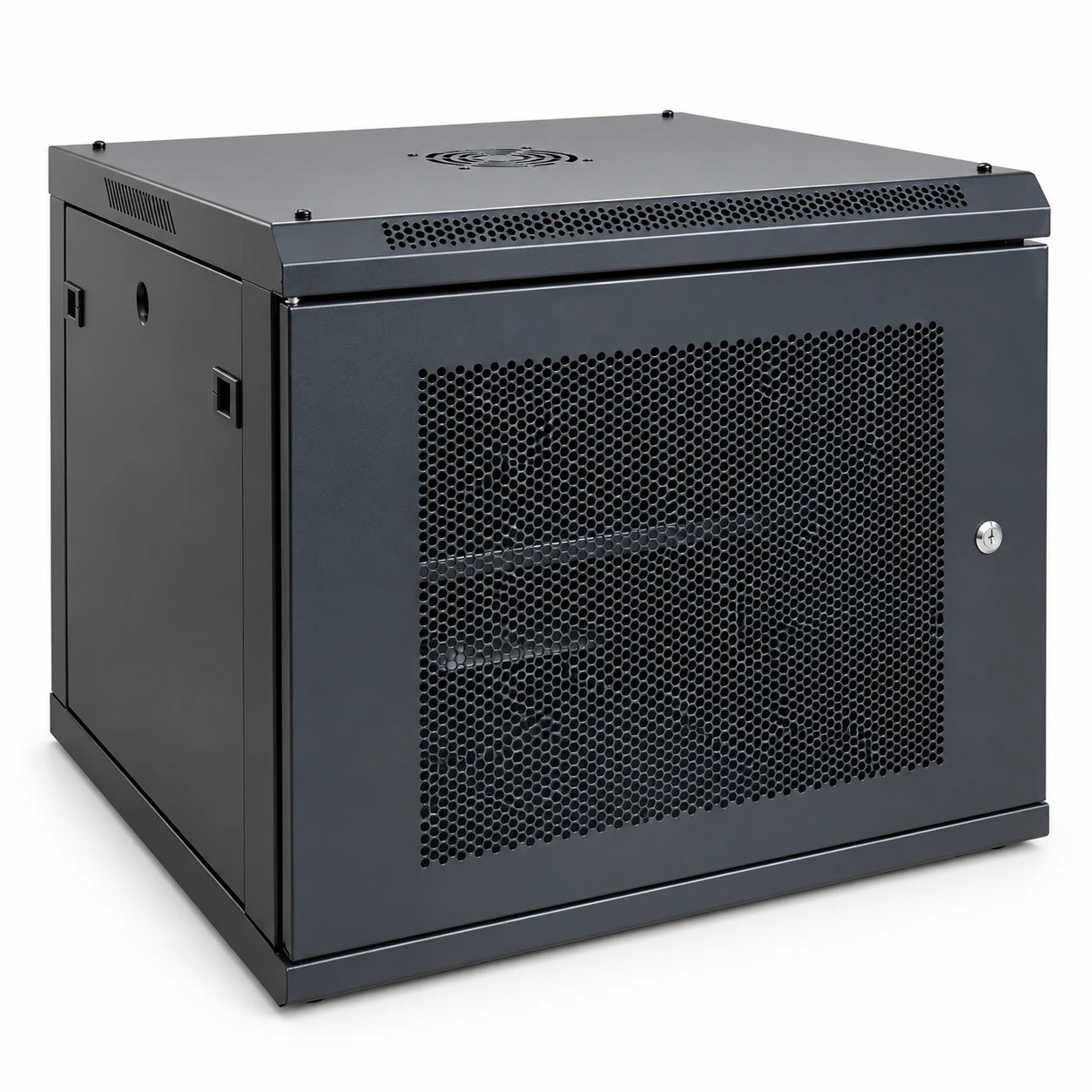

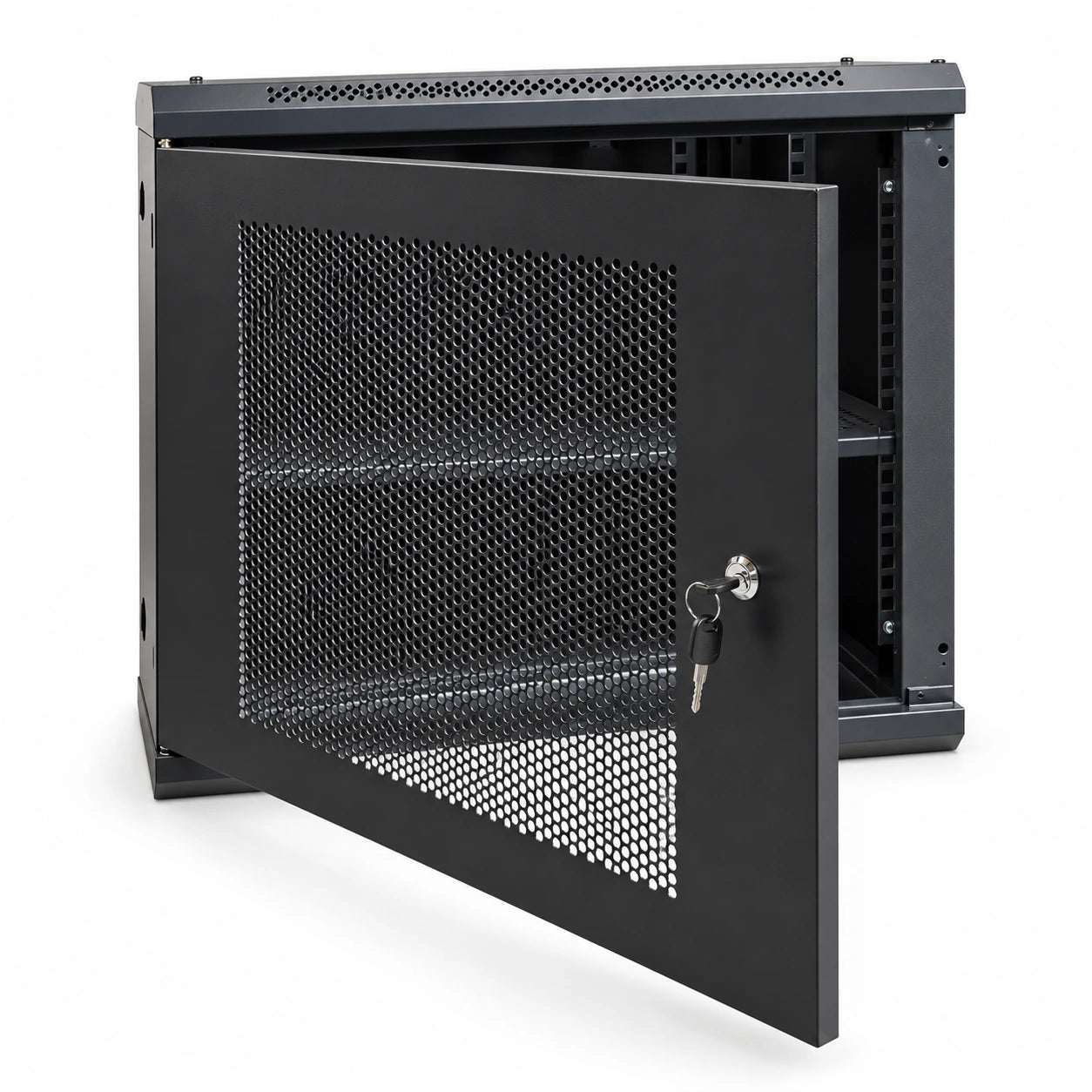

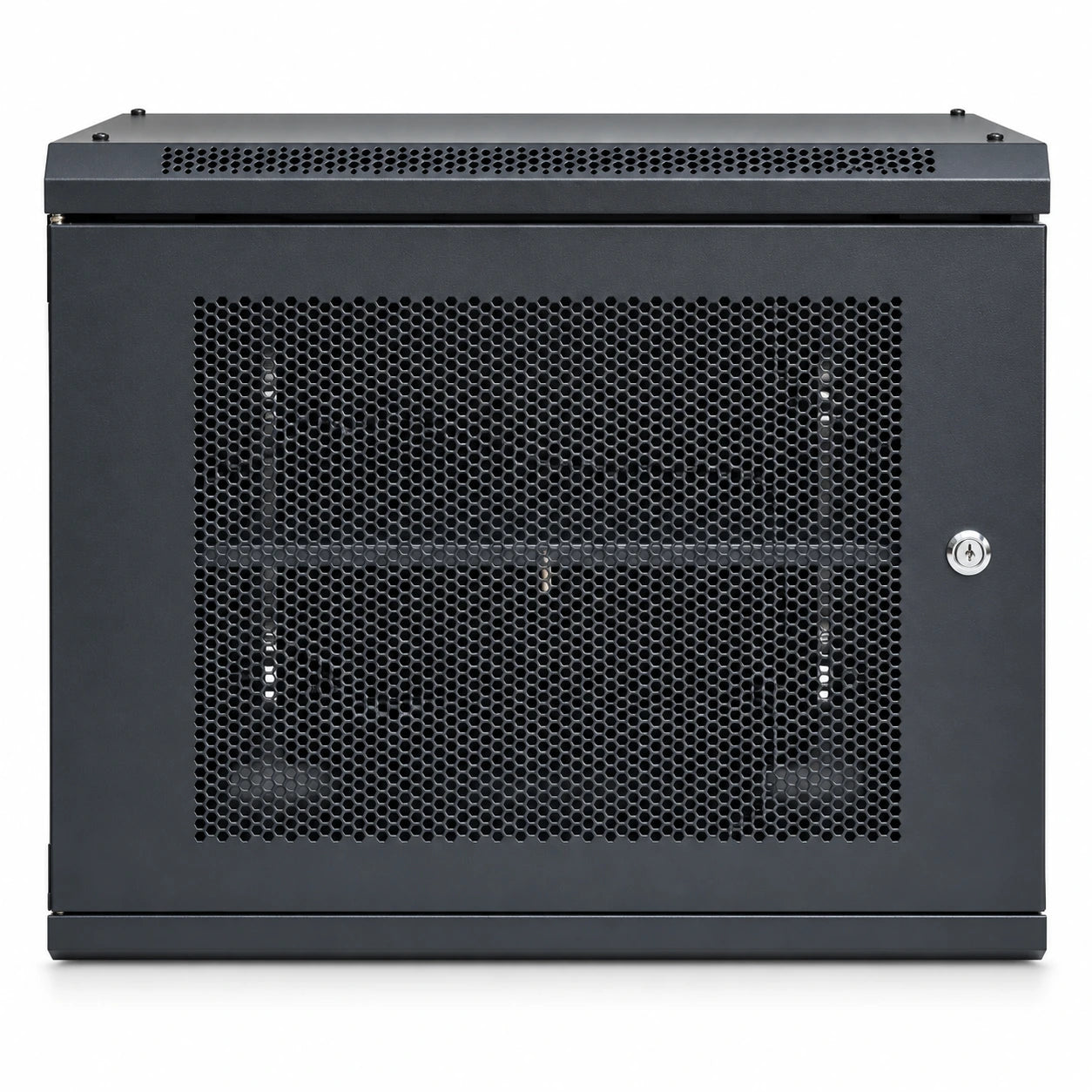

- Secure airflow: Locking perforated metal front door supports passive ventilation while limiting unauthorized access.

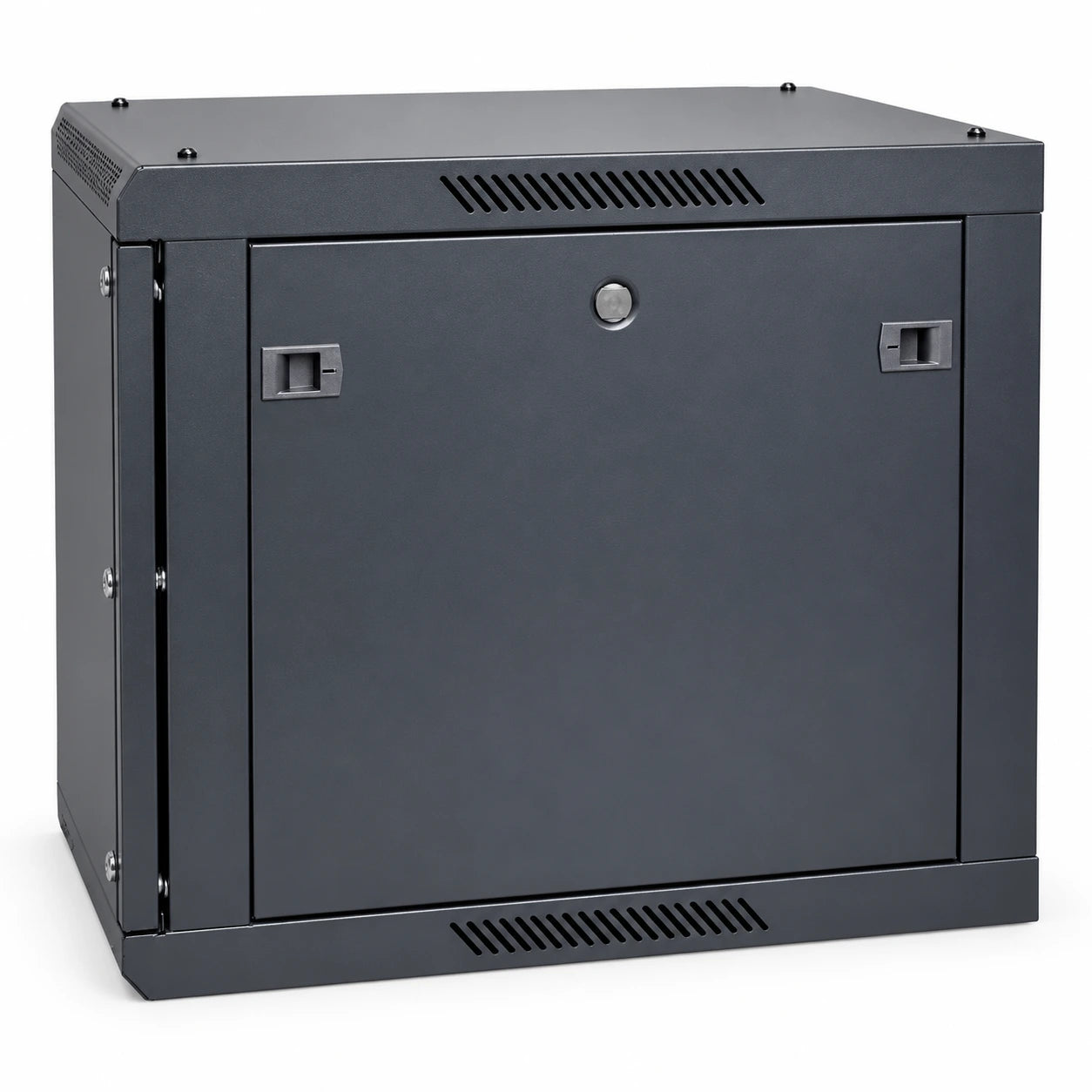

- Fast service access: Removable side panels simplify wiring, installation and maintenance.
- Strong steel construction: SPCC cold-rolled steel cabinet with 1.0 mm panels and 1.2 mm vertical mounting rails.
- Flat-pack shipping: Bolt-together construction makes transport to the job site easier.
Shared technical specifications
| Rack standard | 19-inch equipment mounting |
| Cabinet width | 600 mm (23.62 in.) |
| Material | SPCC cold-rolled steel |
| Cabinet sheet thickness | 1.0 mm |
| Vertical mounting rails | 1.2 mm steel |
| Front door | Locking perforated metal mesh |
| Side access | Removable panels |
| Static load capacity | Up to 60 kg (132 lb) when correctly installed |
| Protection rating | IP20 — indoor use; no water protection |
| Finish | Degreased, pickled, phosphated and powder coated |
| Color | Black |
| Assembly | Flat-pack, bolt-together |
Which rack size should I choose?
6U: Compact installations with a small switch, patch panel or recorder. 9U: Mid-size systems that need extra cable-management or accessory space. 12U: Larger network and surveillance systems with more equipment or room for future expansion.
Frequently asked questions
Will standard 19-inch equipment fit?
Yes, compatible 19-inch rack-mount equipment fits, provided its depth, weight and mounting requirements are within the cabinet limits.
Is the cabinet weatherproof?
No. IP20 is for dry indoor locations and does not provide water protection. Choose a weather-rated NEMA or IP enclosure for outdoor installations.
Does it ship assembled?
No. The cabinet ships flat-packed and uses bolt-together construction for assembly on site.
Can I access equipment from the sides?
Yes. Removable side panels provide convenient access for wiring and service.
How much capacity should I leave unused?
Allow space for airflow, cable management, service access and future expansion. Many installers choose the next larger rack size when the initial equipment plan nearly fills the cabinet.
Download the 6U / 9U / 12U wall-mount cabinet specification and assembly guide (PDF)
