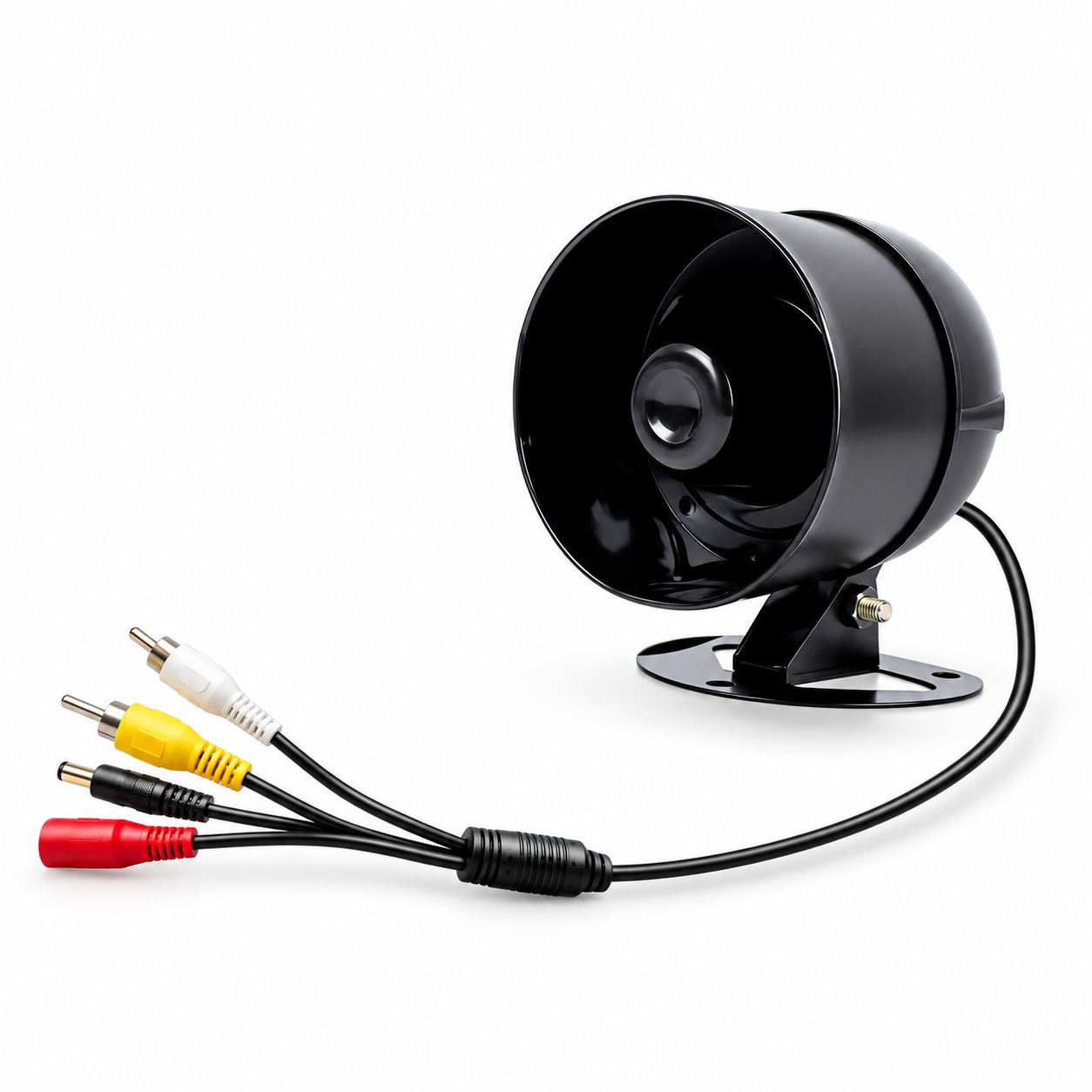

CT-MIP-20W 20W All-Weather Horn Speaker with Microphone
SKU: CT-MIP-20WUltraPoE CT-MIP-20W is a compact 5-inch all-weather mono horn speaker designed for camera two-way audio, intercom and portable PA voice applications. Its 20 W peak output, 8-ohm impedance and focused 450-5,000 Hz response help deliver clear speech indoors or outdoors. Integrated microphone leads make it easier to add talk-and-listen capability to compatible surveillance systems.
Key Features

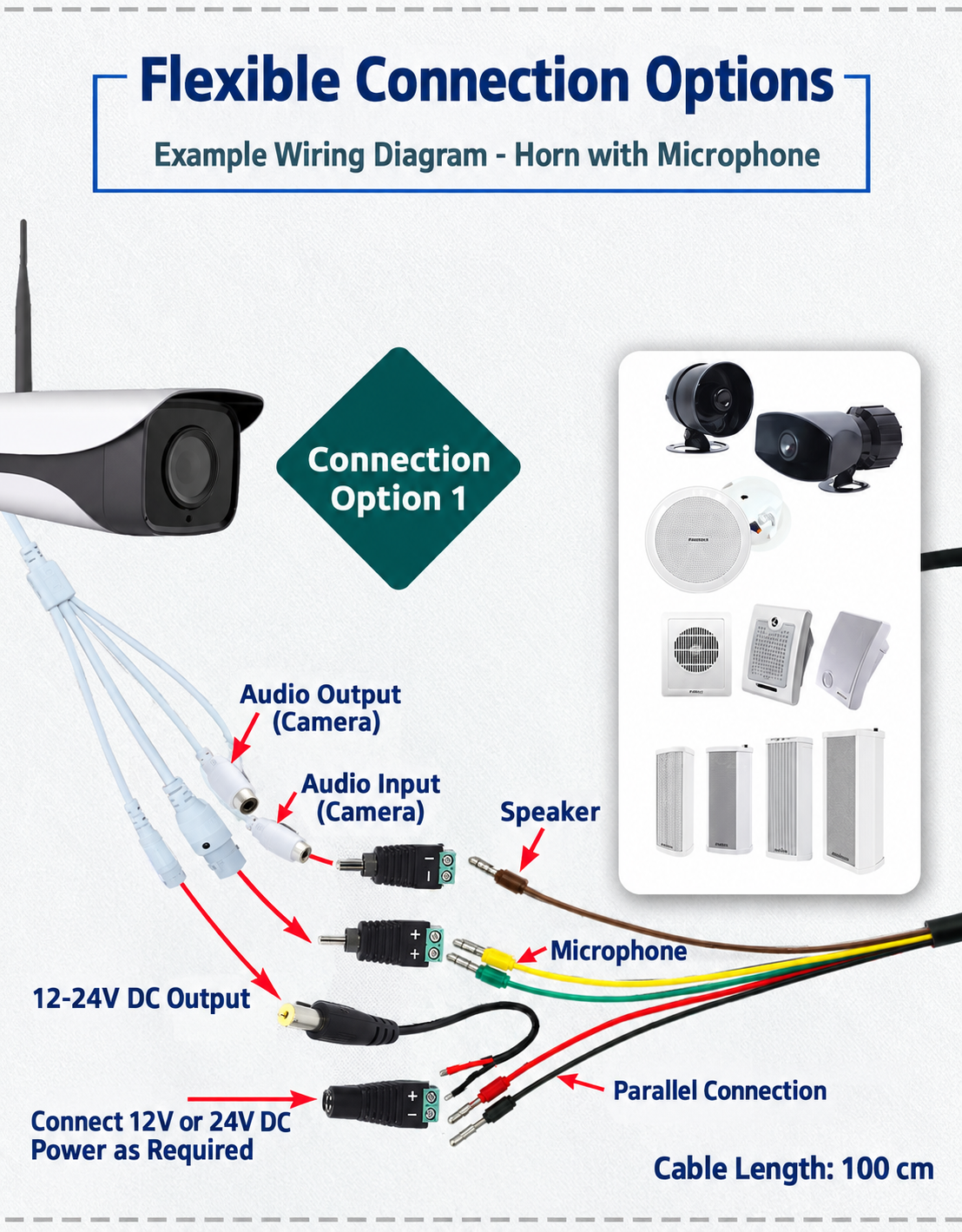

- Camera two-way audio ready: speaker and microphone wiring supports compatible security-camera and intercom systems.
- Clear, focused voice: compact horn design with up to 112 dB manufacturer-rated sound output.
- 20 W peak power: practical output for announcements, alerts and voice communication.
- All-weather ABS construction: suited to indoor and outdoor installations when connections are properly weather-protected.
- 180-degree adjustable bracket: aim the speaker on walls, poles or equipment frames.
- Prewired installation: approximately 10-inch lead with 3.5 mm mono and color-coded connections.
Specifications
| SKU | CT-MIP-20W |
| Speaker type | Mono trumpet horn |
| Horn size | 5 inches |
| Peak power | 20 W |
| Nominal impedance | 8 ohms |
| Frequency response | 450-5,000 Hz |
| Sound output | Up to 112 dB (manufacturer-rated) |
| Bracket | 180-degree swiveling adjustable mount |
| Lead | Approx. 10 inches, prewired |
| Weight | Approx. 1.1 lb |
| Warranty | 1 year |

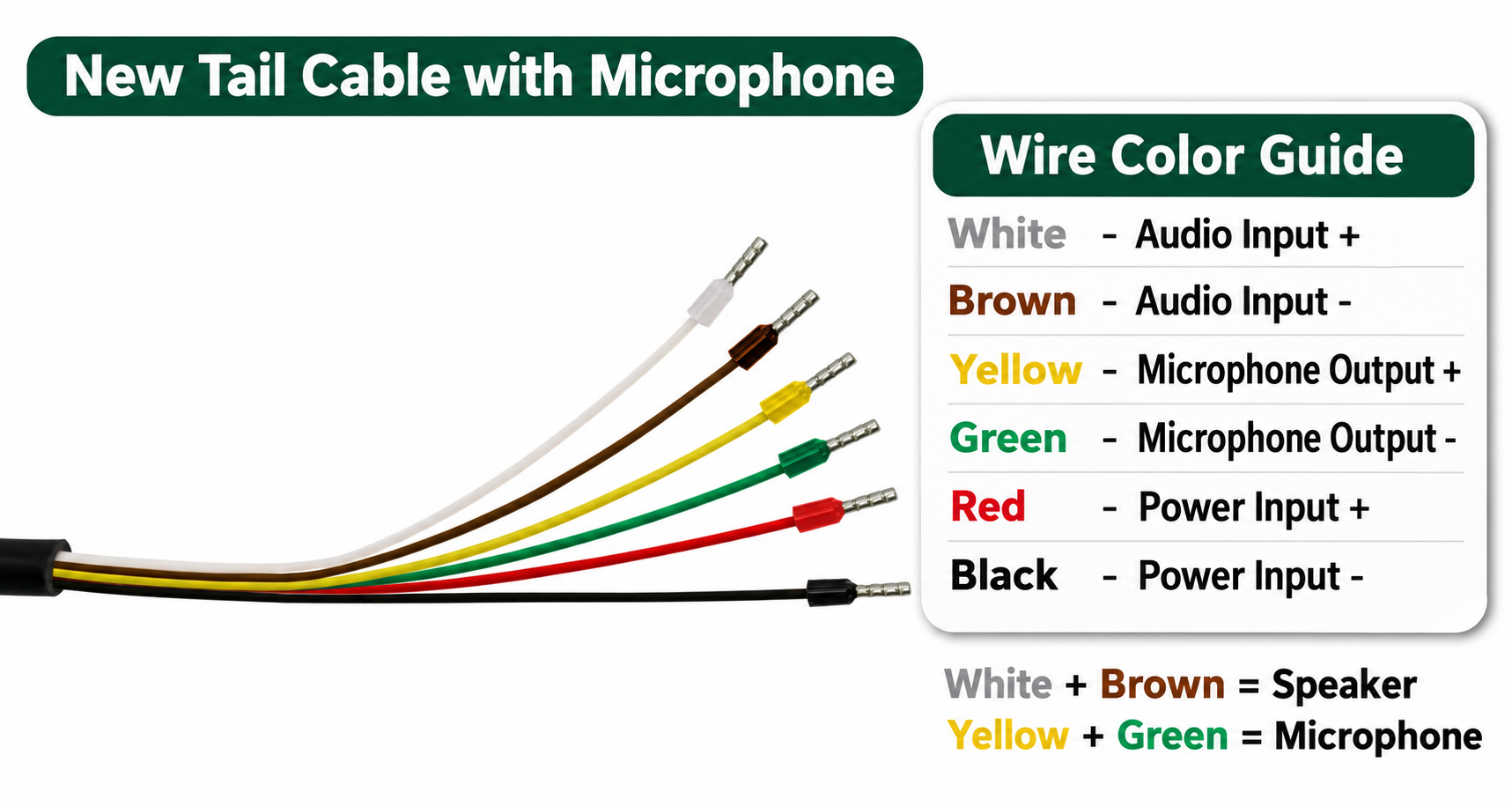

Wire Color Guide
- White: audio input +
- Brown: audio input -
- Yellow: microphone output +
- Green: microphone output -
- Red: power input +
- Black: power input -
Common Questions
Can this speaker add two-way audio to a security camera?
Yes, when used with a compatible camera or intercom that provides the required audio input, audio output and power connections.
Is it suitable for outdoor use?
The horn is intended for all-weather indoor/outdoor installations. Keep all splices and connectors inside a weather-rated enclosure.
What is the speaker impedance?
The nominal impedance is 8 ohms. Confirm amplifier or camera audio compatibility before installation.
Can the horn angle be adjusted?
Yes. The included bracket swivels through approximately 180 degrees for easier aiming.
What is included?
The horn speaker includes its adjustable mounting bracket and prewired connection lead.
