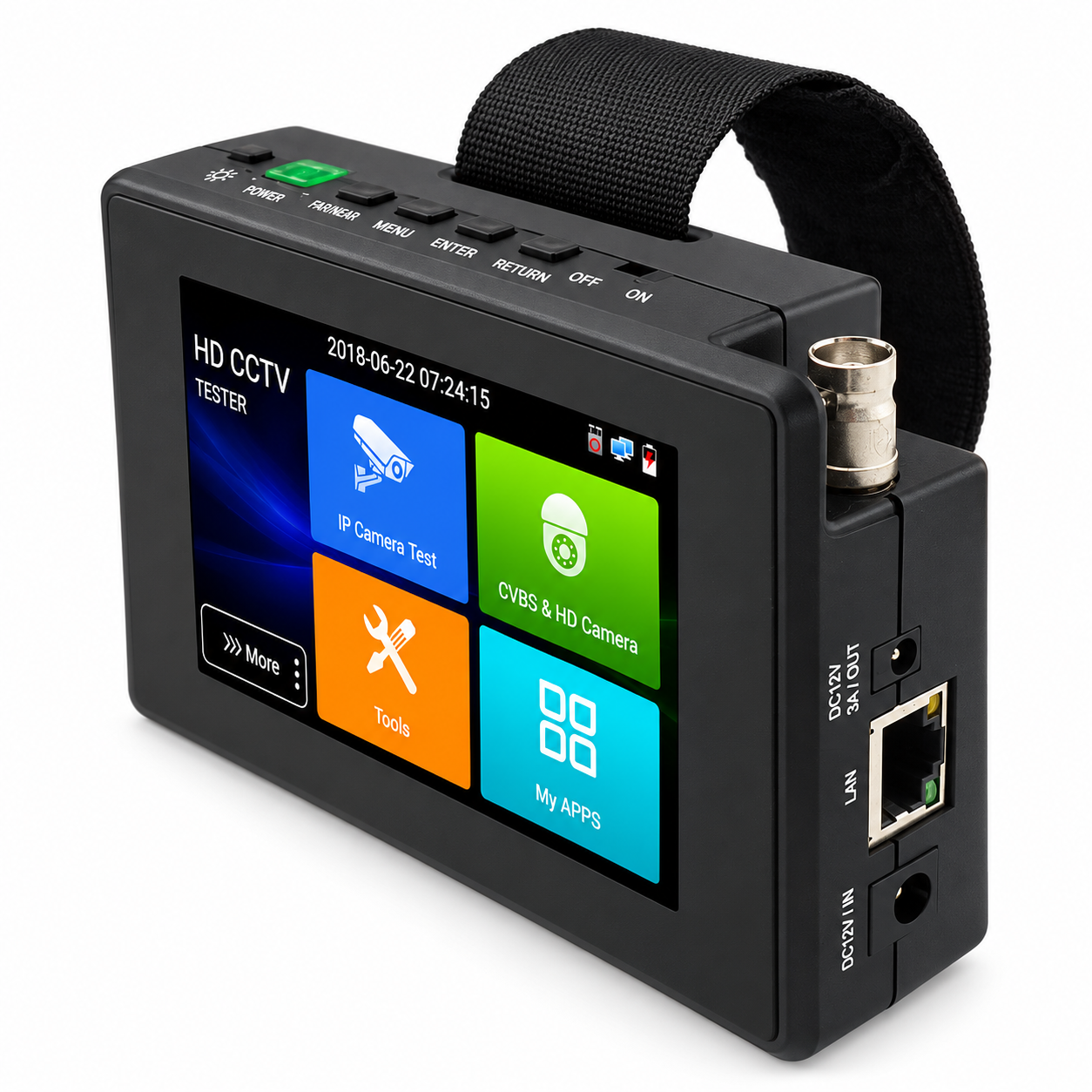

UltraPoE CT-IPTV-V4 4-Inch 4K/8MP 5-in-1 Wrist CCTV Tester

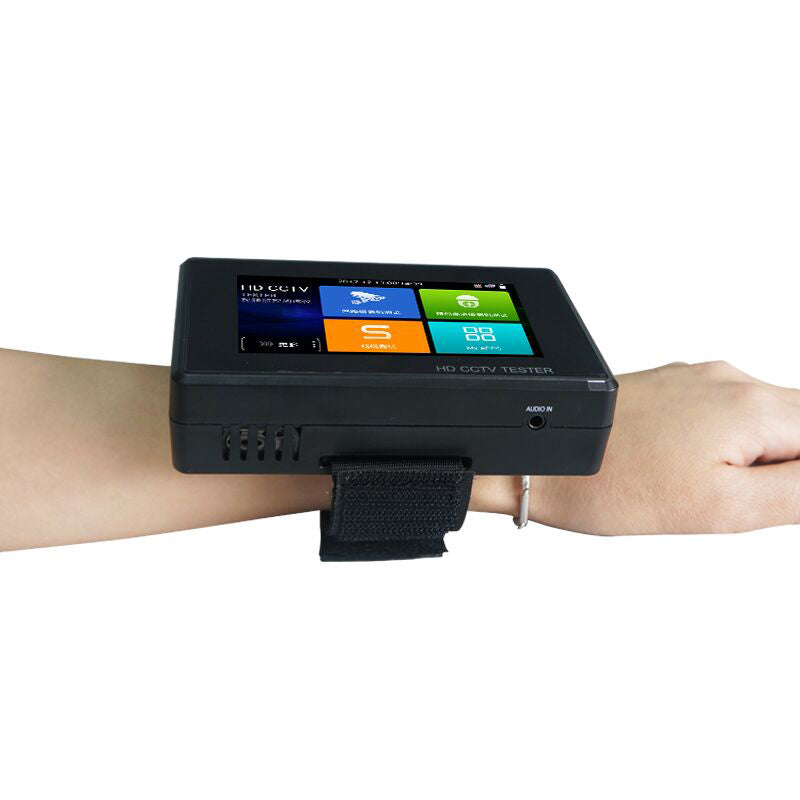

UltraPoE CT-IPTV-V4 is a compact 5-in-1 wrist-mount CCTV camera tester for professional installation and maintenance of IP, CVBS, TVI, CVI, and AHD surveillance systems. Its 4-inch IPS touchscreen, integrated network diagnostics, camera power outputs, and wearable strap help field technicians configure cameras and troubleshoot cabling from one portable tool.

Key Camera Test Functions

• IP cameras: H.265/H.264 decoding with up to 4K IP video display.
• HD coax cameras: Compatible TVI, CVI, and AHD testing up to 8MP.
• Analog video: CVBS input with NTSC/PAL auto adaptation.
• ONVIF tools: IP discovery, rapid video, ONVIF access, RTSP playback, and test-report functions.
• PTZ control: Compatible ONVIF and analog PTZ control, including common Pelco-D/P protocols.

Network & Installation Tools

• 10/100/1000 Mbps Gigabit Ethernet interface
• RJ45 TDR cable testing and cable-quality diagnostics
• Ping, IP scan, link monitoring, and port flashing
• Built-in Wi-Fi for compatible wireless-camera viewing and hotspot use
• 48V PoE output up to 24W for temporary camera power
• 12V DC output up to 3A for compatible equipment

Technical Specifications

• Brand: UltraPoE
• Model / SKU: CT-IPTV-V4
• Display: 4-inch IPS touchscreen, 800 × 480
• Video formats: IP, CVBS, TVI, CVI, and AHD
• IP decoding: H.265 / H.264
• Network: 10/100/1000 Mbps RJ45
• Video input: BNC
• Battery: Built-in 7.4V, 2400mAh lithium-polymer
• Charging time: Approximately 4–5 hours
• Typical operation: Up to 8 hours, depending on use
• Dimensions: Approximately 126 × 83 × 33 mm
• Weight: Approximately 0.32 kg

What’s Included

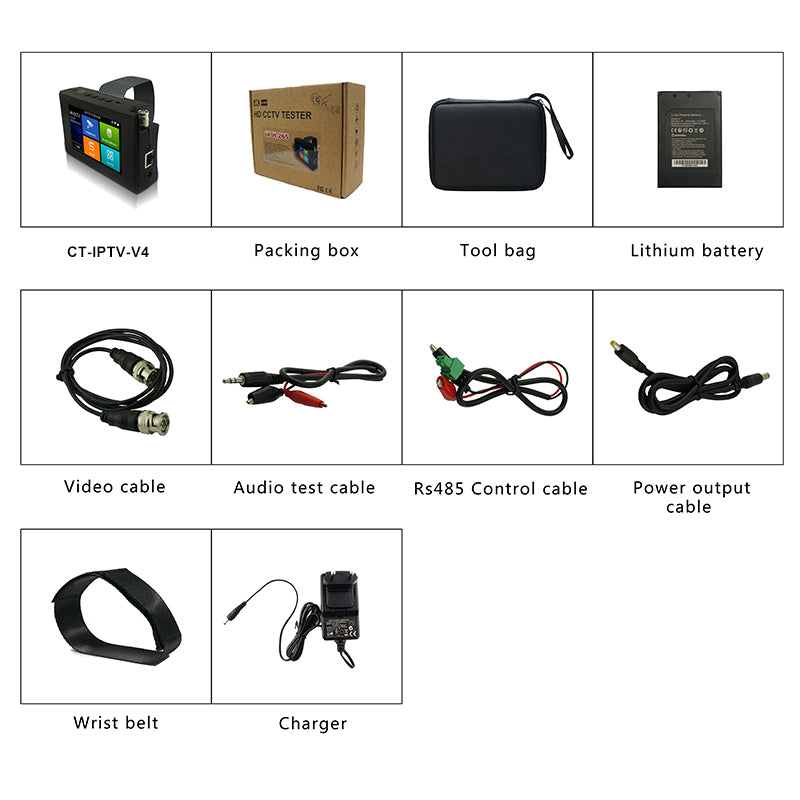

CT-IPTV-V4 tester, wrist strap, lithium battery, tool bag, video cable, audio test cable, RS485 control cable, power output cable, and charger.

Frequently Asked Questions

Which cameras can the CT-IPTV-V4 test?

It supports compatible IP, CVBS, TVI, CVI, and AHD cameras, including up to 4K IP video and up to 8MP HD coax video.

Can it power a camera during installation?

Yes. It provides 48V PoE output up to 24W and 12V DC output up to 3A for compatible devices.

Does it support ONVIF cameras?

Yes. ONVIF discovery and viewing functions are included for compatible cameras. Camera credentials may be required.

Can it test network cabling?

Yes. It includes RJ45 TDR plus Ping, IP scanning, link monitoring, and port-flashing utilities.

Is it suitable for field technicians?

Yes. Its wrist-mount design, built-in battery, integrated display, and combined camera/network tools are designed for mobile CCTV installation and service work.
