UltraPoE PS-DD1000 8-28V to 12V DC-DC Converter and Voltage Booster, 1A
UltraPoE PS-DD1000 regulated 12V DC power converter

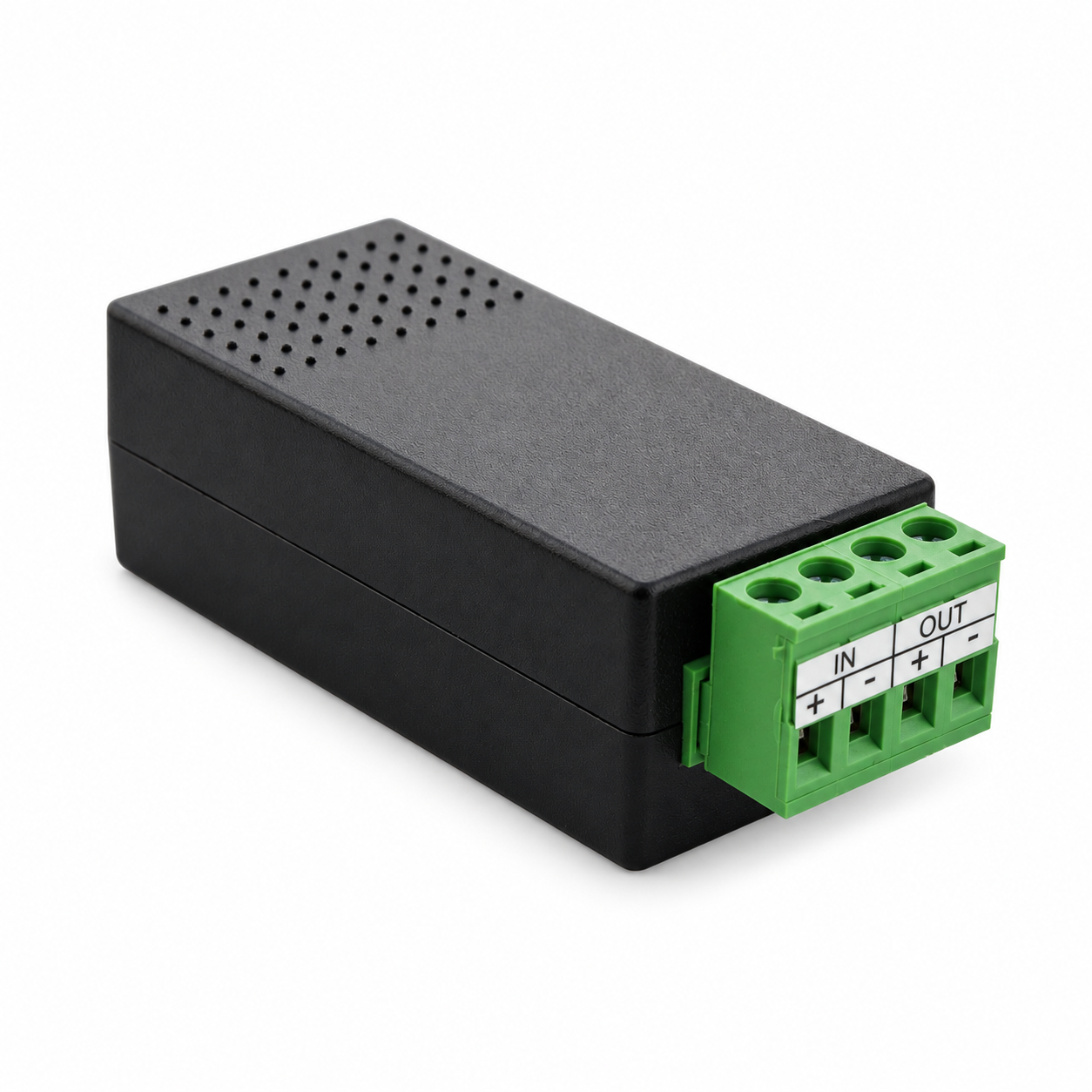

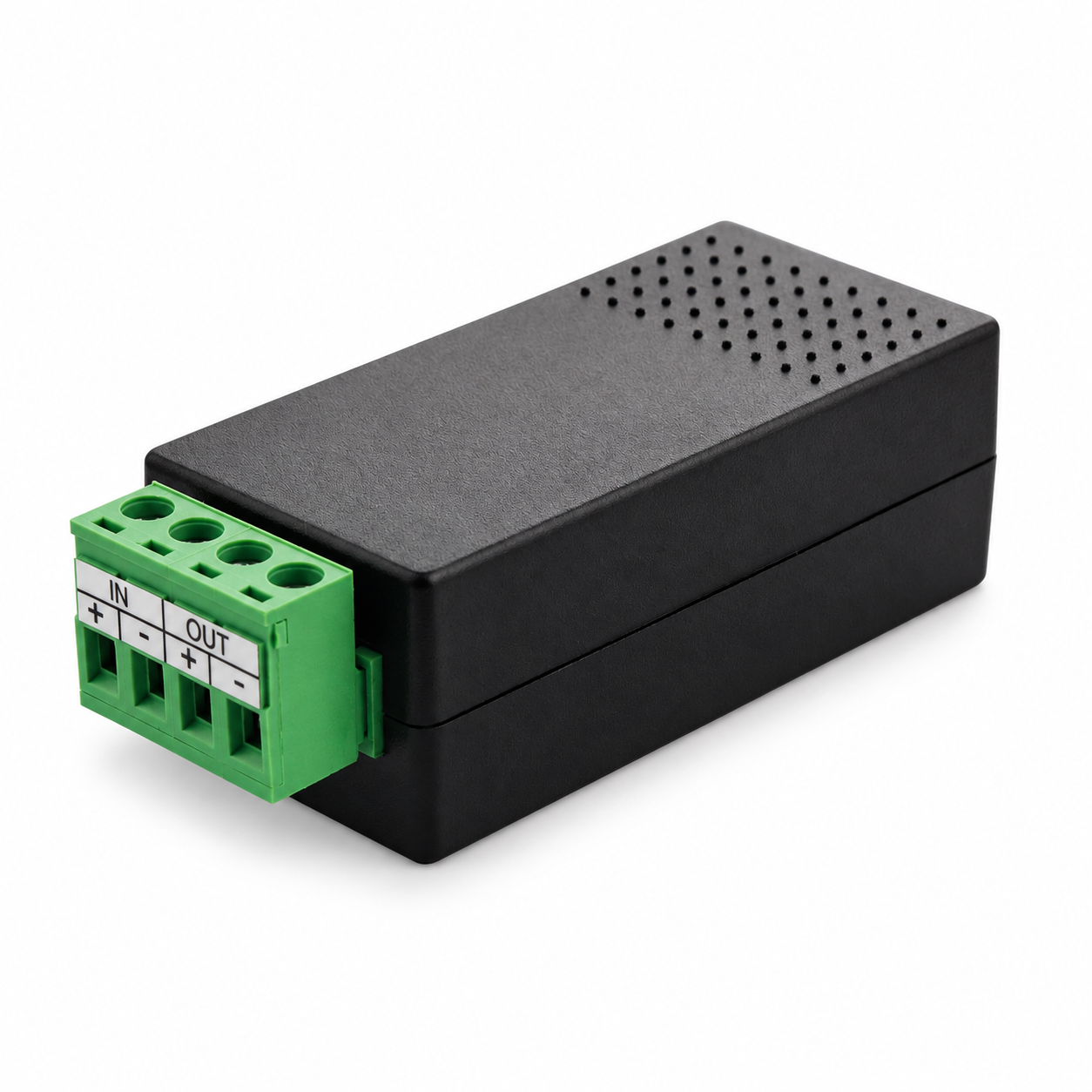

The UltraPoE PS-DD1000 is a compact DC-DC converter designed to accept an 8-28V DC input and provide a regulated 12V DC output. Its small black enclosure and clearly marked green IN/OUT screw terminal make it suitable for compatible CCTV, infrared camera, and long-distance low-voltage power installations.
Key specifications
- Input: 8-28V DC
- Output: 12V DC ±2%
- Nominal output current: 1.0A
- Maximum listed total output: 1.5A
- Output protection trip: 1.0A
- Short-circuit trip time: 0.2 seconds
- Automatic reset: 1 second

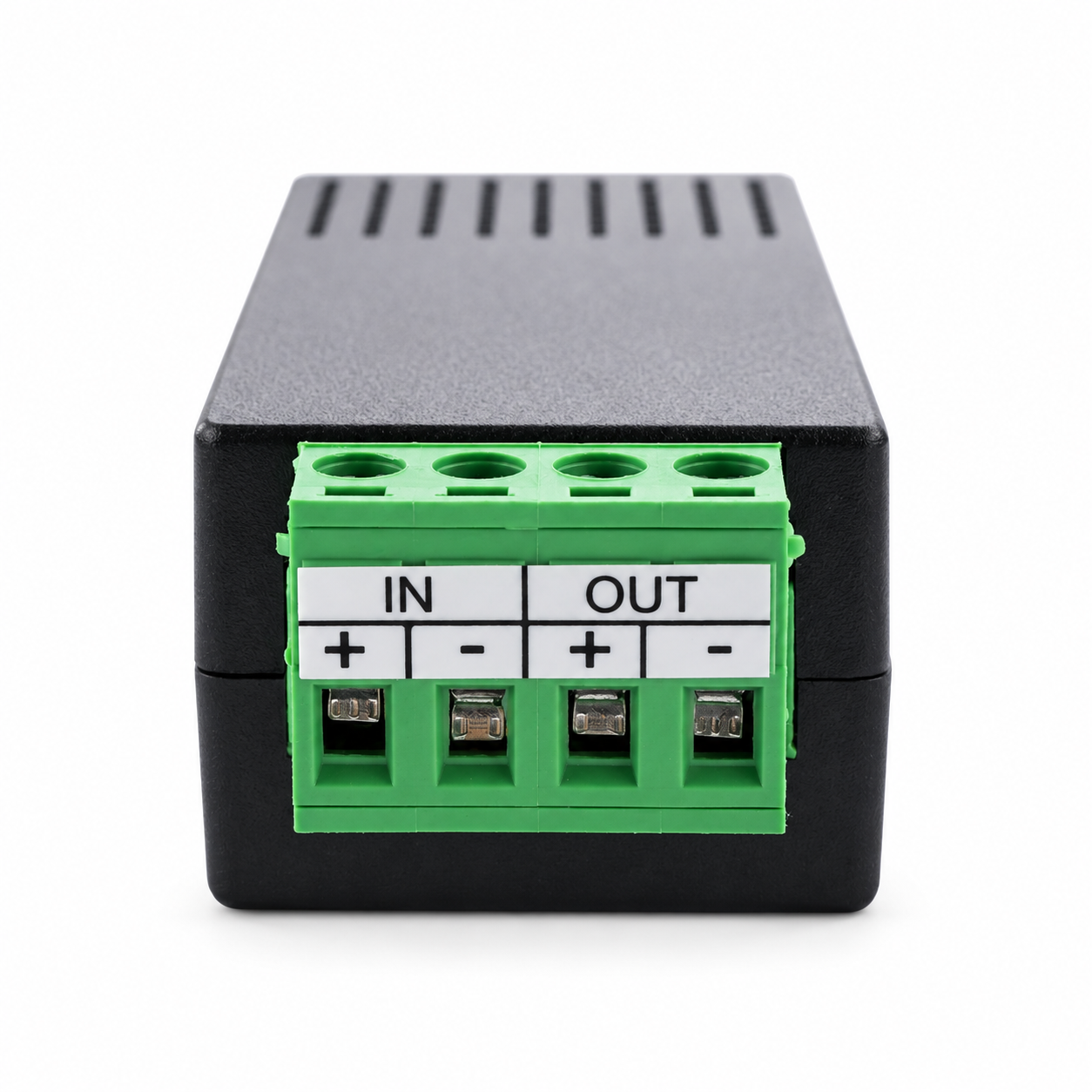

- Connections: green four-position screw terminal marked IN +/− and OUT +/−
- Dimensions: 22 × 75 × 30mm
- Weight: 0.1kg
- Housing: black plastic
- Operating conditions: -10 to +45°C, 30-80% relative humidity
- Storage temperature: -30 to +70°C
Protection and installation
Built-in surge and short-circuit protection help protect compatible connected equipment. Verify input voltage, load current, and terminal polarity before installation. The technical specification table identifies the input as DC.
Common applications
- Compatible infrared and CCTV camera power
- Low-voltage power regulation over longer cable runs
- Compact 12V DC equipment installations
Frequently asked questions
What input voltage does the PS-DD1000 accept?
The technical specification lists an 8-28V DC input.
What output does it provide?
It provides a regulated 12V DC output with a listed tolerance of ±2%.
How much current can it supply?
The nominal output current is 1.0A. The specification lists 1.5A as the maximum total output and a 1.0A output protection trip value, so the connected load should be selected accordingly.
How is it connected?
A green four-position screw terminal provides clearly marked IN +/− and OUT +/− connections.
Does it accept AC input?
The product's technical table specifies 8-28V DC input. Use only within the stated DC input range.
