UltraPoE PS-DC30A18E 18-Channel 12V CCTV Power Supply Box, 30A 360W
UltraPoE PS-DC30A18E is an 18-channel 12V DC CCTV power supply box designed to centralize power distribution for security cameras, PTZ cameras, IR illuminators, access-control equipment, and other compatible 12V devices.
Key features
- 18 independent 12V DC outputs for centralized multi-device power distribution
- 30A continuous shared output with 360W total power capacity
- Up to 2A per channel, subject to the 30A total shared limit
- Independent 2.3A resettable PTC fuse and LED status indicator for each output
- Regulated, filtered output with surge, short-circuit, over-current, and high-voltage protection
- Fanless power design for quieter operation

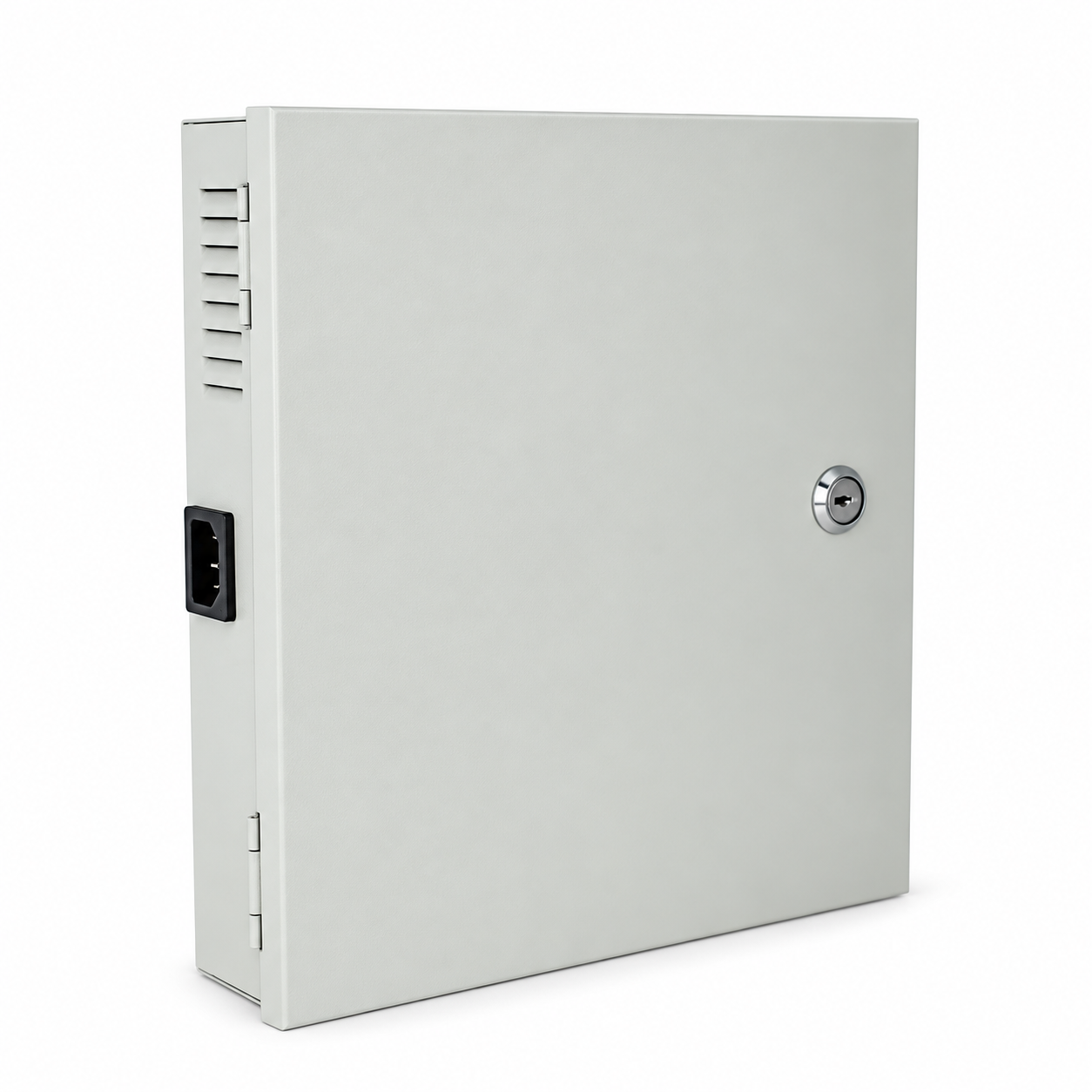

- Heavy-duty lockable metal enclosure with cable-entry punch-outs
- 120/240V AC switching power input
Applications
Suitable for compatible 12V CCTV cameras, PTZ cameras, IR illuminators, video processors, access-control devices, and other low-voltage security equipment. This is a centralized DC power distribution box and is not a PoE network switch.
Technical summary
- Model: PS-DC30A18E
- Brand: UltraPoE
- Output voltage: 12V DC
- Total outputs: 18
- Total continuous current: 30A shared
- Total power: 360W
- Maximum per-channel output: 2A
- Fuse type: resettable PTC
- Fuse rating: 2.3A
Frequently asked questions
Does every channel provide 30A?
No. The 30A rating is the shared total output across all 18 channels. Each channel supports up to 2A while the combined load must remain within 30A and 360W.
What happens if one output develops a short circuit?
Each channel has an independent resettable PTC fuse. A fault on one output is designed to isolate that channel so the other outputs can continue operating.
Is this a PoE switch?
No. The PS-DC30A18E distributes 12V DC power and does not carry Ethernet data.
