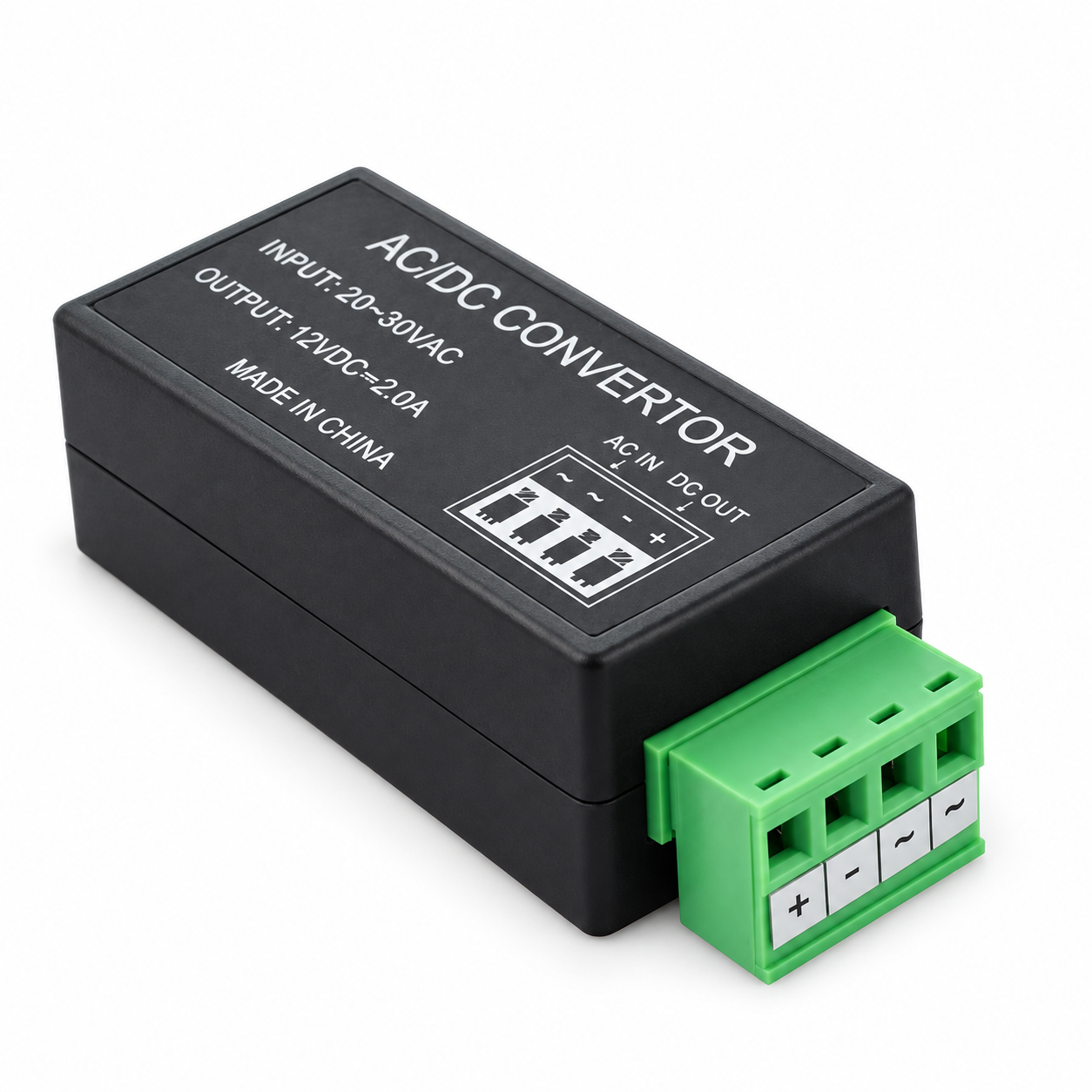

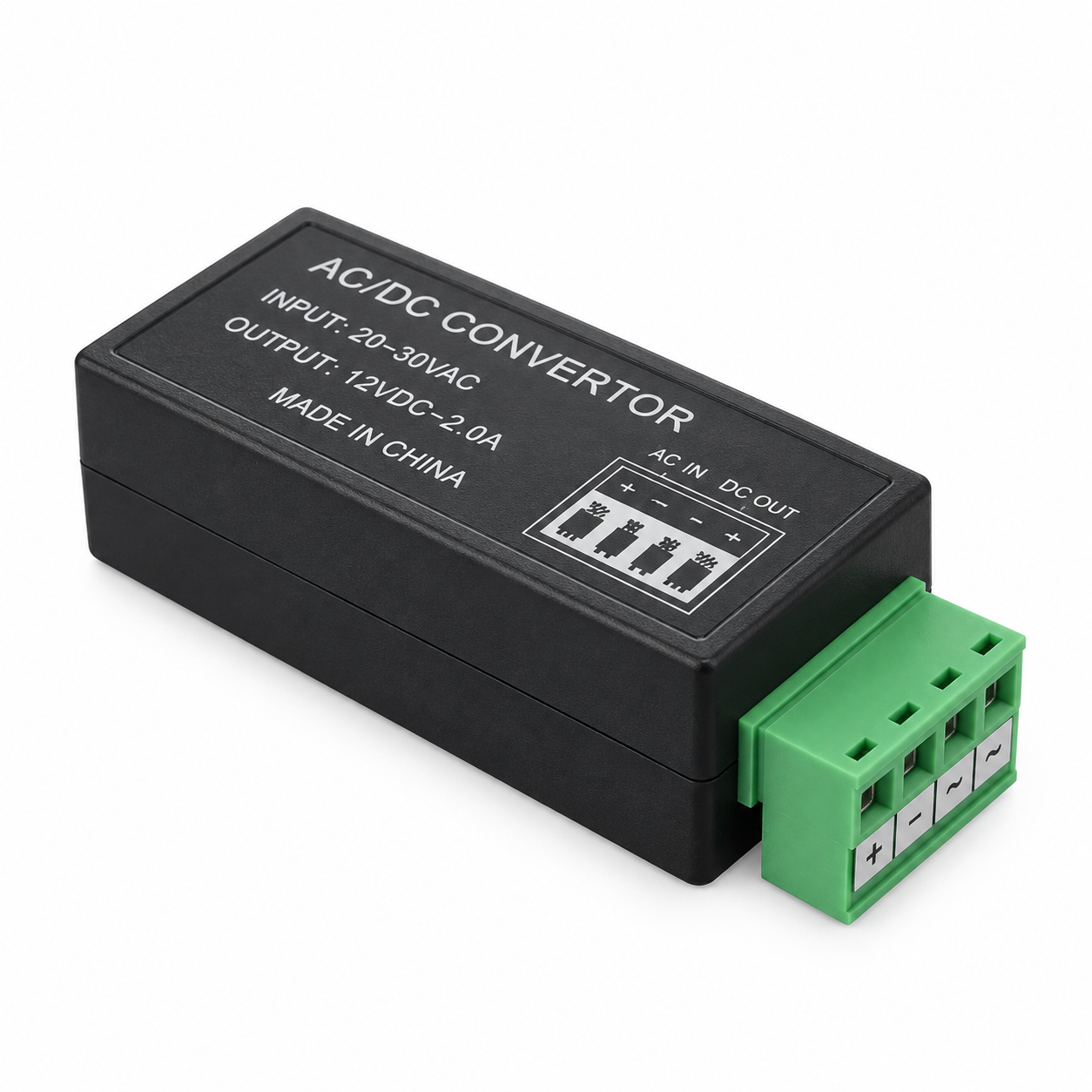

PS-AD2500M black converter with green four-position AC input DC output terminal

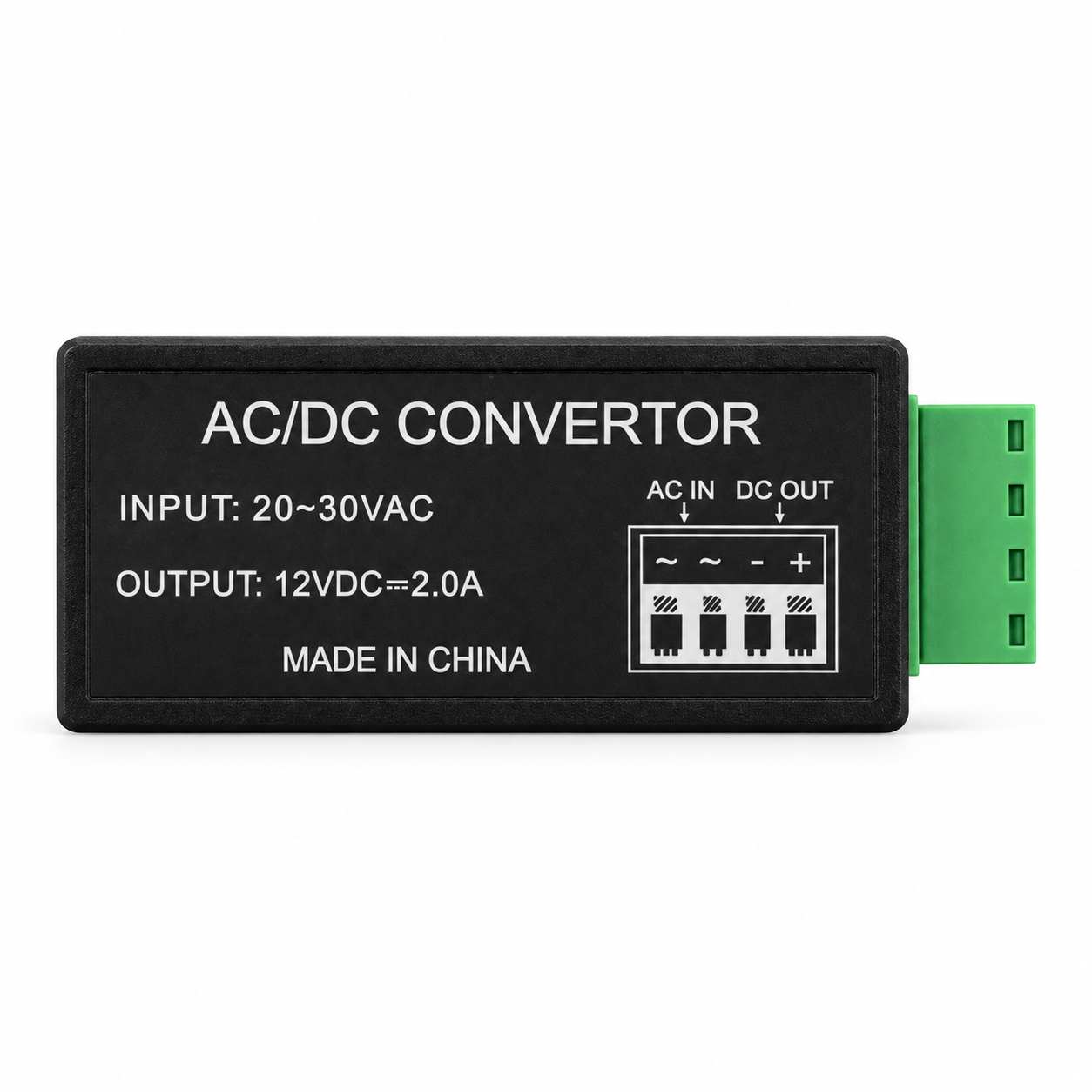

PS-AD2500M product photo label showing 20 to 30VAC input and 12VDC 2.0A output

UltraPoE PS-AD2500M Low-Voltage AC to 12VDC CCTV Power Converter

  • Save $10
SKU: PS-AD2500M




UltraPoE PS-AD2500M Low-Voltage AC to 12VDC Power Converter


The PS-AD2500M is a compact single-channel converter designed to supply 12V DC equipment from a compatible low-voltage AC source. Its four-position terminal block is marked + − ~ ~ for straightforward DC output and AC input wiring, making it suitable for CCTV cameras and other compatible 12VDC devices.


Key Features




  • Converts compatible low-voltage AC input to regulated 12V DC output
    •

  • Compact inline format for CCTV and low-voltage installations
    •

  • Four-position screw terminal: DC + / − and AC ~ / ~

    •

  • Short-circuit, overload, and surge protection with automatic reset
    •

  • Approximate dimensions: 22 × 75 × 30 mm; weight: 0.1 kg
    •

  • Operating temperature: -10°C to 45°C; storage temperature: -30°C to 70°C
    •

  • Operating humidity: 30%–80% RH
    •



Important Electrical Rating Notice


The photographed production unit is labeled INPUT 20–30VAC and OUTPUT 12VDC 2.0A. Legacy product documentation references a wider 20–32VAC or 24–32VAC input range and 2.5A output. Because these ratings conflict, confirm the label on the supplied unit before installation and size the connected load to the marked rating. Do not assume 2.5A output unless confirmed for your batch.


Typical Applications




  • CCTV camera power conversion
    •

  • Low-voltage security and access-control equipment
    •

  • Compatible 12VDC networking or electronic devices
    •



FAQ


What does the PS-AD2500M do?
It converts a compatible low-voltage AC supply to 12V DC for one connected device.


What is the terminal order?
The terminal is marked +, −, ~, ~. Connect the 12VDC load to + and −, and the low-voltage AC source to the two ~ terminals.


Which output-current rating should I use?
Use the rating printed on the supplied converter. The photographed unit states 12VDC 2.0A; legacy documentation stating 2.5A should not override the physical label.


Can this connect directly to mains voltage?
No. This is a low-voltage AC-to-DC converter and must not be connected directly to mains power.
