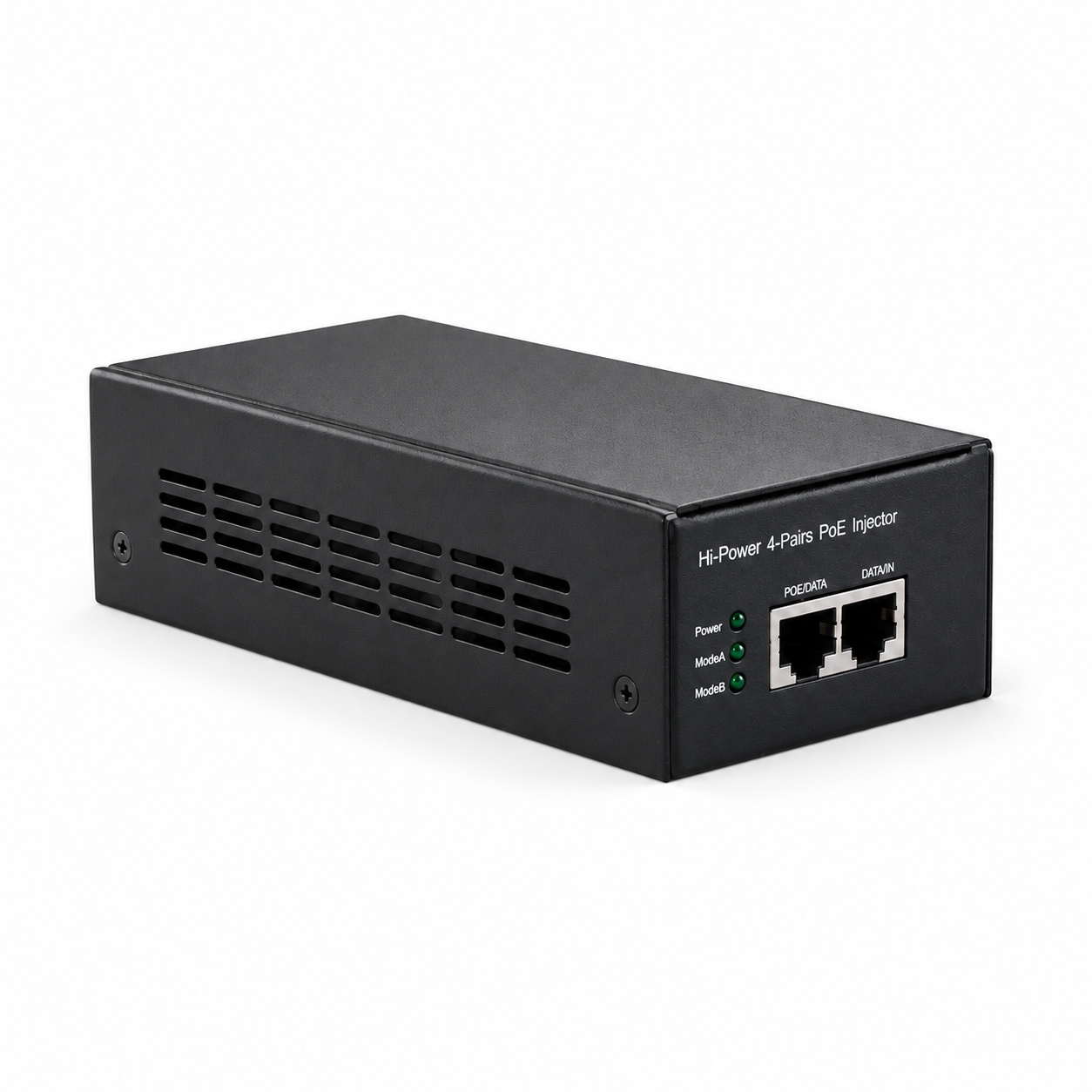

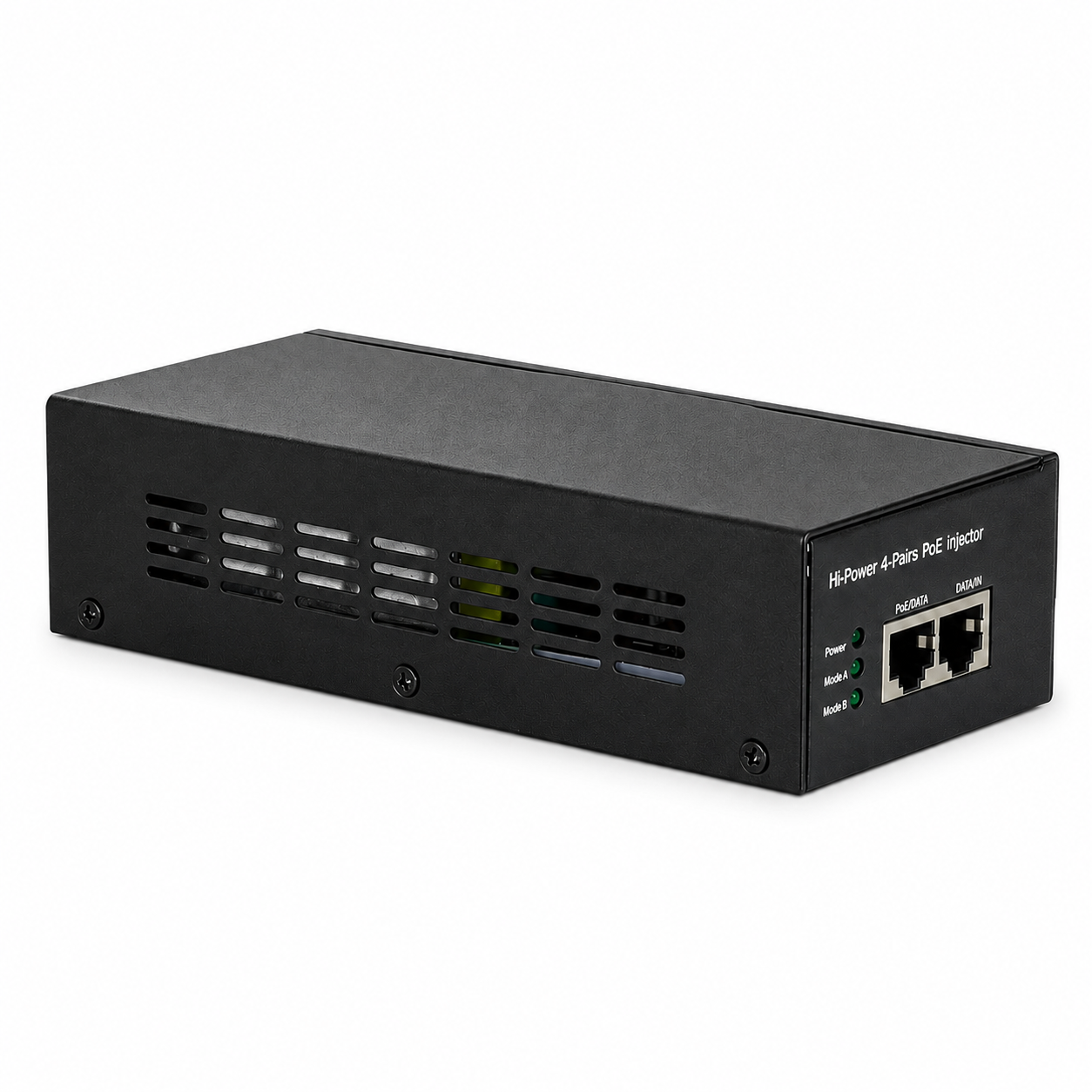

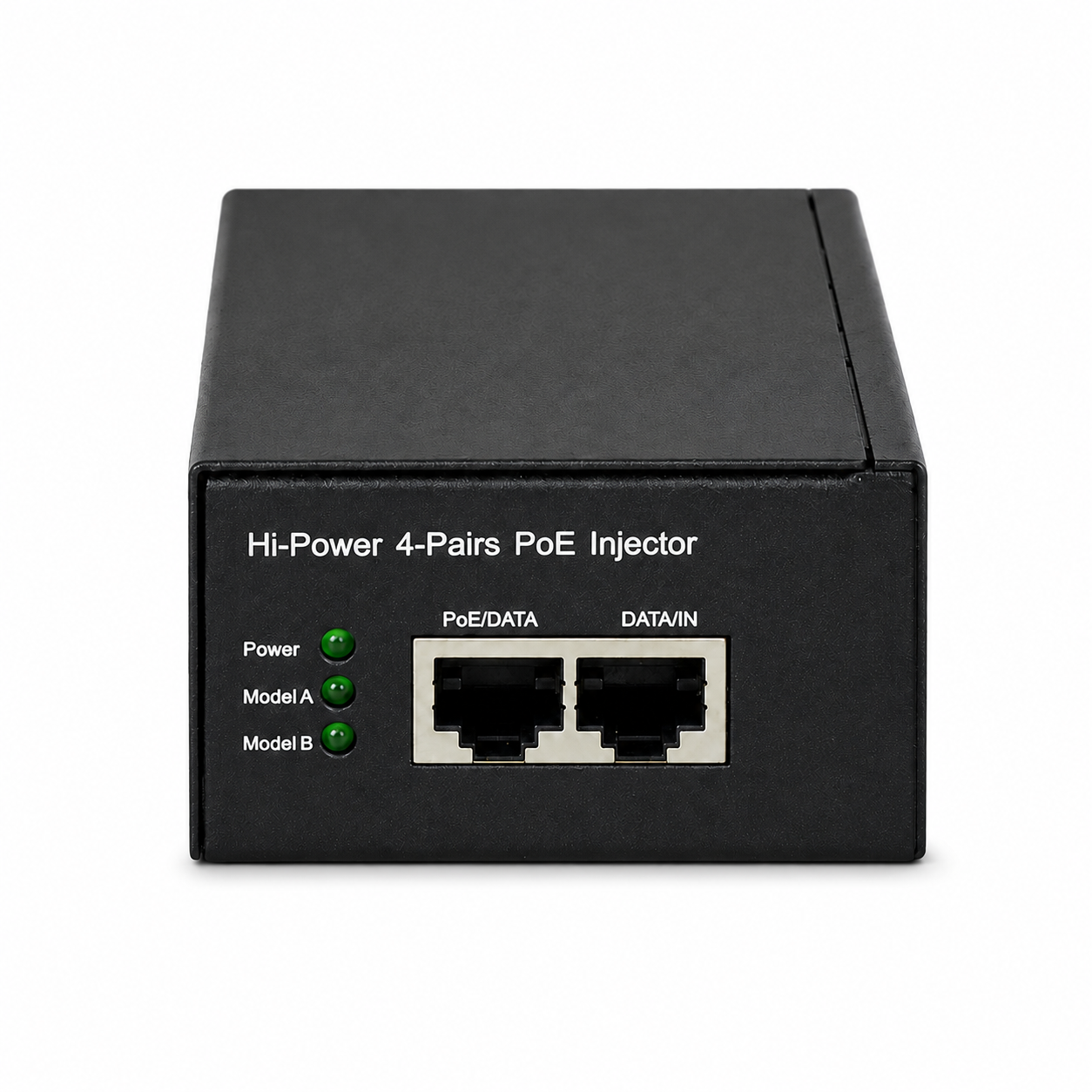

Gigabit 60W Power-over-Ethernet Injector

  • $89.99
    Unit price per
  • Save $10


Gigabit 60W Power-over-Ethernet Injector (POE-M921)

Features

  • Full IEEE 802.3af IEEE 802.3at,IEEE802.3at 4Pairs Compliant
  • Up to 60W of Power on 4-pairs
  • Auto-detect of POE IEEE 802.3af IEEE 802.3at,IEEE802.3at 4Pairs equipment
  • Supports 10/100/1000Base-T applications
  • LED indicators power input indication
  • Distance up to 100 meters
  • Internal AC/DC converter – no need for external power brick
  • Easy plug-and-play installation
  • Surge protection
  • Product Specification

Specifications

Item

Description

No. of channels

1

Pass Through Data Rates

10/100/1000Mbps

Power over Ethernet Output

Pin Assignment and Polarity:

1/2 (-), 3/6 (+),4/5 (+), 7/8 (-),

Output Power Voltage: 50Vdc

User Port Power: 60W

Input Power Requirements

AC Input Voltage: 100 to 240 Vac

AC Input Current: 1A 100-240 Vac

AC Frequency: 50 to 60 Hz

Dimensions

145mm x 60mm x 40mm

Indicators

System Indicator: AC Power

User Indicator: Channel Power

Connectors

Shielded RJ-45, EIA 568A and 568B

Environmental Conditions

Operating Ambient Temperature:0 to 45?

Operating Humidity:

Maximum 80%, Non-condensing

Storage Temperature:-20 to 70?

Storage Humidity:

Maximum 80%, Non-condensing

Regulatory Compliance

IEEE 802.3af (15.4W)

IEEE 802.3at (30W)

IEEE802.3at 4Pairs(60W)
