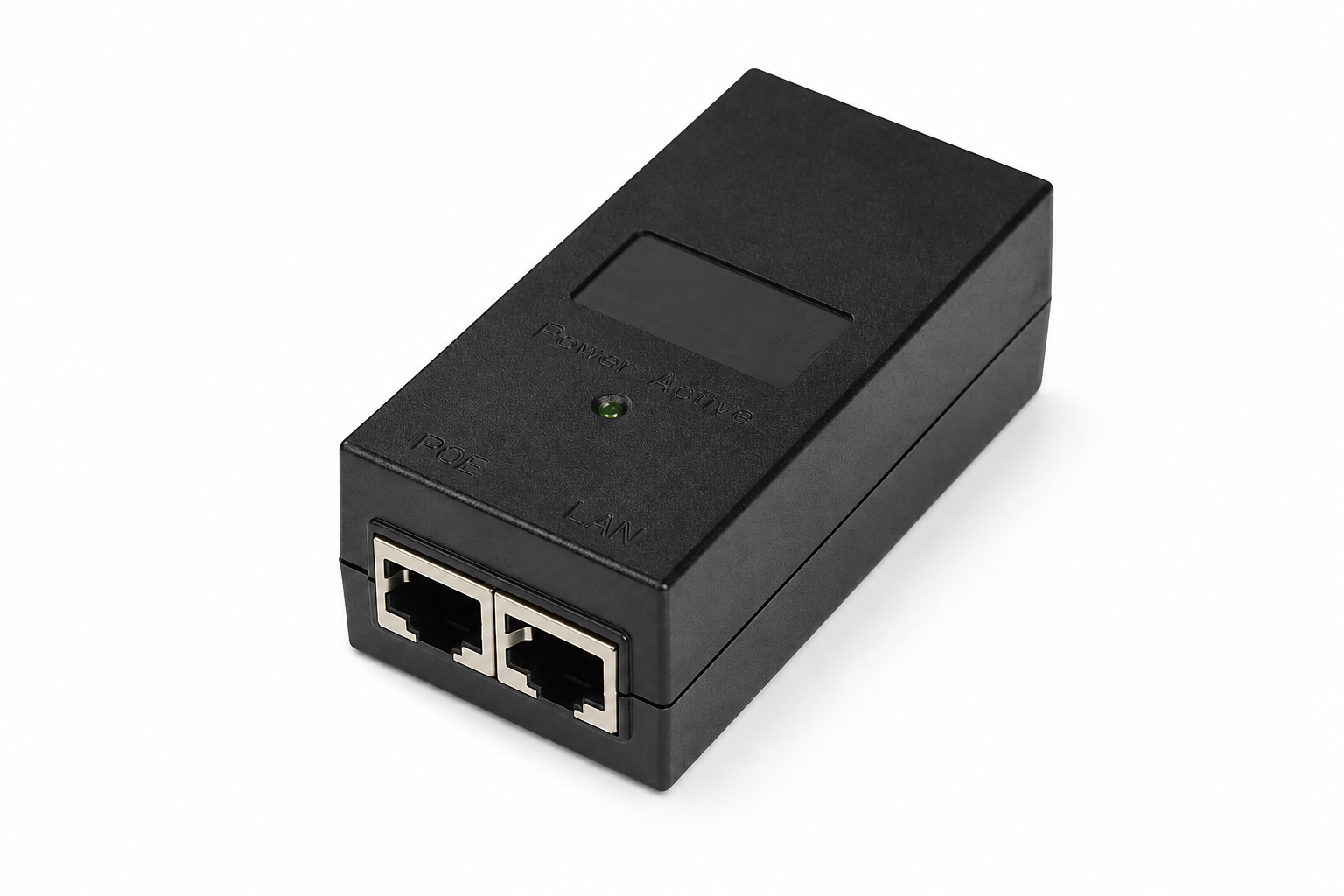

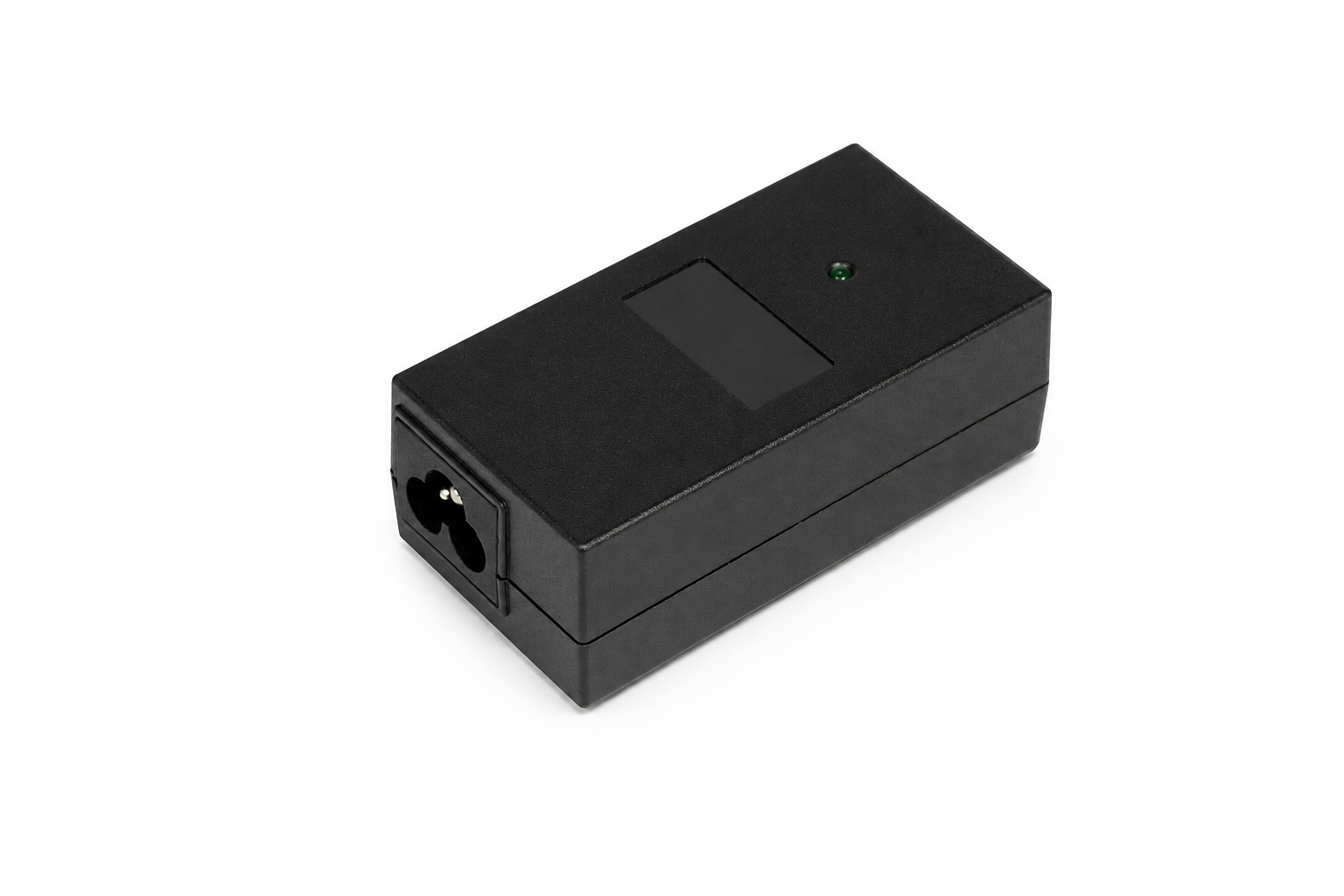

Mini Gigabit 15W POE INJECTOR (POE-M901-S)
Gigabit 1 Channel PoE injector, 15W, Compact Size
Description
The PoE-M901-S is a single port Mid-spans offer a compact and cost effective, fully IEEE 802.3af compliant solution for remote powering of wireless LAN (WAN) access points, IP Security cameras, VoIP telephone and other low port density installations.
Features:
|
• Full IEEE 802.3af Compliant |
|
• Up to 15W of Power on 2-pairs |
|
• Auto-detect of POE IEEE 802.3at equipment |
|
• Supports 10/100/1000M Base-T applications |
|
• LED indicators power input indication |
|
• Distance up to 100 meters |
|
• Internal AC/DC converter – no need for external power brick |
|
• Easy plug-and-play installation |
|
• Surge protection |
|
• EMI standards complies with FCC, CE class B |
|
No. of Ports |
1 |
|
Pass Through Data Rates |
10/100/1000 Mbps |
|
Power over Ethernet Output |
Pin Assignment and Polarity:4/5 (+), 7/8 (-)Output Power Voltage: 55VdcUser Port Power: 20W |
|
Input Power Requirements |
AC Input Voltage: 100 to 240 Vac AC Input Current: 0.2A 100-240 Vac AC Frequency: 50 to 60 Hz |
|
Dimensions |
150mmx65mmx38mm |
|
Weight |
|
|
Indicators |
System Indicator: AC PowerUser Indicator: Channel Power |
|
Connectors |
Shielded RJ-45, EIA 568A and 568B |
|
Environmental Conditions |
Operating Ambient Temperature:-10 to 45?Operating Humidity:Maximum 90%, Non-condensingStorage Temperature:-20 to 70?Storage Humidity:Maximum 95%, Non-condensing |
|
Reliability |
MTBF: 100,000 hrs. @25 |
|
Regulatory Compliance |
IEEE 802.3af (PoE), RoHS Compliant, CE, FCC |
|
Electromagnetic Emission & Immunity |
FCC Part15, Class BEN 55022 Class B (Emissions)EN 55024 (Immunity), VCCI |
|
Surge Protection |
AC port: 6kVRJ45 port: 4kV |
|
Safety Approvals |
UL/cUL Per EN 6095-1GS Mark Per EN 60950-1 |
