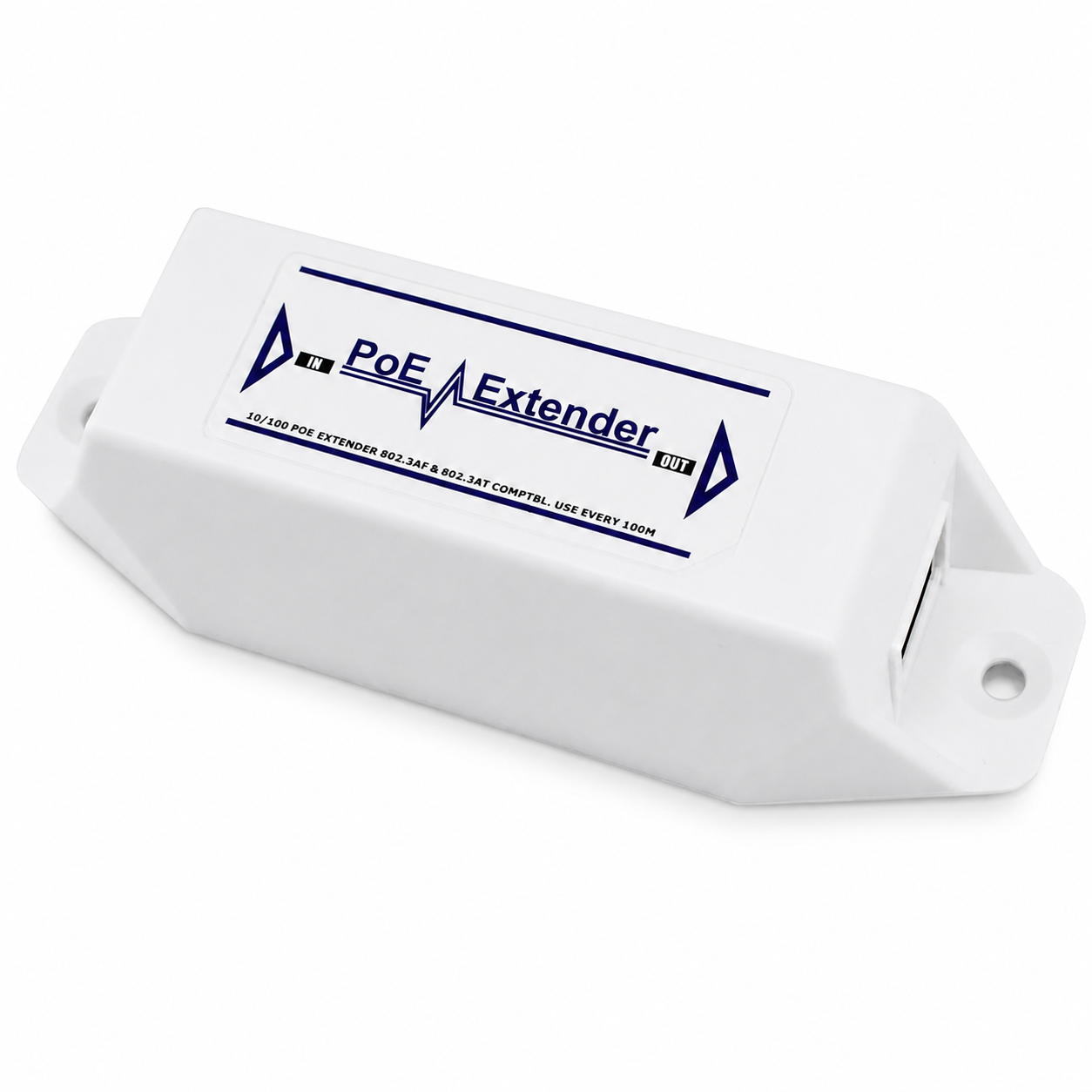

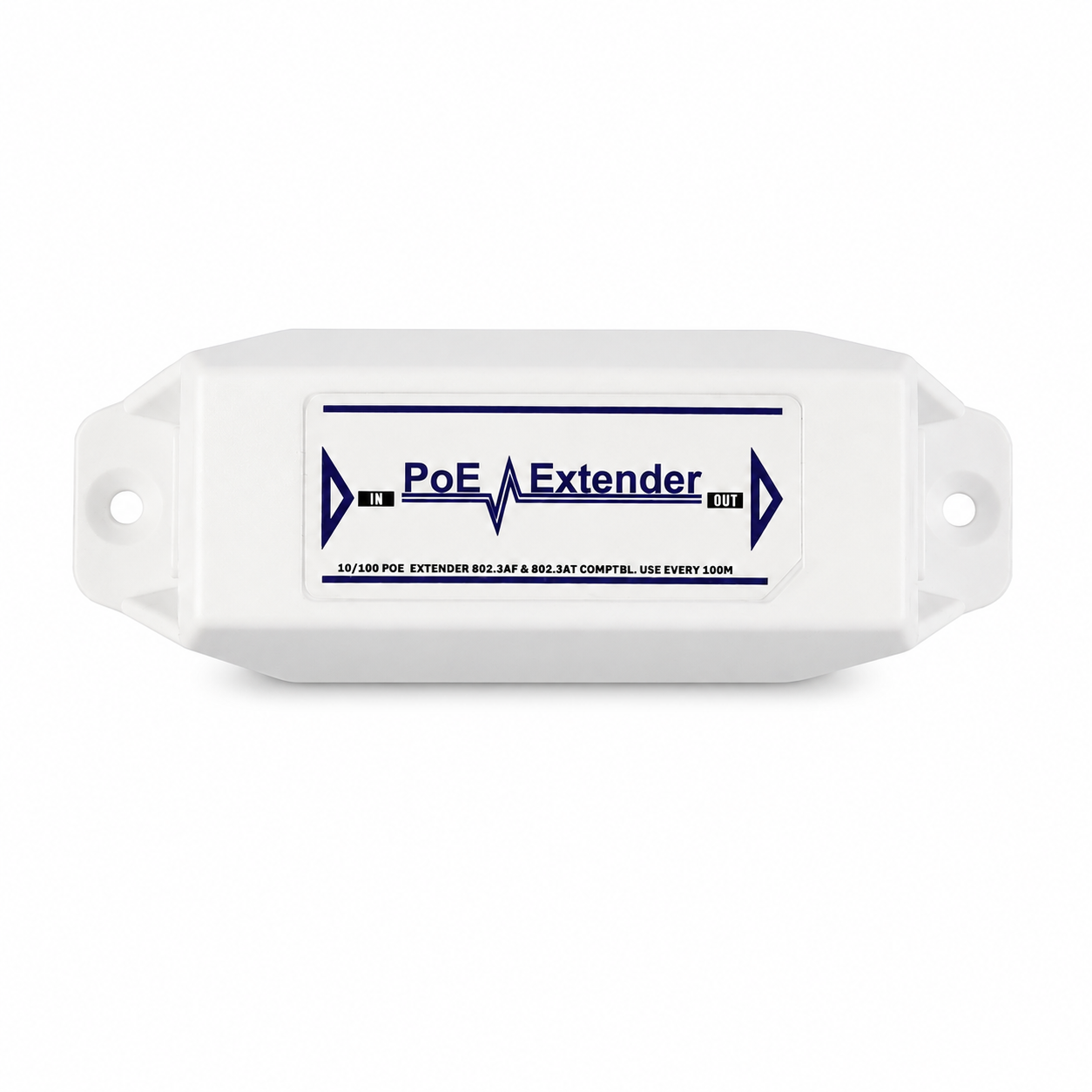

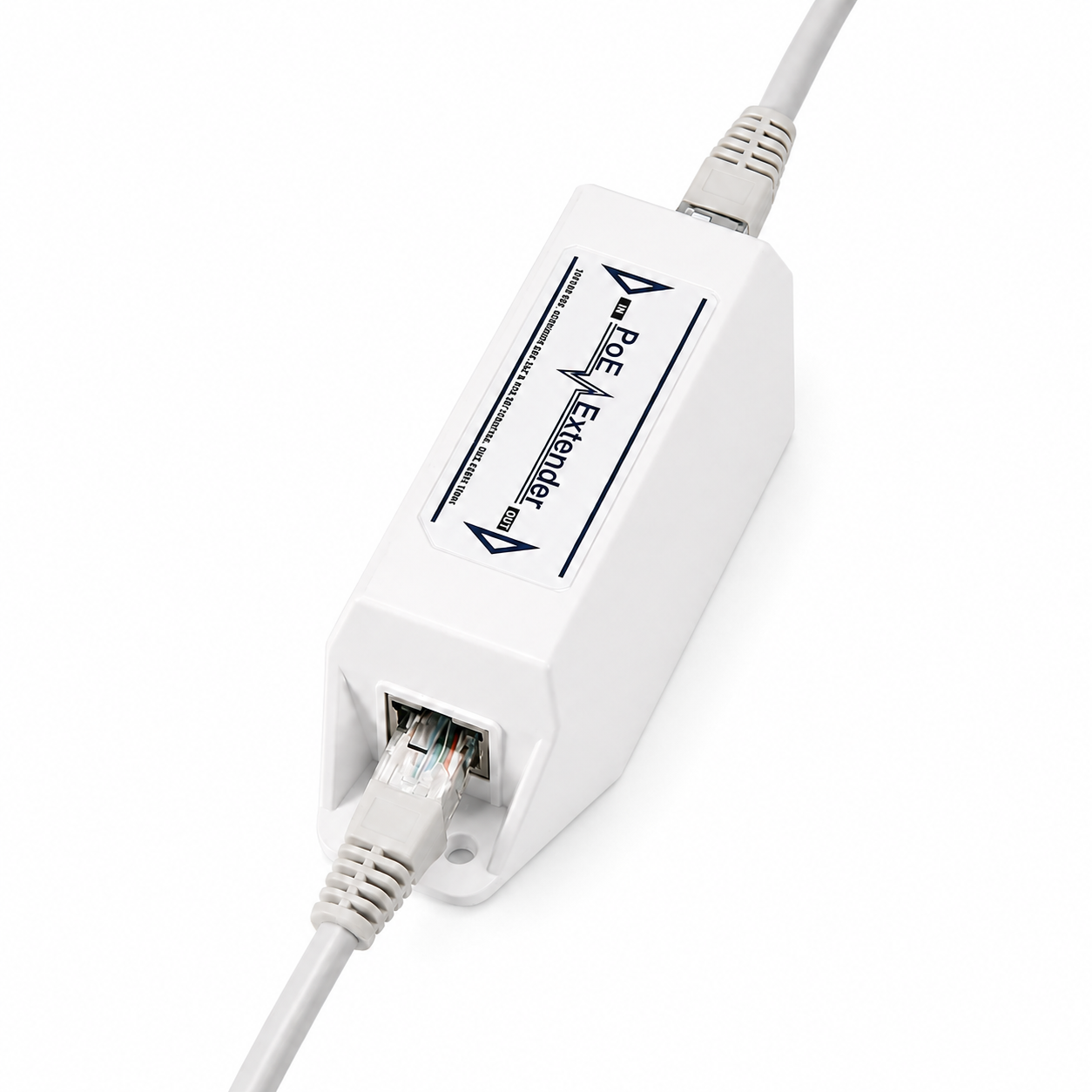

Indoor 10/100M PoE Extender (POE-EX201)
Indoor 10/100M PoE Extender (POE-EX201)
Commerical Grade -20 to 45? Power-Over-Ethernet Extender Gigabit Extender
Technical characteristics
|
Item |
Description |
|
No. of channels |
1 |
|
Pass Through Data Rates |
10/100 Mbps half / full deplex |
|
PoE input |
Pin Assignment and Polarity: Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+) |
|
PoE output |
Pin Assignment and Polarity: 1/2 (-), 3/6 (+) Output Power: up to 22W |
|
Indicators |
Power indicator: PoE enabled Network indicator: Link/Act |
|
Network cables |
Shielded category 5 (or higher) |
|
Case Material |
Metal |
|
Dimensions |
216mm x 58.5mm x 38mm |
|
Weight |
0.6128g |
|
Mounting |
Wall of shelf |
|
Environment |
indoor |
|
Environmental Conditions |
Operating Ambient Temperature: -40 to 45? @90%, Non-condensing Storage Temperature: -40 to 70 @95%, Non-condensing |
|
Regulatory Compliance |
IEEE 802.3af (PoE), IEEE 802.3at (PoE+) RoHS Compliant, CE, FCC |
|
Electromagnetic |
FCC Part15, Class B |
Maximum Distances for Power Sources
Multiple PoE Extenders can be connected every 100 meters to obtain greater distances. The actual figures depend on operating conditions. The range is over 24 AWG or heavier Cat-5e or Cat-6 cable except where specified.
Examples for medium power PoE Devices (that are PoE Class 2, or require under 6 watts)
|
PoE Source |
|||
|
PoE switch (802.3af,Output voltages 50V) |
15W mid-span (802.3af,Output voltages 50V) |
PoE+ switch (802.3at,Output voltages 50V) |
30W mid-span (802.3at,Output voltages 50V) |
|
Maximum Distances |
|||
|
300m |
300m |
400m |
400m |
Examples for full power PoE Devices (that are PoE Class 0 or 3, or require under 12 watts)
|
PoE Source |
|||
|
PoE switch (802.3af,Output voltages 50V) |
15W mid-span (802.3af,Output voltages 50V) |
PoE+ switch (802.3at,Output voltages 50V) |
30W mid-span (802.3at,Output voltages 50V) |
|
Maximum Distances |
|||
|
200m |
200m |
300m |
300m |
Examples for PoE+ Devices (that are PoE Class 4 that under 22 watts, or 802.3at compliant)
|
PoE Source |
|||
|
PoE switch (802.3af,Output voltages 50V) |
15W mid-span (802.3af,Output voltages 50V) |
PoE+ switch (802.3at,Output voltages 50V) |
30W mid-span (802.3at,Output voltages 50V) |
|
Maximum Distances |
|||
|
Not applicable |
Not applicable |
200m |
200m |
Description
PoE extender- a quality product for PoE network point-to-point up to 500m.
Works with PoE standards IEEE802.3af and IEEE802.3at.
- a quality product for PoE network point-to-point up to 500m.
This device serves as a data switch port that is powered by PoE, and transmits it further on another 100m together
with the data. Depending on the amount of power consumption. may use up to 4 extensions in the same chain,
thereby increasing transmission distance up to 500m (1 class 802.3af, see table. "Maximum distance")
Advantages:
- Commercial Grade -20 to 45?
- Mini-size, wall mounting
- Requires no external power supply
- Low power consumption, only 1.2W
- Auto-sensing PoE devices
- Compatibility with 802.3at and 802.3af
