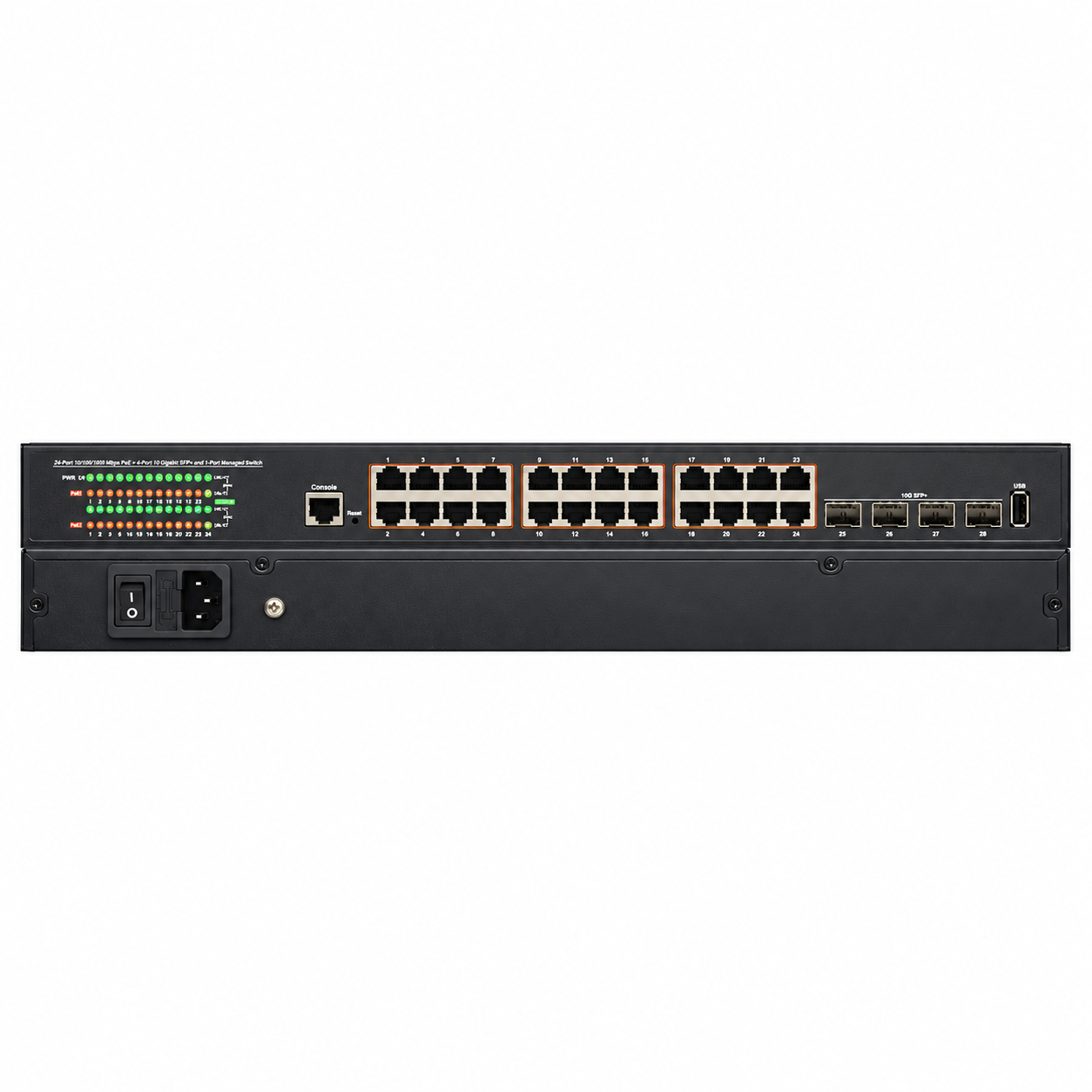

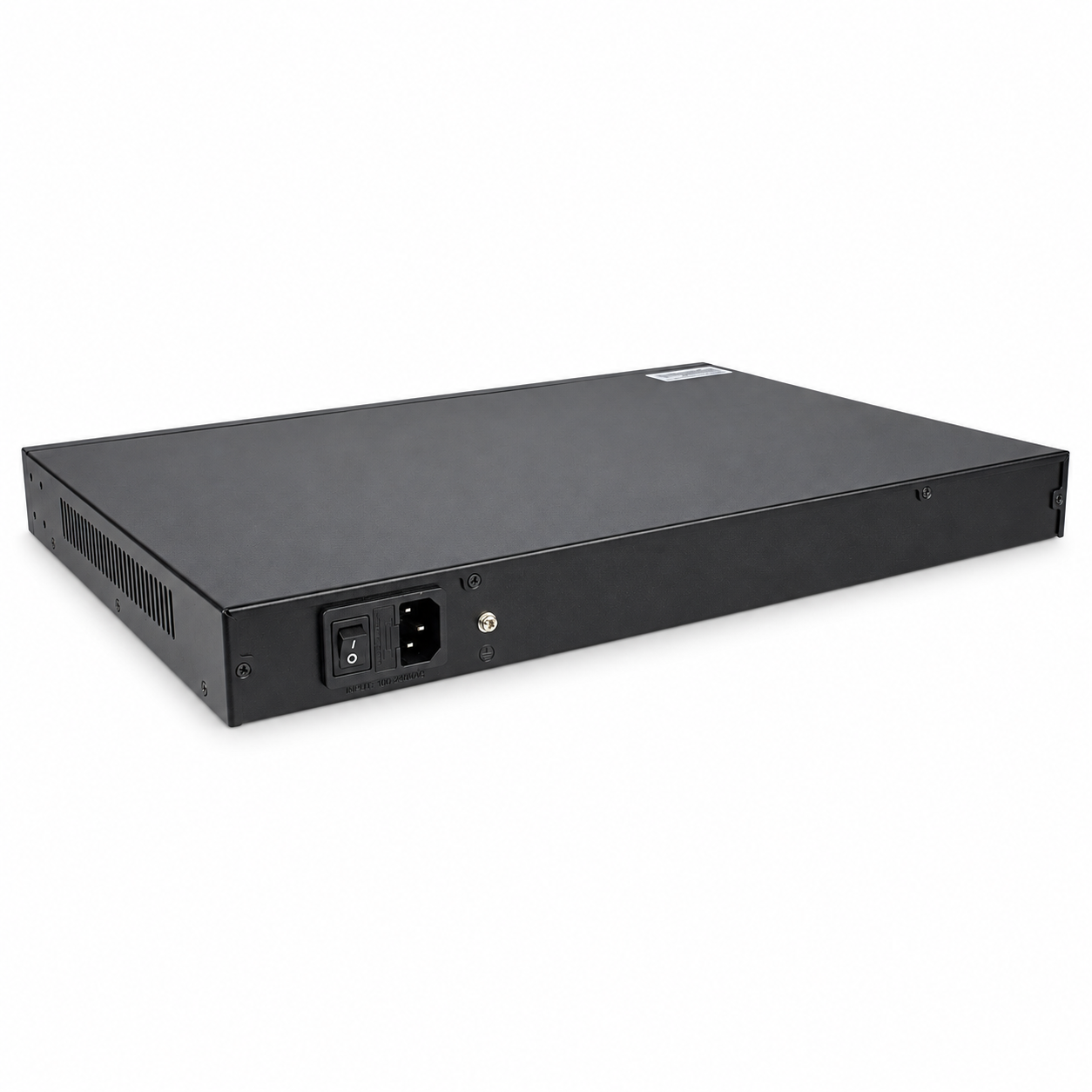

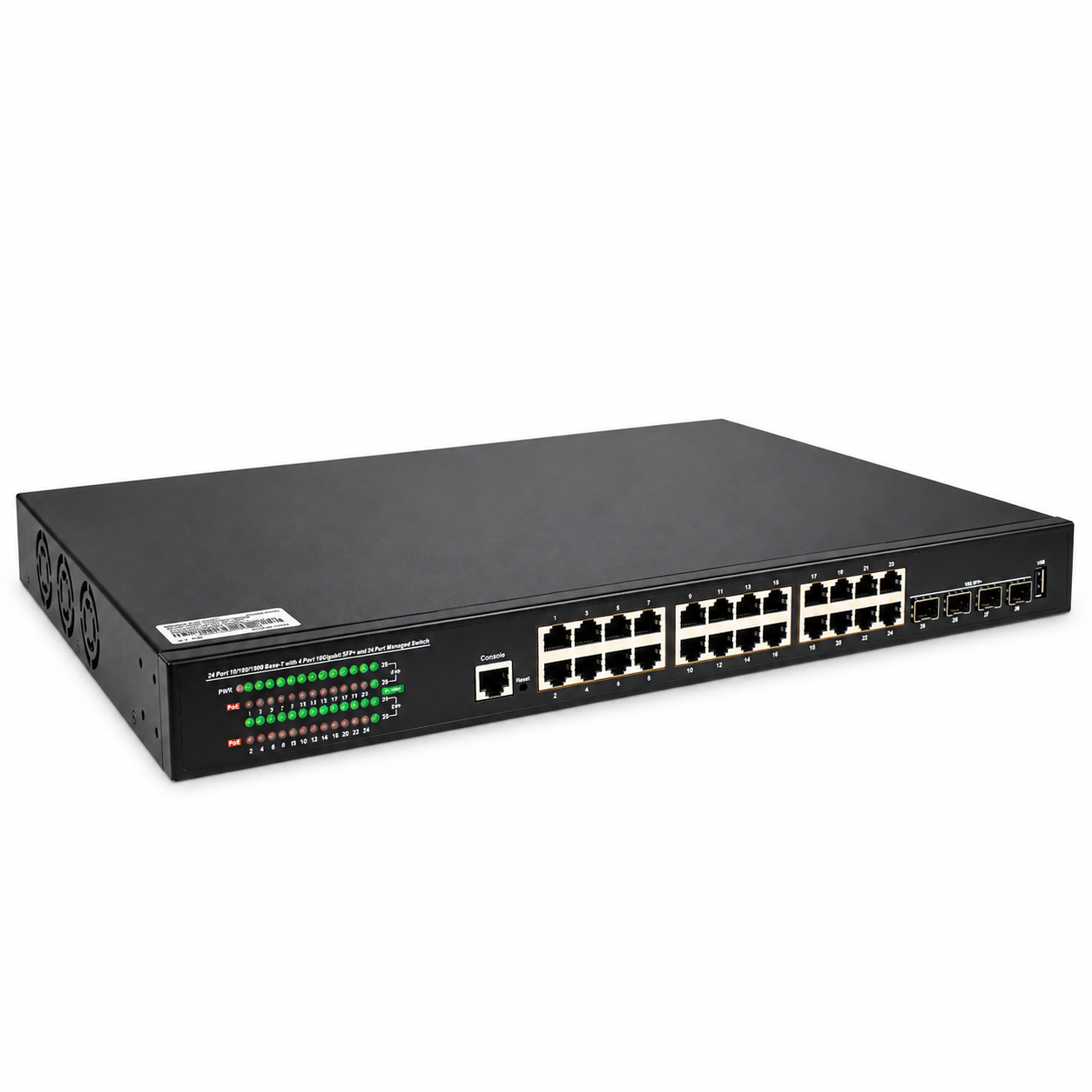

Layer3 Managed 24 Port Gigabit PoE switch with 4 X 10G SFP, watch dog , 400W
POE-7328-24T-400W
24 RJ-45 10/100M/1000M and 4 SPF+ ports with 24 POE Port Switch, Built-in power supply
Description
The POE-7328-24T-400W, Layer3 managed POE switch, is designed for the edge of the access and LAN to provide high-quality network connections.
The POE-7328-24T-400W provides 24 10/100/1000Base-T ports and 4 10Gigabit SFP+, It provides 24 PoE Injector.
Features
- Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z IEEE802.3af/at/bt, IEEE802.3ad
- Provides 24 10/100/1000Base-T ports and 4 10Gigabit SFP+
- Provides 24 PoE ports,1-4 ports support IEEE802.3af/at/bt,5-24 ports support IEEE802.3af/at, 400W Built-in power supply
- High back-plane bandwidth 128Gbps
- IEEE802.3x Flow control
- Surge protection for power port and data ports
- Product Specification
- Product Manual
Specifications
Specifications
|
Item |
Description |
|
|
Hardware |
||
|
Fixed port |
24 10/100/1000Base-T ports 4 10Gigabit SFP+ ports 1 Console port 1 USB port 1 Reset port |
|
|
LED Indicators |
PWR, PoE, Link/Act LED |
|
|
Input voltage |
100V～240V AC，50/60Hz |
|
|
Power consumption |
400W (370W for PoE) |
|
|
CPU |
1GHz |
|
|
DDR |
4Gb DDR3 |
|
|
Flash Memory |
128Mbits |
|
|
Operating temperature |
0℃～40℃ |
|
|
Storage temperature |
-40℃～70℃ |
|
|
Relative humidity |
5%～95% (non-condensing) |
|
|
Thermal methods |
Built-in FAN |
|
|
PoE |
||
|
PoE port |
24 PoE ports. 1-4 ports support IEEE802.3af/at/bt,5-24 ports support IEEE802.3af/at |
|
|
PoE Standard |
IEEE 802.3af/at/bt |
|
|
Pin assignment |
IEEE 802.3af/at/:2 pairs V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6) IEEE 802.3bt/:4 pairs V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6) V+ (RJ45 Pin 4, 5), V- (RJ45 Pin 7, 8) |
|
|
PoE management |
Support Port-base PoE status view and control. |
|
|
L3 Switching |
||
|
Switching capacity |
128Gbps |
|
|
Packet Buffer |
12Mbits |
|
|
Throughput |
95.232Mpps |
|
|
Port configuration |
||
|
Port auto-negotiation |
Support |
|
|
Port flow control |
Support full duplex IEEE802.3x flow control Support Half-duplex back pressure flow control |
|
|
Broadcast storm control |
Support broadcast, multicast, DLF packet rate limit |
|
|
Port Mirroring |
Support |
|
|
Port Isolation |
Support |
|
|
Port Self-loop Detection |
Support |
|
|
Link Aggregation |
Support Supports up to 128 aggregation groups, each group supports up to 8 ports |
|
|
Jumbo Frame |
Jumbo packets up to 12K bytes |
|
|
Redundant port |
Support |
|
|
MAC configuration |
||
|
MAC address table |
16K |
|
|
MAC address table management |
Support |
|
|
Static MAC address |
Support. |
|
|
MAC Address Binding |
Support |
|
|
MAC Address Filtering |
Support |
|
|
MAC Address Learning control |
Control number of port-based MAC address learning |
|
|
VLAN configuration |
||
|
Number of VLANs |
4K |
|
|
Port-based VLAN |
Support |
|
|
802.1q VLANs |
Support |
|
|
MAC-based VLAN |
Support |
|
|
IP-based VLAN |
Support |
|
|
Protocol-based VLAN |
Support |
|
|
Voice VLAN |
Support |
|
|
VLAN mapping |
Support |
|
|
QinQ |
Support |
|
|
Reliability Protocol |
||
|
Spanning Tree Protocol |
Support STP/RSTP/MSTP |
|
|
ERPS Protocol |
Support G.8032/Y.1344 |
|
|
LLDP |
Support LLDP&LLDP-MED |
|
|
UDLP Protocol |
Fully compatible with CISCO's UDLD protocol |
|
|
routing |
||
|
ARP |
Support static and dynamic ARP |
|
|
Static routing |
Support |
|
|
VLAN interface |
Support 32 VLAN interfaces |
|
|
L3 routing protocol |
||
|
RIP |
Support RIP v1/v2 |
|
|
OSPF |
Support OSPF v2 |
|
|
Policy routing |
Support |
|
|
VRRP |
Support |
|
|
Multicast functions and protocols |
||
|
Static multicast MAC address |
Support |
|
|
IGMP SNOOPING |
Support IGMP SNOOPING v1/v2/v3 |
|
|
MVR |
Support |
|
|
GMRP |
Support |
|
|
ACL access control list |
||
|
ACL based on standard IP |
Support |
|
|
ACL based on extended IP |
Support |
|
|
ACL based on MAC IP |
Support |
|
|
ACL based on MAC ARP |
Support |
|
|
ACL port filtering |
Support |
|
|
ACL based on time |
Support |
|
|
QoS |
||
|
Number of port queues |
8 |
|
|
queue scheduling algorithms |
Support WRR, SP |
|
|
Classification based on port |
Support |
|
|
Classification based on 802.1p |
Support |
|
|
Classification based on DSCP |
Support |
|
|
Classification based on ACL |
Support |
|
|
QoS policy |
Supports mapping of different data streams to different queues Support data stream to modify COS or DSCP value Support the speed limit of data stream Support data stream statistics Support data stream mirroring |
|
|
DHCP |
||
|
DHCP Client |
Support |
|
|
DHCP Snooping |
Support |
|
|
DHCP Relay |
Support |
|
|
DHCP Server |
Support |
|
|
DHCP option 82 |
Support |
|
|
Security |
||
|
ACL |
Support Standard IP / Extend IP / MAC IP / ARP |
|
|
Security Features |
Support MAC-based 802.1X authentication Support AAA/RADIUS authentication Support WEB/Telnet password protection |
|
|
Self-protection |
Support CPU Self-protection. |
|
|
Management |
||
|
CLI |
Support CLI (Commend Line Interface) configuration mode |
|
|
Console |
Support Configuration via the console port |
|
|
Telnet |
Support Local/remote configuration via Telnet |
|
|
WEB |
Support WEB management system |
|
|
SNMP |
Support System configuration with SNMP v1/v2c |
|
|
User Management |
Support Multi-user management |
|
|
System Log |
Support |
|
|
Configuration File Download/Upload |
Support Download/Upload configuration File via WEB/TFTP/USB |
|
|
Upgrade Firmware |
Support Upgrade Firmware via WEB/TFTP |
|
|
Debug |
||
|
PING |
Support |
|
|
TRACEROUTE |
Support |
|
|
Telnet client |
Support |
|
Order Information
|
POE-7328-24T-400W |
24 Gigabit RJ-45+4 10Gigabit SFP+ ports Managed Switch with 24 PoE injector (370W) (1-4bt,5-24at) |
