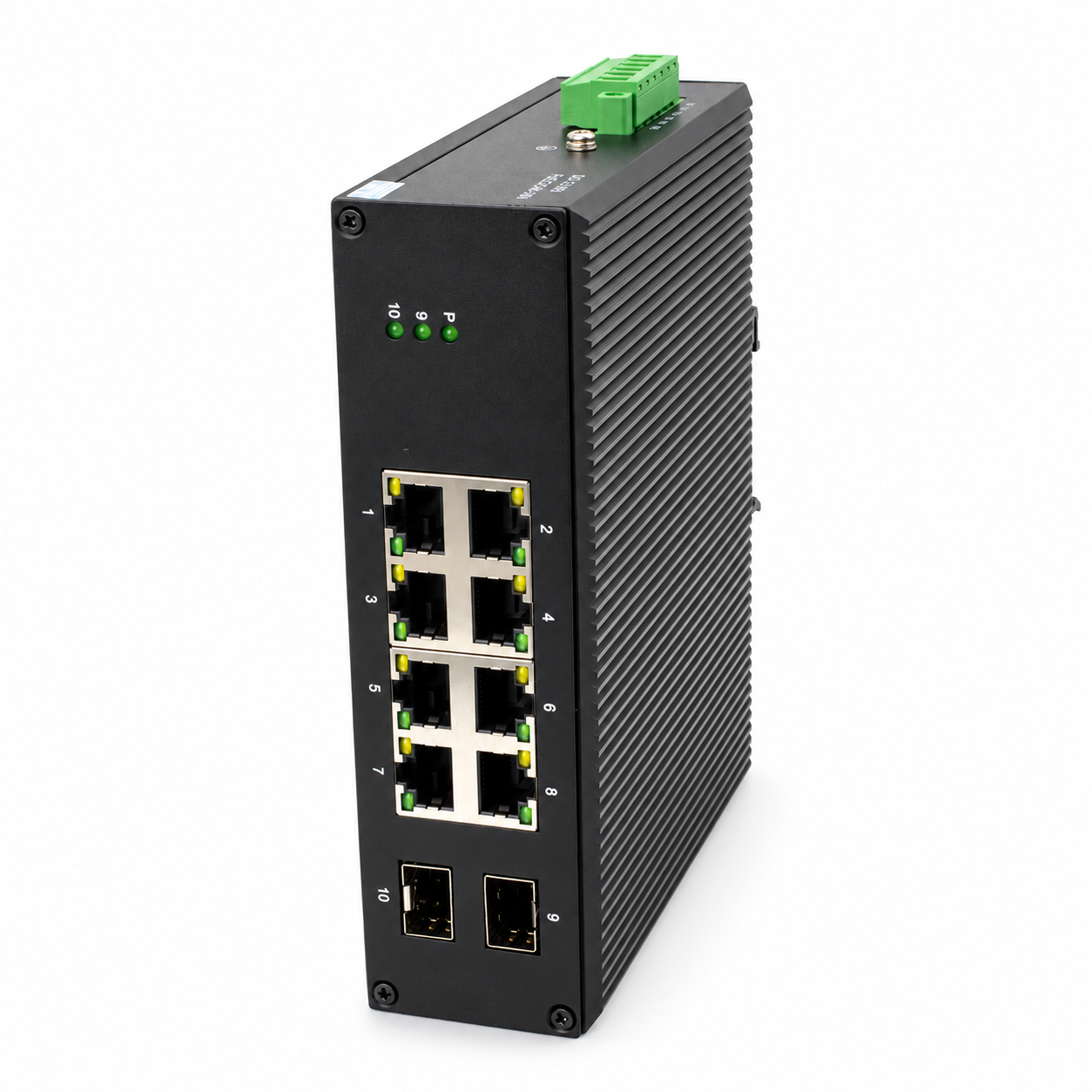

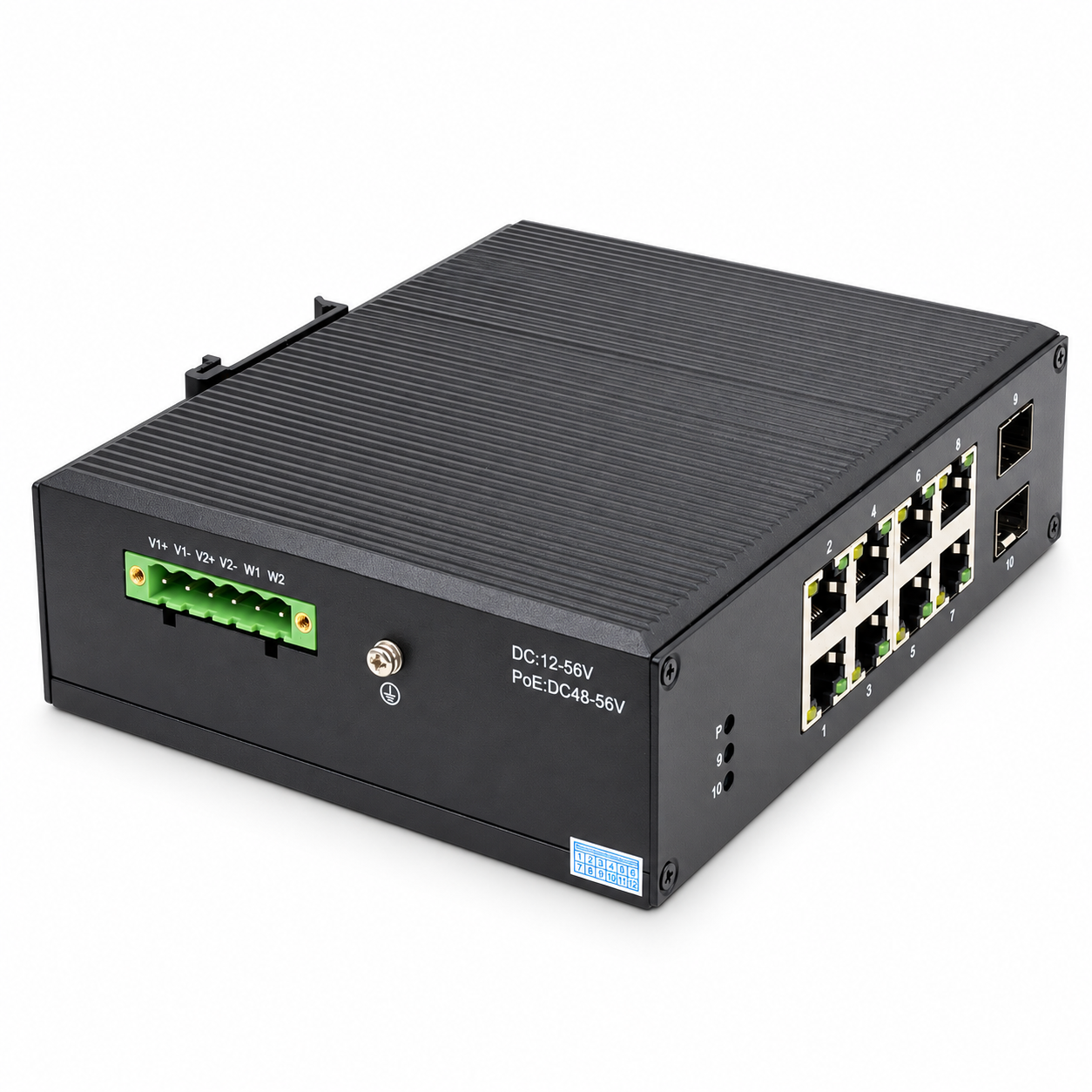

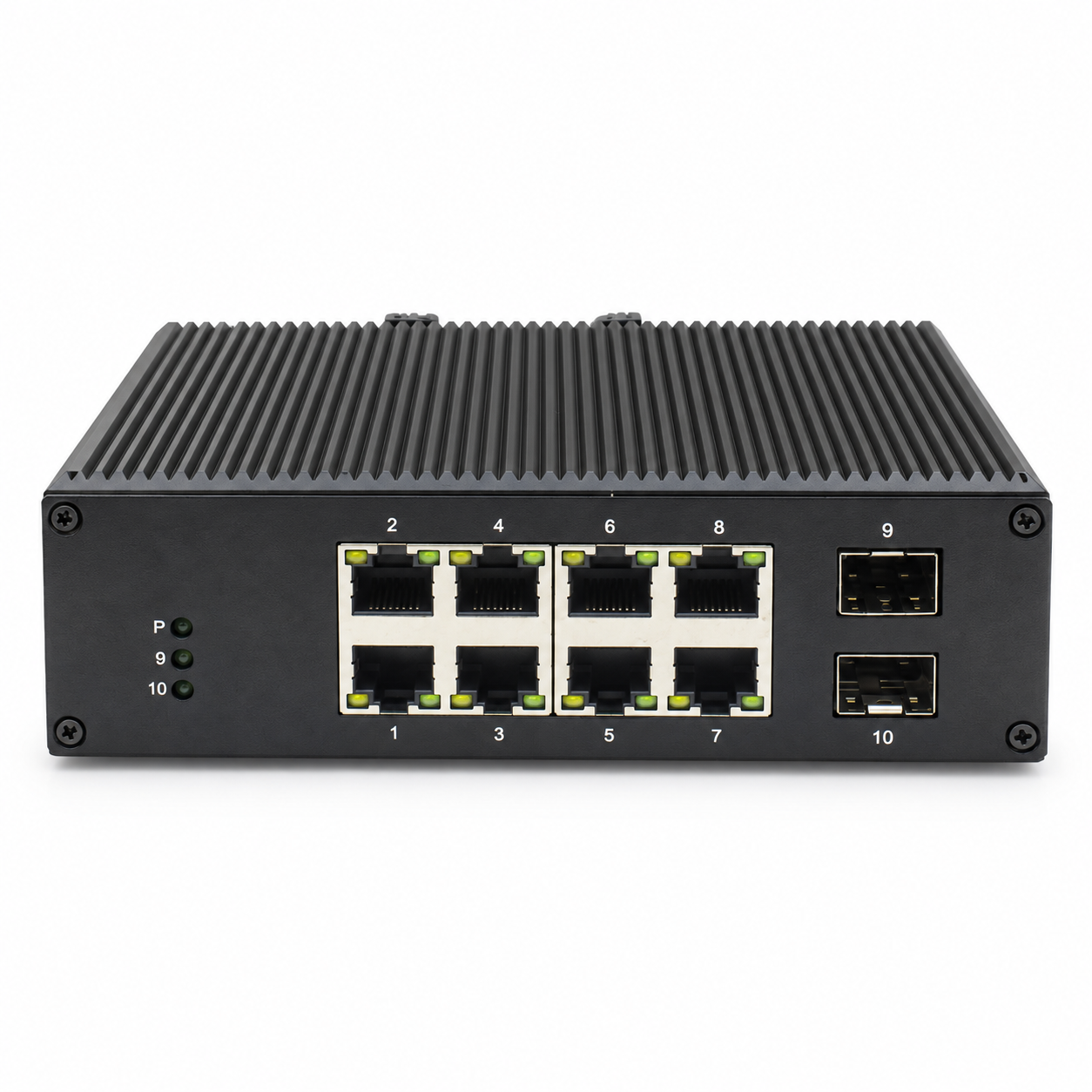

UltraPoE POE-3610-8P Industrial 8-Port Gigabit PoE+ Switch with 2 SFP Uplinks
The UltraPoE POE-3610-8P is an unmanaged industrial Gigabit PoE+ switch for reliable camera, access-control, wireless, and edge-network deployments. It combines eight 10/100/1000Mbps IEEE 802.3af/at PoE ports with two 1.25Gbps SFP uplinks in a compact, fanless, finned metal enclosure.
Key features
- 8 Gigabit PoE+ ports: Eight 10/100/1000Mbps RJ45 ports support IEEE 802.3af/at powered devices.
- 2 SFP uplinks: Two 1.25Gbps SFP slots provide flexible fiber connections; transmission distance depends on the selected SFP module.
- Industrial DC input: Accepts 12-56V DC input. The device label specifies 48-56V DC for PoE operation.
- Unmanaged operation: Plug-and-play deployment with auto-negotiation, auto MDI/MDI-X, and store-and-forward switching.
- 20Gbps switching capacity: Supports an 8K MAC address table for stable local traffic forwarding.
- Hardened design: Rated for -40 to 85°C operation and 0-95% non-condensing humidity.
- Electrical protection: Level 3 surge immunity to IEC 61000-4-5 and Level 3 ESD immunity to IEC 61000-4-2.
Technical specifications
| Model | POE-3610-8P |
|---|---|
| PoE ports | 8 x 10/100/1000Mbps RJ45 |
| Fiber uplinks | 2 x 1.25Gbps SFP |
| PoE standards | IEEE 802.3af/at, end-span PSE |
| Ethernet standards | IEEE 802.3, 802.3u, 802.3ab |
| Switching capacity | 20Gbps |
| MAC address table | 8K |
| DC input | 12-56V DC; 48-56V DC required for PoE operation per device label |
| Copper distance | Up to 100m using Cat5e/Cat6 cable |
| Fiber connector | LC, determined by installed SFP module |
| Operating temperature | -40 to 85°C |
| Dimensions | 158 x 127 x 48mm |
Typical applications
Designed for industrial IP surveillance, outdoor network cabinets, factory automation, access control, wireless access points, traffic systems, and remote edge networks that require Gigabit PoE and fiber uplinks.
Frequently asked questions
Does this switch require configuration?
No. It is an unmanaged switch designed for plug-and-play installation.
How many powered devices can it connect?
It provides eight IEEE 802.3af/at PoE ports. Actual simultaneous power availability depends on the selected DC power supply and connected-device demand; a total PoE power budget is not specified for this listing.
Are SFP modules included?
SFP modules are not shown as included. Select compatible modules according to the required fiber type, connector, wavelength, and distance.
Is a DC power supply included?
A power supply is not shown as included. Confirm the package contents before ordering and use 48-56V DC when PoE output is required.
