UltraPoE CT-VBHD-VPD Passive HD CCTV Video, Power & Data Balun Pair
UltraPoE CT-VBHD-VPD Passive HD CCTV Video, Power & Data Balun Pair routes analog HD video together with compatible camera power and an auxiliary data/audio connection over point-to-point CAT5e or CAT6 UTP cabling. The two-piece transmitter/receiver set is designed for CCTV cameras, DVRs, monitors, switchers, and compatible video equipment.
Key Features
- Complete passive transmitter/receiver pair
- Routes video, power, and an auxiliary data/audio signal through UTP/RJ45 cabling
- Supports NTSC, PAL, and SECAM analog video formats
- Listed transmission distance: up to 200 m at 1080p or 300 m at 720p
- Power transmission: 12V DC or 24V AC via CAT5e/6
- 60 dB typical crosstalk/noise immunity

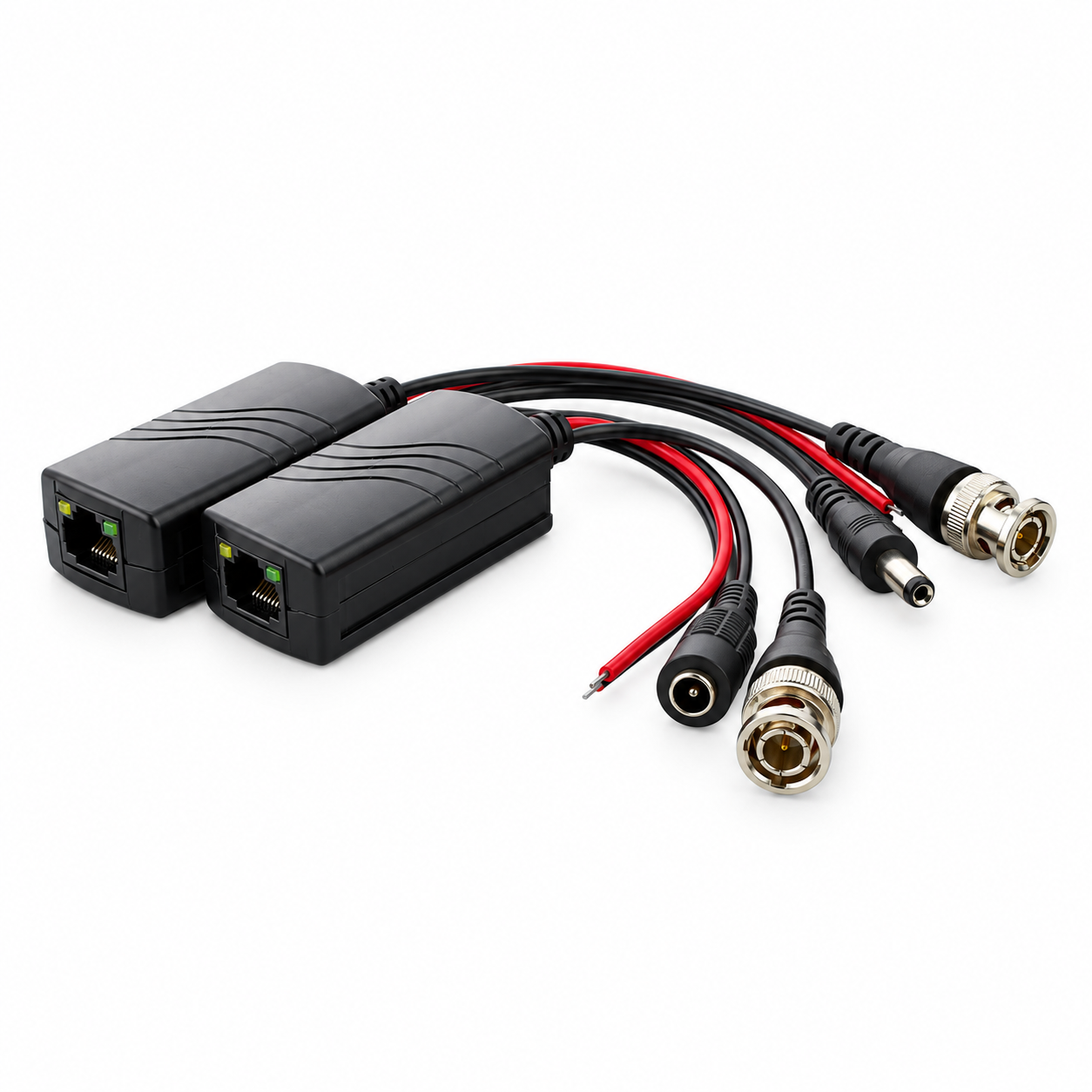

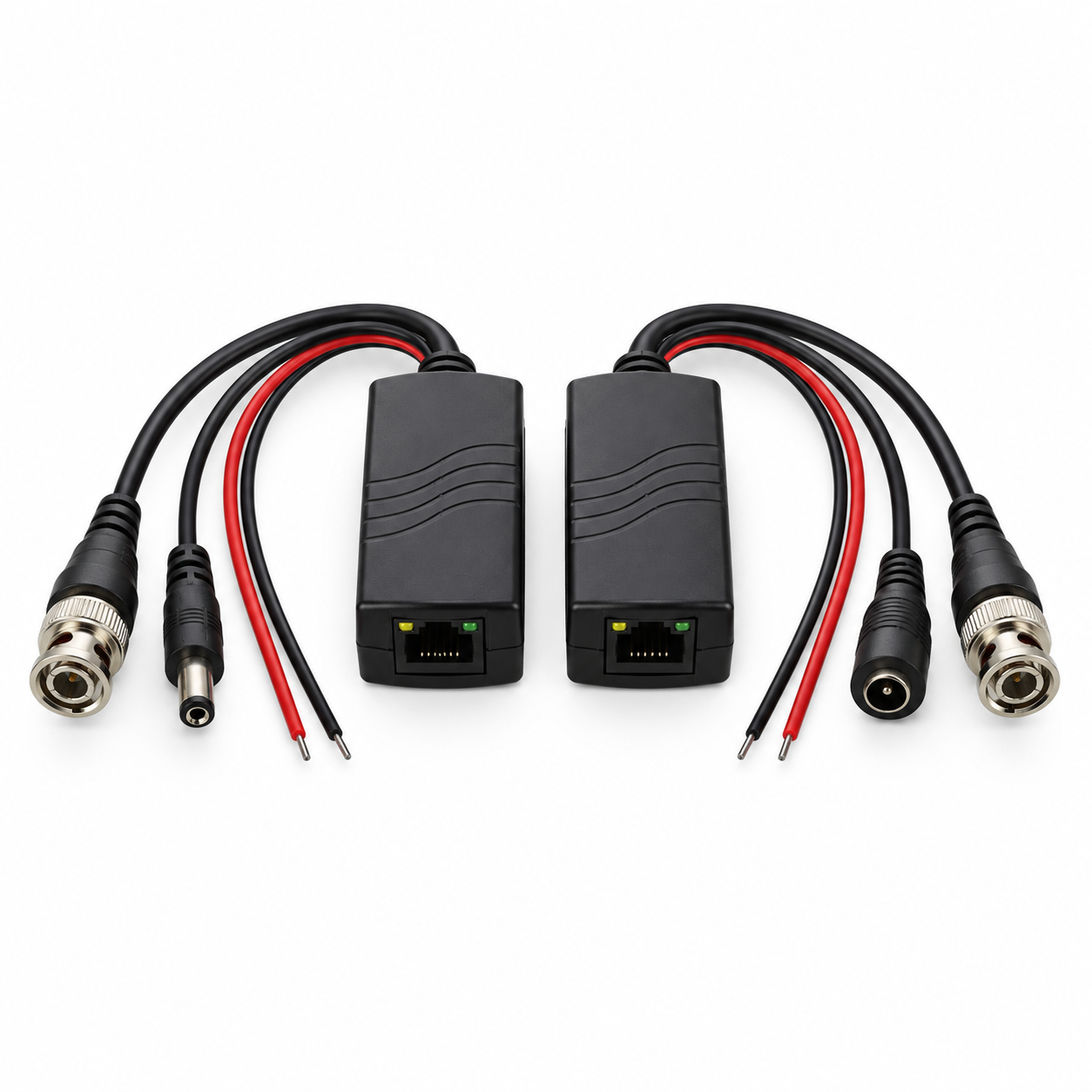

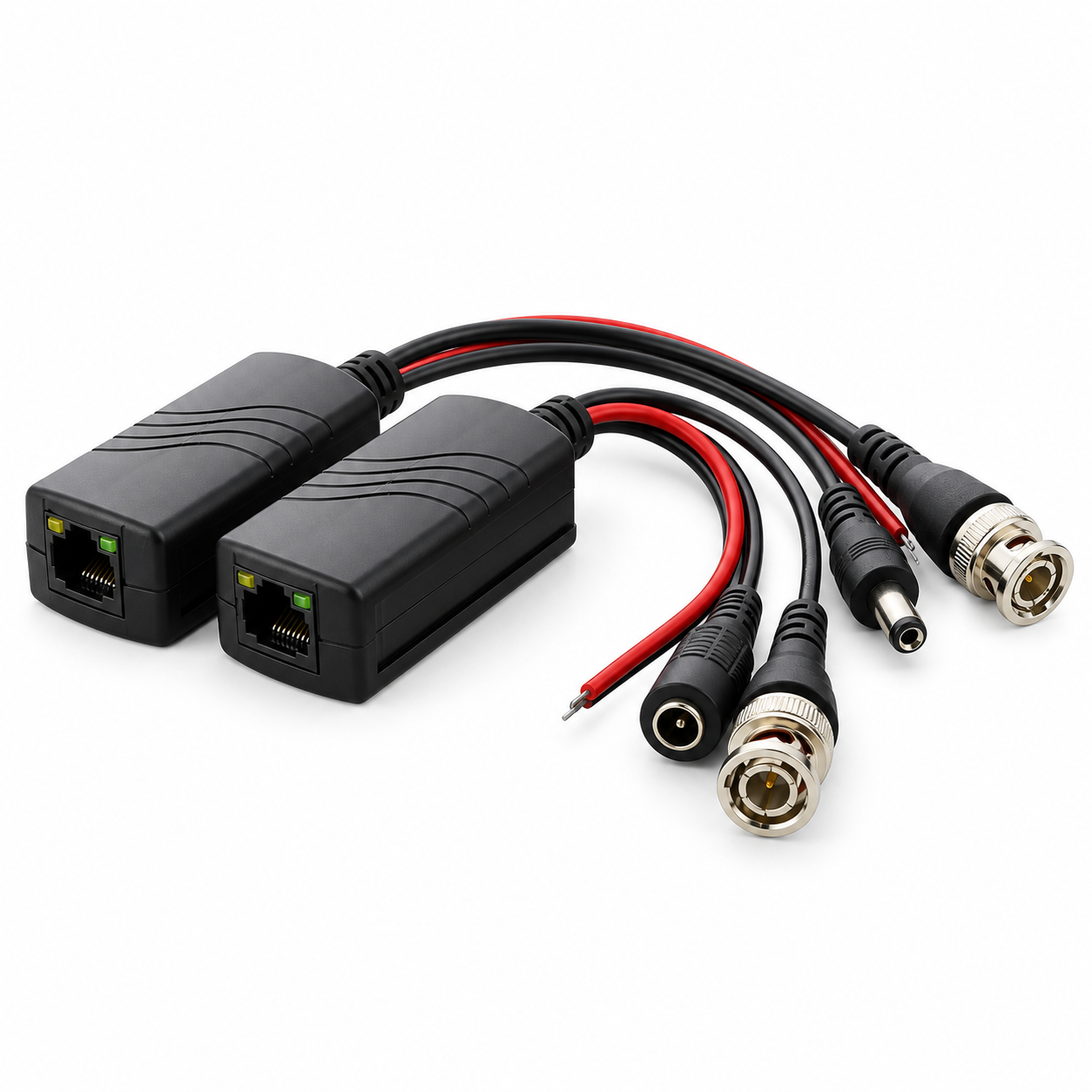

- Each module includes an RJ45 connection, BNC video lead, DC power connector, and auxiliary red/black leads
- Compact ABS engineering-plastic enclosure
Technical Specifications
| Model | CT-VBHD-VPD |
|---|---|
| Device type | Passive HD analog CCTV balun pair |
| Maximum listed distance | 1080p: 200 m; 720p: 300 m |
| Operating frequency | DC–42 MHz |
| Attenuation | 1.5 dB typical maximum |
| BNC impedance | 75Ω unbalanced |
| UTP/RJ45 impedance | 100Ω balanced; network cable specification 100Ω ±20Ω |
| Power transmission | 12V DC or 24V AC via CAT5e/6 |
| Dimensions | 60 × 30 × 21 mm per module |
| Operating temperature | −20°C to 70°C |
| Relative humidity | 0–95%, non-condensing |
| Housing | ABS engineering plastic |
Transmission distance and image quality depend on video format and resolution, cable construction and length, connector condition, power load, and the installation environment. Verify camera voltage, polarity, current requirements, and auxiliary-signal compatibility before installation.
Package Contents
One pair (two modules) of CT-VBHD-VPD BNC-to-RJ45 passive video, power, and data/audio baluns.
Frequently Asked Questions
Is this an Ethernet or PoE adapter?
No. The RJ45 connector uses CAT5e/6 twisted-pair cable for point-to-point analog CCTV video, compatible power, and auxiliary signal transmission. It is not an Ethernet network connection or IEEE PoE device.
Does the product require local power?
The baluns are passive, while camera power can be routed through the specified UTP link. Use a compatible external 12V DC or 24V AC source and verify the connected equipment’s voltage, polarity, current, and cable-distance requirements.
How many units are included?
The listing includes two modules—one complete transmitter/receiver pair for a single CCTV channel.
