HD 4K CVI/TVI/AHD+CVBS to HDMI Converter
Full HD 4K CVI/TVI/AHD+CVBS to HDMI Converter

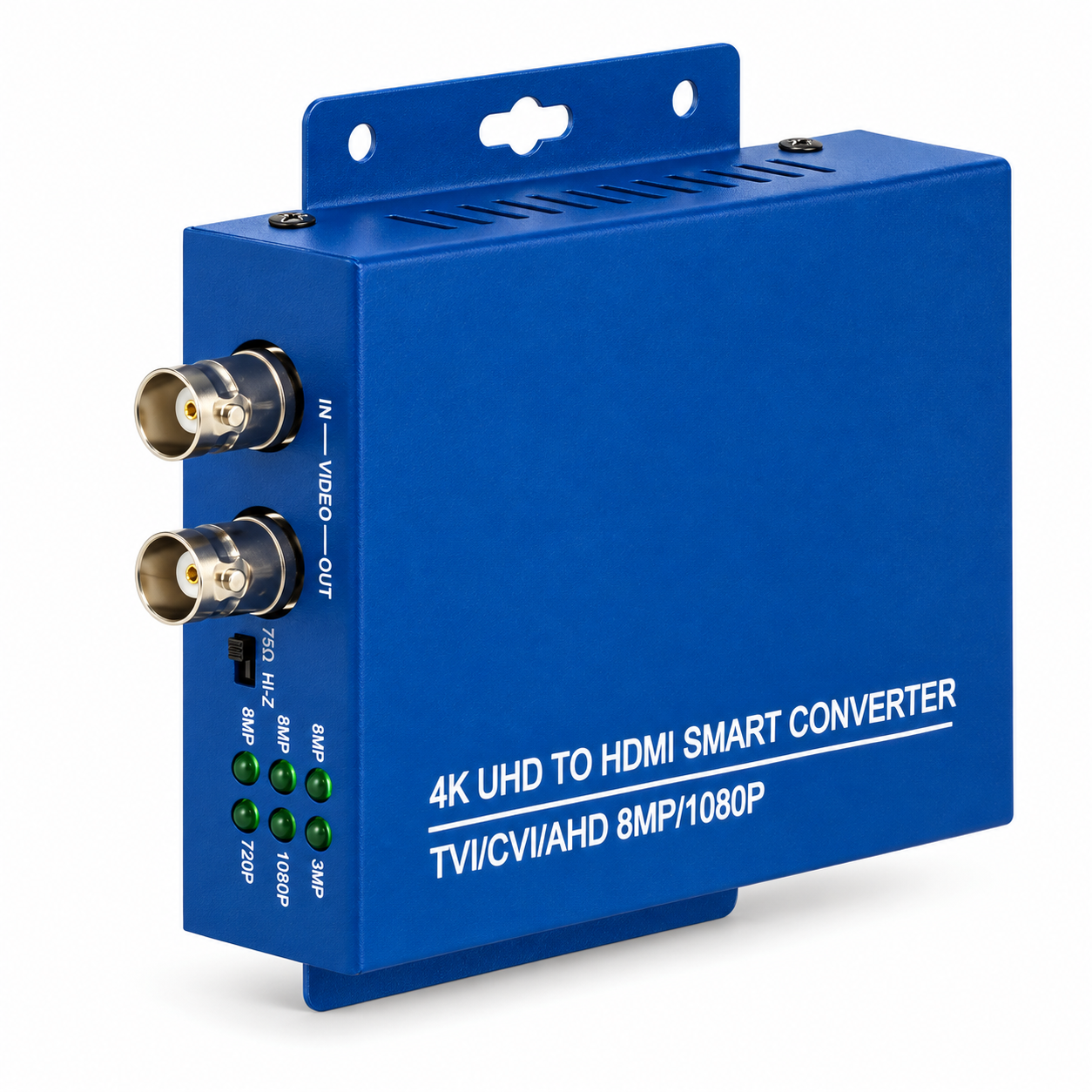

HD Converter is designed for HDMI video transmission and HD loop out, support 4K CVI/TVI/AHD video Input, 4K Image loop output, 1080P HDMI output. Auto match HD input, indicator visual display input resolution, it is a great advantage video transmission tool
Support up to AHD 8MP, TVI 8MP, CVI 8MP test
CVI/TVI/AHD+CVBS to HDMI, HDMI output 1080P
Connect HD Monitor, HD coaxial output HDMI Input Display simultaneous
One channel AHD/TVI/CVI/CVBS loop out
Auto recognition 720P/1080P/3MP/4MP/5MP/8MP resolution, indicator visual display
Power Connection:
The device uses 5V 1A power supply, connected to the power can be used normally, power indicator light.
Functions Introduction:

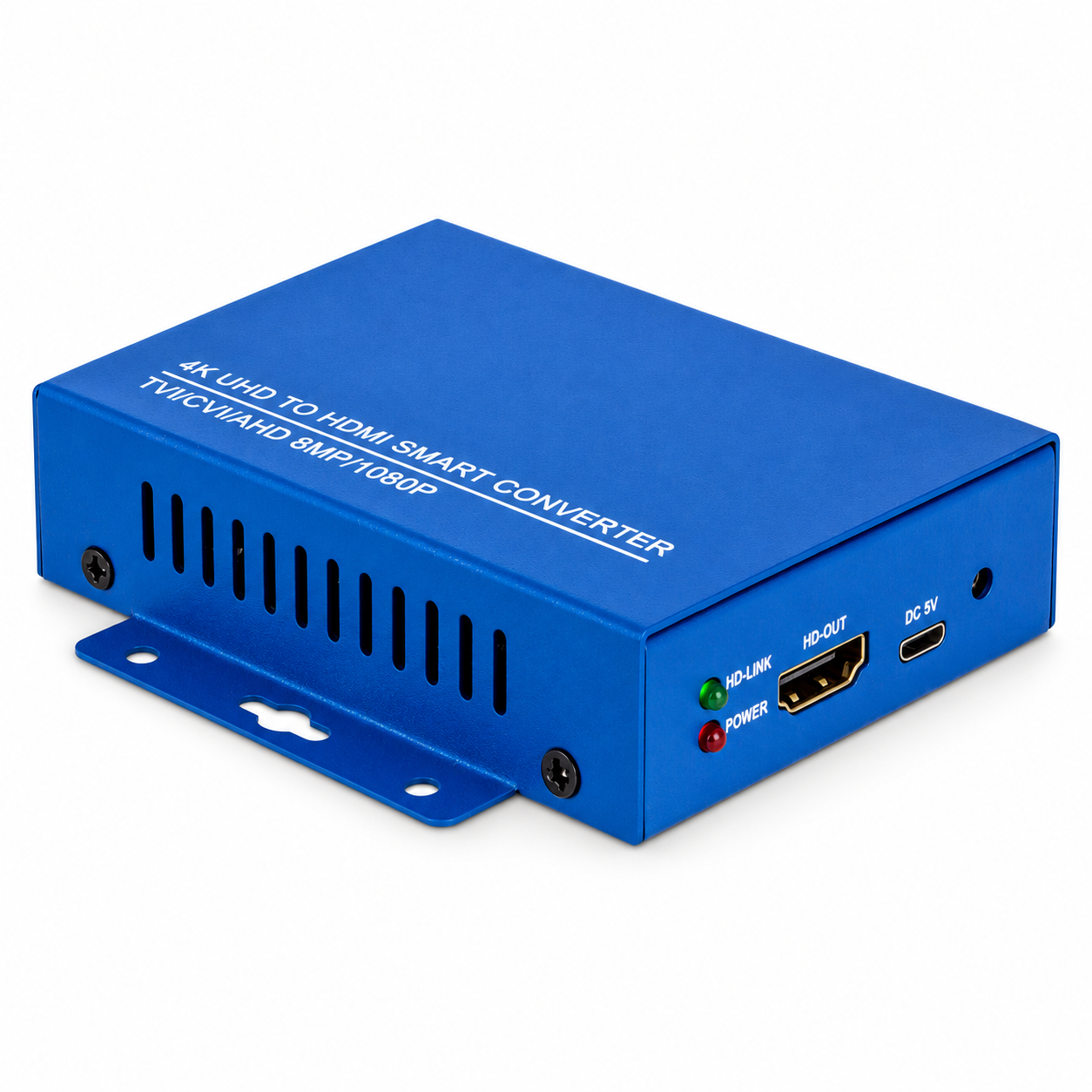

CVI/TVI/AHD+CVBS to HDMI, HDMI output 1080P 60Fps, connect HDMI output cable, HD-LINK light, display yellow light.
Support up to 8MP AHD/TVI/ CVI test.
One channel AHD/TVI/CVI/CVBS loop out.

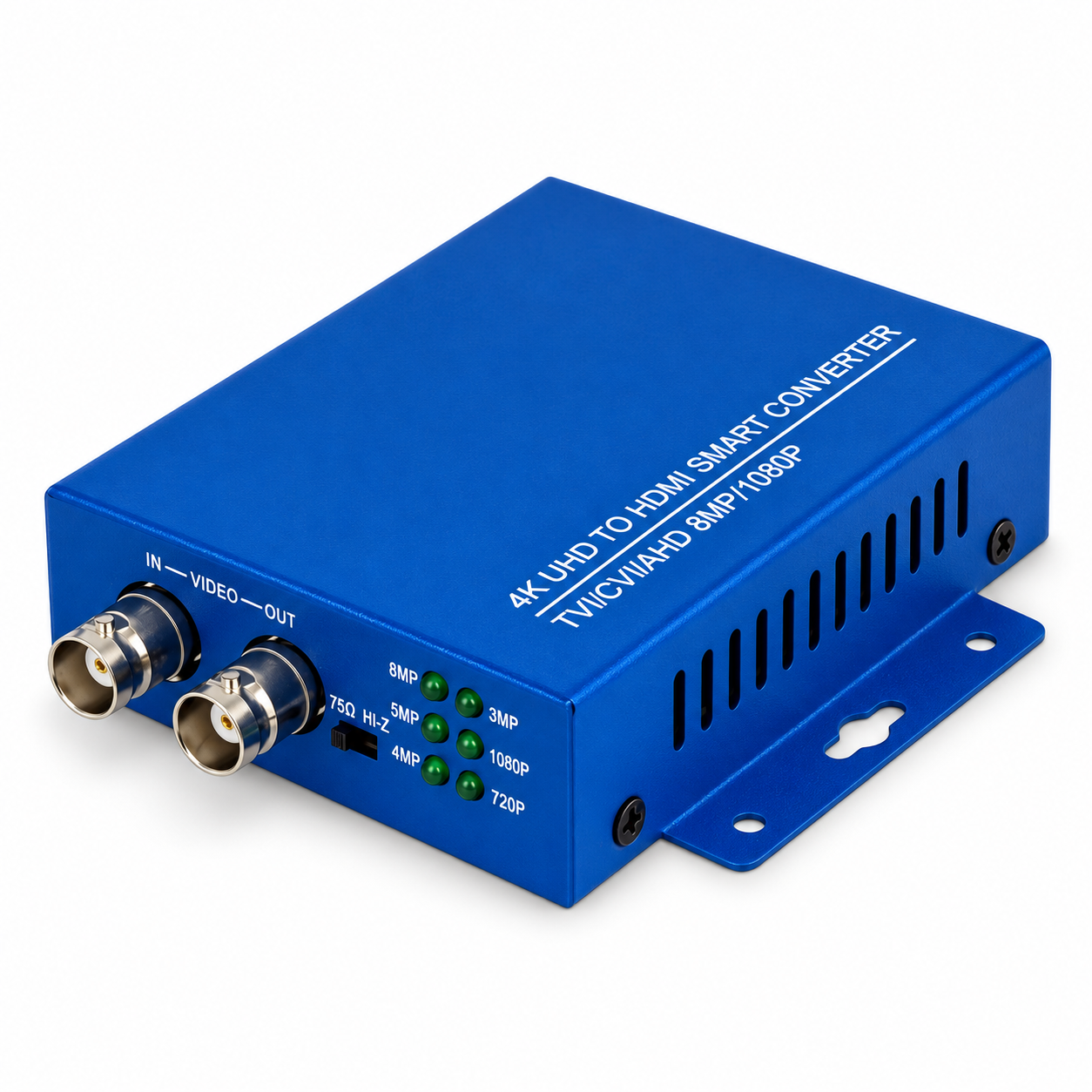

Auto recognition 720P/1080P/3MP/4MP/5MP/8MP resolution, indicator visual display.
75O HI-Z Impedance switch:
When the IN port of the converter is connected to the camera, and the OUT is not connected to the DVR, please set the impedance switch to 75O.
When the IN port of the converter is connected to the camera and the OUT port is connected to the DVR, please set to HI-Z
AHD/TVI/CVI supported resolution table:
|
HD Coaxial camera/Resolution |
CVI |
TVI |
AHD |
|
720P |
1280 x 720P 25/30/50/60 FPS |
1280 x 720P 25/30/50/60 FPS |
1280 x 720P 25/30 FPS |
|
1080P |
1920 x 1080P 25/30 FPS |
1920 x 1080P 25/30 FPS |
1920 x 1080P 25/30 FPS |
|
3 MP |
—— |
2048 x 1536P 18/25/30 FPS |
2048 x 1536P 18/25/30 FPS |
|
4MP |
2560 x 1440P 25/30 FPS |
2688 x 1520P 15FPS 2560 x 1440P 15/25/30 FPS |
2560 x 1440P 15/25/30 FPS |
|
5MP |
—— |
2592 x 1944P 12.5/20FPS |
2592 x 1944P 12.5/20FPS |
|
4K(8MP) |
3840 x 2160 12.5/15 FPS |
3840 x 2160 15 FPS |
3840 x 2160 15 FPS |
|
Model |
CT-TVIHDMI-4K |
|
Input Port |
One channel CVI/TVI/AHD/CVBS BNC input |
|
Output Port |
One Channel CVI/TVI/AHD/CVBS BNC output,One channel HDMI output |
|
Impedance |
75O(When the IN port of the converter is connected to the camera, and the OUT is not connected to the DVR, please set the impedance switch to 75O. When the IN port of the converter is connected to the camera and the OUT port is connected to the DVR, please set to HI-Z.) |
|
Cable length |
500~700meters, Different resolution, different transmission distance |
|
Power |
|
|
External power supply |
DC 5V(1A) |
|
General |
|
|
Working Temperature |
-10?---+50? |
|
Working Humidity |
30%-90% |
|
Dimension/Weight |
109mm x 94mm x 25mm / 0.18kg |
