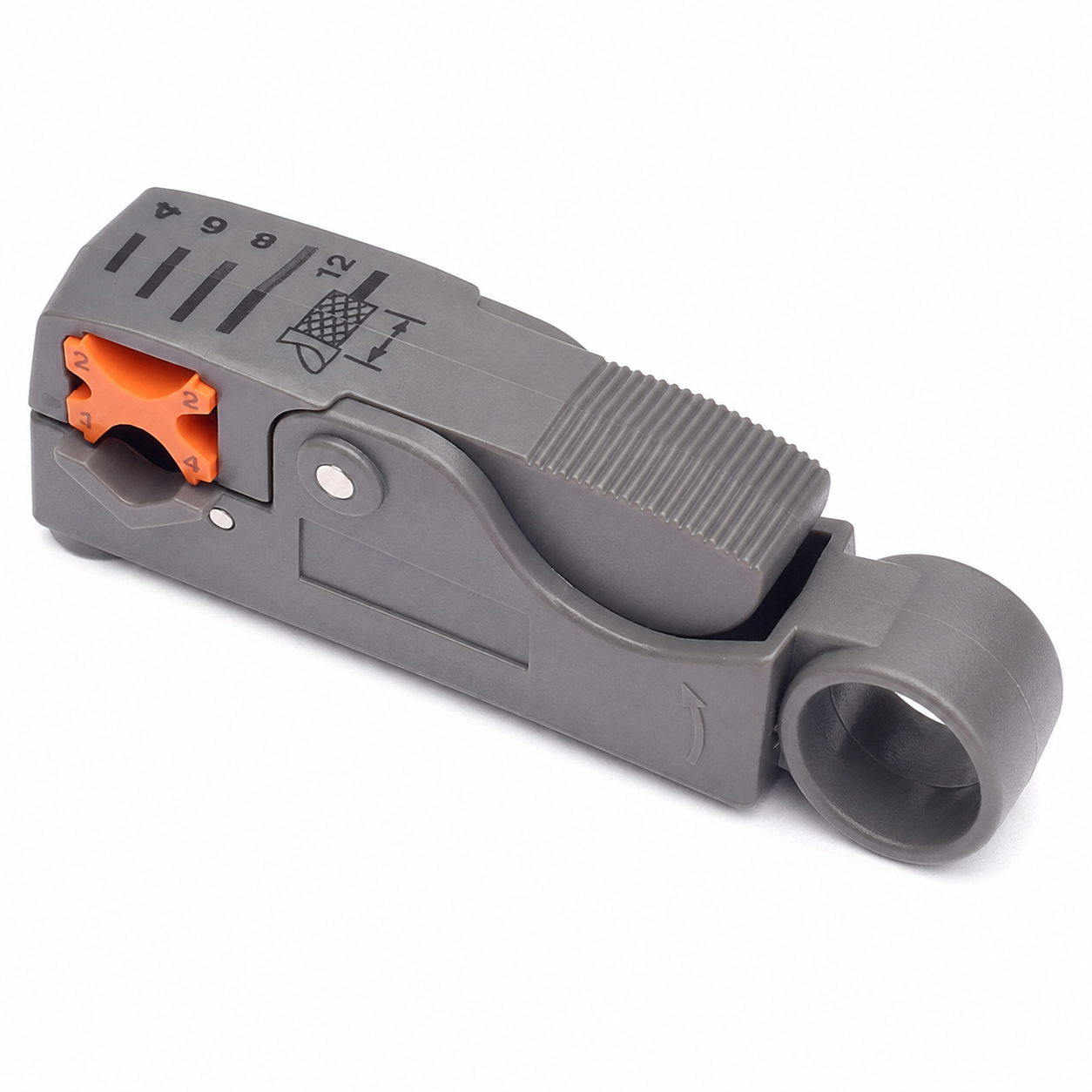

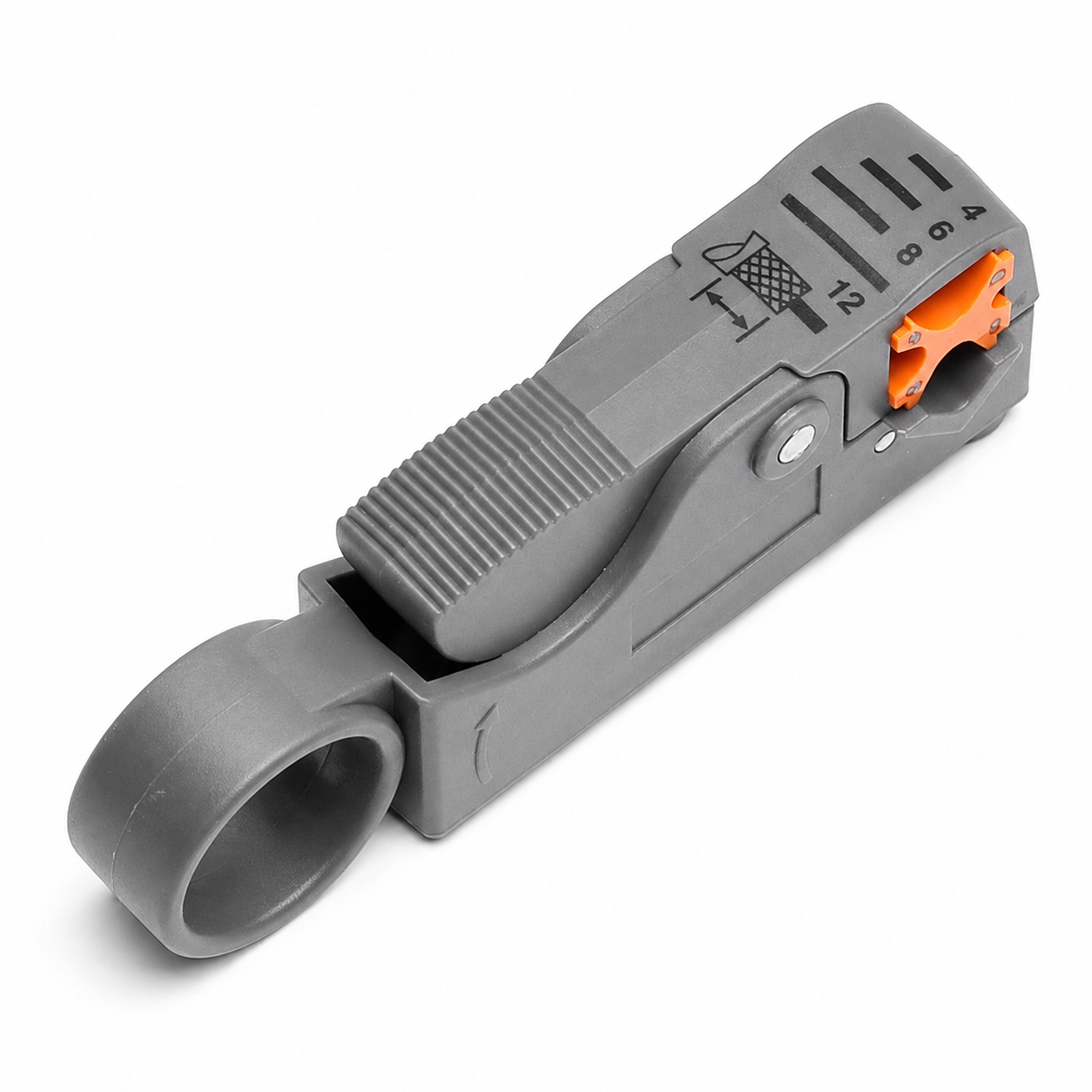

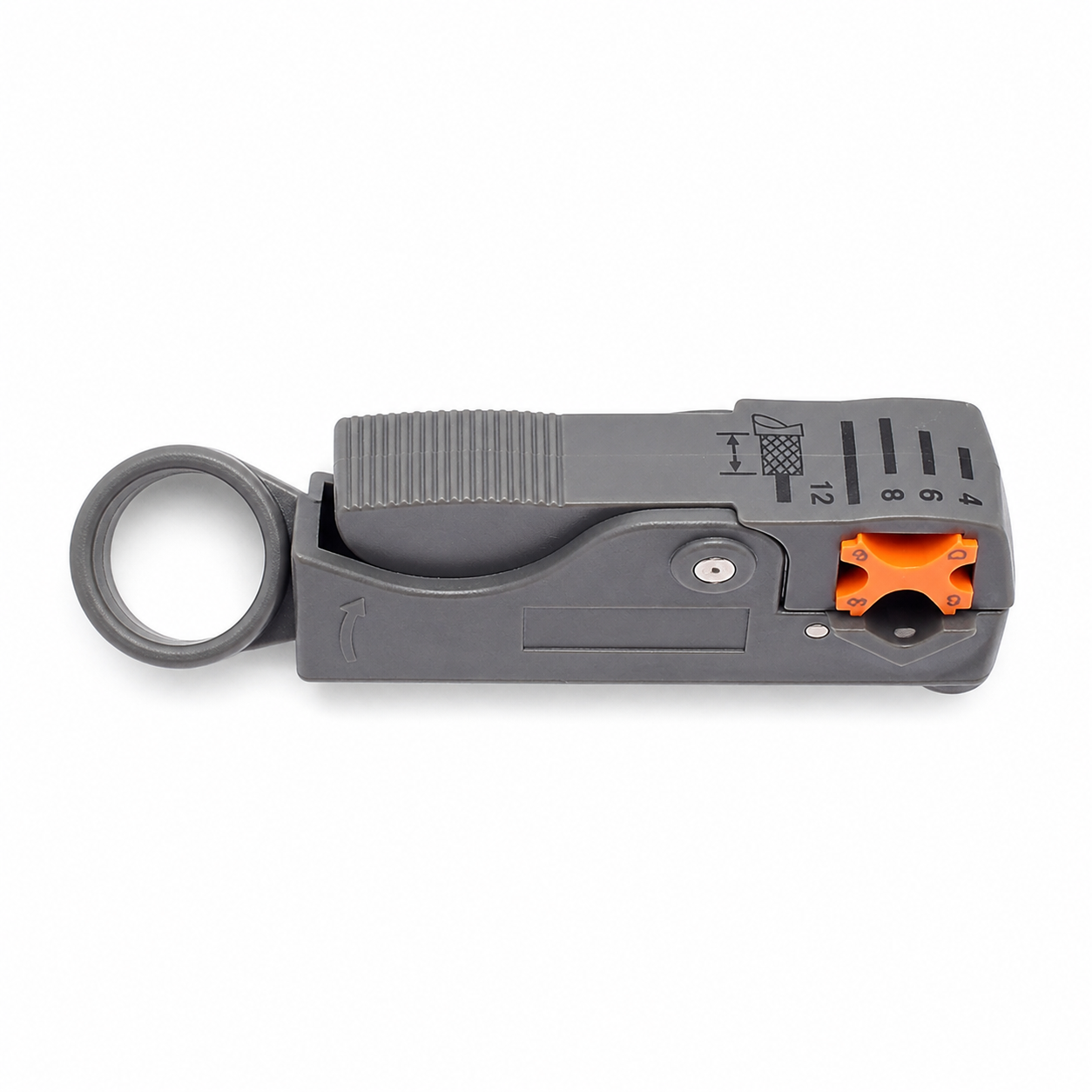

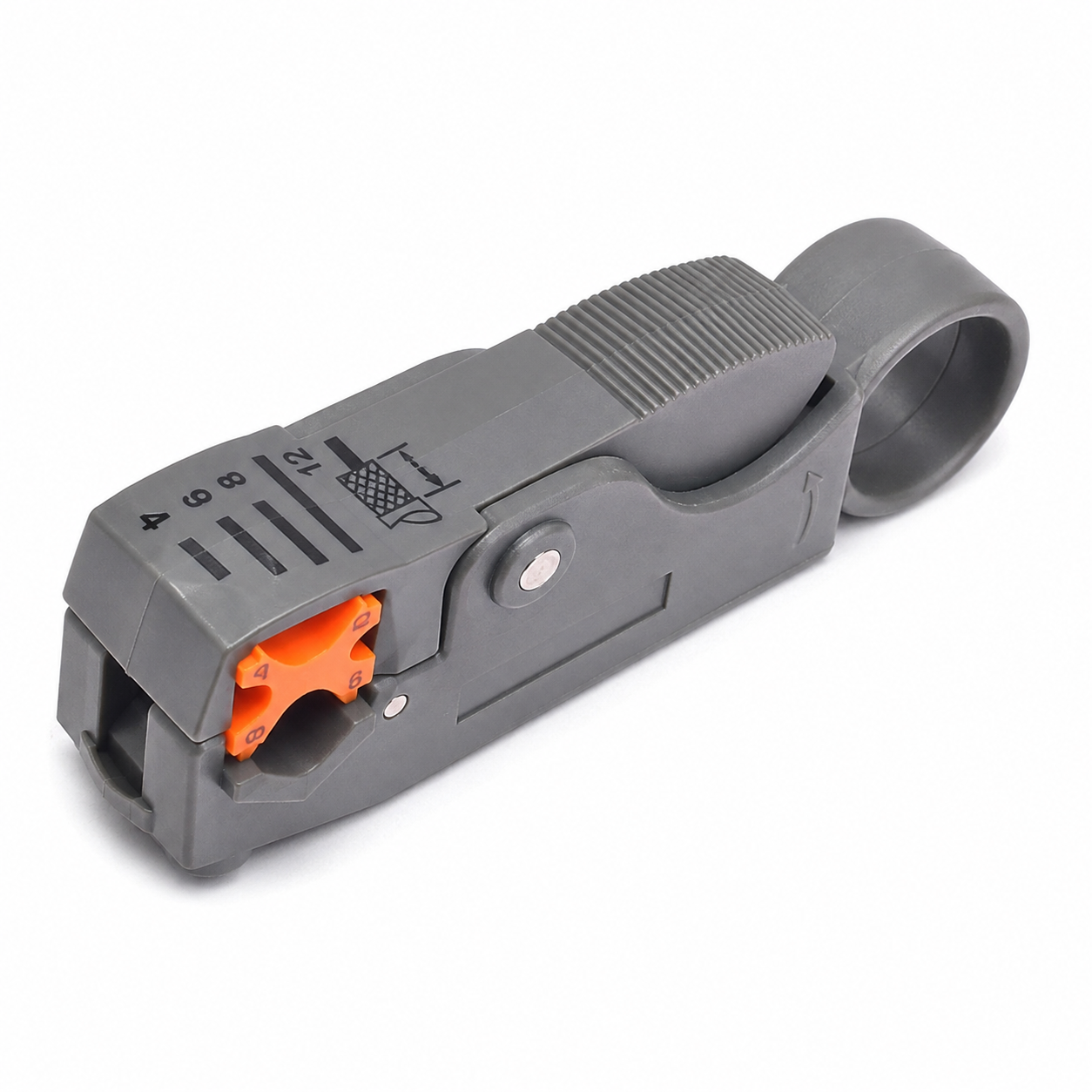

UltraPoE CT-TS003 Adjustable Coax Cable Stripper for RG58/RG59/RG62/RG6
UltraPoE CT-TS003 is an adjustable rotary coaxial cable stripping tool for preparing compatible RG58, RG59, RG62, and RG6 cable before connector installation. Its compact clamshell design grips the cable while the user rotates the tool, allowing the dual-blade cartridge to remove selected insulation and jacket sections.
Key Features
- Coaxial cable preparation: Designed for compatible RG58, RG59, RG62, and RG6 cable.
- Dual-blade cartridge: Supports staged jacket and dielectric preparation for coax connector installation.
- Adjustable strip lengths: Housing markings indicate 4, 6, 8, and 12 mm settings.
- Replaceable blades: The orange blade module can be serviced or replaced when required.
- Compact rotary operation: Clamp the cable, rotate the tool, then remove the prepared section.
- Finger-loop grip: Provides leverage and control during field installation.
Typical Applications
- CCTV and surveillance-camera coax cabling
- BNC, RCA, and F-type connector preparation
- Video, antenna, and satellite cable installation
- Low-voltage maintenance and field service
Specifications
- Brand: UltraPoE
- Model / SKU: CT-TS003
- Tool type: Adjustable rotary coaxial cable stripper
- Compatible cable families: RG58, RG59, RG62, and RG6
- Blade configuration: Dual blade, adjustable and replaceable
- Marked strip lengths: 4, 6, 8, and 12 mm
- Body color: Gray
- Blade cartridge color: Orange
Frequently Asked Questions
Which coaxial cables can the CT-TS003 strip?
It is intended for compatible RG58, RG59, RG62, and RG6 coaxial cable. Cable construction varies, so test the blade setting on a spare section first.
What do the 4, 6, 8, and 12 markings mean?
They are the tool’s indicated strip-length adjustment positions in millimeters.
How is the tool used?
Place the cable in the channel, close the tool, rotate it around the cable, and pull away the unwanted jacket or insulation section.
Can the blades be replaced?
Yes. The dual-blade cartridge is designed to be adjustable and replaceable.
