UltraPoE CT-KVM-100E HDMI KVM Extender over CAT6 – 1080p, 100 m

UltraPoE CT-KVM-100E extends HDMI video, audio, keyboard, and mouse control over one CAT6 cable for remote workstation and equipment-control applications.

Key Features

• Sender and receiver KVM extender pair
• Transmission distance up to 100 m (330 ft) over CAT6 as specified
• Video resolutions up to 1920 × 1080 at 60 Hz
• Keyboard and mouse extension through USB
• Single-cable POC power support
• HDMI 1.3 and HDCP 1.2 support as listed
• Metal housings with mounting flanges

Product Details

• Brand: UltraPoE
• Model / SKU: CT-KVM-100E
• Maximum listed distance: 100 m over CAT6
• Maximum listed resolution: 1080p at 60 Hz
• Video interface: HDMI Type-A
• Link interface: RJ45
• Computer USB interface: USB-B
• Remote USB ports: 2 × USB-A
• Power: 12 V DC adapter; maximum listed dissipation 3 W

Typical Applications

Suitable for CCTV control rooms, server rooms, digital signage, industrial workstations, classrooms, conference rooms, and other installations where a computer or recorder must be operated from a remote display location.

Installation Notes

Connect the sender to the HDMI source and computer USB port, link sender and receiver with a direct CAT6 cable, then connect the receiver to the display, keyboard, and mouse. This is an HDMI-over-CAT cable extender; do not route the link through a standard Ethernet switch unless compatibility is explicitly confirmed.

Frequently Asked Questions

What signals does it extend?

It extends HDMI video and audio plus USB keyboard and mouse control.

What is the maximum distance?

The listed maximum is 100 m (330 ft) over CAT6. Actual performance depends on cable quality, terminations, resolution, and installation conditions.

Does it support 4K?

No 4K support is stated. The maximum listed resolution is 1920 × 1080 at 60 Hz.

Are both endpoints included?

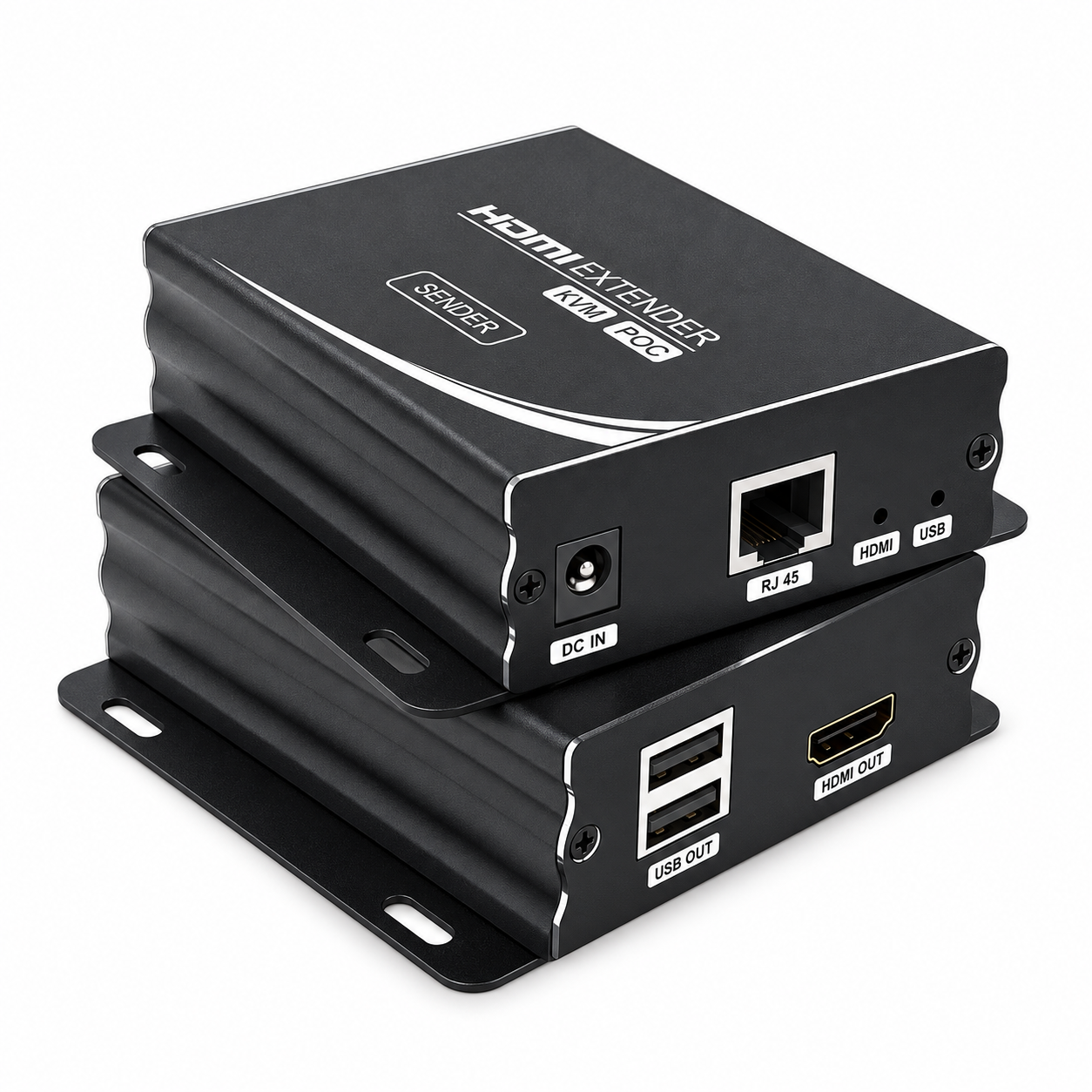

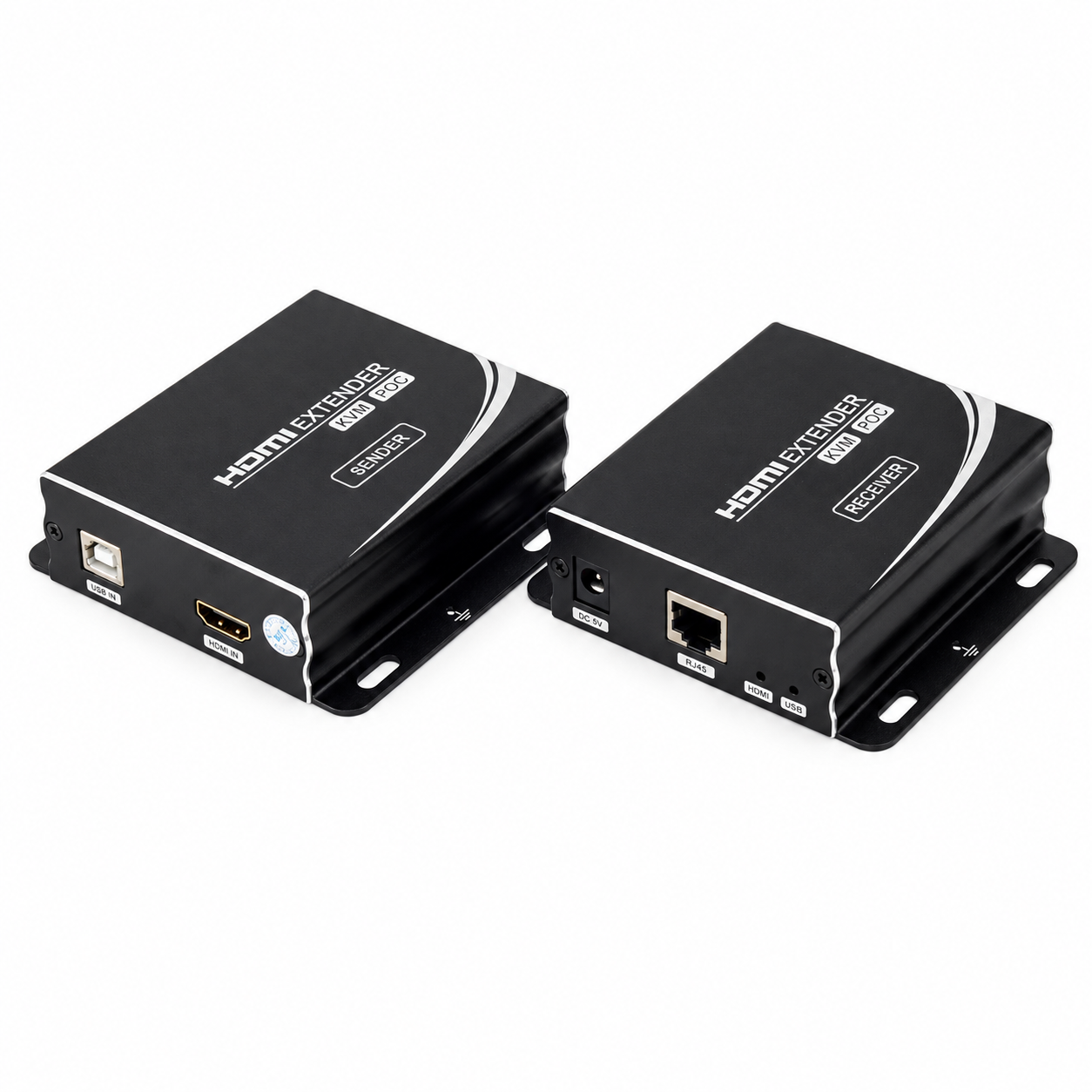

The product images show a dedicated sender and receiver pair.
