198FT/60m HDMI Extender over single cat 5E/6 With IR

  • $60.99
    Unit price per
  • Save $19

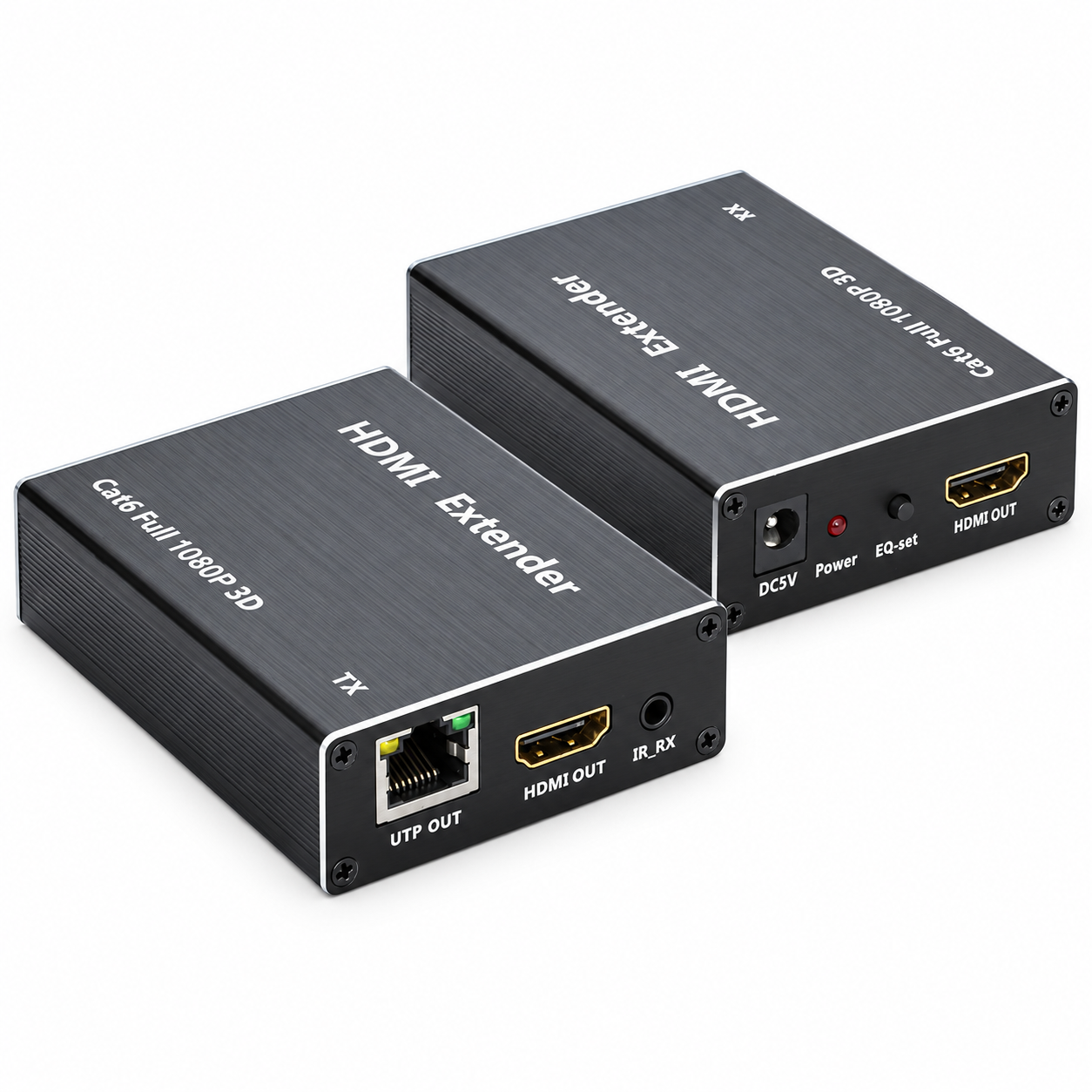

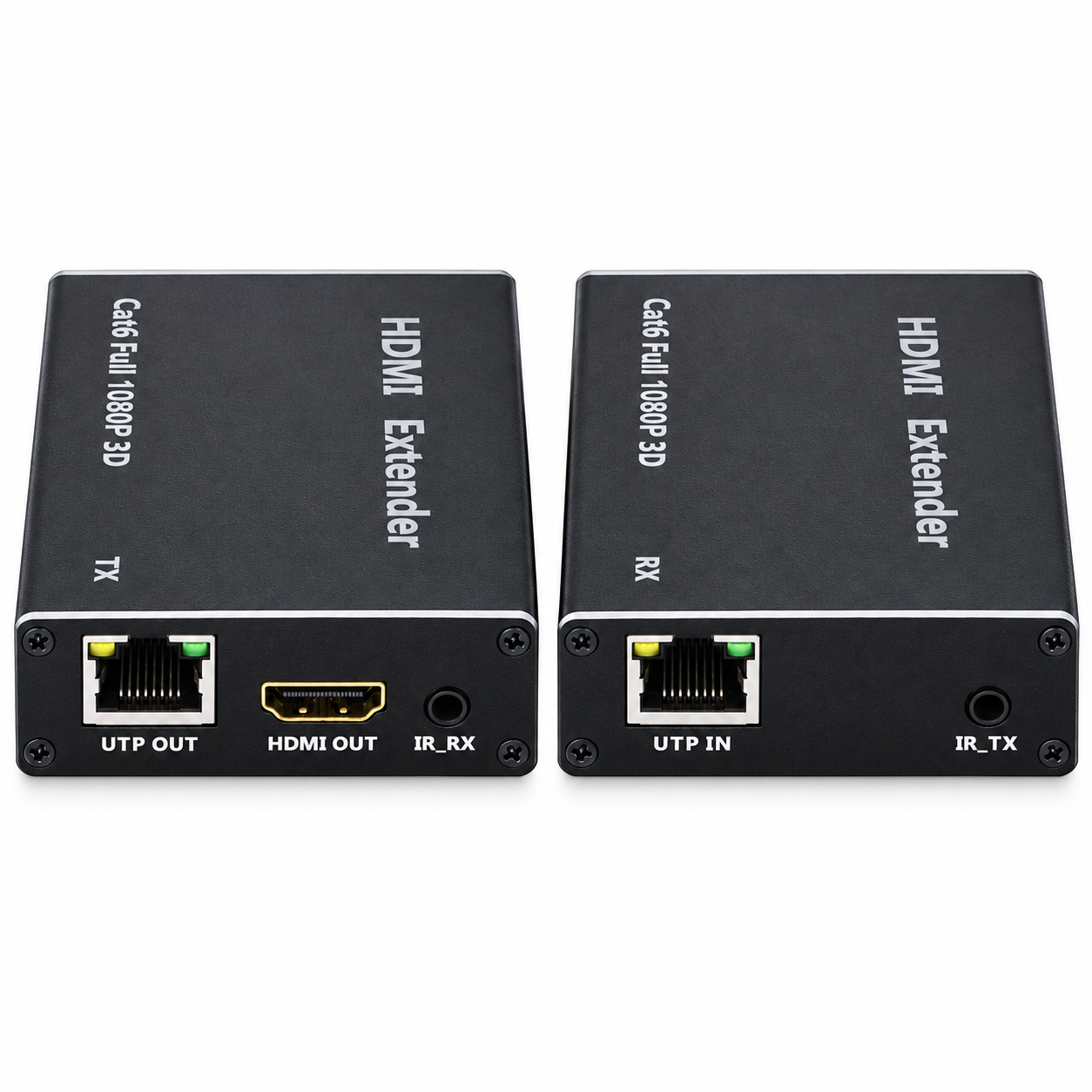

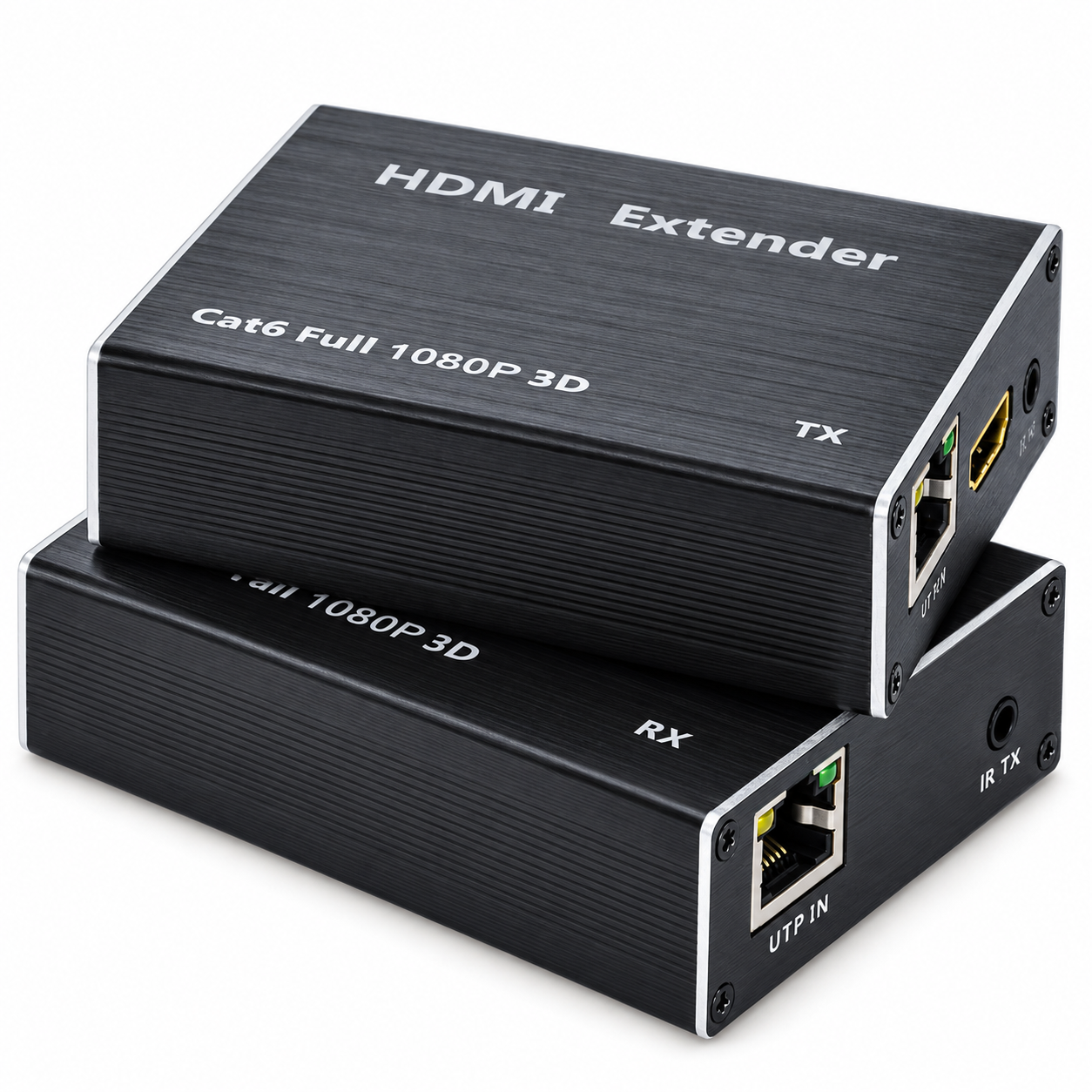

60m HDMI Extender over single cat 5E/6

Local HDMI loop out with one-band IR Return

The Extender uses single cat-5E or cat-6(recommended) cable instead of HDMI cable to transmit high definition signal up to 60 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES

Support HDMI 1.4a

Support 3D

Support highest video resolution 1080p/60Hz

Support 1.65Gbps data rate and TMDS clock up to 165MHz

Support 8/10/12 bit deep color

Support AWG26 standard HDMI cable, input up to 15 meters, output up to 20 meters

Signal transmission: By using single cat-5e or cat-6(recommended) cable instead of HDMI cable, it can extend the distance up to 60 meters between TX (Transmitter) and RX (Receiver).

No loss of quality

Install in minutes

Need DC5V/1A power supply

Operating and Connecting:

  1. Connect one HDMI cable between source device and TX (Transmitter) Extender, the max          cable distance is 15 meters
  2. Connect one HDMI cable between display device and RX (Receiver) Extender, the max    cable distance is 20 meters
  3. Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between TX (Transmitter) and RX (Receiver) Extender, the max cable distance is 60 meters
  4. Connect 5V power supply to the TX (Transmitter) and RX (Receiver). The Power LED light will be turn on red during working.
  5. LED indicator light

(1).TX (Transmitter) LED indicator light:

The blue LED light on RJ45 port will turn on when the source single input well. Meanwhile, the orange LED light on RJ45 port will turn on while the Cat5e/6 cable connects well.

(2).RX (Receiver) LED indicator light:

The orange LED light will turn on continuously when the source signal input well. Meanwhile, the blue LED light on RJ45 port will turn on continuously when the display device connects well.

  1. EQ-Set button: Please press the button one time or more while there is no pictures or snow points on the display when all devices connect well.

SPECIFICATIONS:

  Length of CAT-5E/CAT-6 cable between RX and TX ……………...............Up to 60 meters

HDMI Input…..…………………...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support Audio input.……............................…DTS-HD/Dolby-true HD/DTS/Dolby-AC3/DSD

HDMI Output…..…………….…...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support Audio output...……. ……………….…DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………………………………………………165MHz

Max band rate……………….…….………………….………….………………………1.65Gbps

Input Video signal ………….…………………………..…………………….… 0.5~1.5Volts p-p

Output DDC signal ……………………………………………………………… 5Volts p-p (TT1L)

Input HDMI cable distance …….…………..........….. ……=15m AWG26 HDMI standard cable

Output HDMI cable distance............................................ =20m AWG26 HDMI standard cable

TX Max working current ………………………..……………...………….………………...510mA

RX Max working current …………………………………………...………………………...100mA

Power adapter format………...………Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………………………… (-15 to +55?)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Dimension (L x W x H)     ……………………………….…………………………81x63x23 (mm)

TX Weight…..……………………………………………..………………………........………100g

RX Weight.................................................................................................100g
