UltraPoE CT-EOC-02M Ethernet over Coax Converter Kit, RJ45 and BNC, Up to 2 km
Reuse existing coaxial cabling for Ethernet network transmission. The UltraPoE CT-EOC-02M is a two-unit Ethernet over coax converter kit for upgrading legacy CCTV and building networks without replacing installed cable. It uses IEEE P1901 technology and supports automatic network configuration for plug-and-play deployment.
Key features
- Two-unit transmitter/receiver kit for point-to-point Ethernet over coax links

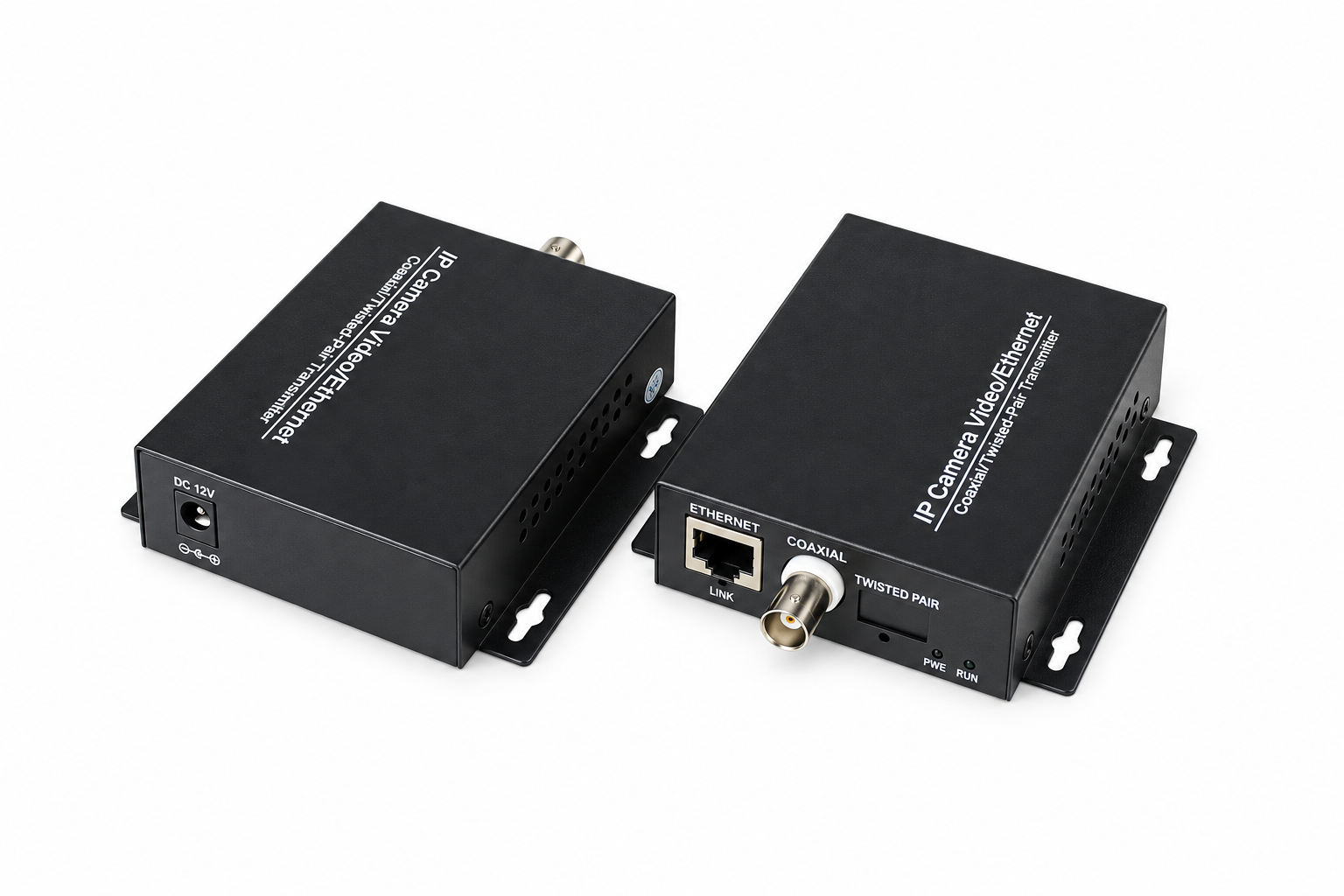

- 1 x RJ45 Ethernet port, 1 x BNC coaxial connector and twisted-pair terminal position on each unit
- Maximum listed transmission distance up to 2 km on standard SVY75-5 coaxial cable
- AES-128 data encryption and manufacturer user-code support
- Built-in watchdog can restart the link after 50 seconds of abnormal network communication
- Green coax physical-link indicator and yellow LAN link/activity indicator

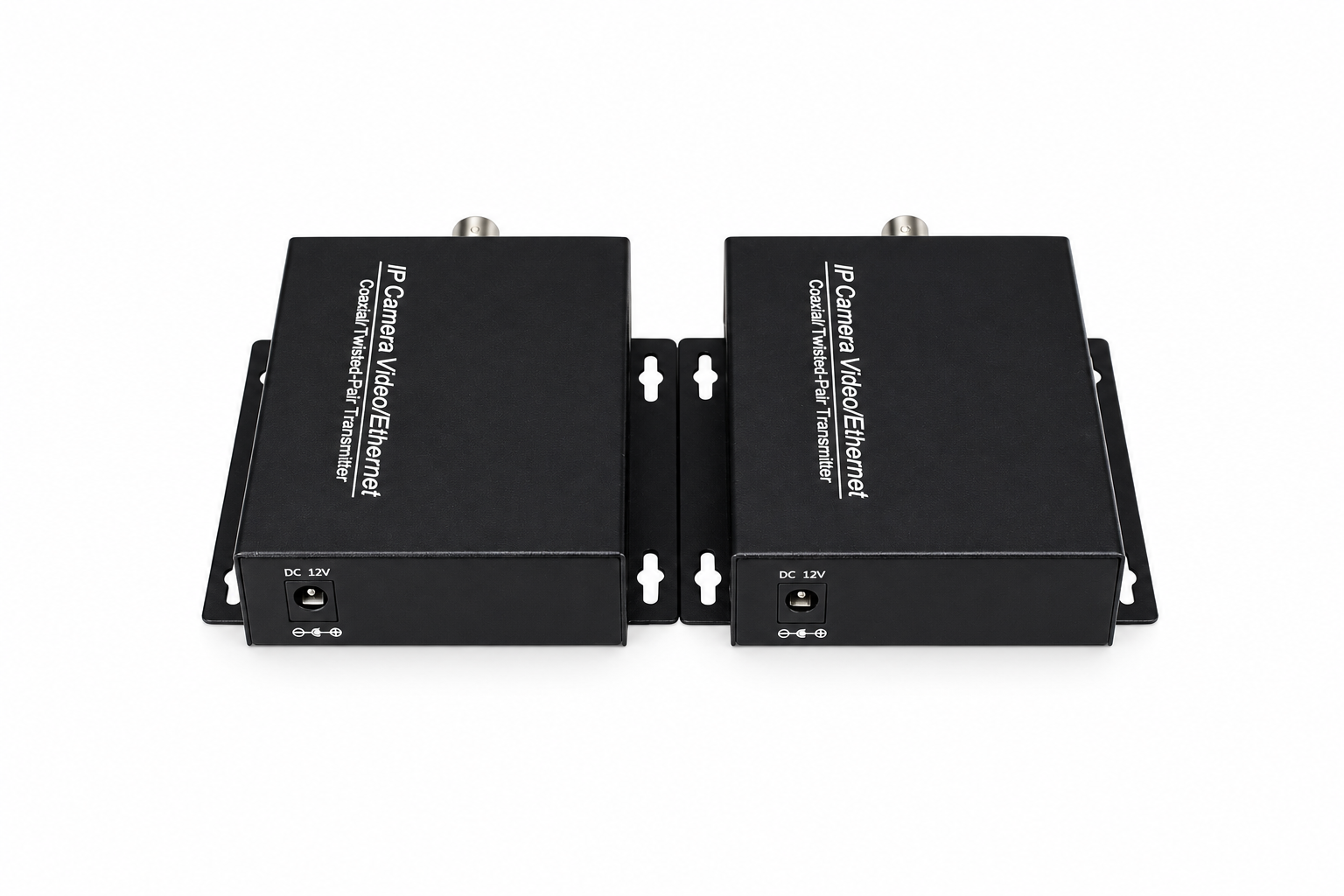

- 12V DC, 1A power input per unit
Listed throughput by cable distance
| SVY75-5 cable distance | Listed TCP/IP throughput |
|---|---|
| Under 400 m | Up to 92 Mbps |
| Under 1 km | Up to 74 Mbps |
| Under 2 km | Up to 30 Mbps |
Actual throughput depends on cable quality, connectors, interference and installation conditions.
Multi-node networking
The source specification lists support for up to 8 terminal devices on one cable and network designs serving up to 16 IP cameras. Final topology and performance depend on the complete system design and field conditions.
Typical applications
- Converting legacy CCTV coax infrastructure for IP cameras
- Extending Ethernet through existing building coax runs
- Factories, campuses, parking facilities, elevators and remote surveillance points
- Retrofit projects where pulling new Ethernet cable is difficult or costly
Frequently asked questions
Does this converter provide PoE power?
No PoE output is claimed for this model. CT-EOC-02M converts Ethernet data for transmission over coaxial cable; connected equipment requires its own suitable power source.
Is this sold as a pair?

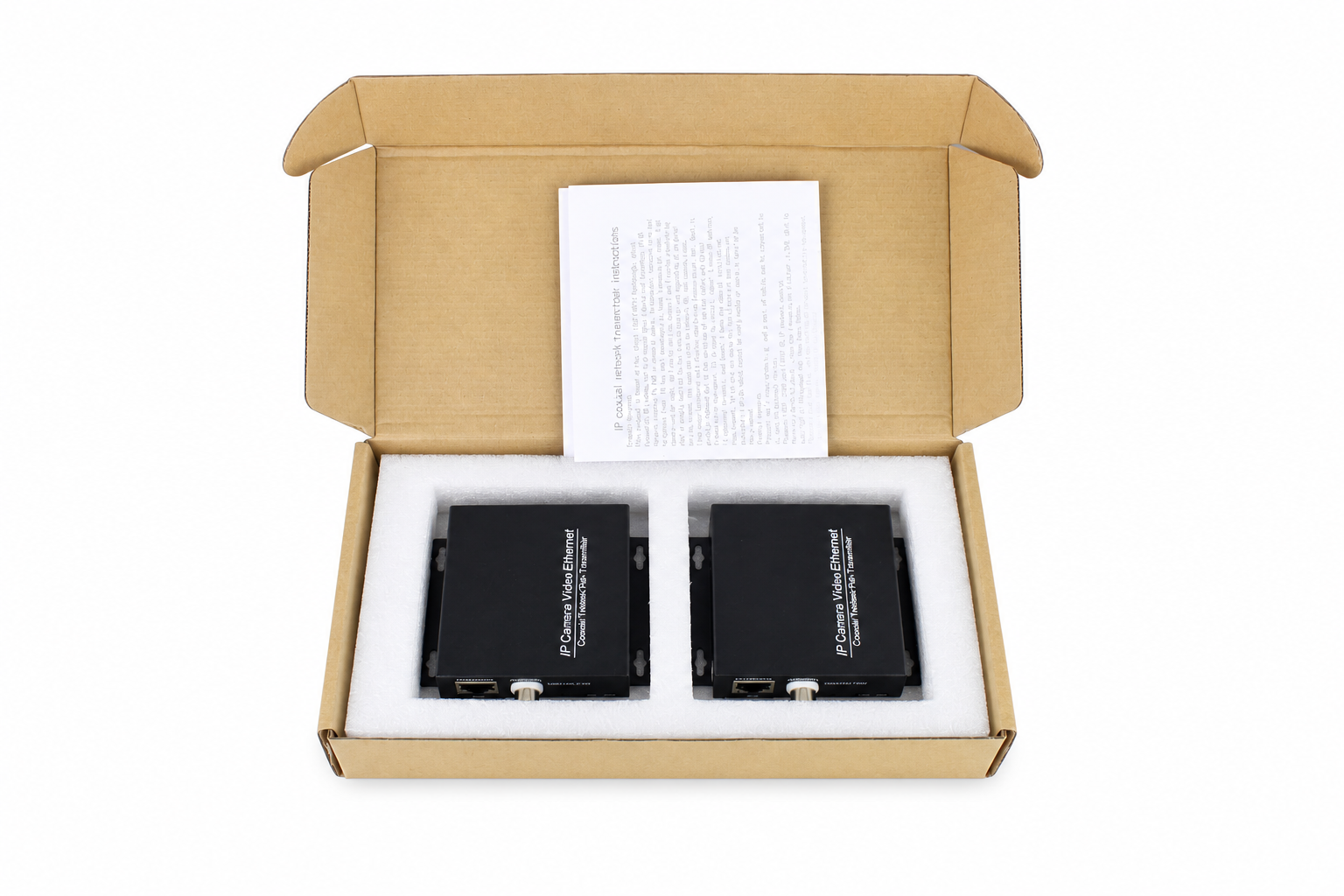

Yes. The product photos and packaging show two matching converter units for the link endpoints.
What connectors are provided?

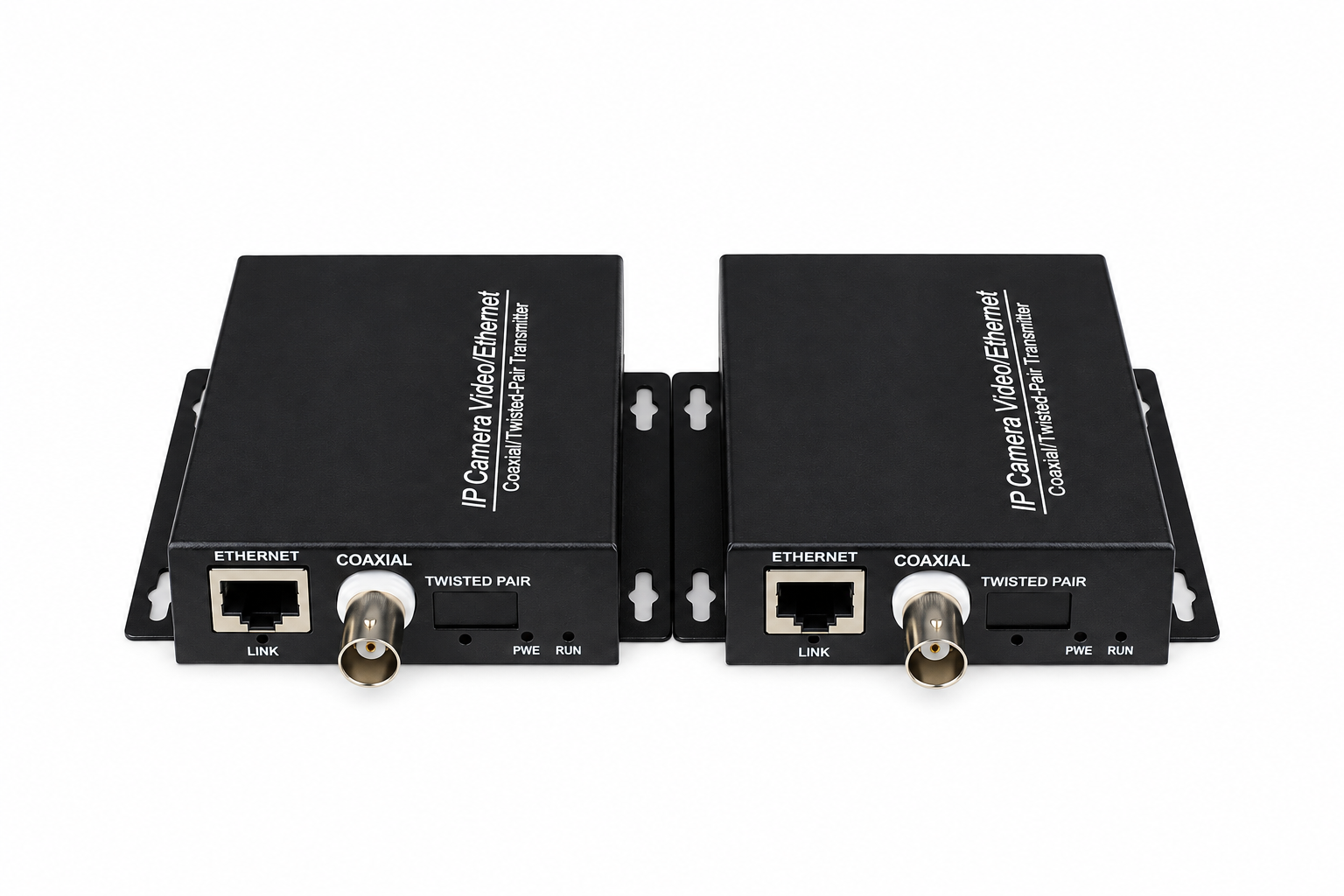

Each converter has one RJ45 Ethernet port and one BNC coaxial connector, plus the shown twisted-pair terminal position and status indicators.
Is configuration required?
The product is designed for automatic network configuration and plug-and-play installation. Cable condition and network design should still be verified before deployment.
