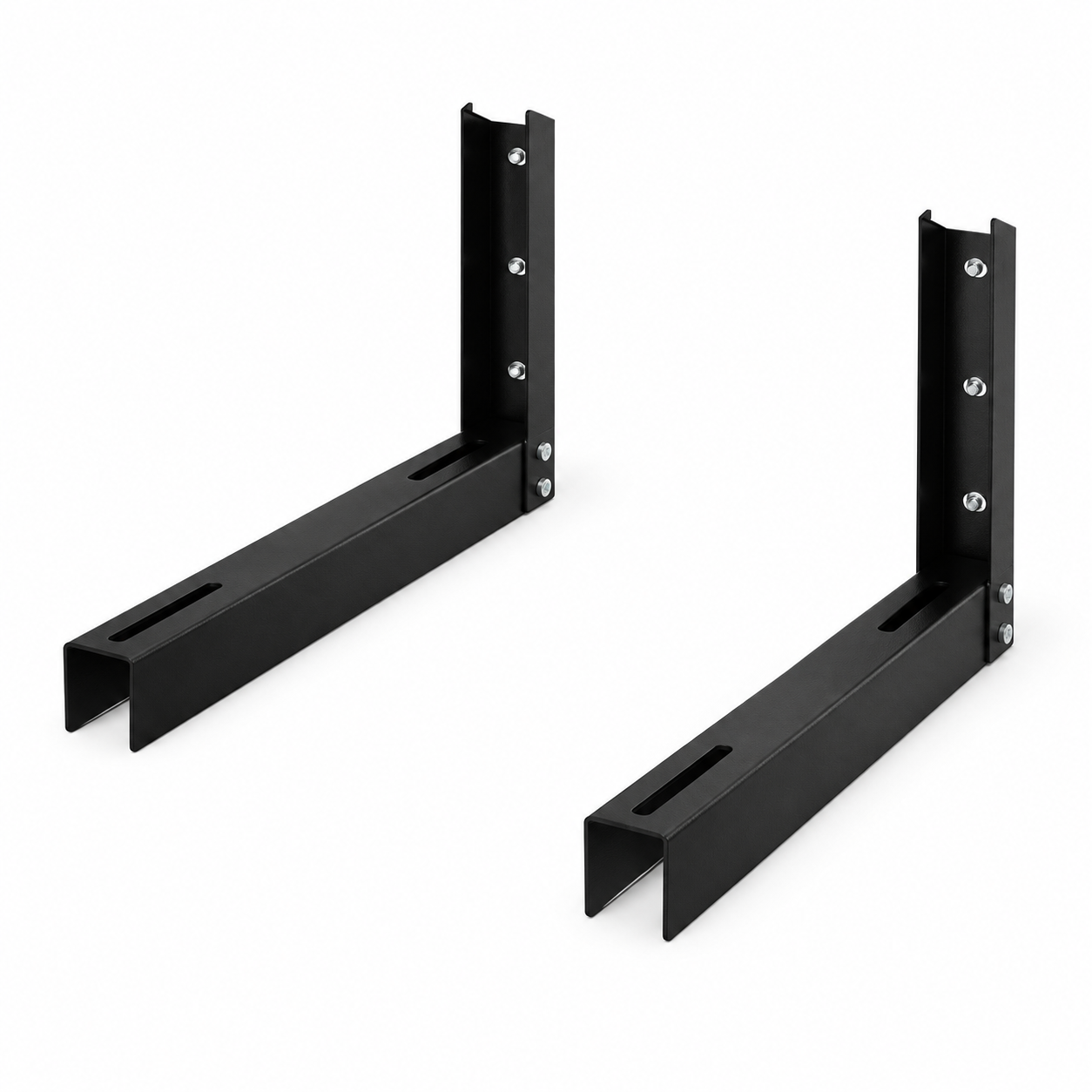

UltraPoE CT-DL-HR universal DVR lockbox wall bracket pair for horizontal or vertical mounting

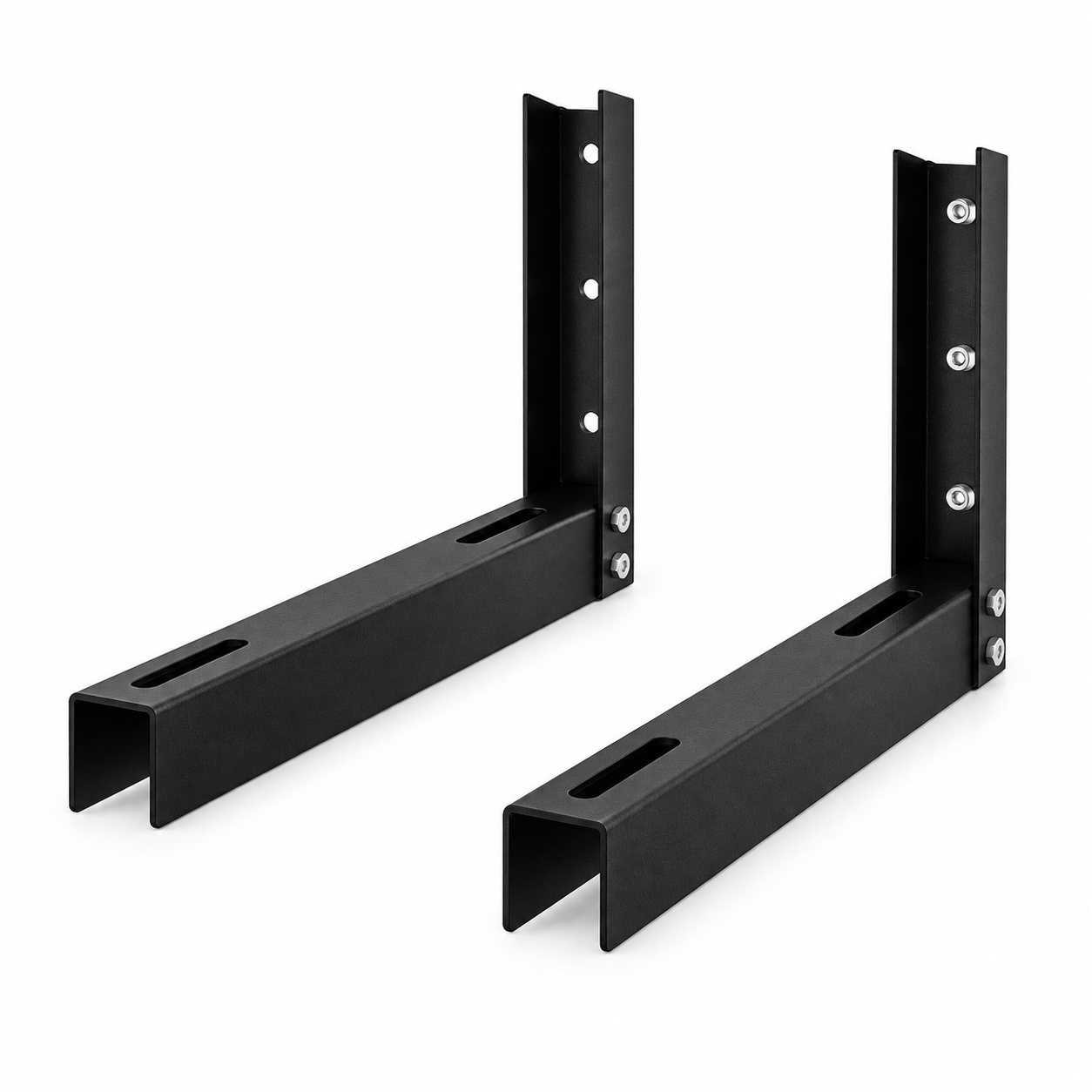

UltraPoE CT-DL-HR black U-channel support arms with mounting slots and fastener details

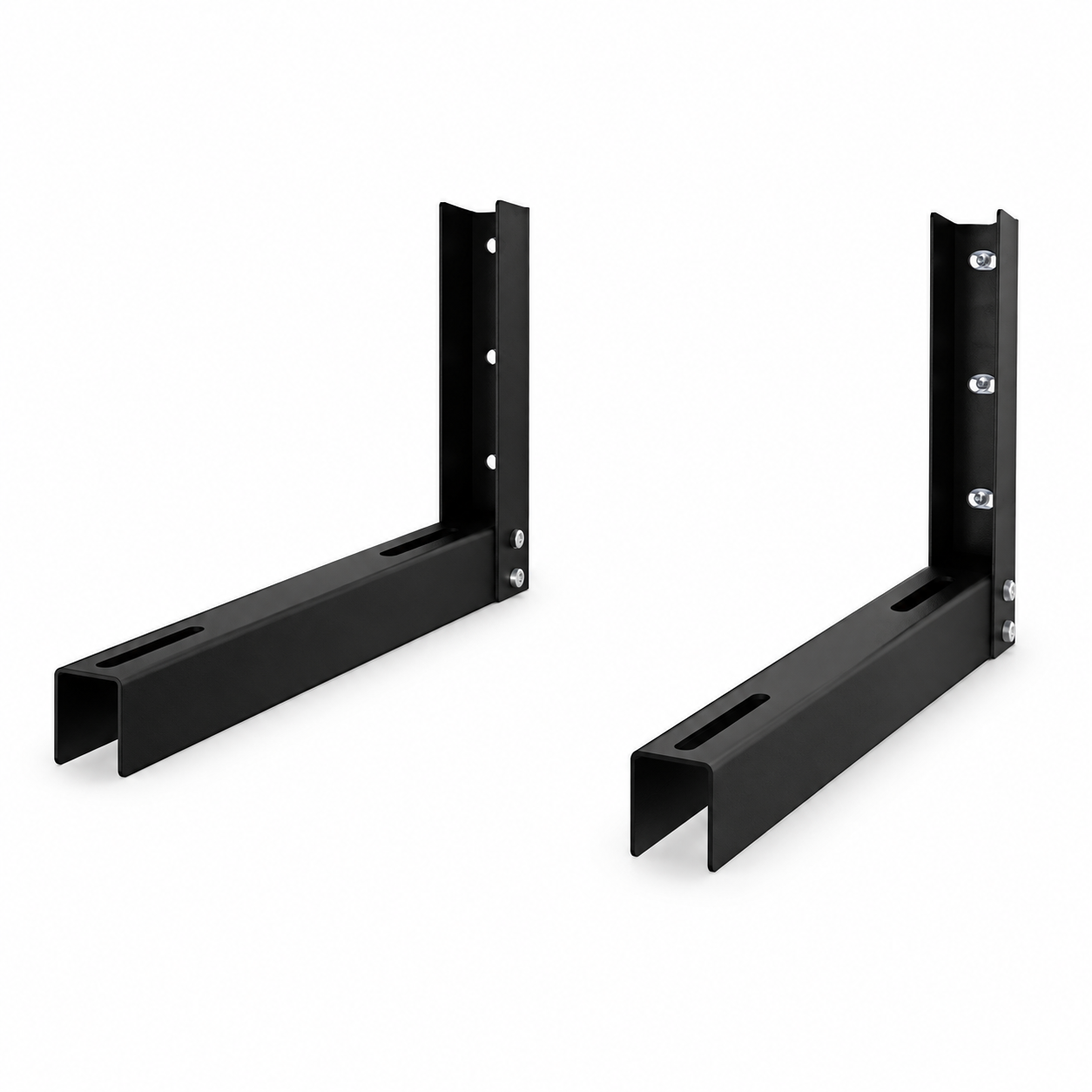

UltraPoE CT-DL-HR two-piece DVR security enclosure wall mounting bracket overview

UltraPoE CT-DL-HR Universal Horizontal/Vertical Wall Bracket for DVR Lockboxes

  • Save $3
SKU: CT-DL-HR




UltraPoE CT-DL-HR wall bracket for DVR security lockboxes


The UltraPoE CT-DL-HR is a two-bracket mounting system for securing compatible UltraPoE DVR lockboxes to a wall or other structurally suitable surface. Its adjustable U-channel support-arm layout can be configured for horizontal or vertical enclosure mounting.


Key features




  •
Configuration: horizontal or vertical wall mounting
    •

  •
Bracket count: two matching L-shaped support assemblies
    •

  •
Vertical support arms: 24 inches long
    •

  •
Horizontal support arms: 9 inches long
    •

  •
Compatibility: designed to fit both listed UltraPoE DVR lockbox sizes
    •

  •
Isolation: rubber supports help separate the lockbox from the bracket arms
    •

  •
Adjustment: slotted mounting points support positioning during installation
    •



Installation overview




  1. Use a stud finder to locate suitable wall framing at 16-inch centers.
    2.

  2. Secure both 24-inch vertical support arms to the wall framing, spaced 16 inches apart.
    3.

  3. Attach the 9-inch horizontal support arms using the supplied spacers.
    4.

  4. Attach the four U-shaped caps with welded nuts to the vertical supports, then install the rubber supports on the nuts.
    5.

  5. Place two rubber supports on each horizontal arm to isolate the lockbox from the bracket.
    6.

  6. Position the compatible lockbox over the welded nuts and secure it using the supplied low-profile nuts.
    7.



Important installation guidance


Confirm the wall structure, fastener suitability, enclosure dimensions, installed equipment weight, and required clearances before mounting. Installation into wall studs or another load-bearing structure should be completed using hardware appropriate for the mounting surface. The spacers specified for the assembly should be used to preserve bracket alignment.


Frequently asked questions


Can this bracket mount a lockbox horizontally or vertically?
Yes. The CT-DL-HR is designed to support either horizontal or vertical wall-mount orientation when correctly configured and installed.


What are the support-arm lengths?
The listed vertical arms are 24 inches long and the horizontal arms are 9 inches long.


Does it fit every DVR enclosure?
No universal fit with every third-party enclosure is claimed. It is designed for the two listed UltraPoE DVR lockbox sizes. Verify the lockbox mounting pattern, dimensions, and loaded weight before installation.


Is the DVR lockbox included?
No. This listing is for the wall-bracket system; the security lockbox and electronic equipment are not included.


Can it be attached only to drywall?
The installation instructions specify locating wall studs and securing the supports to structural framing. Do not rely on unsupported drywall alone.
