UltraPoE CT-CAT6E-UTP 1000ft Cat6 23 AWG CCA UTP Cable – White
SKU: CT-CAT6E-UTPUltraPoE CT-CAT6E-UTP is a 1000 ft pull box of white CAT6 UTP bulk Ethernet cable built with solid 23 AWG copper-clad aluminum (CCA) conductors. It is designed for indoor structured cabling, surveillance networks, routers, switches, access points and other compatible 10/100/1000BASE-T installations.
Key features

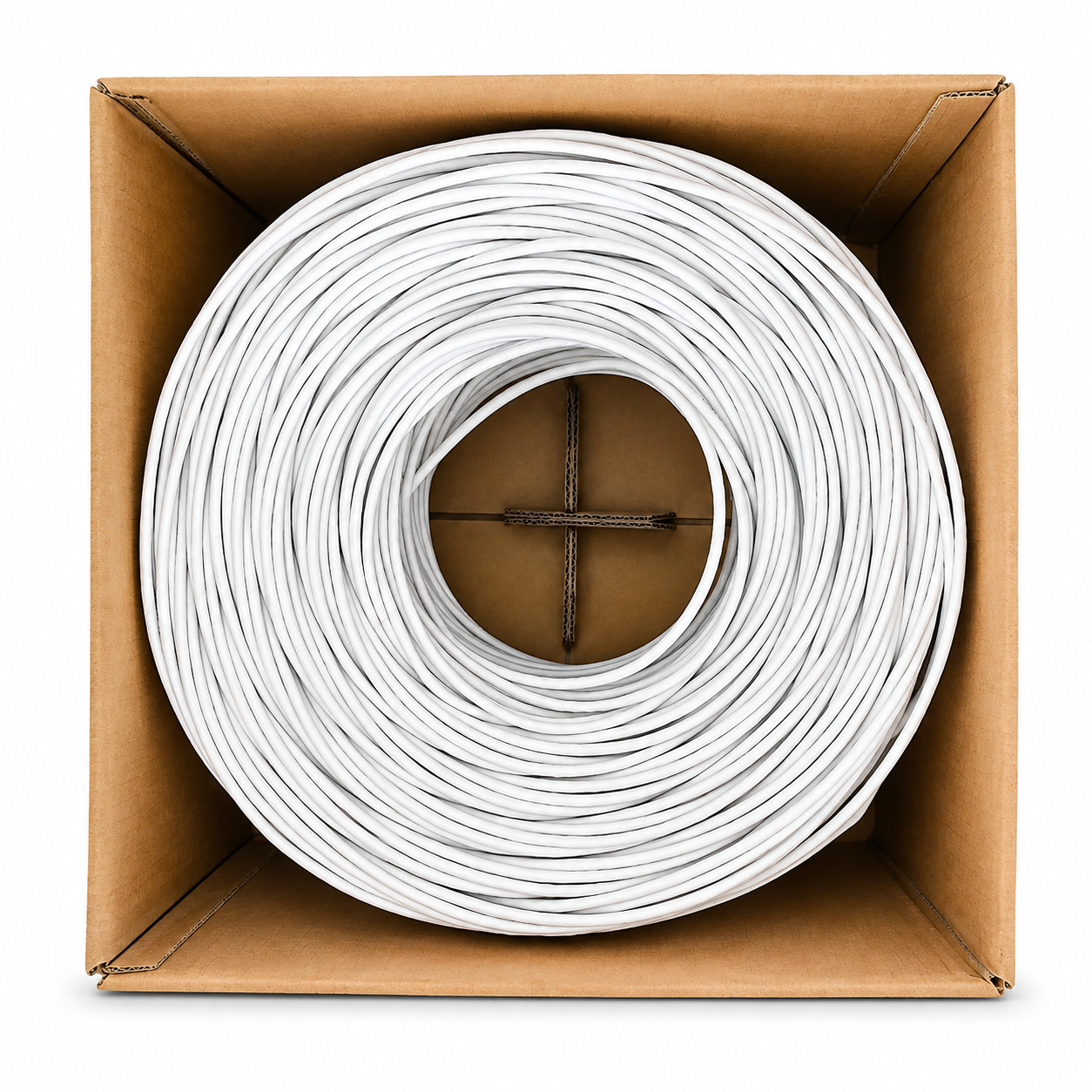

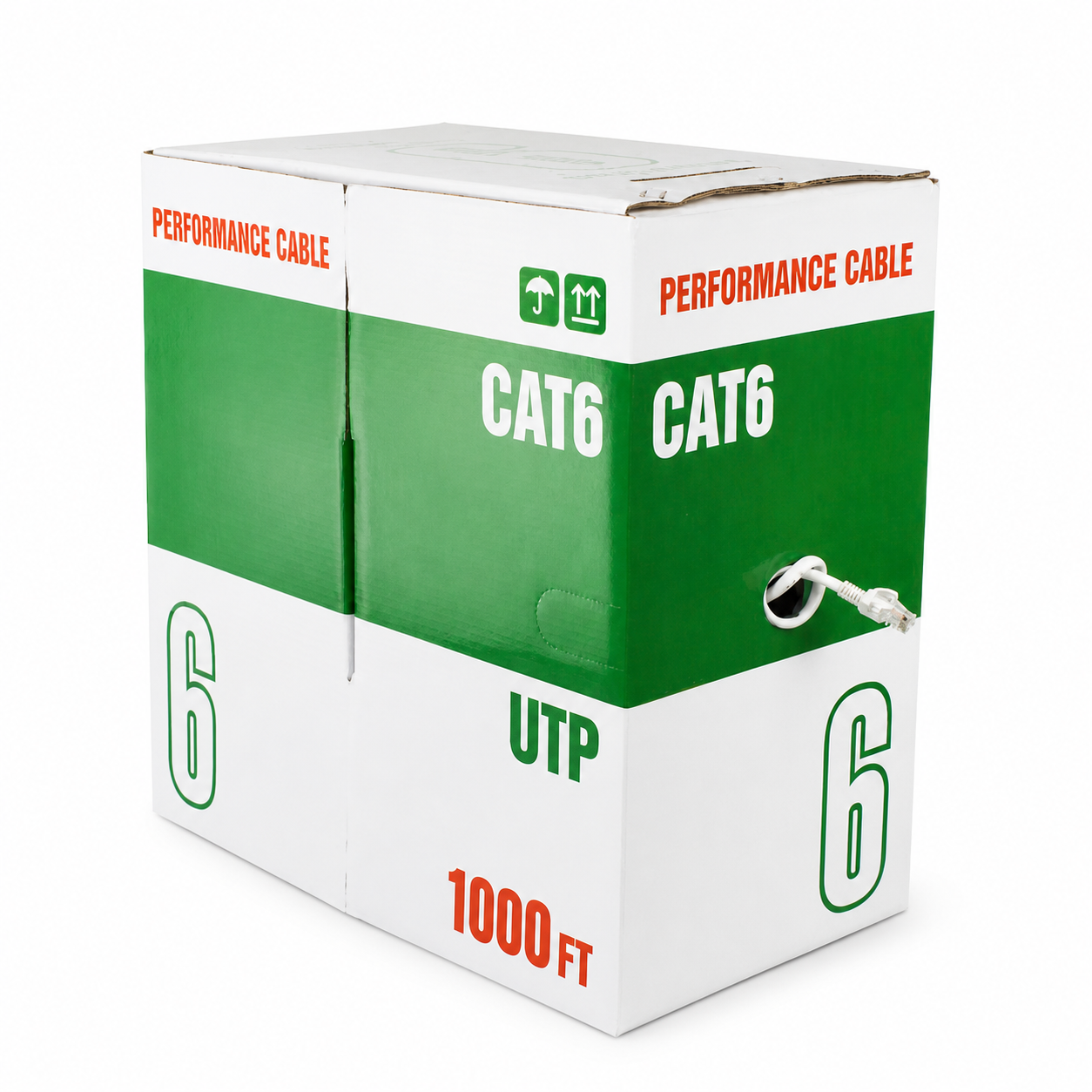

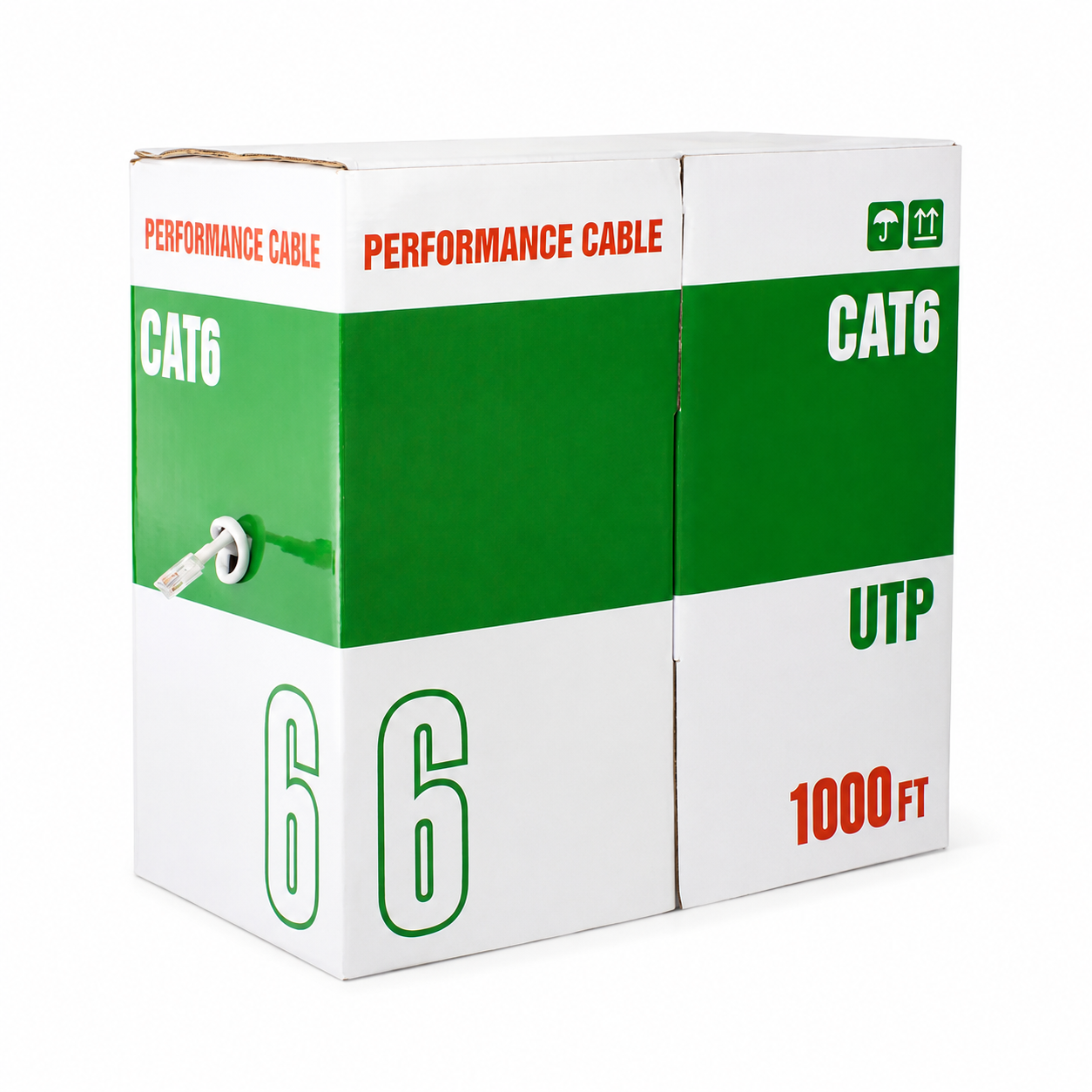

- 1000 ft (305 m) bulk cable in an easy-pull box
- CAT6 unshielded twisted pair (UTP), four pairs
- Solid 23 AWG CCA conductors
- 550 MHz maximum referenced frequency
- Supports 10BASE-T, 100BASE-T and 1000BASE-T Ethernet
- White PVC jacket with rip cord
- RoHS compliant

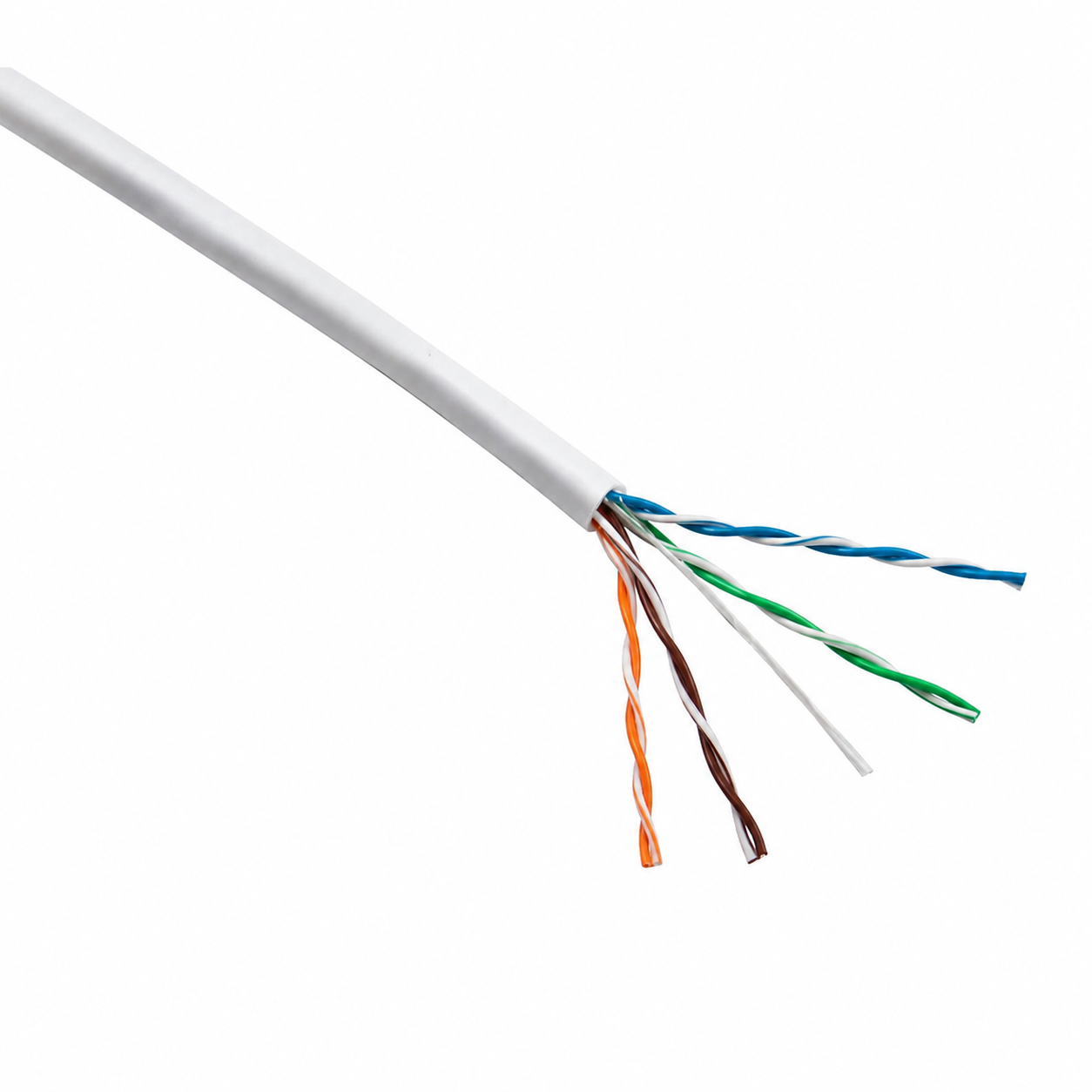

- Color-coded pairs: blue, orange, green and brown with matching white-striped conductors
Technical specifications
| Model / SKU | CT-CAT6E-UTP |
|---|---|
| Category | CAT6 |
| Cable type | UTP, 4 pairs |
| Conductor | Solid CCA (copper-clad aluminum) |
| Conductor size | 23 AWG |
| Length | 1000 ft / 305 m |
| Maximum referenced frequency | 550 MHz |
| Supported Ethernet | 10/100/1000BASE-T |
| Insulation | HDPE, 1.0 +/- 0.03 mm OD |
| Jacket | White PVC, 0.55 +/- 0.05 mm thickness |
| Overall cable OD | 6.0 +/- 0.1 mm |
| Operating temperature | -20°C to 60°C |
| Conductor resistance | ≤93.5 ohms/km at 20°C |
| Standards referenced | ANSI/TIA-568-C.2, IEEE 802.3, YD/T1019-2013, RoHS |
Typical applications
Use for indoor Ethernet runs between compatible network equipment, including switches, routers, patch panels, wall jacks, wireless access points, IP cameras and NVR systems. Confirm local code requirements and equipment power limits before using CCA cable in PoE installations.
Downloads
Download the CT-CAT6E-UTP CAT6 CCA specification sheet (PDF)
Frequently asked questions
Is CT-CAT6E-UTP pure copper?
No. It uses solid copper-clad aluminum (CCA) conductors.
What length is included?
One pull box contains 1000 ft (305 m) of white CAT6 UTP cable.
Does it support Gigabit Ethernet?
Yes. The specification references 10BASE-T, 100BASE-T and 1000BASE-T operation.
What is the cable frequency rating?
The maximum referenced frequency is 550 MHz.
Can I use it for PoE?
The specification lists Power over Ethernet as an application. Always confirm the connected equipment requirements, installation length, local electrical codes and power limits before using CCA cable for PoE.
