UltraPoE PoE-1605-4D-65W 4-Port Gigabit PoE+ Switch – 65W
UltraPoE PoE-1605-4D-65W is a compact unmanaged Gigabit PoE+ switch for IP cameras, wireless access points, VoIP phones and access-control devices. It provides four Gigabit PoE ports, one Gigabit RJ45 uplink and a supplied 65W power adapter.
Key features
- 4 Gigabit PoE+ ports: Four 10/100/1000 Mbps RJ45 ports deliver data and power to compatible devices.
- Dedicated Gigabit uplink: One Gigabit RJ45 uplink connects to a router, recorder or core switch.

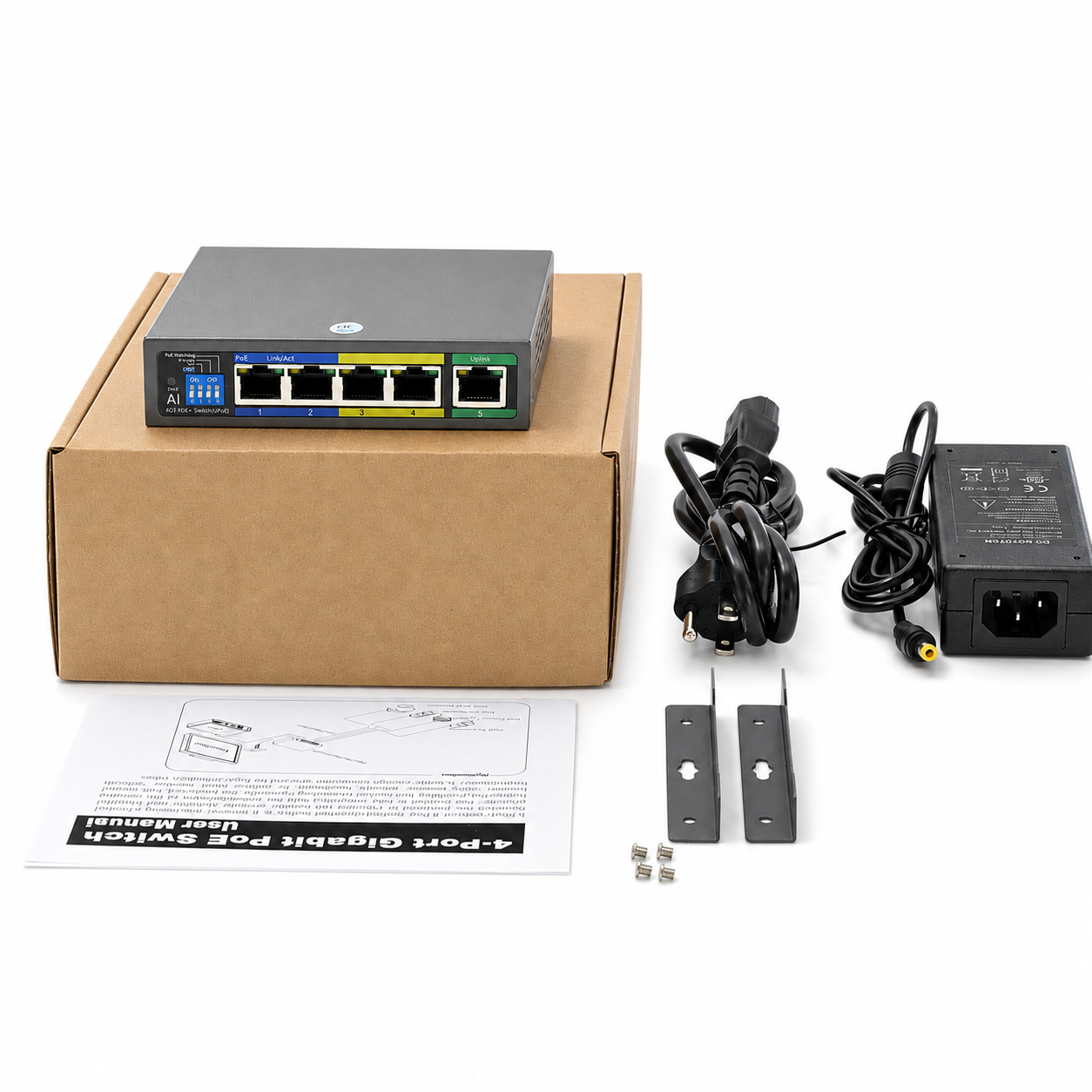

- 65W power supply: Includes a 65W power adapter for the shared PoE load.
- IEEE PoE support: Compatible with IEEE 802.3af and IEEE 802.3at powered devices.
- Five selectable modes: Normal, VLAN, Extend, AI Watchdog and QoS.
- AI PoE Watchdog: Monitors connected devices and can restart power to an unresponsive PoE connection.
- 250 m Extend mode: Supports longer cable runs at a reduced link rate.
- 4 kV port surge protection: Helps protect network ports against electrical transients.
- Metal enclosure: Durable construction for indoor desktop installations.
Technical specifications
- Model: PoE-1605-4D-65W
- PoE ports: 4 × 10/100/1000 Mbps RJ45
- Uplink: 1 × Gigabit RJ45
- PoE standards: IEEE 802.3af and IEEE 802.3at
- Power adapter: 65W
- Switching capacity: 10 Gbps
- MAC address table: 2K
- Flow control: IEEE 802.3x
- Standard transmission distance: Up to 100 m
- Extend-mode distance: Up to 250 m
- Port surge protection: 4 kV
- Compliance: FCC and CE Class B
Typical applications
Suitable for small IP surveillance systems, Wi-Fi access points, VoIP phones and entry systems that need four Gigabit PoE+ connections with a simple copper uplink.
Frequently asked questions
Does this switch have four or five PoE ports?
It has four PoE ports and one separate Gigabit RJ45 uplink, for five Ethernet ports in total.
Is 65W available from each port?
No. The included 65W adapter supplies the switch and the shared PoE load. Confirm the combined power requirements of all connected devices.
What does AI Watchdog do?
It monitors connected PoE devices and can power-cycle an unresponsive connection to help restore operation.
Can it transmit beyond 100 meters?
Yes. Extend mode supports cable runs up to 250 meters at a reduced data rate, subject to cable quality and device requirements.
Download the product manual · Download the specification sheet
NDAA compliance
NDAA compliant — manufacturer declared.
