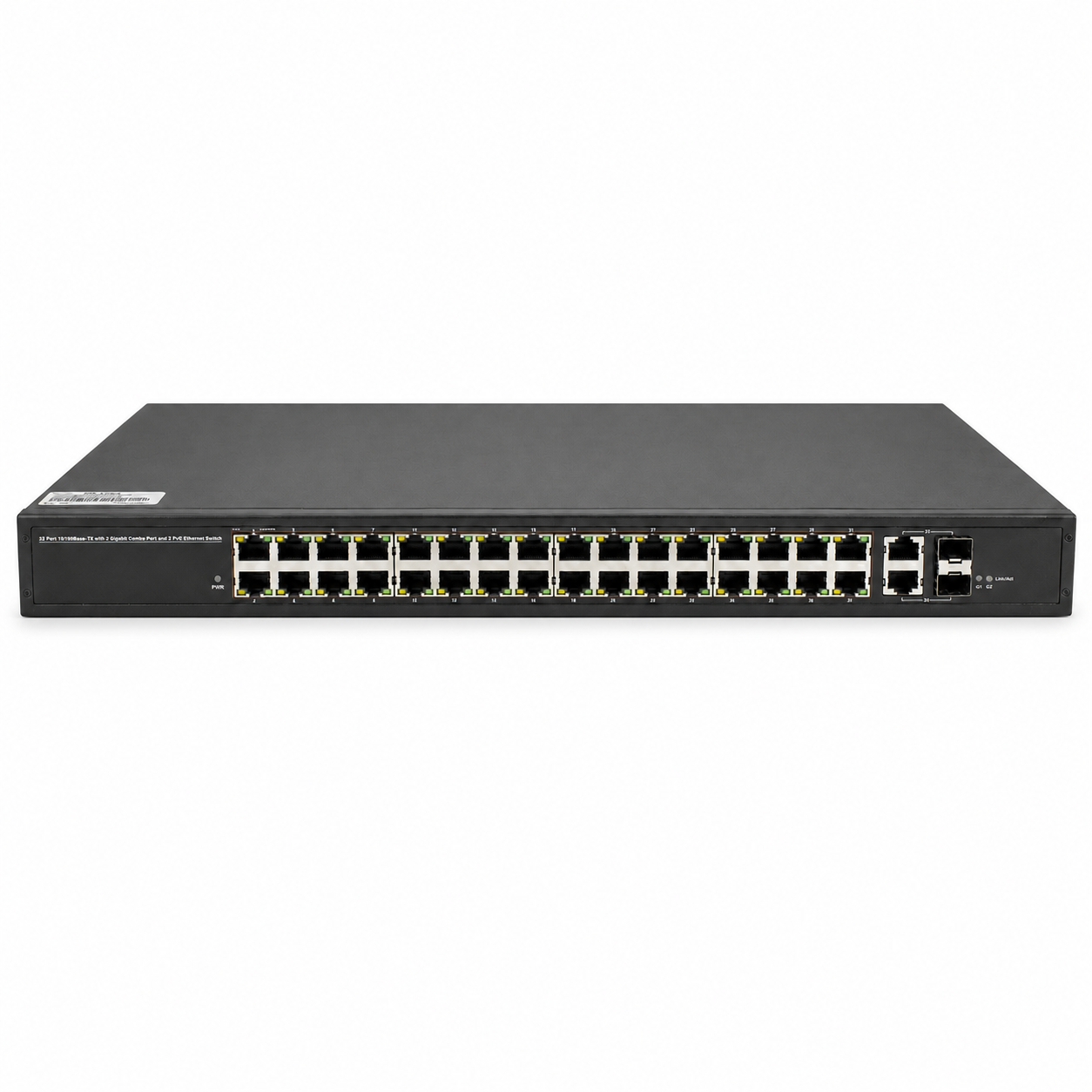

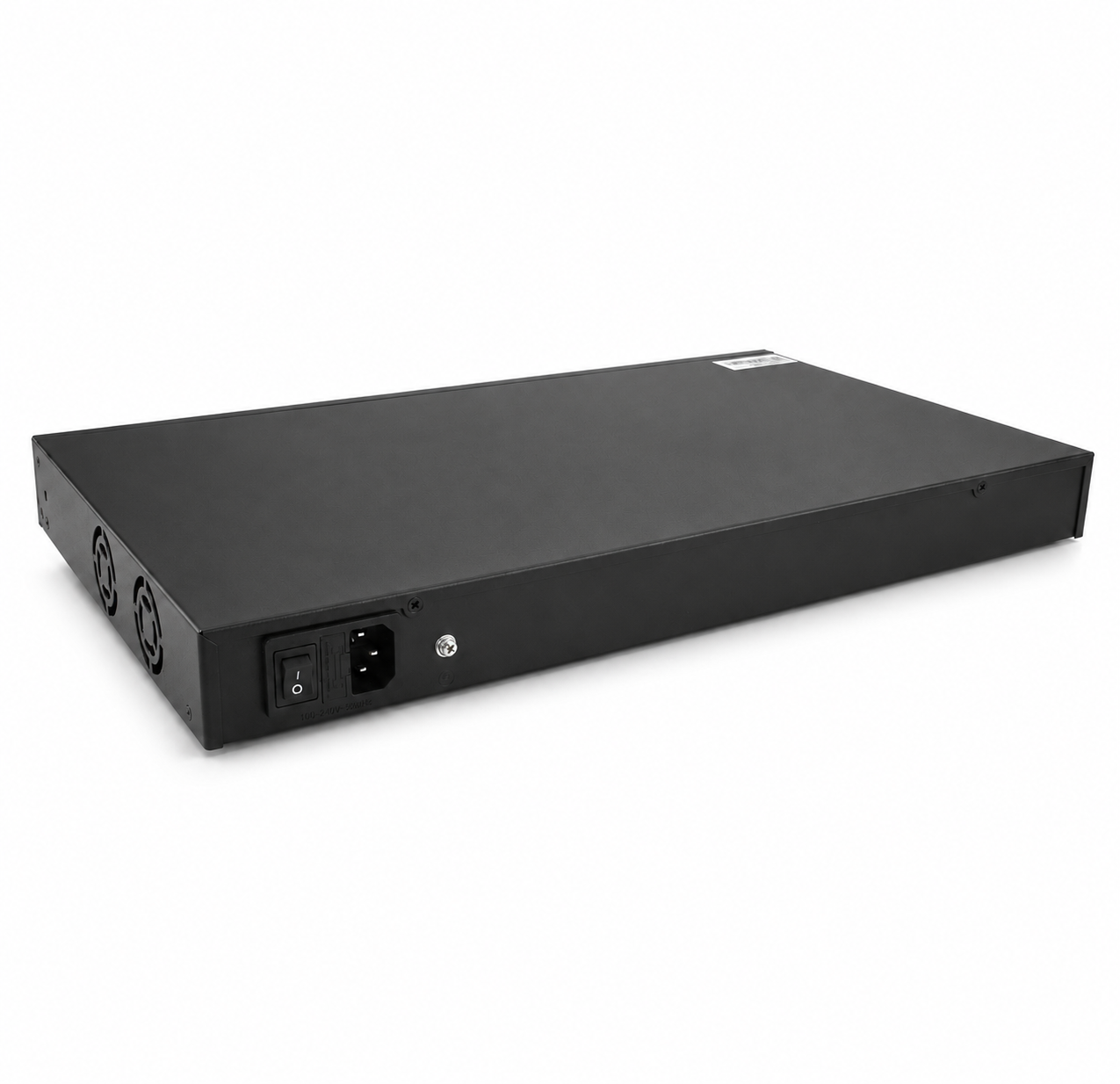

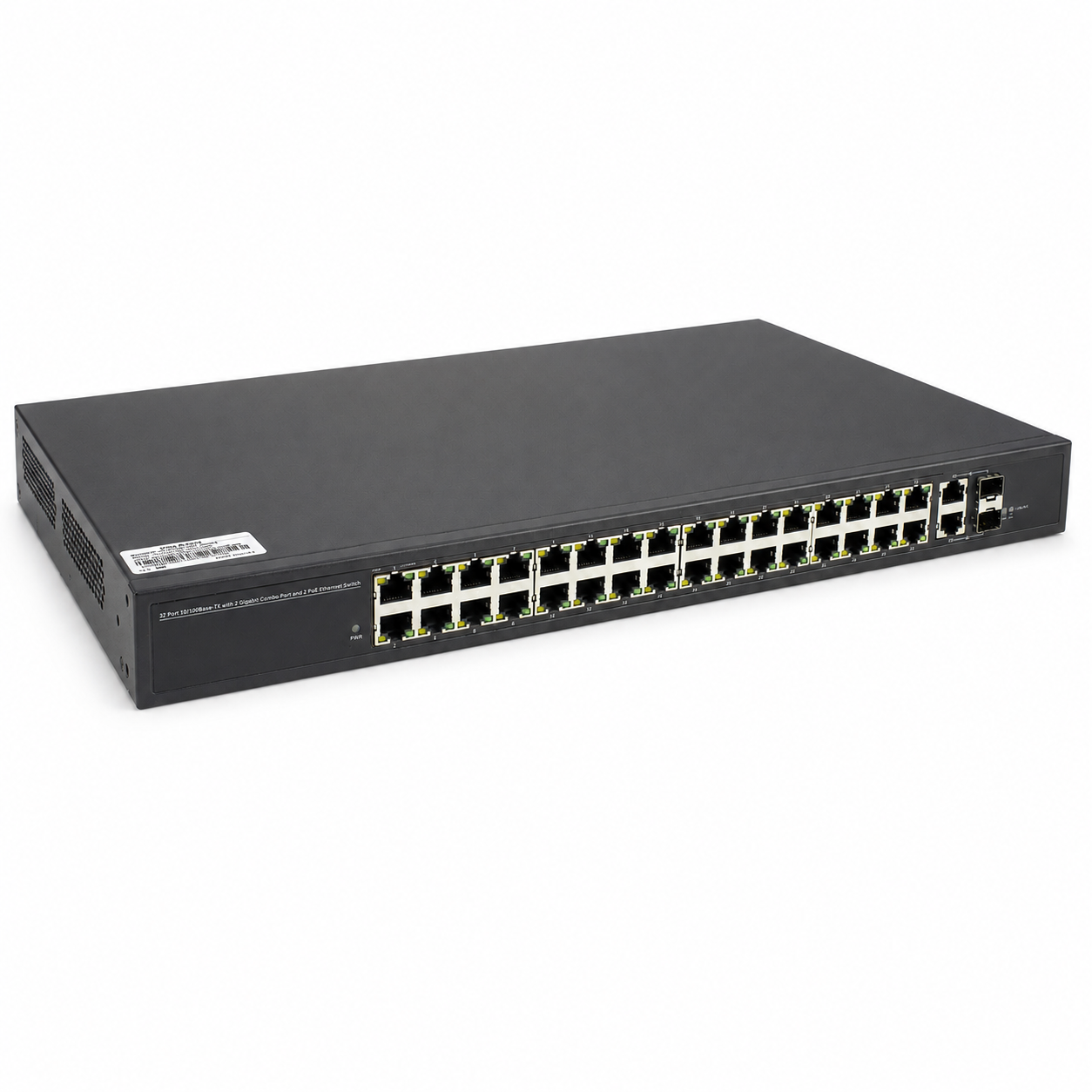

UltraPoE POE-2034-32P-500 32-Port PoE Switch – 500W, 2 Combo Uplinks
UltraPoE POE-2034-32P-500 is a high-capacity 32-port PoE switch for large IP surveillance, access-control and powered network deployments. It combines 32 Fast Ethernet PoE ports, two Gigabit RJ45/SFP combo uplinks and a 500W built-in power system.
Key features
- 32 PoE ports: Thirty-two 10/100 Mbps RJ45 ports provide centralized power and data connectivity.
- 2 Gigabit combo uplinks: Two RJ45/SFP combo interfaces offer flexible copper or fiber uplink options.
- 500W built-in power: High-capacity internal power system supports large multi-device installations.
- Rack-mount form factor: Designed for equipment racks, surveillance rooms and network cabinets.
- Centralized deployment: Reduces the need for separate power adapters at remote devices.
Technical specifications
- Model: POE-2034-32P-500
- PoE ports: 32 × 10/100 Mbps RJ45
- Uplinks: 2 × Gigabit RJ45/SFP combo interfaces
- Built-in power system: 500W
- Total Ethernet interfaces: 34
- Installation: Rack mount
Typical applications
Suitable for large IP camera systems, NVR networks, access-control installations and other projects that require up to 32 powered Ethernet connections with high-capacity copper or fiber uplinks.
Frequently asked questions
Are the 32 PoE ports Gigabit?
No. The 32 PoE access ports operate at 10/100 Mbps. The two combo uplink interfaces support Gigabit RJ45 or SFP connectivity.
What is a combo uplink?
A combo interface provides RJ45 and SFP connection options that share one logical uplink. Use the copper or fiber option required for the installation.
Is 500W available from a single port?
No. The 500W rating applies to the switch power system and shared PoE load. Confirm the individual port limit and total supported PoE budget in the specification sheet before connecting high-power devices.
Are SFP modules included?
SFP modules are not listed as included. Select compatible transceivers separately for the required fiber type and distance.
Download the product specification · Download the product manual
NDAA compliance
NDAA compliant — manufacturer declared.
