PS-DC8A8PE Adjustable 12V/13.8V/15V 8A 8-Channel Outdoor CCTV Power Supply
SKU: PS-DC8A8PEPS-DC8A8PE 8-Channel Adjustable-Voltage Outdoor Power Supply
Power up to eight compatible CCTV cameras, access-control devices, IR illuminators or other low-voltage security equipment from one compact rainproof supply. The selectable 12V, 13.8V or 15V DC output gives qualified installers flexibility to compensate for verified voltage drop on longer cable runs.
Key Features

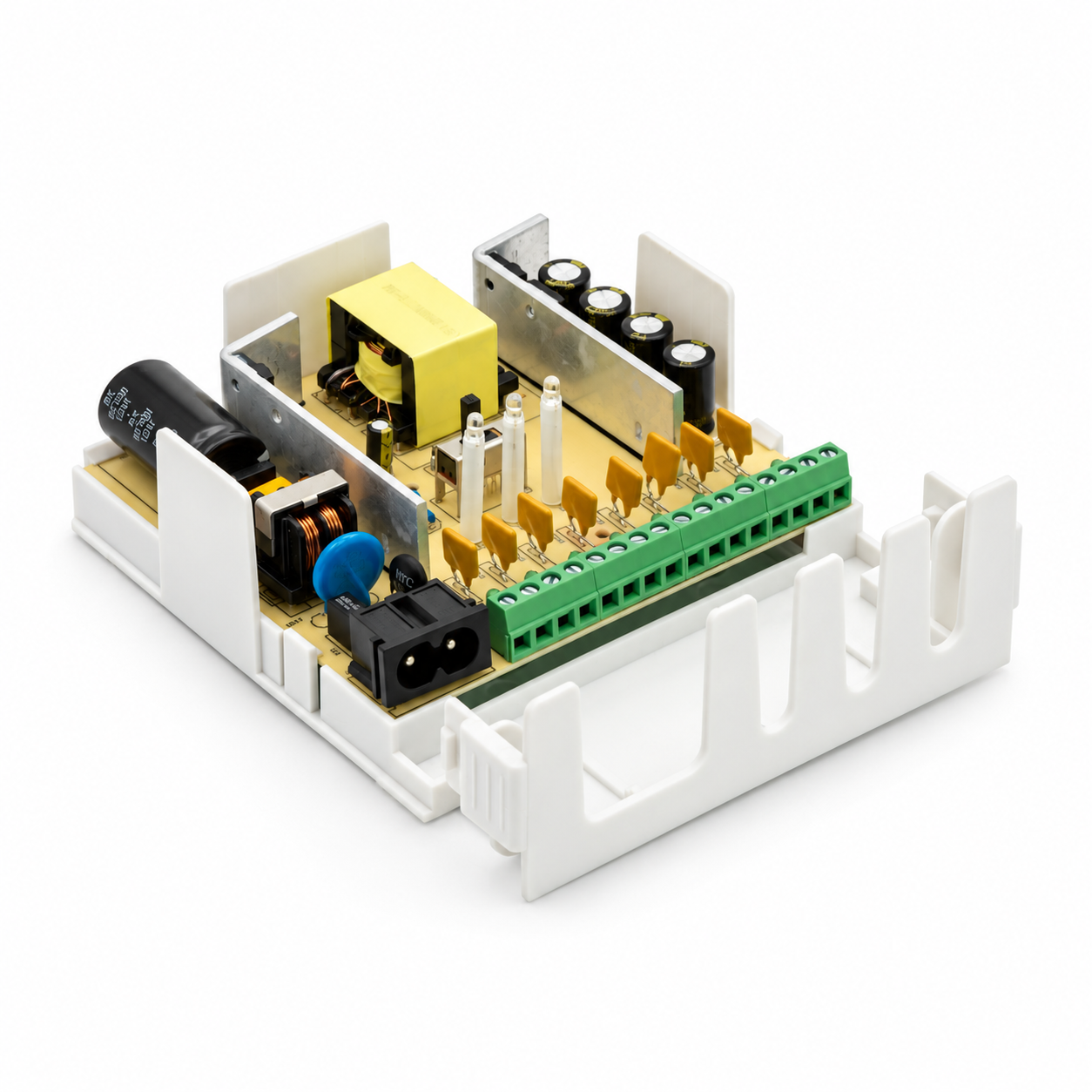

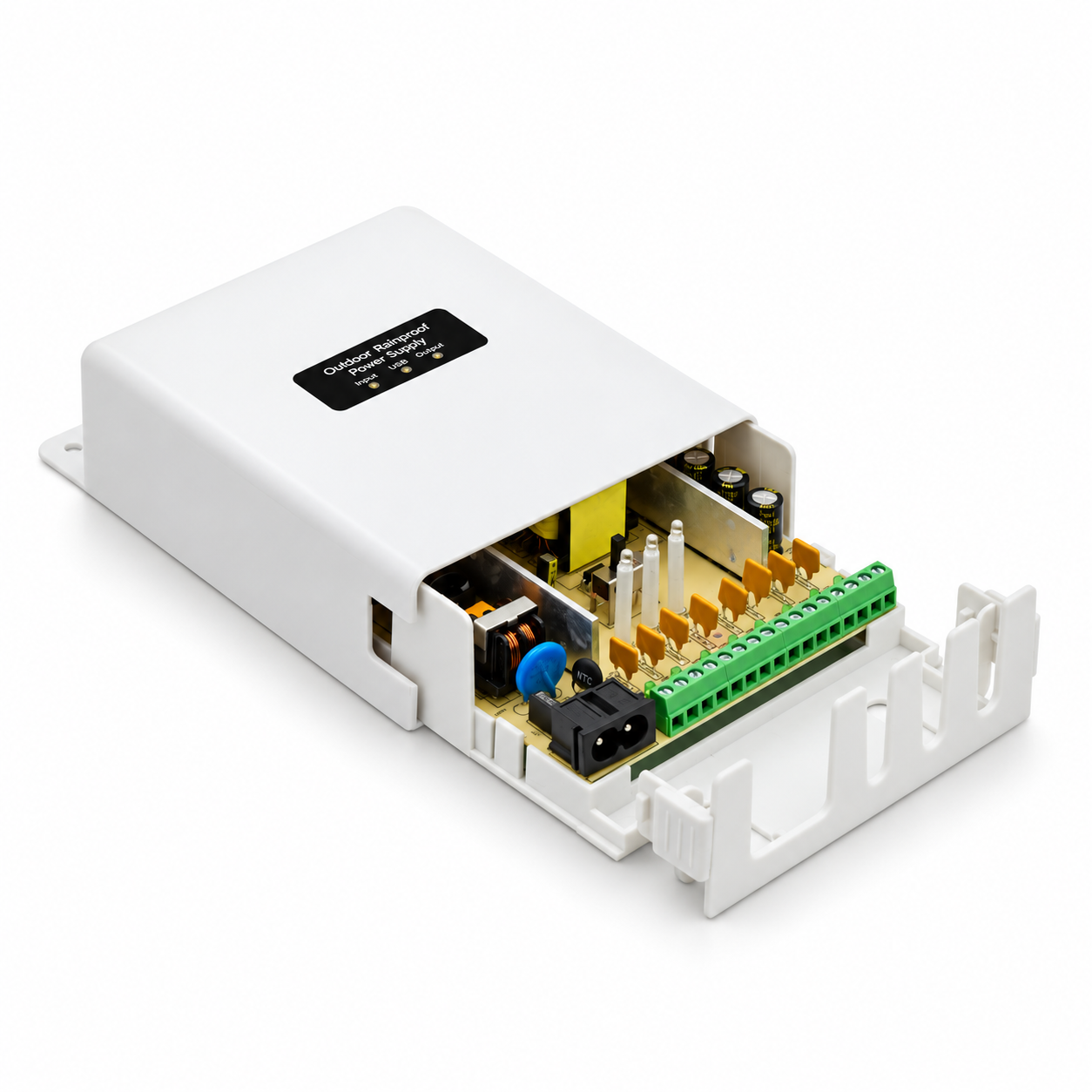

- 8 protected DC outputs with an individual status LED for each channel
- 8A / 96W total output; 1.35A maximum per channel

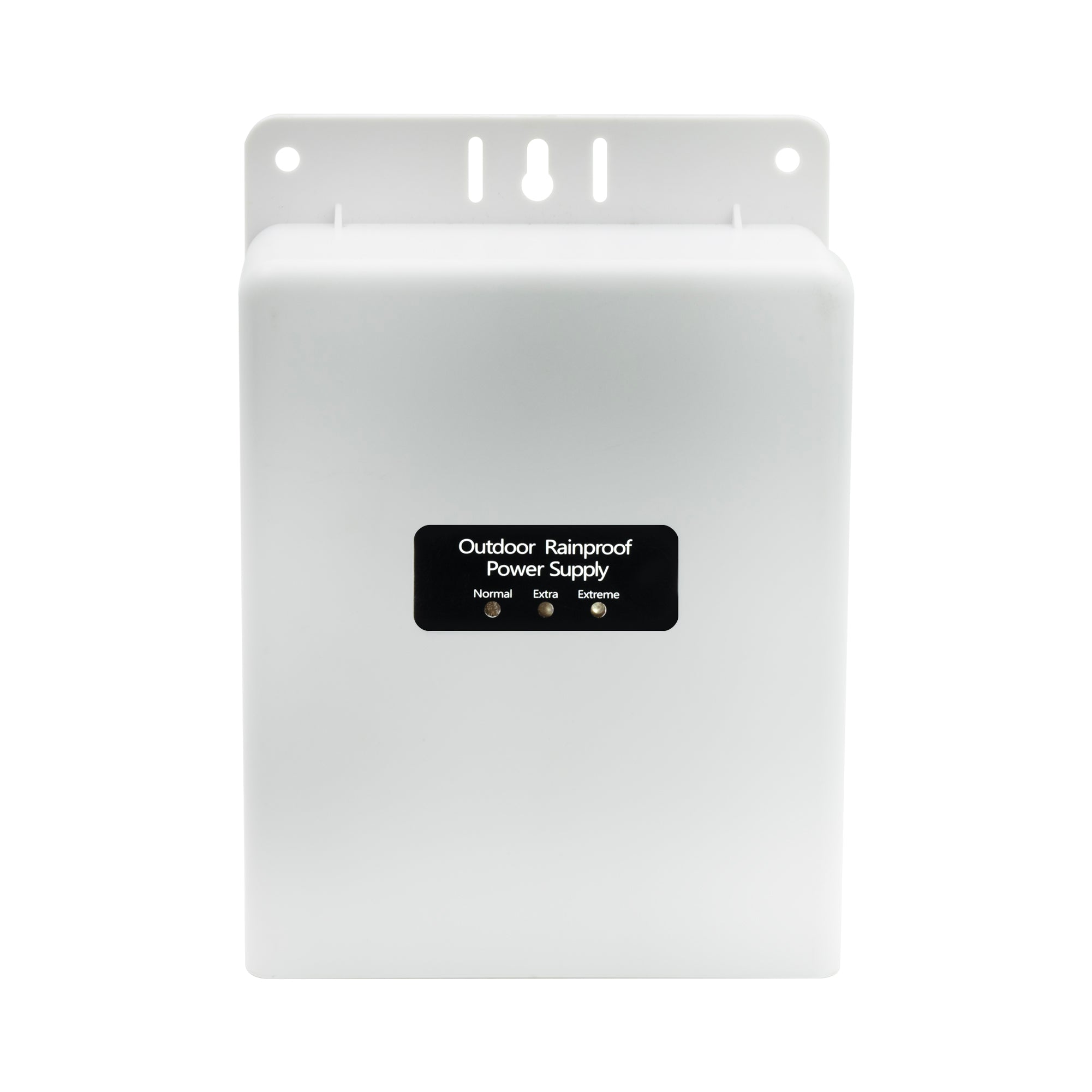

- Selectable 12V, 13.8V or 15V DC with clear Normal, Extra and Extreme indication
- Universal 100-240V AC, 50/60Hz input
- Resettable PTC protection on every output
- Short-circuit, thermal, over-current, overload, over-voltage and under-voltage protection

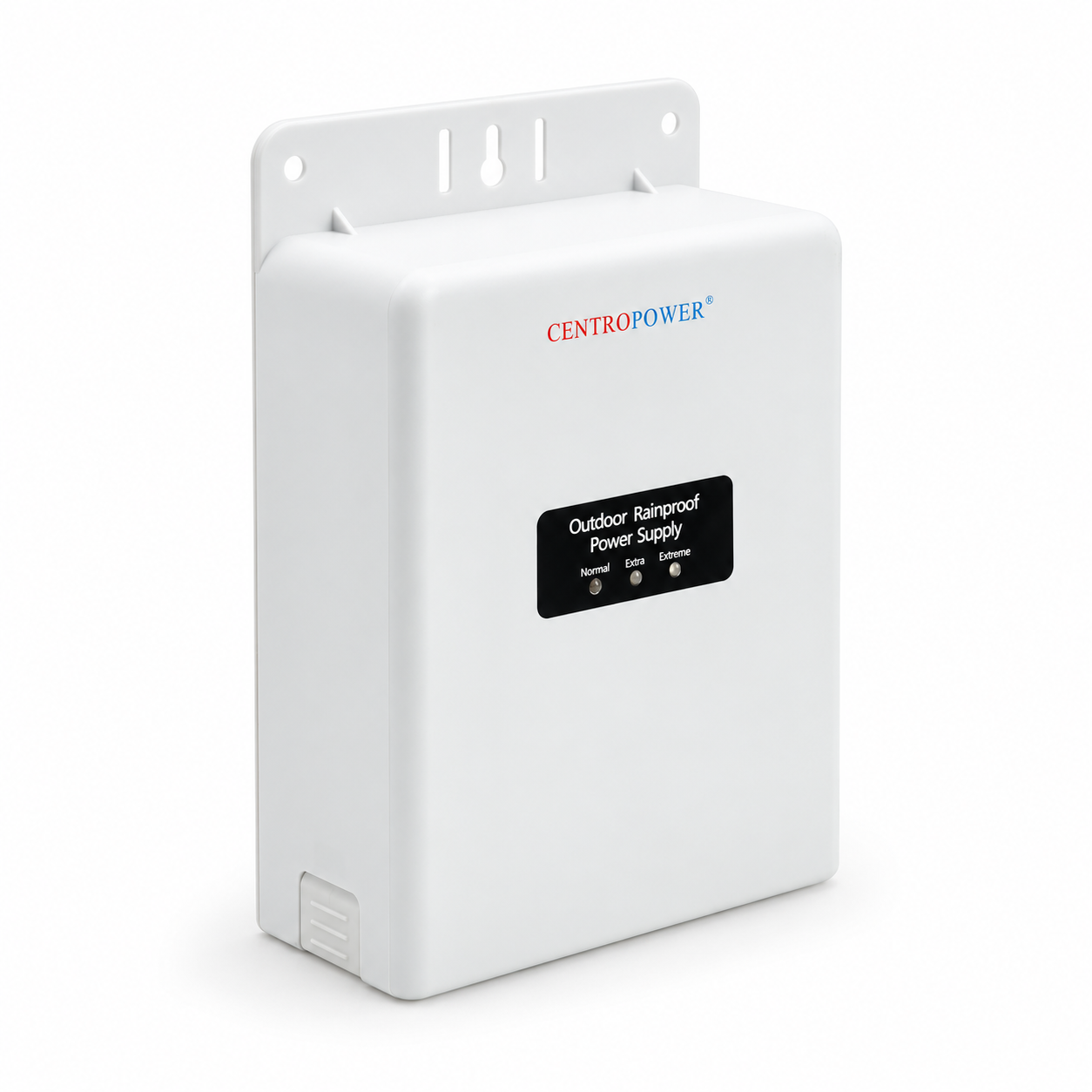

- Wall-mount rainproof enclosure for properly installed outdoor security applications
Technical Specifications
| SKU | PS-DC8A8PE |
| Input | 100-240V AC, 50/60Hz |
| Output voltage | 12V / 13.8V / 15V DC, selectable |
| Total output | 8A maximum, 96W maximum |
| Outputs | 8 channels, 1.35A maximum per channel |
| Efficiency | Greater than 80% |
| Dimensions | 140 × 105 × 45 mm (5.51 × 4.13 × 1.77 in) |
| Operating temperature | -10 to 45°C (14 to 113°F) |
Download the PS-DC8A8PE professional specification sheet (PDF)
Frequently Asked Questions
Why are there three voltage settings?
They allow a qualified installer to select 12V, 13.8V or 15V for compatible equipment and verified cable-drop compensation.
Does each channel provide 8A?
No. The supply provides 8A total. Each output is limited to 1.35A maximum.
Can it be used outdoors?
The enclosure is rainproof when correctly mounted, sealed and installed. Follow local electrical codes and provide suitable grounding and surge protection.
How do I select the correct voltage?
Confirm the powered device's acceptable voltage range, calculate cable loss and measure voltage at the device under load. Do not select voltage by cable length alone.
