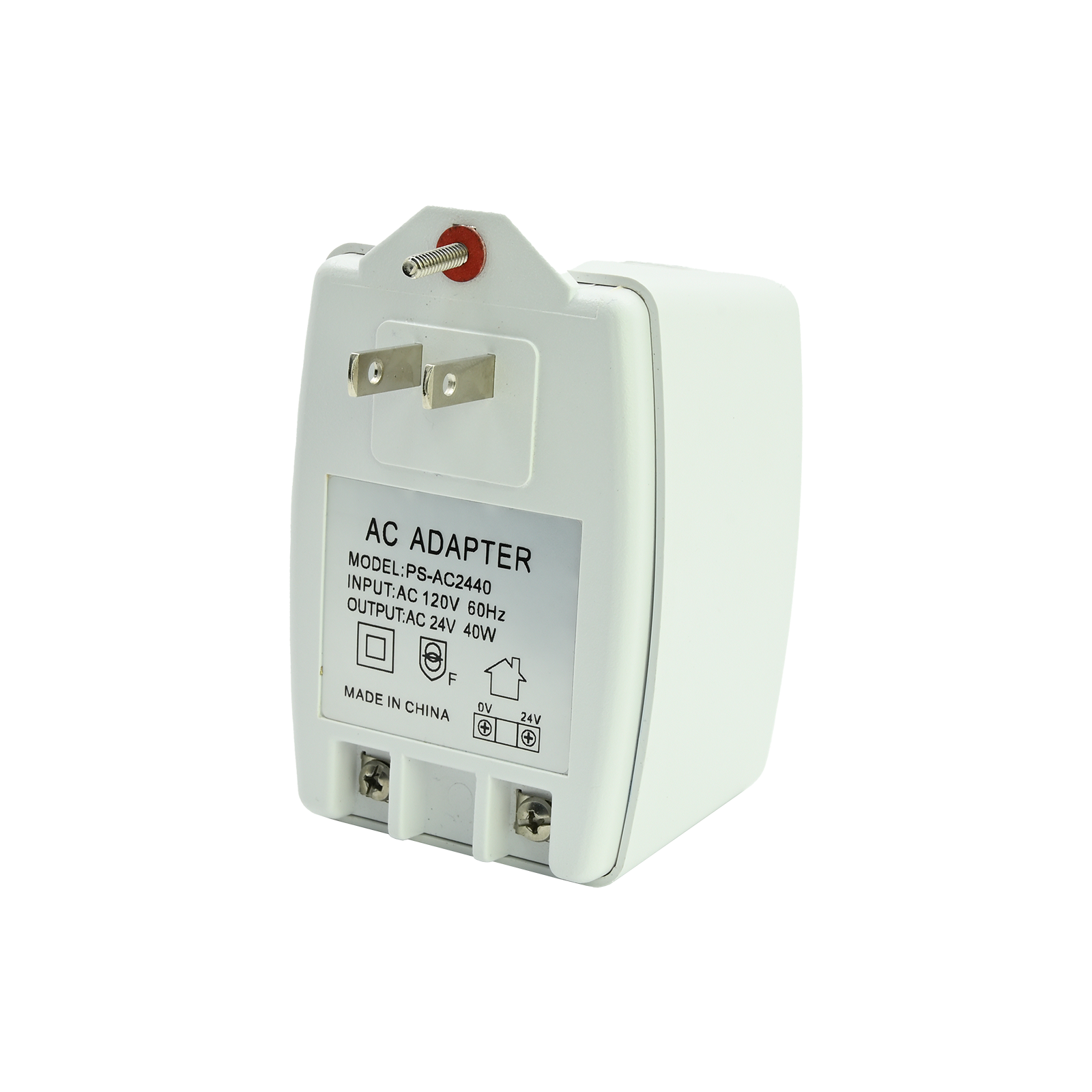

PS-AC2440 24VAC 40W Wall Mount AC Power Adapter
SKU: PS-AC2440UltraPoE PS-AC2440 is a compact 24VAC, 40W wall-mount AC power adapter for low-voltage security and access-control equipment. It converts 120VAC, 60Hz input power to 24VAC output through screw terminals for straightforward field wiring.
Key features
- 24VAC output, 40W maximum power
- 120VAC, 60Hz input with 2-pin wall plug
- Single 24VAC output channel with screw-terminal connection
- Green LED power indicator
- Over-voltage and over-current protection
- Low-interference design for security-system installations
Typical applications
Suitable for CCTV cameras, PTZ cameras, IR illuminators, DVRs, LED drivers, and access-control equipment that require 24VAC power. Confirm the voltage, load, wiring, and device compatibility before installation.
Specifications
| Model | PS-AC2440 |
| Input | 120VAC, 60Hz |
| Output | 24VAC |
| Maximum output power | 40W |
| Output channels | 1 |
| Operating temperature | -20 to 40 C |
| Dimensions | 102 x 66 x 73 mm |
Frequently asked questions
Is this a DC power adapter?
No. PS-AC2440 provides 24VAC output, not DC output.
Can it power a 24VAC PTZ camera?
It can be used with a compatible 24VAC camera or device if the total power demand does not exceed 40W. Verify the device requirements before installation.
How is the output connected?
The adapter uses screw terminals for the 24VAC output connection.
Apply for UltraPoE Wholesale Pricing for project quantities.
