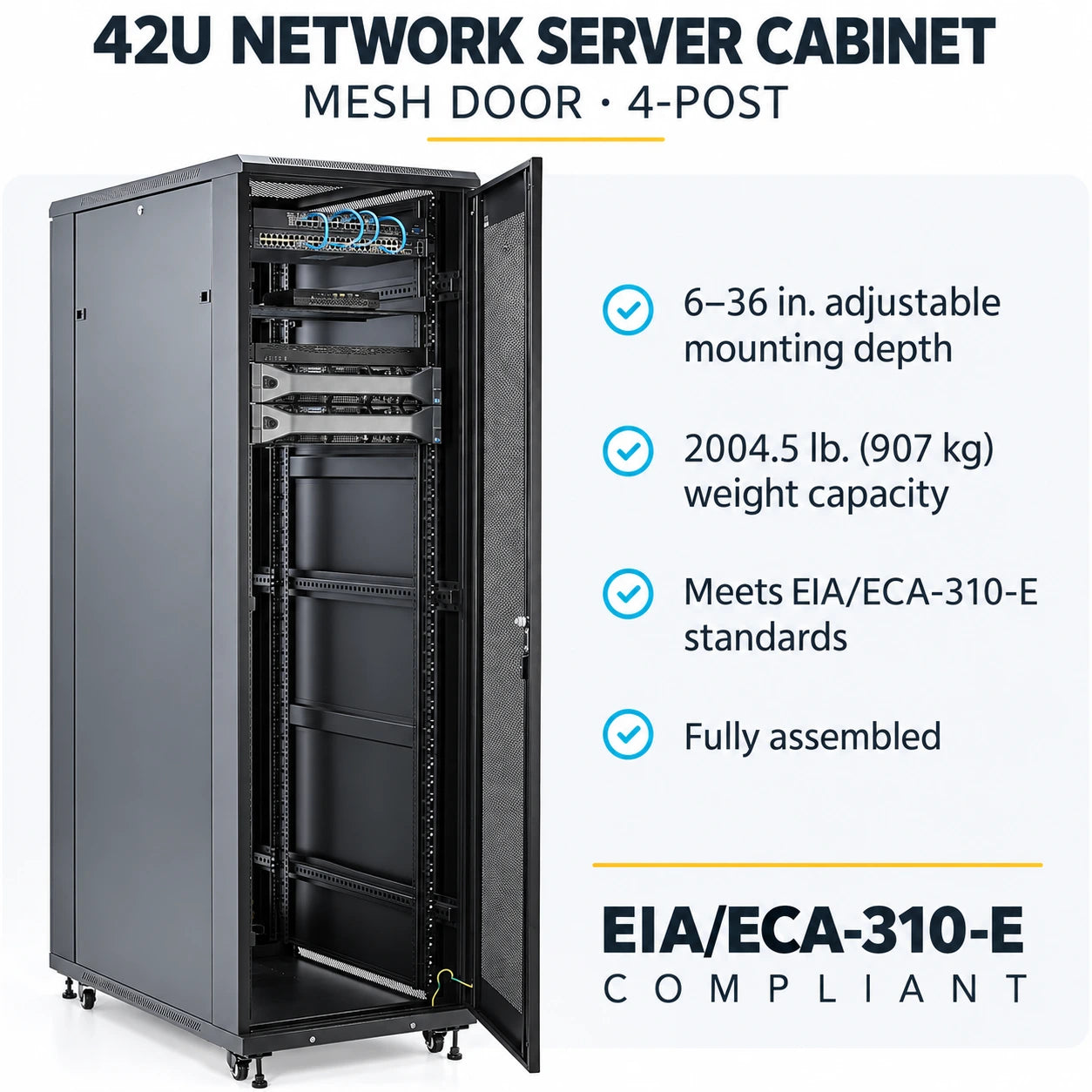

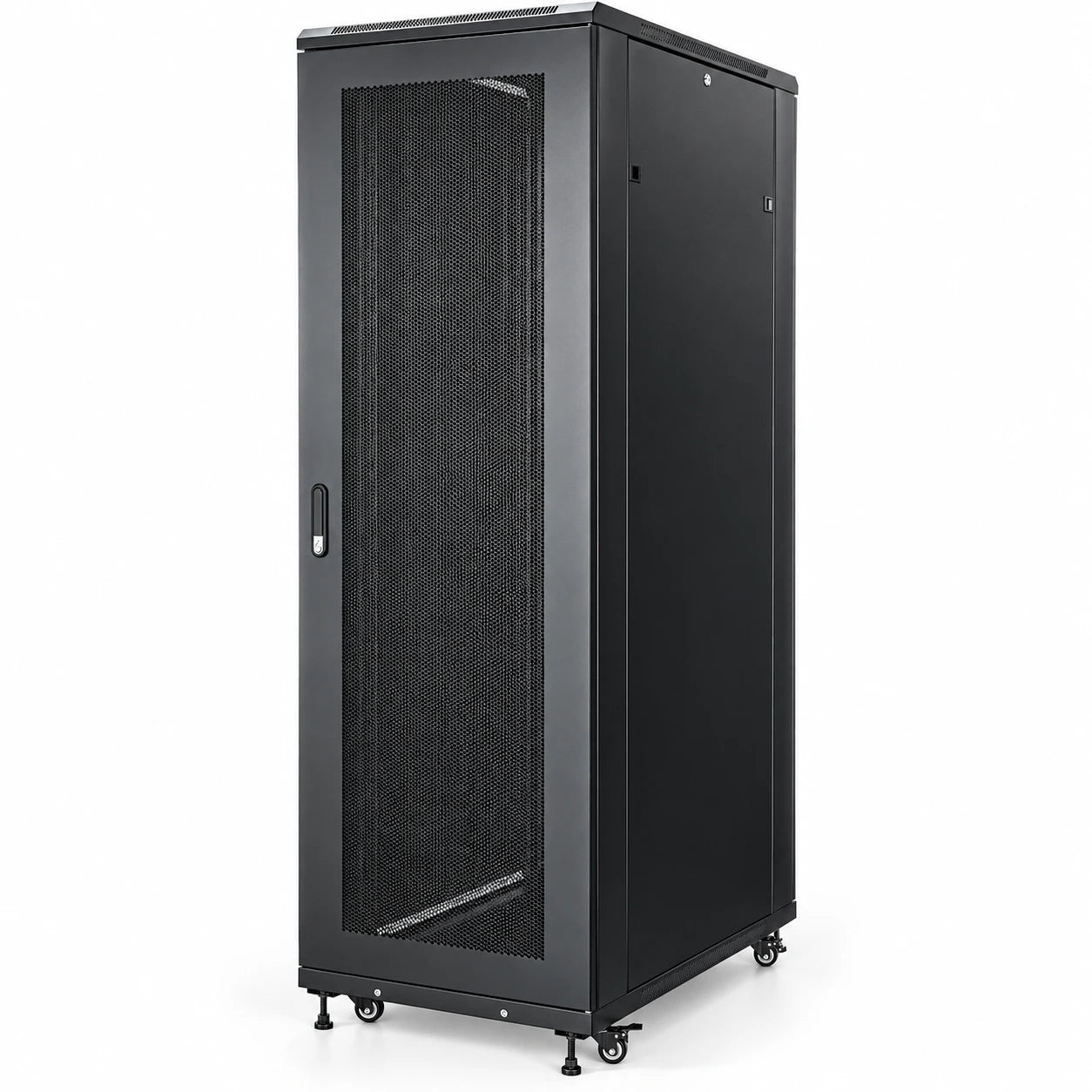

42U 19-Inch Floor-Standing Server Rack Cabinet, 1000mm Deep
SKU: CT-DB42U-100042U Floor-Standing Server Rack Cabinet - 1000 mm Deep
The UltraPoE CT-DB42U-1000 is a full-size 42U network and server cabinet for data centers, equipment rooms, surveillance systems, structured cabling and enterprise IT installations. Its external dimensions are 800 W × 1000 D × 2050 H mm (31.50 W × 39.37 D × 80.71 H in), providing generous space for compatible 19-inch servers, switches, patch panels, NVR/DVR systems, rack PDUs and cable management.
Key Features
- 42U equipment capacity: Standard 19-inch rack format for high-density network and server installations.
- Deep 1000 mm (39.37 in) enclosure: Supports larger equipment and improves rear cable-management space.
- High-airflow doors: Locking hexagonal-mesh front and rear doors support ventilation and controlled access.
- Adjustable mounting rails: Four numbered rack uprights can be repositioned front to rear.
- Easy service access: Quickly removable side panels simplify installation and maintenance.
- Integrated cooling: Top fan tray with four high-speed cooling fans.
- Mobile and levelable: Four casters and four M12 support feet can be installed together.
- Heavy-duty structure: Rated for up to 800 kg static load when correctly assembled and installed.
Technical Specifications
| Model | DB8042 |
|---|---|
| SKU | CT-DB42U-1000 |
| Rack capacity | 42U |

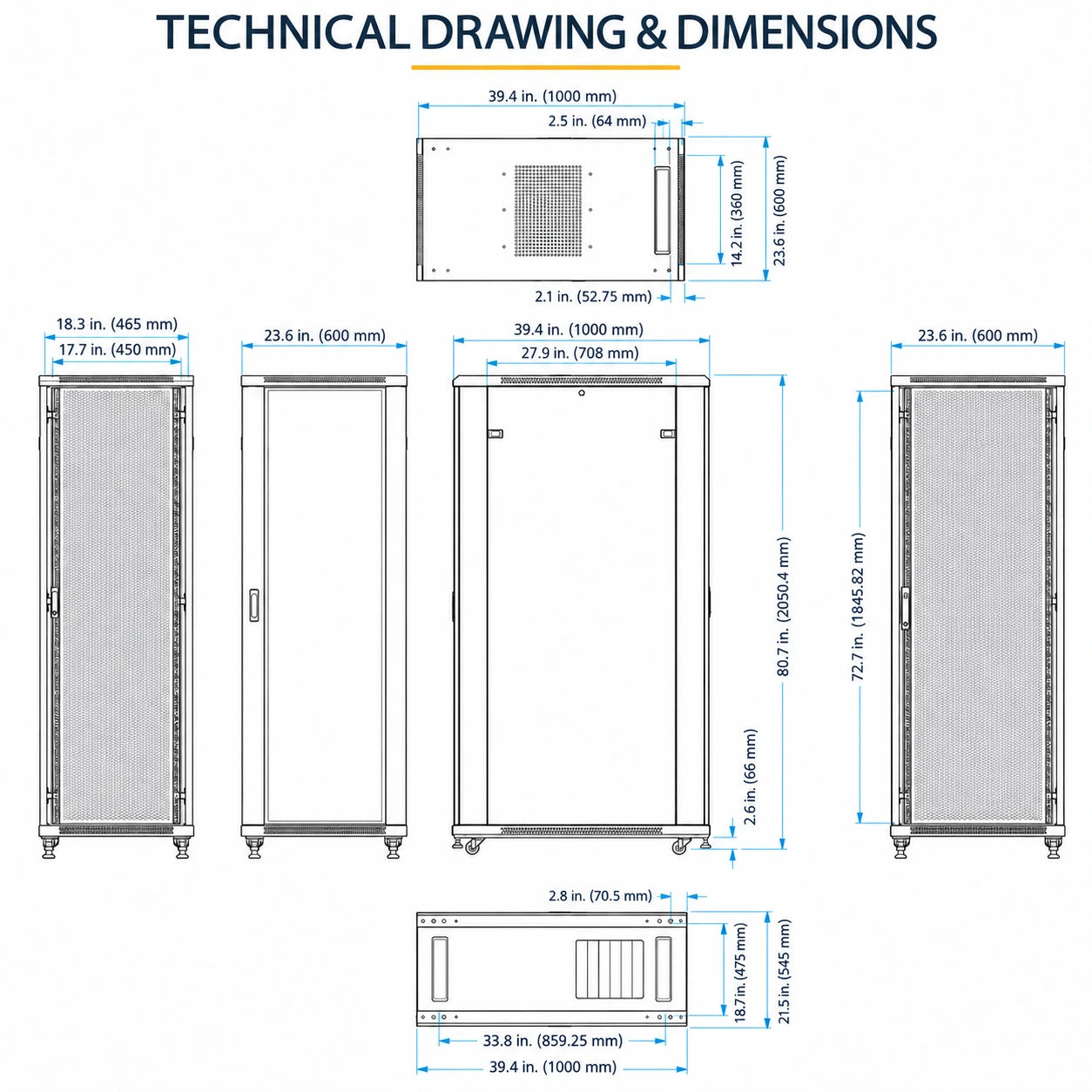

| External dimensions | 800 W × 1000 D × 2050 H mm (31.50 W × 39.37 D × 80.71 H in) |
| Rack standard | 19-inch equipment mounting |
| Material | SPCC cold-rolled steel |
| Rack uprights | Four adjustable numbered rails |
| Door configuration | Locking single mesh front door and single mesh rear door |
| Side panels | Two quick-removable steel panels |
| Cooling | Top fan tray with 4 fans |
| Shelves | 3 adjustable shelves |
| Static load capacity | Up to 800 kg (1,764 lb) |
| Protection rating | IP20 - indoor use |
| Finish | Electrostatic powder coating |
| Color | Black, RAL 9004 |
| Listed weight | 132 kg (291 lb) |
Included Hardware
Four casters, four M12 support feet, 40 sets of M6 × 12 rack screws and nuts, three shelves, and one 6-outlet power strip.
Frequently Asked Questions

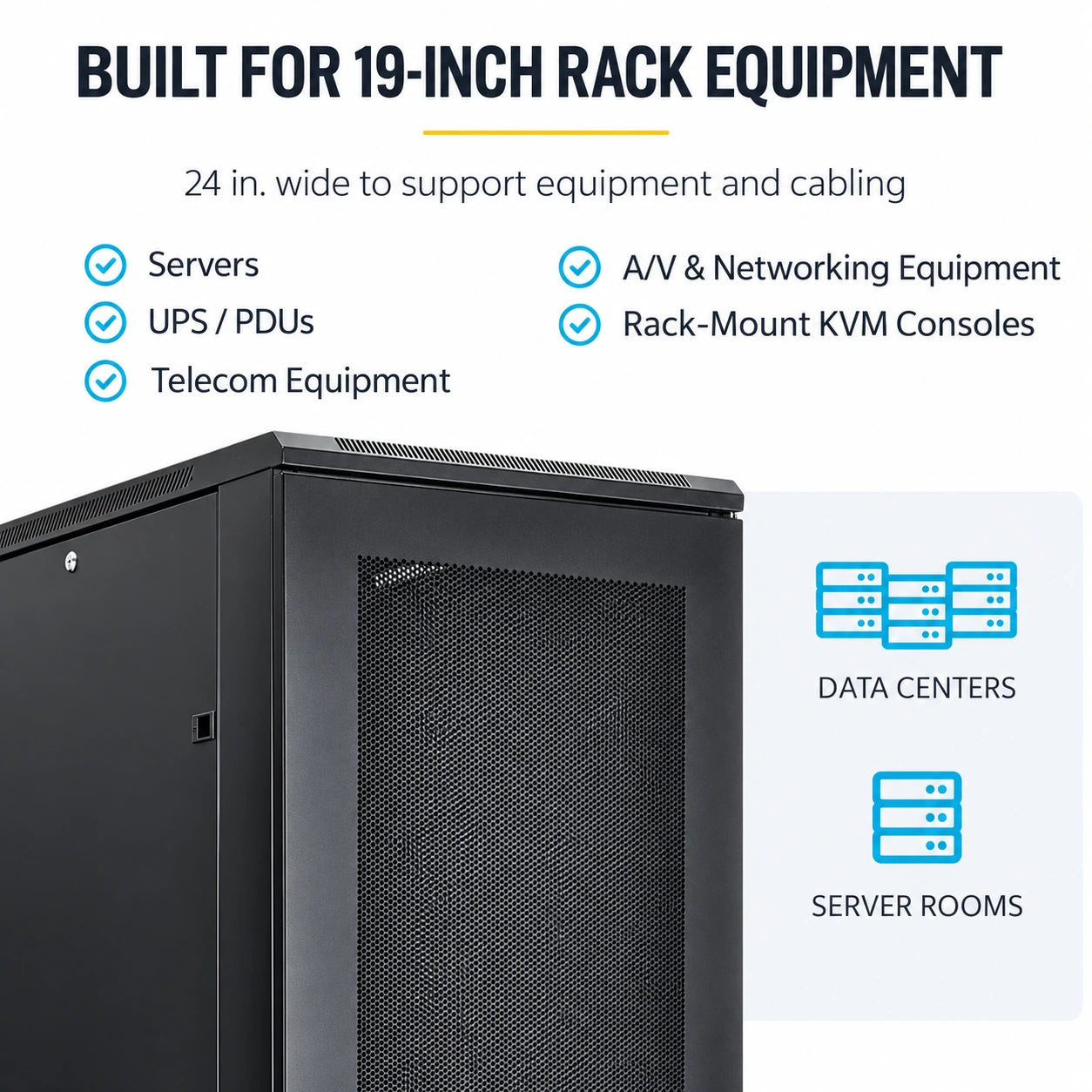

Will standard 19-inch equipment fit?
Yes. The cabinet is designed for compatible 19-inch rack-mount equipment. Confirm each device's depth, weight and mounting requirements before installation.
Is this cabinet suitable for outdoor use?
No. Its IP20 rating is intended for dry indoor equipment rooms, data centers and controlled facilities.
How much cooling is included?
The 1000 mm (39.37 in) deep DB8042 configuration includes a top fan tray with four cooling fans. Final thermal performance depends on equipment load, room temperature and airflow planning.
Can the cabinet be moved?
Yes. Casters are included for positioning, and M12 support feet provide stable placement after installation.
